3. Set the Alarm Actions for Motion Detection.
Purpose:
You can specify the linkage method when an event occurs. The following contents are about
how to configure the different types of linkage method.
Check the checkbox to select the linkage method. Notify surveillance center, send email, upload to
FTP, trigger channel and trigger alarm output are selectable.
Notify Surveillance Center
Send an exception or alarm signal to remote management software when an event occurs.
Send Email
Send an email with alarm information to a user or users when an event occurs.
Note: To send the Email when an event occurs, you need to refer to Section
6.3.10 Configuring Email Settings to set the Email parameters.
Upload to FTP
Capture the image when an alarm is triggered and upload the picture to a FTP server.
Note: You need a FTP server and set FTP parameters first. Refer to Section
6.3.8 Configuring FTP Settings for setting FTP parameters.
Trigger Channel Record a video when an event occurs.
Note: You have to set the recording schedule to realize this function. Please refer to Section 7.2
Configuring Recording Schedule for settings the recording schedule.
Trigger Alarm Output Trigger one or more external alarm outputs when an event occurs.
Note: To trigger an alarm output when an event occurs, please refer to Section 6.6.5 Configuring Alarm
Output to set the alarm output parameters.

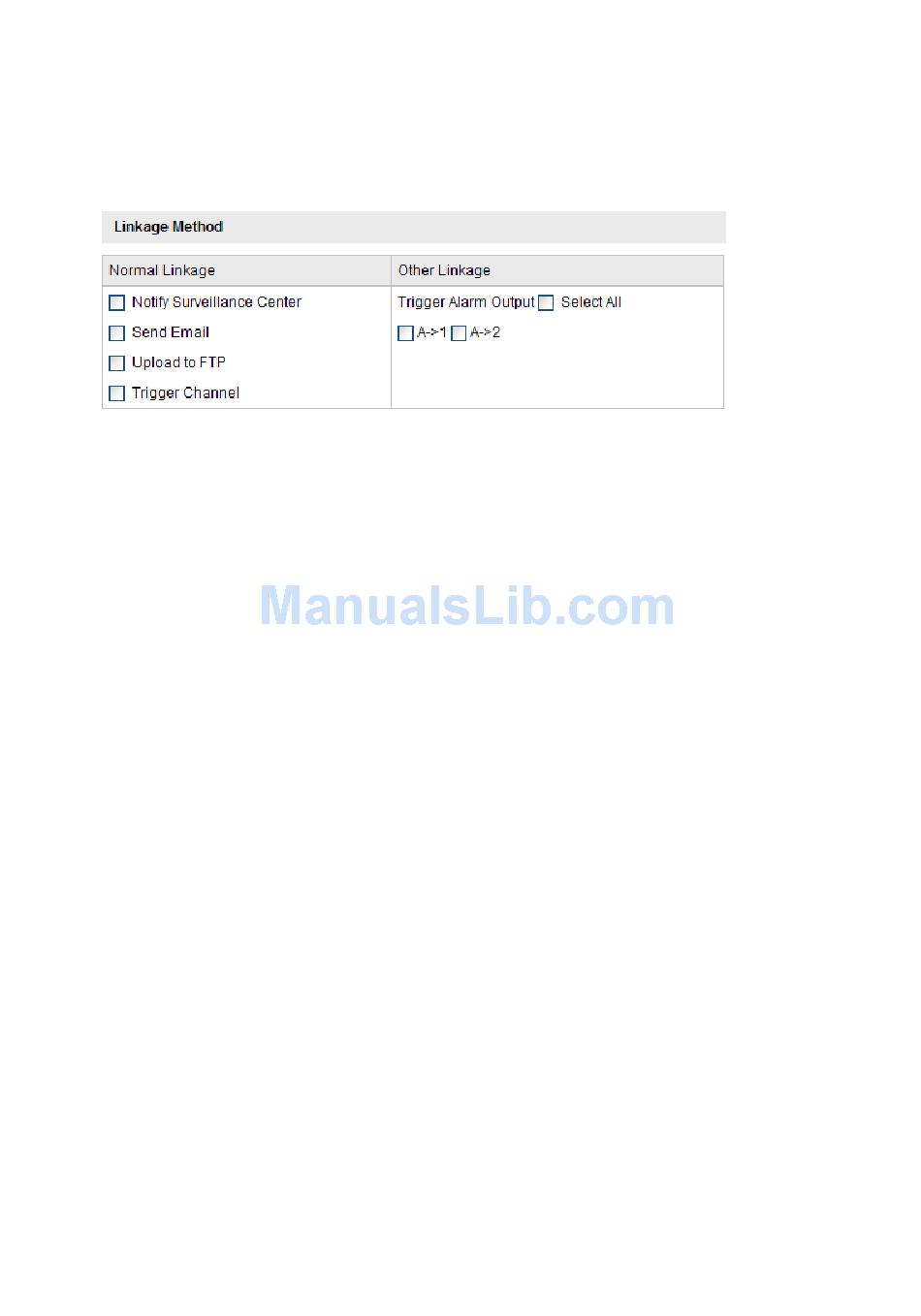

Figure 6-43 Linkage Method
