Configuring T ime Synchronization Manually
(1) Check the Manual Time Sync. Checkbox.
(2) Click to set the system time from the pop-up calendar. (3) Click
to save the settings.
Note: You can also check the Sync. with computer time checkbox to synchronize the time of the PTZ with
the time of your computer.
Select the T ime Zone
Purpose:
When the PTZ is taken to another time zone, you can use the Time Zone function to adjust the
time. The time will be adjusted according to the original time and the time difference between
the two time zones.
From the Time Zone drop-down menu as shown in Figure 6-5, select the Time
Zone in which the PTZ locates.

6.3 Configuring Network Settings

6.3.1 Configuring TCP/IP Settings

Purpose:
TCP/IP settings must be properly configured before you operate the PTZ over network. IPv4 and
IPv6 are both supported.

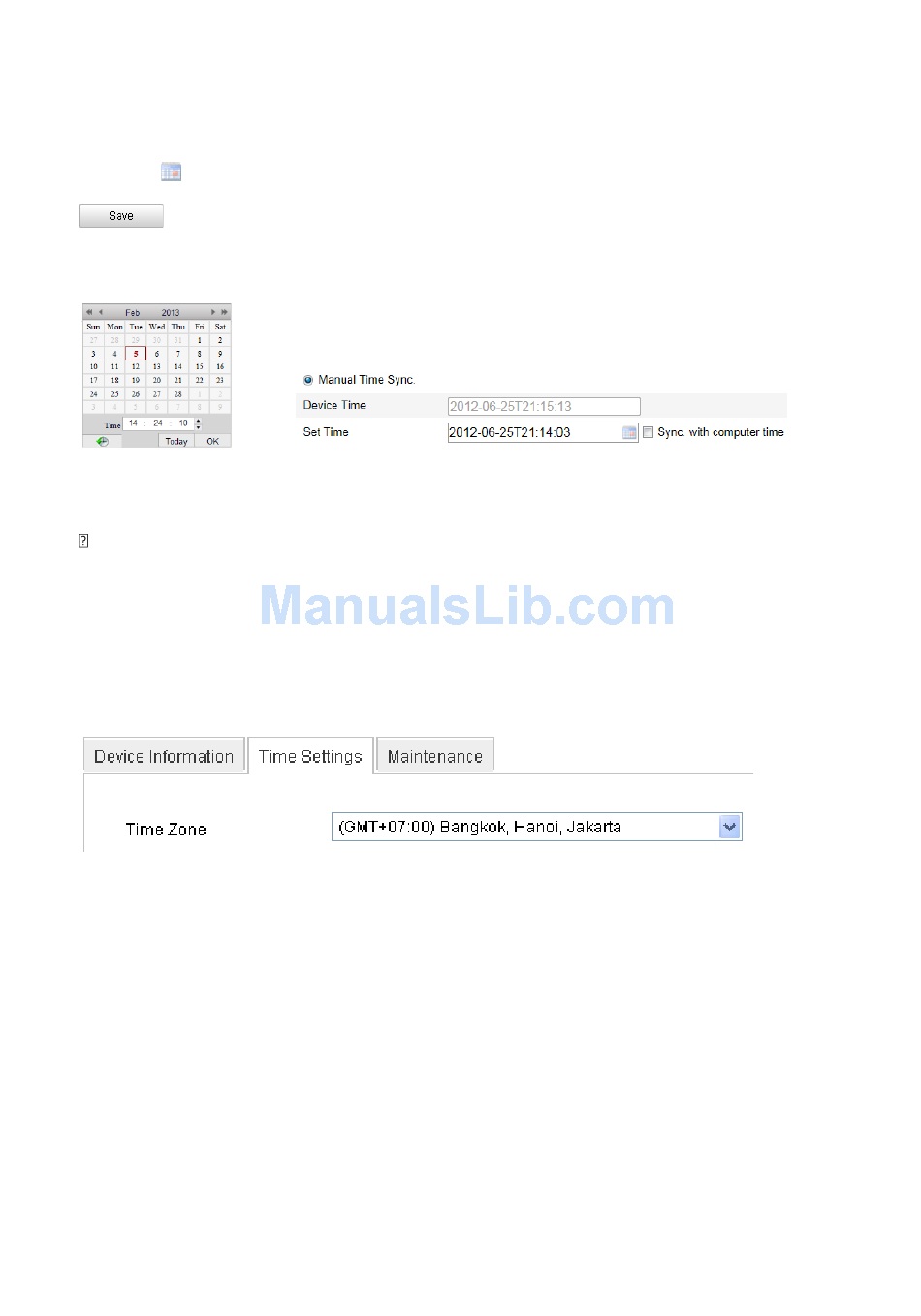

Figure 6-4 Time Sync Manually
Figure 6-5 Time Zone Settings
24
