Provision ISR Ultra-Z IP series User Manual page 34

2. Configuration > Advanced Configuration > Network > Email
2. Configure the following settings:
Sender: The name of the email sender.
Sender's Address: The email address of the sender.
SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).
SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25.
Enable SSL: Check the checkbox to enable SSL if it is required by the SMTP server.
Attached Image: Check the checkbox of Attached Image if you want to send emails with
attached alarm images.
Interval: The interval refers to the time between two actions of sending attached pictures.
Authentication (optional): If your email server requires authentication, check this checkbox
to use authentication to log in to this server and enter the login user name and password.
Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured.
Receiver: The name of the user to be notified.
Receiver's Address: The email address of user to be notified.
3. Click to save the settings.

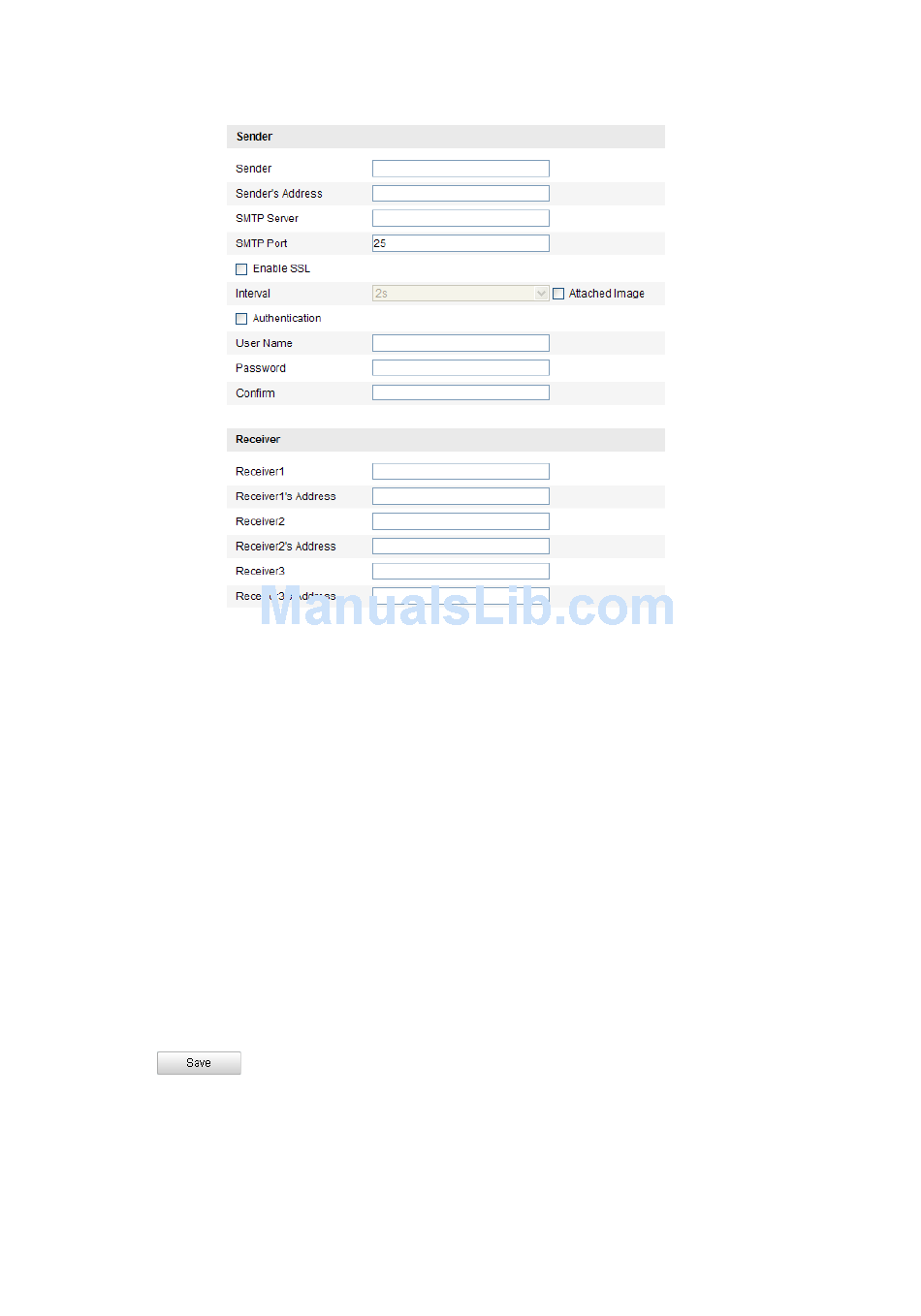

Figure 6-23 Email Settings
34
