6.6.1 Configuring Motion Detection

Purpose:
Motion detection is a feature which can trigger alarm actions and actions of recording
videos when the motion occurred in the surveillance scene.
Steps:
1. Set the Motion Detection Area.
Steps:
(1) Enter the motion detection settings interface
Configuration > Advanced Configuration> Events > Motion Detection
(2) Check the checkbox of Enable Motion Detection.

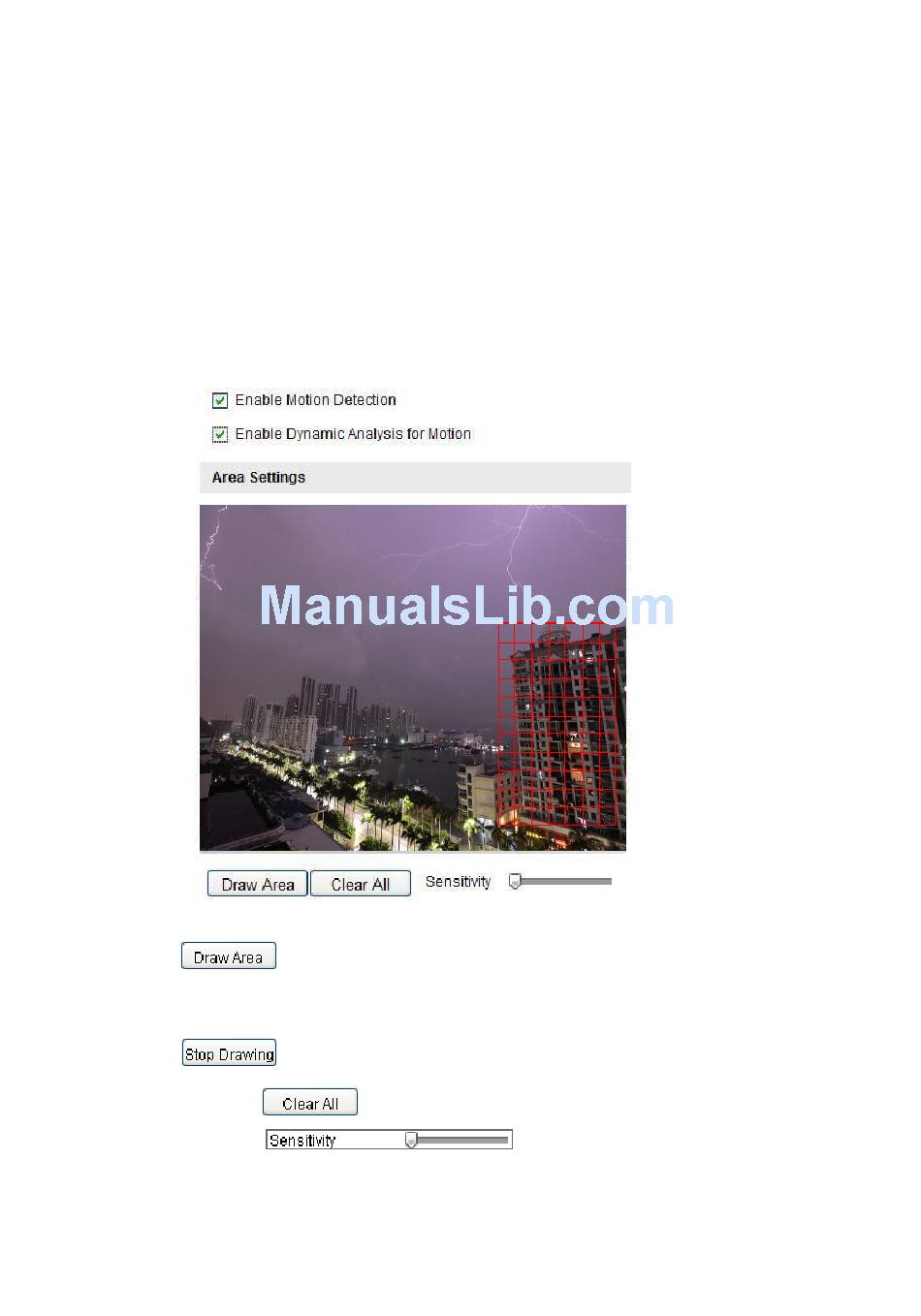

Figure 6-40 Enable Motion Detection
(3) Click
detection area.
Note: You can draw up to 8 motion detection areas on the same image.
(4) Click
Note: You can click
(5) Move the slider
. Click and drag the mouse on the live video image to draw a motion
to finish drawing.
to clear all of the areas.
to set the sensitivity of the detection.
45
