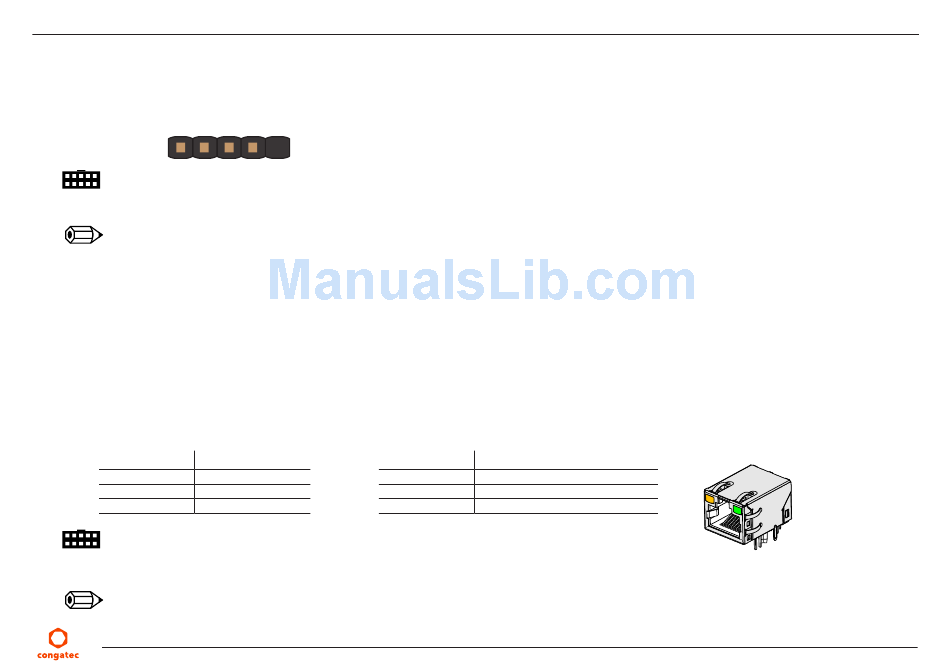

Internal USB 2.0 Connector

The conga-IA5 offers one USB 2.0 port on connector X15 (internal header).
Internal USB 2.0 - Connector X15
Connector Type
X15: 2.54mm, 1x5 pin header, pin 1 removed
Note
congatec offers a cable for connector X15 (see section 1.2.2 "Optional Accessories"). For more information, contact congatec technical
solution department.
Connector X15 has a maximum current of 0.5A.
5.7

Ethernet 10/100/1000

The conga-IA5 provides two Gigabit Ethernet ports (connectors X6 and X7) on the rear side. The two Gigabit Ethernet interfaces are supported
via the Intel Gigabit Ethernet controller i211 (commercial variants) or i210 (industrial variants).
Table 27 LED Descriptions
LED Left Side Description
Off 10 Mbps link speed
Green 100 Mbps link speed
Orange 1000 Mbps link speed
Connector Type
X6, X7: 8 pin RJ45 connector with gigabit magnetic and LEDs
Note
Connectors X6 and X7 do not support the Intel
Copyright © 2017 congatec AG
LED Right Side Description
Off No link
Steady On Link established, no activity detected
Blinking Link established, activity detected
® AMT feature.
IA50m01
Gigabit Ethernet - Connectors X6/X7
