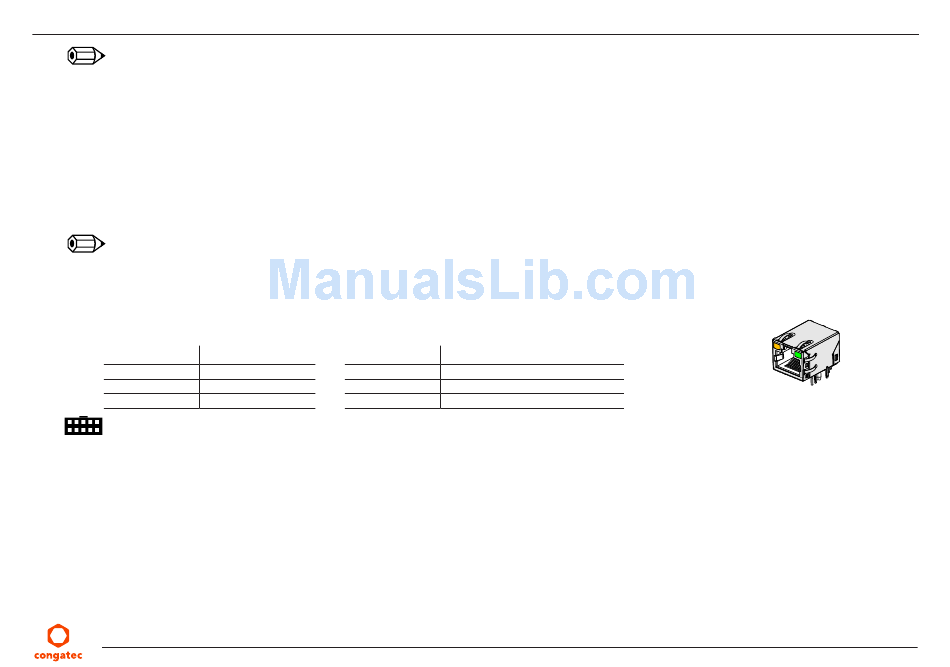

1. On hardware revision A.x and earlier, the M.2 slot supports SATA SSD and WWAN (USB 2.0) devices by default, and PCIe x1 devices via a
customized BIOS.
2. Micro-SIM card slot (connector 11) is connected to the UIM Interface of the M.2 slot by default.
5.7
Ethernet 10/100/1000
The conga-IC170 provides two Gigabit Ethernet ports (connectors X5 and X6) on the rear side. The LAN interface on connector X5 supports
Intel AMT technology while that on connector X6 does not support it.
Note
Connector X6 does not support Wake on LAN from S5 mode in Windows 10.
Table 29
LED Description
LED Left Side
Description
Off
10 Mbps link speed
Green
100 Mbps link speed
Orange
1000 Mbps link speed
Connector Type
X5/X6: 8-pin RJ45 connector with gigabit magnetic and LEDs
Copyright © 2016 congatec AG
LED Right Side Description
Off
No link
Steady On
Link established, no activity detected
Blinking
Link established, activity detected
ICSLm13.indd
Connector X5/X6
41/95
