4. Uncheck the "Import into new working layer" option to import the file to the existing working
layer. By default the option will be checked.
5. Click "Import".

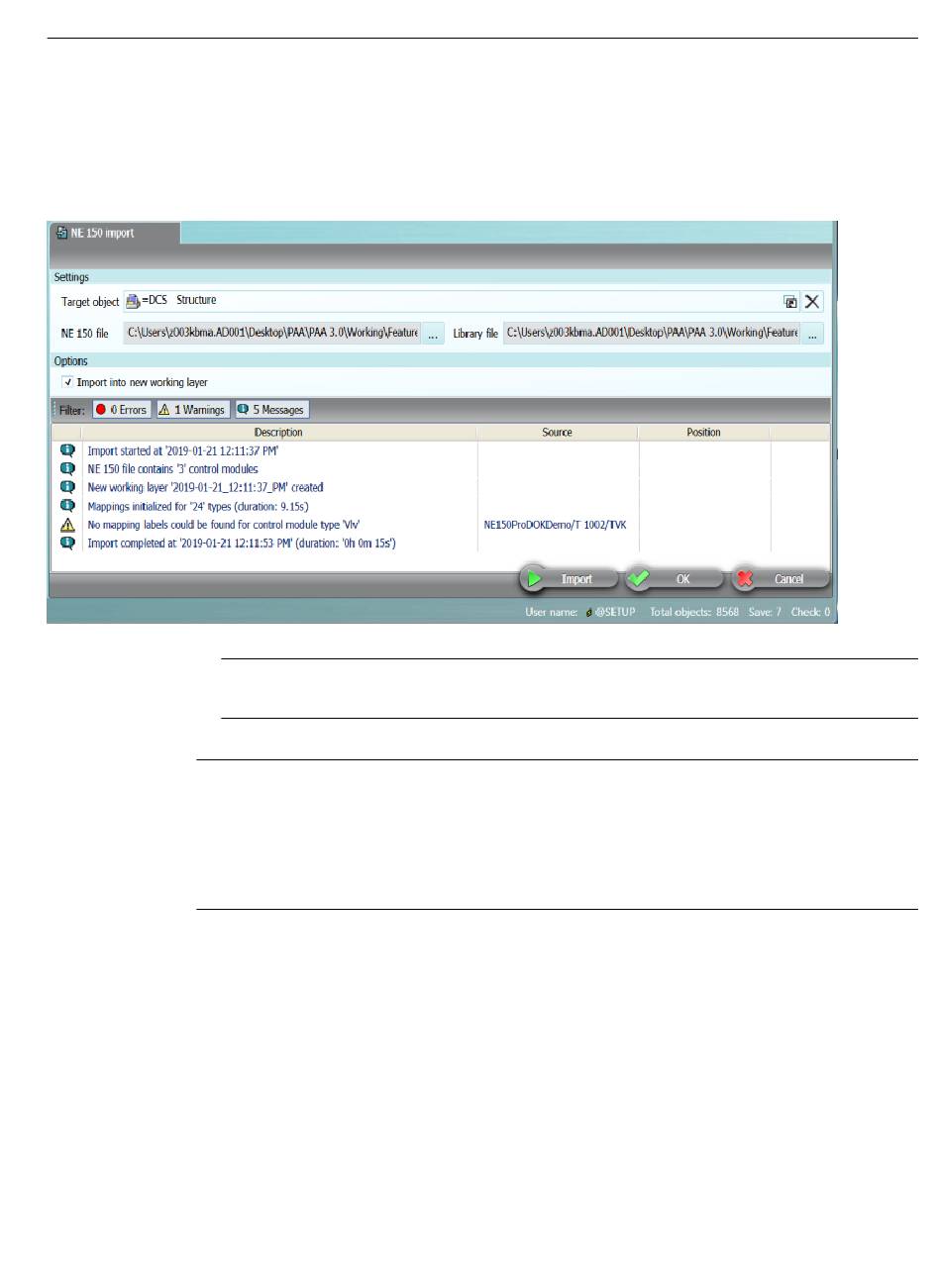

Errors, warnings, and messages related to the import are displayed in the status window. So
the user can know the status, any errors or warnings while execution.
Note
The "Import" button is enabled only when both NE 150 and Library files are selected.
Note
● If there is already a hierachy object with the same name existing, then no new hierarchy
object is created, and the existing object is used and the attributes will be imported.
● If the CM instance with the same name exists already, then no new CM instance is created.
In this case, the existing CM instance is used and the attributes will still be imported.
● All attribute fields are "optional" and the import will still continue if an attribute is missing also.
Plant Automation Accelerator 3.0
Operating Manual, 04/2019, A5E46351208-AA
NE 150 import plugin
10.1 NE 150 import
