Advanced commissioning
6.3 Adapt the default setting of the terminal strip
6.3.4

Analog outputs

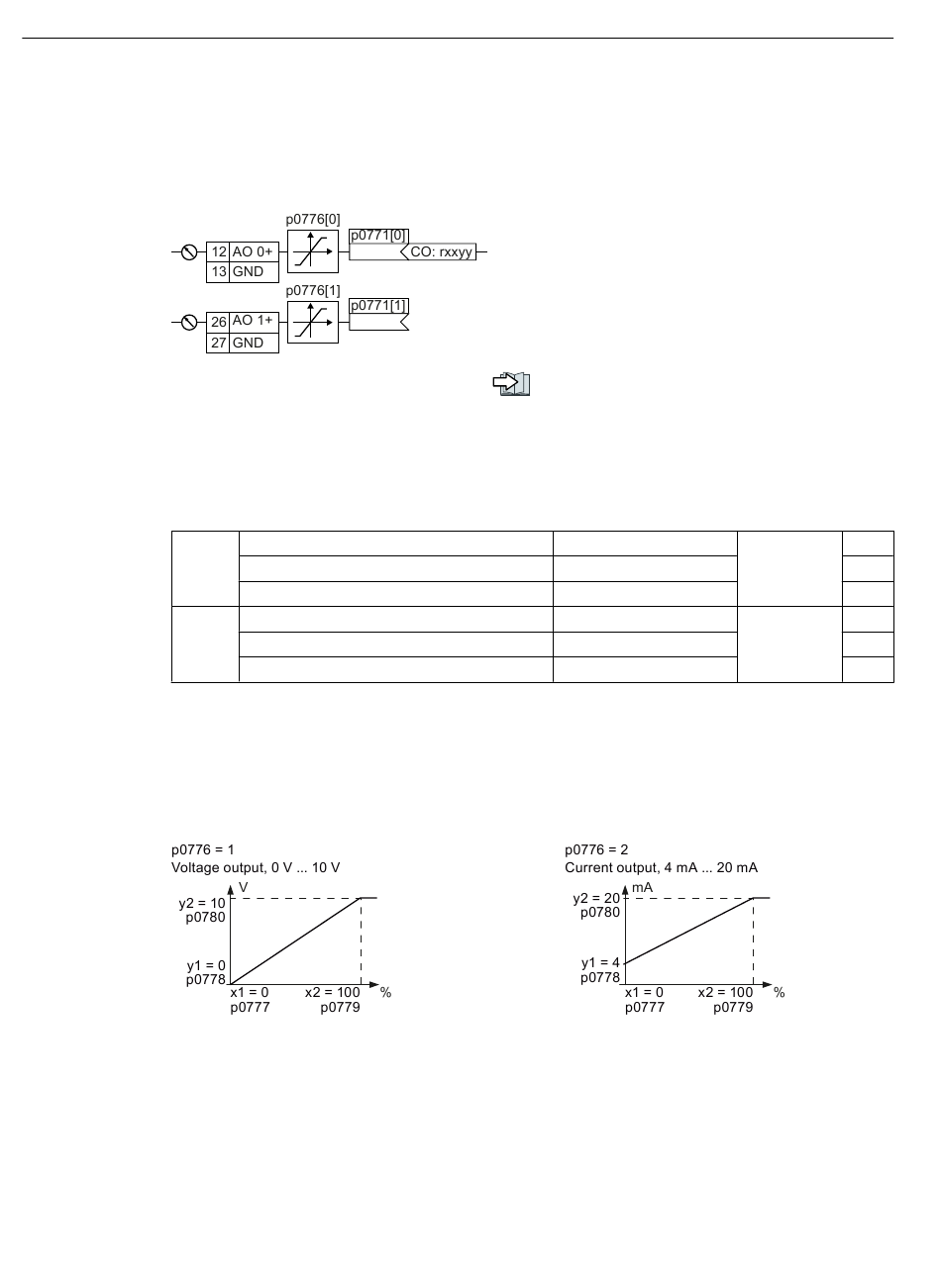

Overview
Defining the analog output type
The inverter offers a series of default settings, which you can select using parameter p0776:
AO 0
AO 1
Characteristics
If you change the analog output type, then the inverter automatically selects the appropriate
scaling of the analog output. The linear scaling characteristic is defined using two points
(p0777, p0778) and (p0779, p0780).
Figure 6-6
174
Current output (factory setting)
Voltage output
Current output
Current output (factory setting)
Voltage output
Current output
Examples for scaling characteristics
Define the analog output type using parameter
p0776.
You define the analog output function by intercon‐
necting parameter p0771 with a connector output
CO of your choice.
Connector outputs are marked with "CO" in the pa‐
rameter list of the List Manual.
Interconnecting signals in the inverter
(Page 503).
0 mA ... +20 mA
0 V ... +10 V
+4 mA ... +20 mA
0 mA ... +20 mA
0 V ... +10 V
+4 mA ... +20 mA
Converter with the CU250S-2 Control Units
Operating Instructions, 04/2018, FW V4.7 SP10, A5E31759476B AG
p0776[0] = 0
1
2
p0776[1] = 0
1
2
