PANEL DESCRIPTION

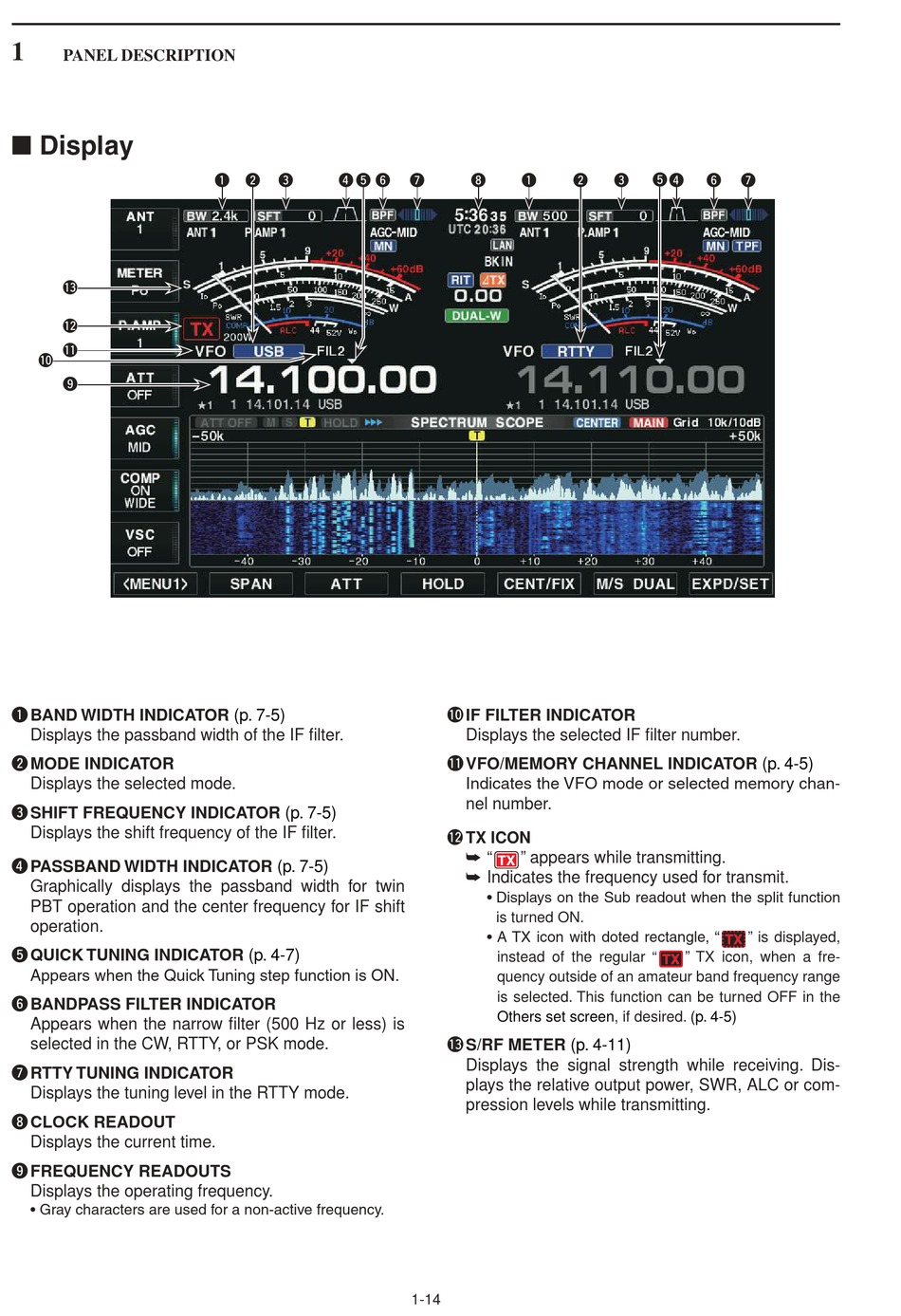

■ Display

!3
!2
!1
!0
o
q BAND WIDTH INDICATOR
Displays the passband width of the IF filter.
w MODE INDICATOR
Displays the selected mode.
e SHIFT FREQUENCY INDICATOR
Displays the shift frequency of the IF filter.
r PASSBAND WIDTH INDICATOR
Graphically displays the passband width for twin
PBT operation and the center frequency for IF shift
operation.
t QUICK TUNING INDICATOR
Appears when the Quick Tuning step function is ON.
y BANDPASS FILTER INDICATOR
Appears when the narrow filter (500 Hz or less) is
selected in the CW, RTTY, or PSK mode.
u RTTY TUNING INDICATOR
Displays the tuning level in the RTTY mode.
i CLOCK READOUT
Displays the current time.
o FREQUENCY READOUTS
Displays the operating frequency.
• Gray characters are used for a non-active frequency.
q w e r t y
(p. 7-5)
(p. 7-5)
(p. 7-5)
(p. 4-7)
u i q w
!0 IF FILTER INDICATOR
Displays the selected IF filter number.
!1 VFO/MEMORY CHANNEL INDICATOR
Indicates the VFO mode or selected memory chan-
nel number.
!2 TX ICON
➥
" " appears while transmitting.
TX
➥
Indicates the frequency used for transmit.
• Displays on the Sub readout when the split function
is turned ON.
• A TX icon with doted rectangle, "
instead of the regular "
quency outside of an amateur band frequency range
is selected. This function can be turned OFF in the
Others set screen, if desired.
!3 S/RF METER
(p. 4-11)
Displays the signal strength while receiving. Dis-
plays the relative output power, SWR, ALC or com-
pression levels while transmitting.
