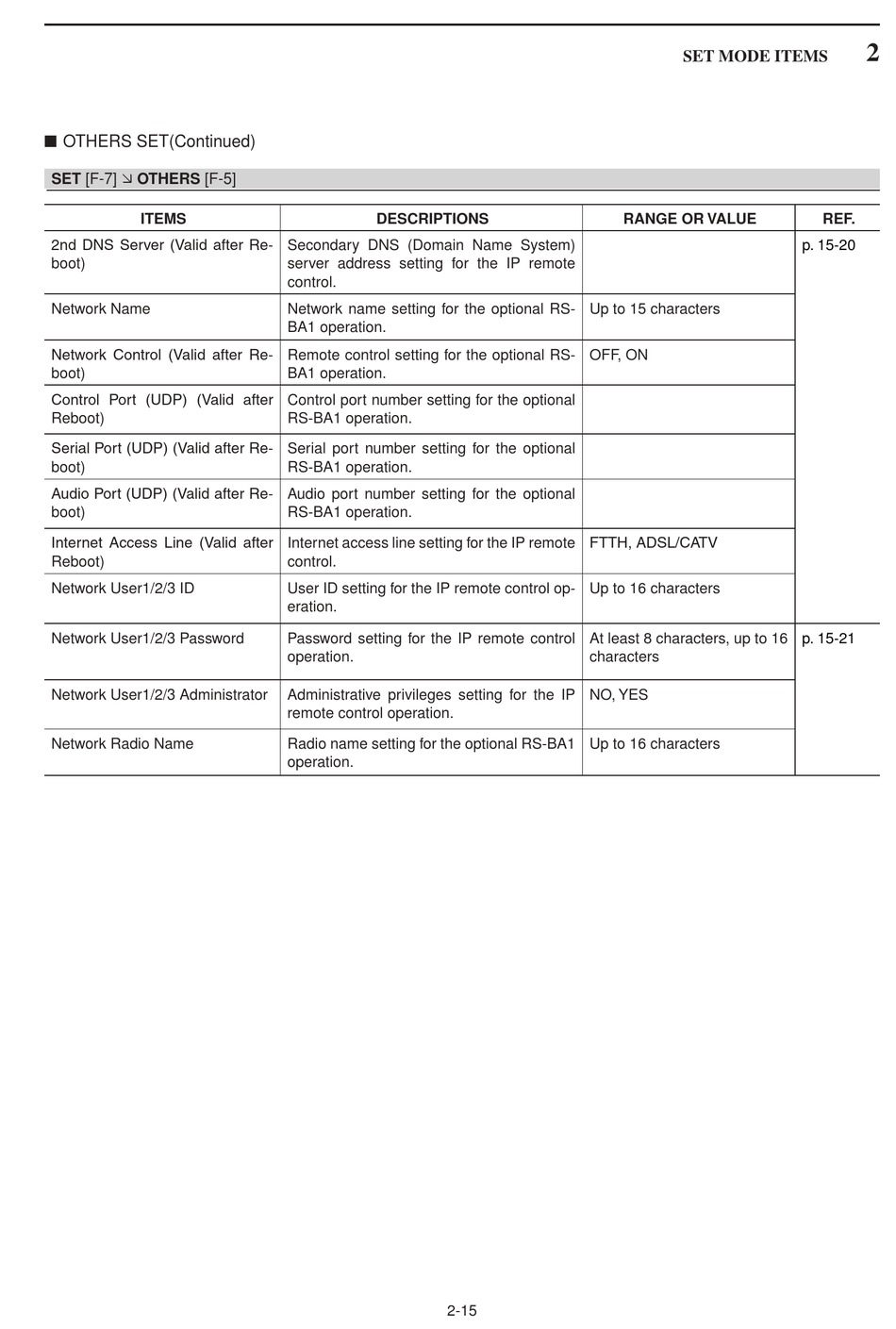

Icom IC-7851 Instruction Manual page 47

■
OTHERS SET(Continued)
SET [F-7]  OTHERS [F-5]
ITEMS
2nd DNS Server (Valid after Re-
boot)
Network Name
Network Control (Valid after Re-
boot)
Control Port (UDP) (Valid after
Reboot)
Serial Port (UDP) (Valid after Re-
boot)
Audio Port (UDP) (Valid after Re-
boot)
Internet Access Line (Valid after
Reboot)
Network User1/2/3 ID
Network User1/2/3 Password
Network User1/2/3 Administrator
Network Radio Name
DESCRIPTIONS
Secondary DNS (Domain Name System)
server address setting for the IP remote
control.
Network name setting for the optional RS-
BA1 operation.
Remote control setting for the optional RS-
BA1 operation.
Control port number setting for the optional
RS-BA1 operation.
Serial port number setting for the optional
RS-BA1 operation.
Audio port number setting for the optional
RS-BA1 operation.
Internet access line setting for the IP remote
control.
User ID setting for the IP remote control op-
eration.
Password setting for the IP remote control
operation.
Administrative privileges setting for the IP
remote control operation.
Radio name setting for the optional RS-BA1
operation.
2-15
SET MODE ITEMS
RANGE OR VALUE
Up to 15 characters
OFF, ON
FTTH, ADSL/CATV
Up to 16 characters
At least 8 characters, up to 16
characters
NO, YES
Up to 16 characters
2
REF.
p. 15-20
p. 15-21
