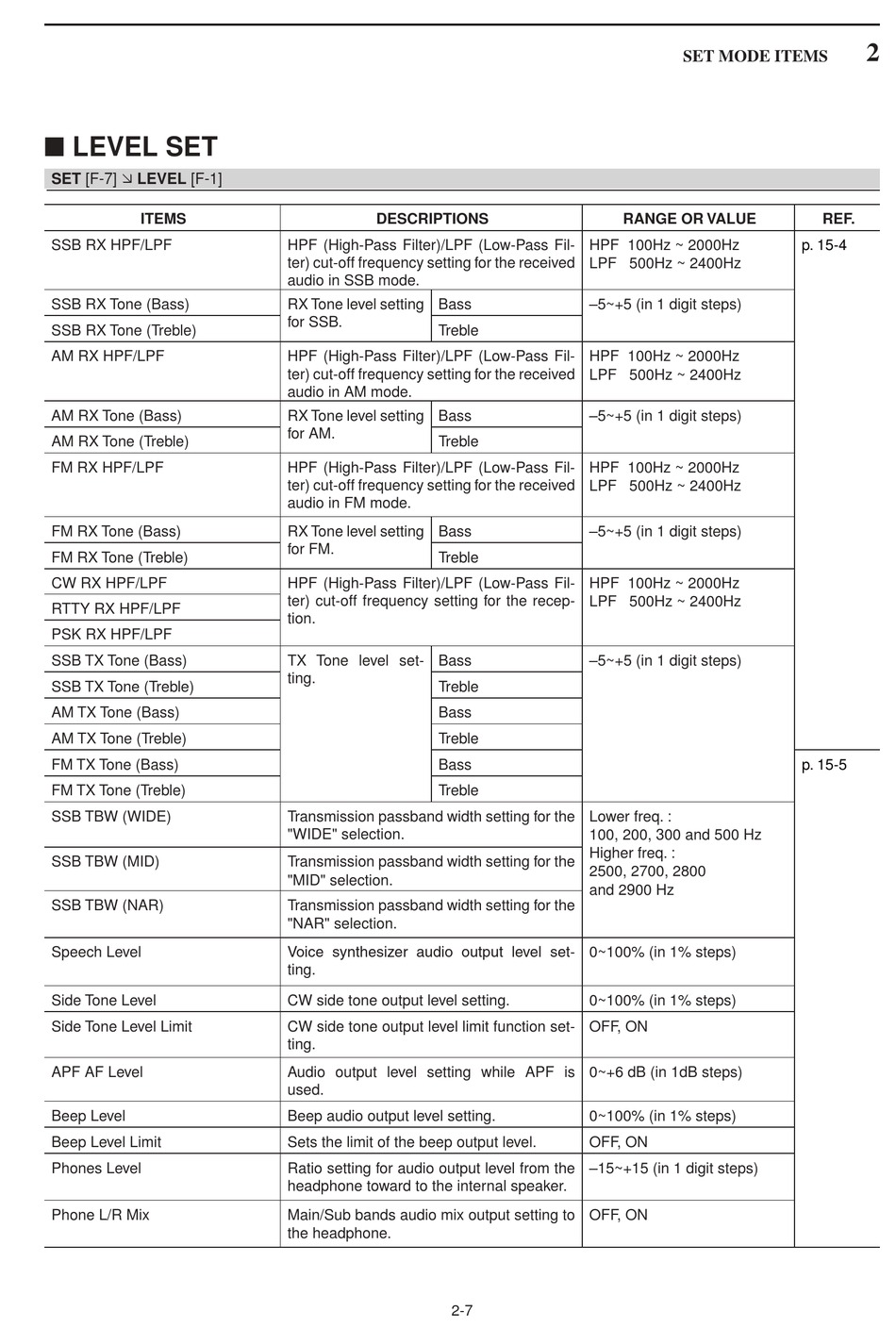

■ LEVEL SET
SET [F-7]  LEVEL [F-1]
ITEMS
SSB RX HPF/LPF
SSB RX Tone (Bass)
SSB RX Tone (Treble)
AM RX HPF/LPF
AM RX Tone (Bass)
AM RX Tone (Treble)
FM RX HPF/LPF
FM RX Tone (Bass)
FM RX Tone (Treble)
CW RX HPF/LPF
RTTY RX HPF/LPF
PSK RX HPF/LPF
SSB TX Tone (Bass)
SSB TX Tone (Treble)
AM TX Tone (Bass)
AM TX Tone (Treble)
FM TX Tone (Bass)
FM TX Tone (Treble)
SSB TBW (WIDE)
SSB TBW (MID)
SSB TBW (NAR)
Speech Level
Side Tone Level
Side Tone Level Limit
APF AF Level
Beep Level
Beep Level Limit
Phones Level
Phone L/R Mix
DESCRIPTIONS
HPF (High-Pass Filter)/LPF (Low-Pass Fil-
ter) cut-off frequency setting for the received
audio in SSB mode.
RX Tone level setting Bass
for SSB.
Treble
HPF (High-Pass Filter)/LPF (Low-Pass Fil-
ter) cut-off frequency setting for the received
audio in AM mode.
RX Tone level setting Bass
for AM.
Treble
HPF (High-Pass Filter)/LPF (Low-Pass Fil-
ter) cut-off frequency setting for the received
audio in FM mode.
RX Tone level setting Bass
for FM.
Treble
HPF (High-Pass Filter)/LPF (Low-Pass Fil-
ter) cut-off frequency setting for the recep-
tion.
TX Tone level set- Bass
ting.
Treble
Bass
Treble
Bass
Treble
Transmission passband width setting for the
"WIDE" selection.
Transmission passband width setting for the
"MID" selection.
Transmission passband width setting for the
"NAR" selection.
Voice synthesizer audio output level set-
ting.
CW side tone output level setting.
CW side tone output level limit function set-
ting.
Audio output level setting while APF is
used.
Beep audio output level setting.
Sets the limit of the beep output level.
Ratio setting for audio output level from the
headphone toward to the internal speaker.
Main/Sub bands audio mix output setting to
the headphone.
2-7
SET MODE ITEMS
RANGE OR VALUE
HPF 100Hz ~ 2000Hz
LPF 500Hz ~ 2400Hz
–5~+5 (in 1 digit steps)
HPF 100Hz ~ 2000Hz
LPF 500Hz ~ 2400Hz
–5~+5 (in 1 digit steps)
HPF 100Hz ~ 2000Hz
LPF 500Hz ~ 2400Hz
–5~+5 (in 1 digit steps)
HPF 100Hz ~ 2000Hz
LPF 500Hz ~ 2400Hz
–5~+5 (in 1 digit steps)
Lower freq. :
100, 200, 300 and 500 Hz
Higher freq. :
2500, 2700, 2800
and 2900 Hz
0~100% (in 1% steps)
0~100% (in 1% steps)
OFF, ON
0~+6 dB (in 1dB steps)
0~100% (in 1% steps)
OFF, ON
–15~+15 (in 1 digit steps)
OFF, ON
2
REF.
p. 15-4
p. 15-5
