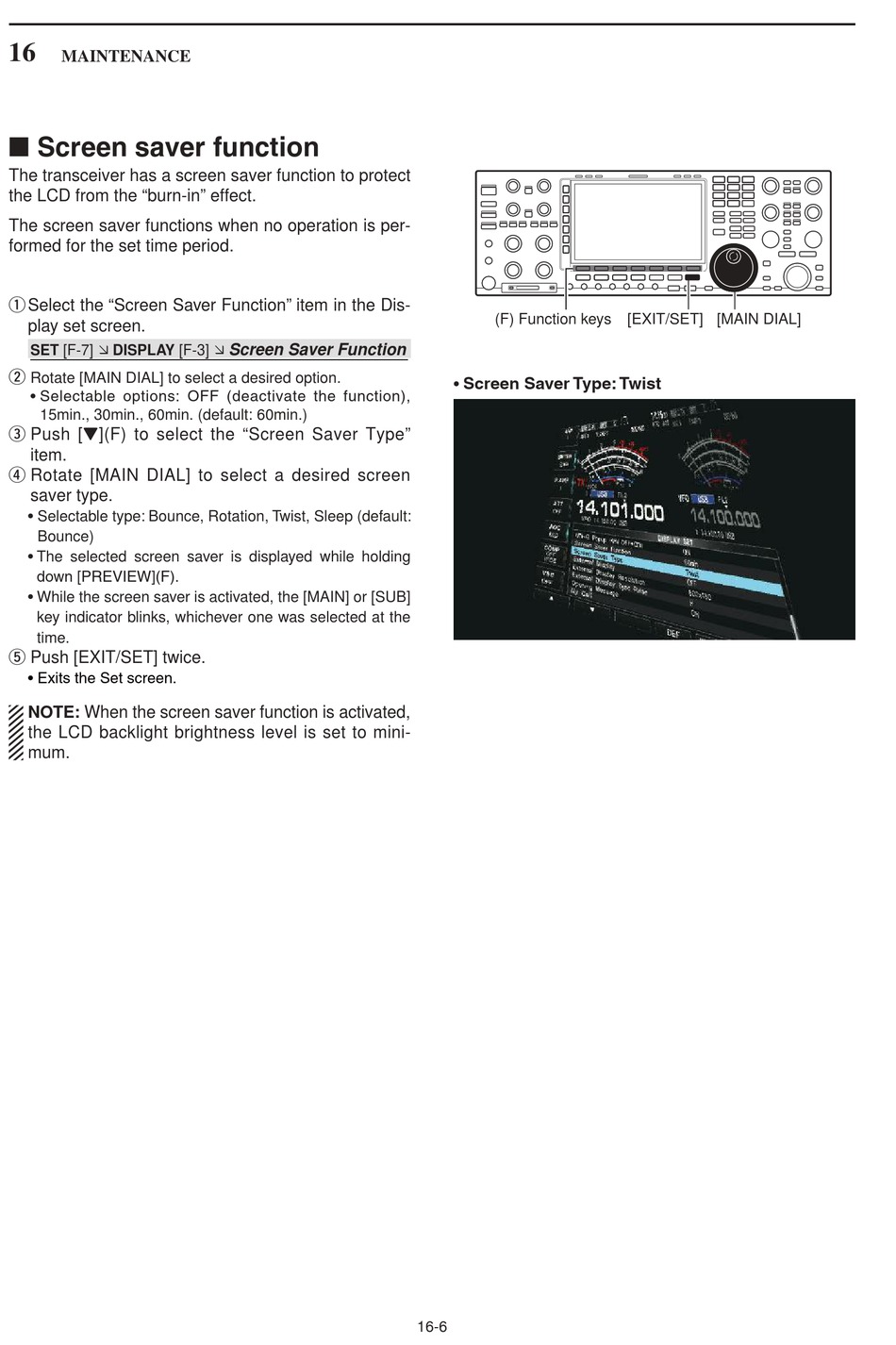

Icom IC-7851 Instruction Manual page 238

16
MAINTENANCE
■ Screen saver function
The transceiver has a screen saver function to protect
the LCD from the "burn-in" effect.
The screen saver functions when no operation is per-
formed for the set time period.
q
Select the "Screen Saver Function" item in the Dis-
play set screen.
SET [F-7]  DISPLAY [F-3] 
w
Rotate [MAIN DIAL] to select a desired option.
• Selectable options: OFF (deactivate the function),
15min., 30min., 60min. (default: 60min.)
e Push [Z](F) to select the "Screen Saver Type"
item.
r Rotate [MAIN DIAL] to select a desired screen
saver type.
• Selectable type: Bounce, Rotation, Twist, Sleep (default:
Bounce)
• The selected screen saver is displayed while holding
down [PREVIEW](F).
• While the screen saver is activated, the [MAIN] or [SUB]
key indicator blinks, whichever one was selected at the
time.
t Push [EXIT/SET] twice.
• Exits the Set screen.
NOTE: When the screen saver function is activated,
the LCD backlight brightness level is set to mini-
mum.
Screen Saver Function
(F) Function keys [EXIT/SET] [MAIN DIAL]
Screen Saver Type: Twist
•
16-6
