4
BASIC OPERATION
■

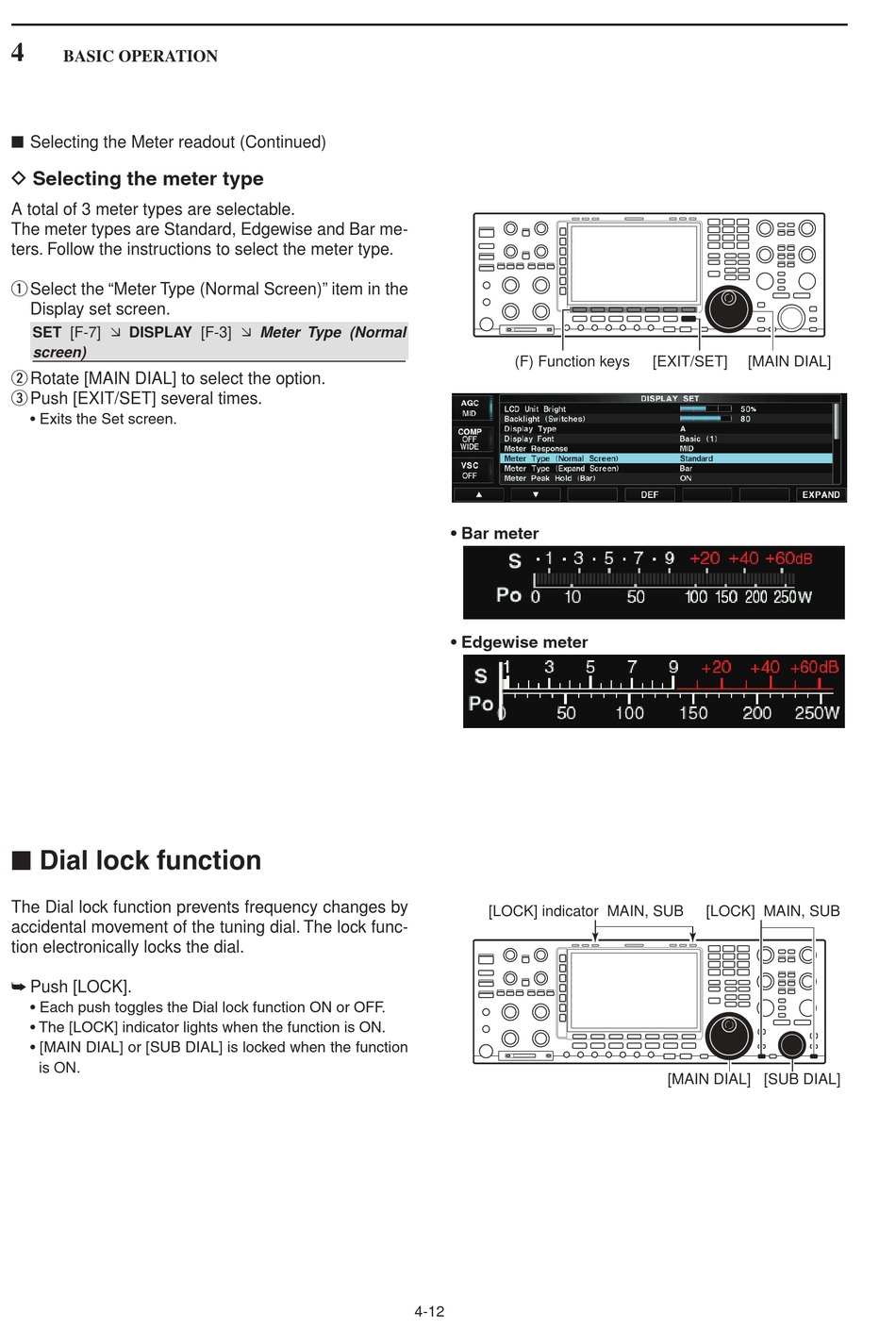

Selecting the Meter readout
D Selecting the meter type
A total of 3 meter types are selectable.
The meter types are Standard, Edgewise and Bar me-
ters. Follow the instructions to select the meter type.
q
Select the "Meter Type (Normal Screen)" item in the
Display set screen.
SET [F-7]  DISPLAY [F-3]  Meter Type (Normal
screen)
w
Rotate [MAIN DIAL] to select the option.
e
Push [EXIT/SET] several times.
• Exits the Set screen.

■ Dial lock function

The Dial lock function prevents frequency changes by
accidental movement of the tuning dial. The lock func-
tion electronically locks the dial.
➥
Push [LOCK].
• Each push toggles the Dial lock function ON or OFF.
• The [LOCK] indicator lights when the function is ON.
• [MAIN DIAL] or [SUB DIAL] is locked when the function
is ON.
(Continued)
(F) Function keys
• Bar meter
• Edgewise meter
[LOCK] indicator MAIN, SUB
4-12
[EXIT/SET] [MAIN DIAL]
[LOCK] MAIN, SUB
[MAIN DIAL] [SUB DIAL]
