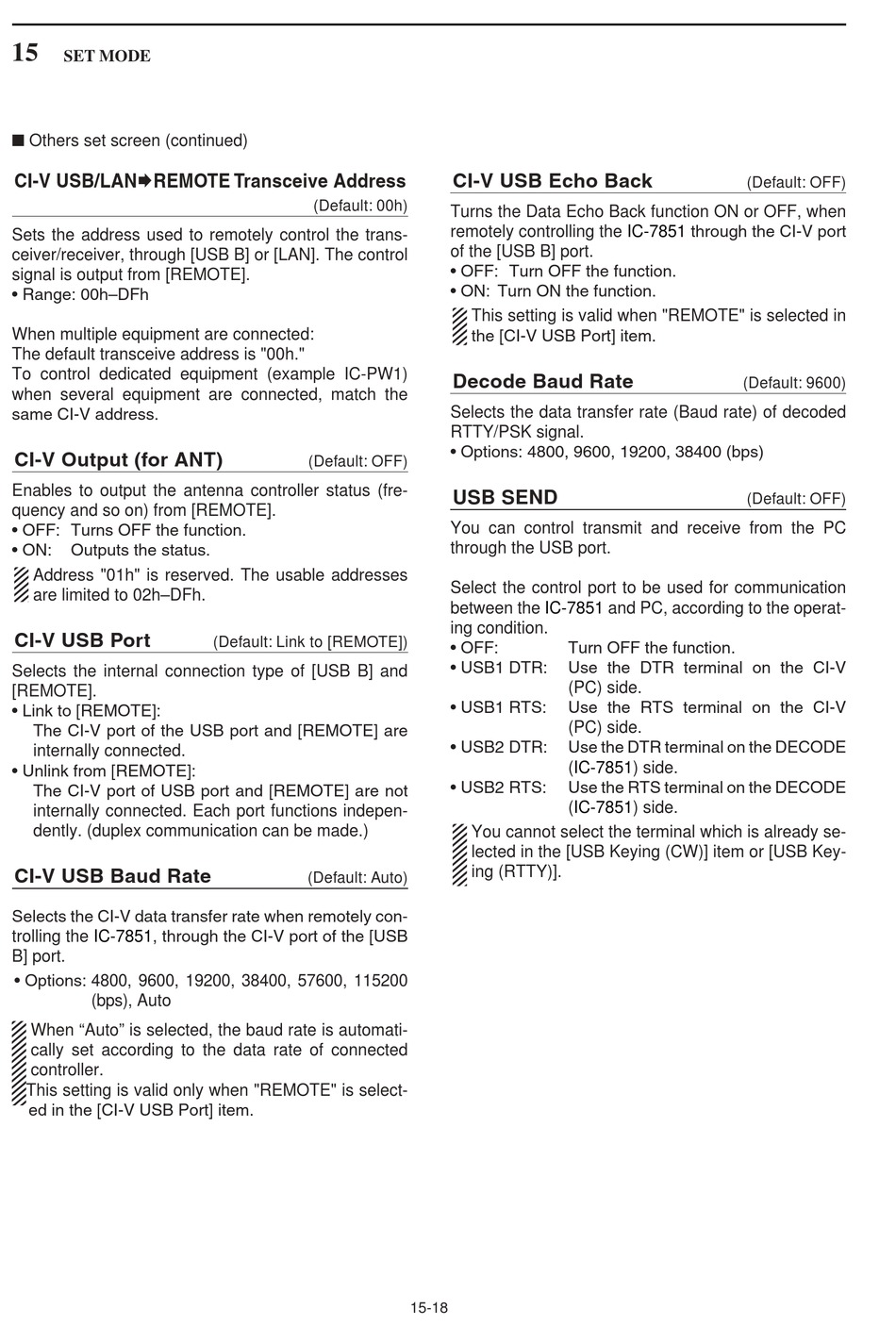

15
SET MODE
■ Others set screen (continued)
CI-V USB/LANREMOTE Transceive Address
Sets the address used to remotely control the trans-
ceiver/receiver, through [USB B] or [LAN]. The control
signal is output from [REMOTE].
• Range: 00h–DFh
When multiple equipment are connected:
The default transceive address is "00h."
To control dedicated equipment (example IC-PW1)
when several equipment are connected, match the
same CI-V address.
CI-V Output (for ANT)
Enables to output the antenna controller status (fre-
quency and so on) from [REMOTE].
• OFF: Turns OFF the function.
• ON: Outputs the status.
Address "01h" is reserved. The usable addresses
are limited to 02h–DFh.
CI-V USB Port
Selects the internal connection type of [USB B] and
[REMOTE].
• Link to [REMOTE]:
The CI-V port of the USB port and [REMOTE] are
internally connected.
• Unlink from [REMOTE]:
The CI-V port of USB port and [REMOTE] are not
internally connected. Each port functions indepen-
dently. (duplex communication can be made.)
CI-V USB Baud Rate
Selects the CI-V data transfer rate when remotely con-
trolling the IC-7851, through the CI-V port of the [USB
B] port.
• Options: 4800, 9600, 19200, 38400, 57600, 115200
(bps), Auto
When "Auto" is selected, the baud rate is automati-
cally set according to the data rate of connected
controller.
This setting is valid only when "REMOTE" is select-
ed in the [CI-V USB Port] item.
(Default: 00h)
(Default: OFF)
(Default: Link to [REMOTE])
(Default: Auto)
CI-V USB Echo Back
Turns the Data Echo Back function ON or OFF, when
remotely controlling the
of the [USB B] port.
• OFF: Turn OFF the function.
• ON: Turn ON the function.
This setting is valid when "REMOTE" is selected in
the [CI-V USB Port] item.
Decode Baud Rate
Selects the data transfer rate (Baud rate) of decoded
RTTY/PSK signal.
• Options: 4800, 9600, 19200, 38400 (bps)
USB SEND
You can control transmit and receive from the PC
through the USB port.
Select the control port to be used for communication
between the IC-7851
ing condition.
• OFF: Turn OFF the function.
• USB1 DTR: Use the DTR terminal on the CI-V
(PC) side.
• USB1 RTS: Use the RTS terminal on the CI-V
(PC) side.
• USB2 DTR: Use the DTR terminal on the DECODE
(IC-7851) side.
• USB2 RTS: Use the RTS terminal on the DECODE
(IC-7851) side.
You cannot select the terminal which is already se-
lected in the [USB Keying (CW)] item or [USB Key-
ing (RTTY)].
15-18
(Default: OFF)
through the CI-V port
IC-7851
(Default: 9600)
(Default: OFF)
and PC, according to the operat-
