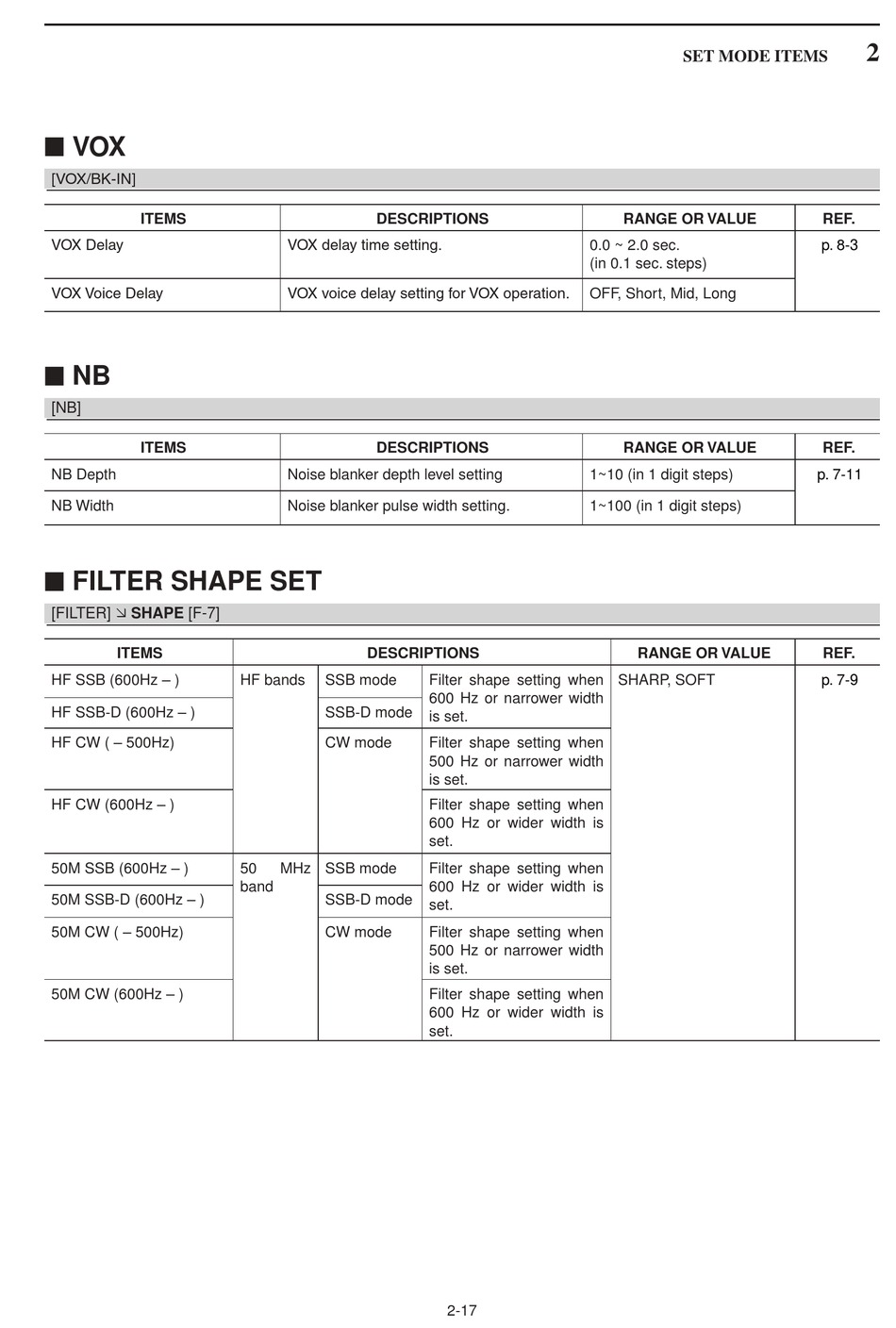

Ilter Shape Set - Icom IC-7851 Instruction Manual

■ VOX
[VOX/BK-IN]
ITEMS
VOX Delay
VOX Voice Delay
■ NB
[NB]
ITEMS
NB Depth
NB Width
■ FILTER SHAPE SET
[FILTER]  SHAPE [F-7]
ITEMS
HF SSB (600Hz – )
HF SSB-D (600Hz – )
HF CW ( – 500Hz)
HF CW (600Hz – )
50M SSB (600Hz – )
50M SSB-D (600Hz – )
50M CW ( – 500Hz)
50M CW (600Hz – )
DESCRIPTIONS
VOX delay time setting.
VOX voice delay setting for VOX operation.
DESCRIPTIONS
Noise blanker depth level setting
Noise blanker pulse width setting.
DESCRIPTIONS
HF bands SSB mode
SSB-D mode
CW mode
50 MHz SSB mode
band
SSB-D mode
CW mode
0.0 ~ 2.0 sec.
(in 0.1 sec. steps)
OFF, Short, Mid, Long
1~10 (in 1 digit steps)
1~100 (in 1 digit steps)
Filter shape setting when
600 Hz or narrower width
is set.
Filter shape setting when
500 Hz or narrower width
is set.
Filter shape setting when
600 Hz or wider width is
set.
Filter shape setting when
600 Hz or wider width is
set.
Filter shape setting when
500 Hz or narrower width
is set.
Filter shape setting when
600 Hz or wider width is
set.
2-17
SET MODE ITEMS
RANGE OR VALUE
RANGE OR VALUE
RANGE OR VALUE
SHARP, SOFT
2
REF.
p. 8-3
REF.
p. 7-11
REF.
p. 7-9
