5
RECEIVE AND TRANSMIT
■
Operating RTTY (FSK) (Continued)

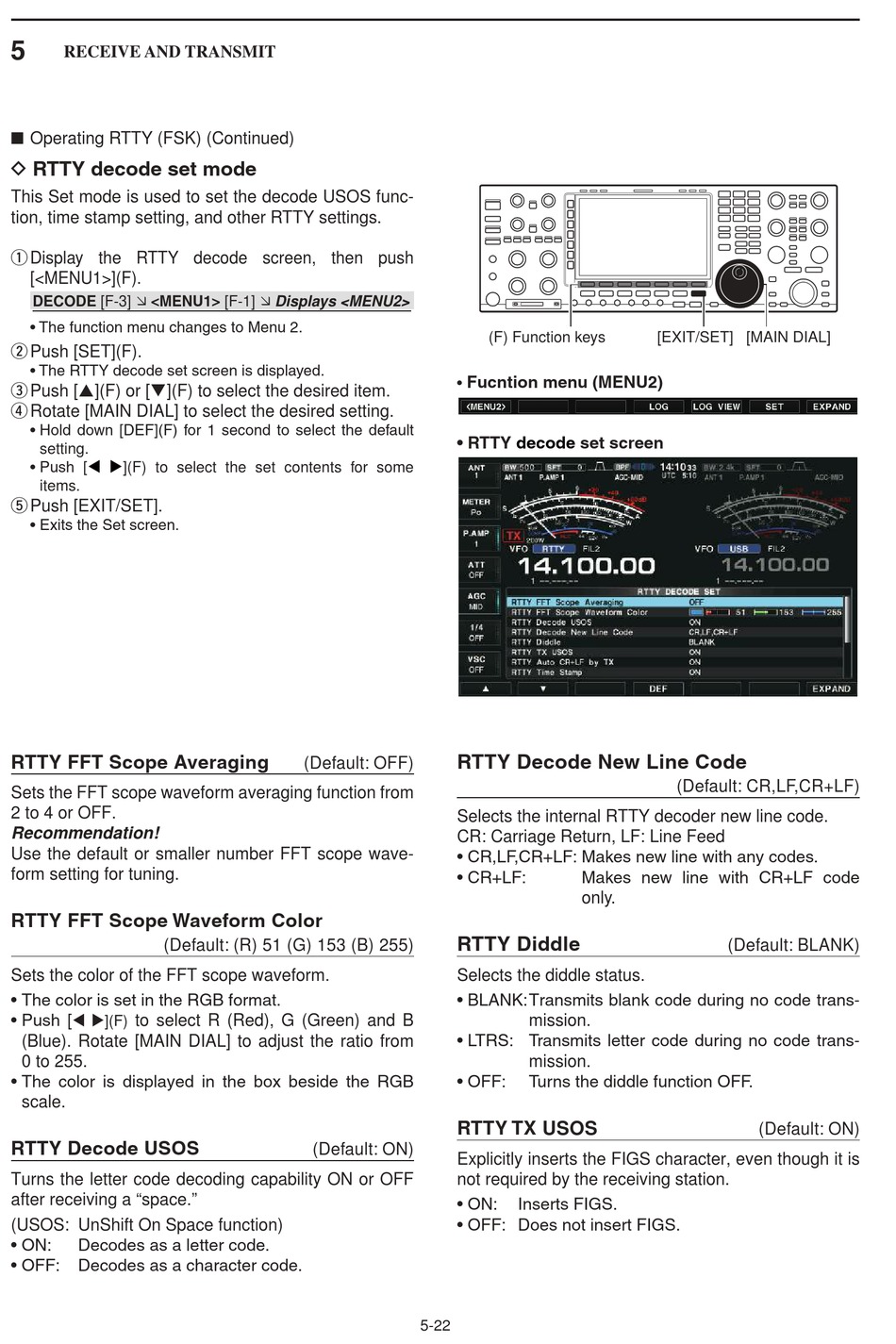

D RTTY decode set mode
This Set mode is used to set the decode USOS func-
tion, time stamp setting, and other RTTY settings.
q Display the RTTY decode screen, then push
[<MENU1>](F).
DECODE [F-3]  <MENU1> [F-1]  Displays <MENU2>
• The function menu changes to Menu 2.
w
Push [SET](F).
• The RTTY decode set screen is displayed.
p](F) or [q](F) to select the desired item.
e
Push [
r
Rotate [MAIN DIAL] to select the desired setting.
• Hold down [DEF](F) for 1 second to select the default
setting.
• Push [t u](F) to select the set contents for some
items.
t
Push [EXIT/SET].
• Exits the Set screen.
RTTY FFT Scope Averaging
Sets the FFT scope waveform averaging function from
2 to 4 or OFF.
Recommendation!
Use the default or smaller number FFT scope wave-
form setting for tuning.
RTTY FFT Scope Waveform Color
(Default: (R) 51 (G) 153 (B) 255)
Sets the color of the FFT scope waveform.
• The color is set in the RGB format.
• Push [
t u](F)
to select R (Red), G (Green) and B
(Blue). Rotate [MAIN DIAL] to adjust the ratio from
0 to 255.
• The color is displayed in the box beside the RGB
scale.
RTTY Decode USOS
Turns the letter code decoding capability ON or OFF
after receiving a "space."
(USOS: UnShift On Space function)
• ON: Decodes as a letter code.
• OFF: Decodes as a character code.
Fucntion menu (MENU2)
•
• RTTY
RTTY Decode New Line Code
(Default: OFF)
Selects the internal RTTY decoder new line code.
CR: Carriage Return, LF: Line Feed
• CR,LF,CR+LF: Makes new line with any codes.
• CR+LF:
RTTY Diddle
Selects the diddle status.
• BLANK:Transmits blank code during no code trans-
• LTRS: Transmits letter code during no code trans-
• OFF:
RTTY TX USOS
(Default: ON)
Explicitly inserts the FIGS character, even though it is
not required by the receiving station.
• ON:
• OFF: Does not insert FIGS.
5-22
(F) Function keys [EXIT/SET] [MAIN DIAL]
decode set screen
Makes new line with CR+LF code
only.
mission.
mission.
Turns the diddle function OFF.
Inserts FIGS.
(Default: CR,LF,CR+LF)
(Default: BLANK)
(Default: ON)
