Oice Set Mode; Voice 1St Menu; Tx Rec Audio; Rx Rec Condition - Icom IC-7851 Instruction Manual

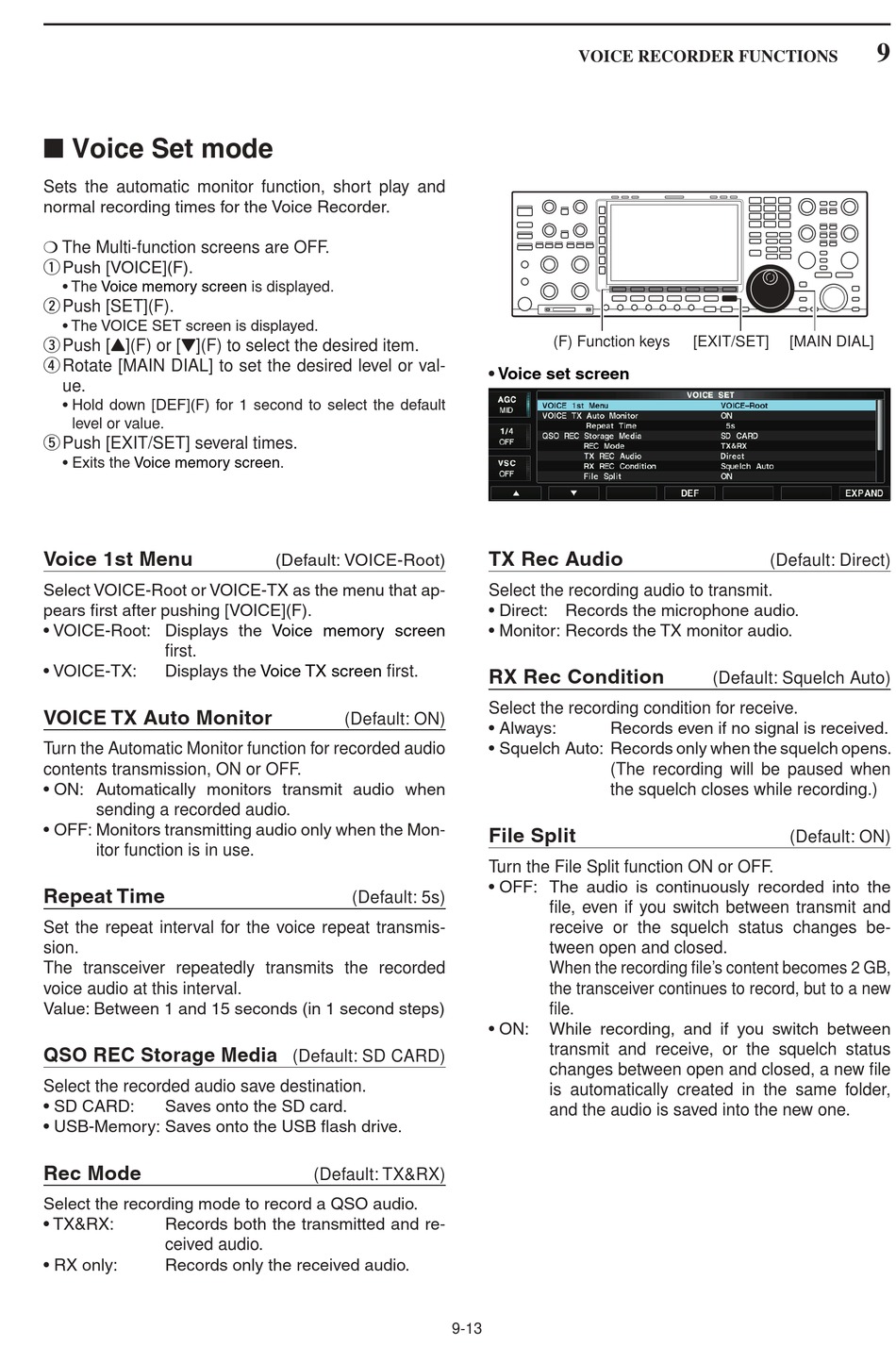

■ Voice Set mode
Sets the automatic monitor function, short play and
normal recording times for the Voice Recorder.
❍ The Multi-function screens are OFF.
Push [VOICE](F).
q
• The Voice memory screen
w
Push [SET](F).
• The VOICE SET screen is displayed.
Y](F) or [Z](F) to select the desired item.
e
Push [
r
Rotate [MAIN DIAL] to set the desired level or val-
ue.
• Hold down [DEF](F) for 1 second to select the default
level or value.
t
Push [EXIT/SET] several times.
• Exits the Voice memory

Voice 1st Menu

Select VOICE-Root or VOICE-TX as the menu that ap-
pears first after pushing [VOICE](F).
• VOICE-Root: Displays the
first.
• VOICE-TX: Displays the

VOICE TX Auto Monitor

Turn the Automatic Monitor function for recorded audio
contents transmission, ON or OFF.
• ON: Automatically monitors transmit audio when
sending a recorded audio.
• OFF: Monitors transmitting audio only when the Mon-
itor function is in use.
Repeat Time
Set the repeat interval for the voice repeat transmis-
sion.
The transceiver repeatedly transmits the recorded
voice audio at this interval.
Value: Between 1 and 15 seconds (in 1 second steps)

QSO REC Storage Media

Select the recorded audio save destination.
• SD CARD: Saves onto the SD card.
• USB-Memory: Saves onto the USB flash drive.

Rec Mode

Select the recording mode to record a QSO audio.
• TX&RX: Records both the transmitted and re-
ceived audio.
• RX only: Records only the received audio.
is displayed.
screen.
(Default: VOICE-Root)
Voice memory screen
Voice TX screen
first.
(Default: ON)
(Default: 5s)
(Default: SD CARD)
(Default: TX&RX)
VOICE RECORDER FUNCTIONS
(F) Function keys
• Voice set screen

TX Rec Audio

Select the recording audio to transmit.
• Direct: Records the microphone audio.
• Monitor: Records the TX monitor audio.

RX Rec Condition

Select the recording condition for receive.
• Always: Records even if no signal is received.
• Squelch Auto: Records only when the squelch opens.
(The recording will be paused when
the squelch closes while recording.)

File Split

Turn the File Split function ON or OFF.
• OFF: The audio is continuously recorded into the
file, even if you switch between transmit and
receive or the squelch status changes be-
tween open and closed.
When the recording file's content becomes 2 GB,
the transceiver continues to record, but to a new
file.
• ON: While recording, and if you switch between
transmit and receive, or the squelch status
changes between open and closed, a new file
is automatically created in the same folder,
and the audio is saved into the new one.
9-13
[EXIT/SET] [MAIN DIAL]
(Default: Direct)
(Default: Squelch Auto)
(Default: ON)
9
