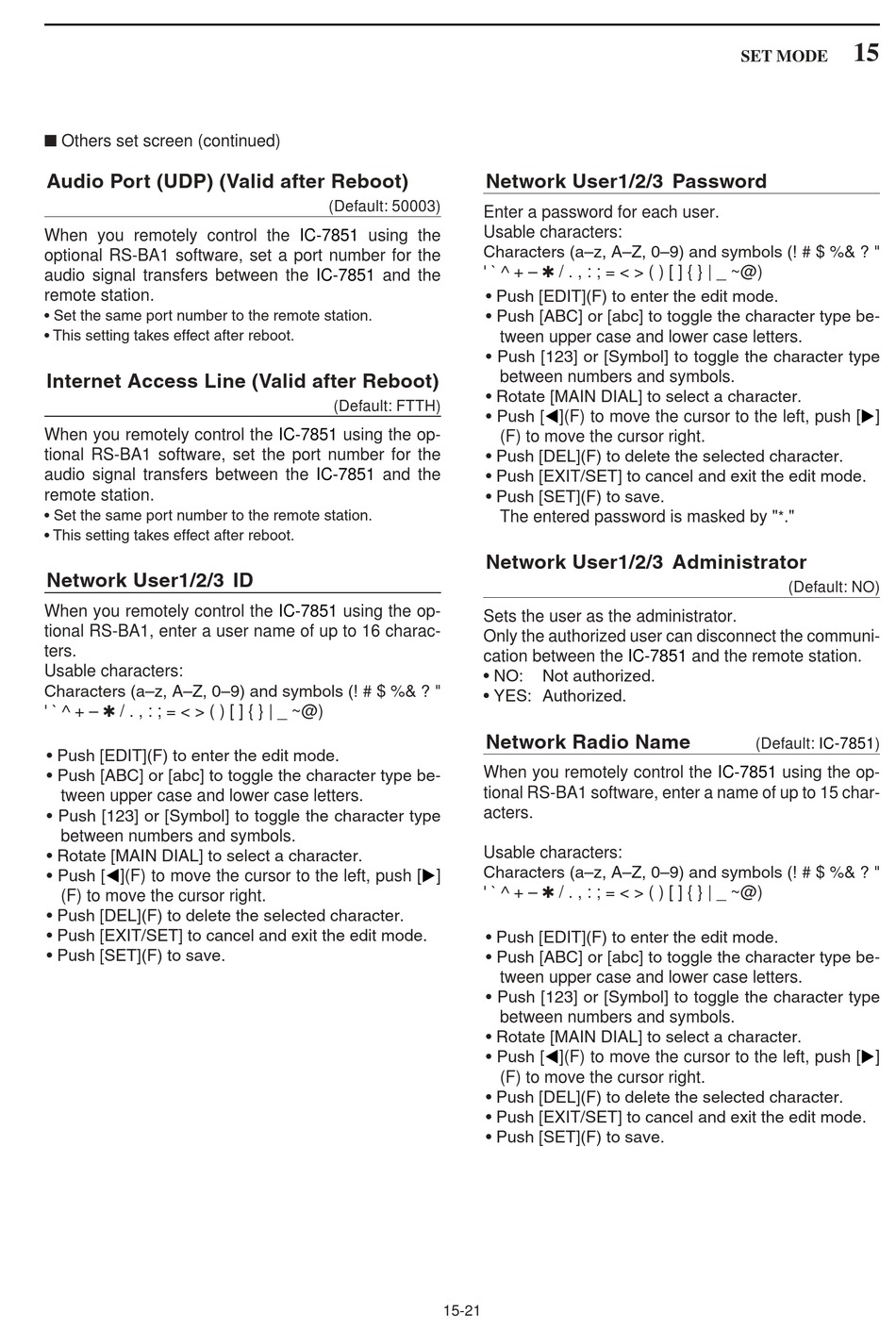

Icom IC-7851 Instruction Manual page 232

■ Others set screen (continued)
Audio Port (UDP) (Valid after Reboot)
When you remotely control the
optional RS-BA1 software, set a port number for the
audio signal transfers between the
remote station.
• Set the same port number to the remote station.
• This setting takes effect after reboot.
Internet Access Line (Valid after Reboot)
When you remotely control the
tional RS-BA1 software, set the port number for the
audio signal transfers between the
remote station.
• Set the same port number to the remote station.
• This setting takes effect after reboot.
Network User1/2/3 ID
When you remotely control the
tional RS-BA1, enter a user name of up to 16 charac-
ters.
Usable characters:
Characters (a–z, A–Z, 0–9) and symbols (! # $ %& ? "
' ` ^ + – ✱ / . , : ; = < > ( ) [ ] { } | _ ~@)
• Push [EDIT](F) to enter the edit mode.
• Push [ABC] or [abc] to toggle the character type be-
tween upper case and lower case letters.
• Push [123] or [Symbol] to toggle the character type
between numbers and symbols.
• Rotate [MAIN DIAL] to select a character.
• Push [t](F) to move the cursor to the left, push [u]
(F) to move the cursor right.
• Push [DEL](F) to delete the selected character.
• Push [EXIT/SET] to cancel and exit the edit mode.
• Push [SET](F) to save.
(Default: 50003)
IC-7851 using the
IC-7851 and the
(Default: FTTH)
IC-7851 using the op-
IC-7851 and the
IC-7851 using the op-
15-21
Network User1/2/3 Password
Enter a password for each user.
Usable characters:
Characters (a–z, A–Z, 0–9) and symbols (! # $ %& ? "
' ` ^ + – ✱ / . , : ; = < > ( ) [ ] { } | _ ~@)
• Push [EDIT](F) to enter the edit mode.
• Push [ABC] or [abc] to toggle the character type be-
tween upper case and lower case letters.
• Push [123] or [Symbol] to toggle the character type
between numbers and symbols.
• Rotate [MAIN DIAL] to select a character.
• Push [t](F) to move the cursor to the left, push [u]
(F) to move the cursor right.
• Push [DEL](F) to delete the selected character.
• Push [EXIT/SET] to cancel and exit the edit mode.
• Push [SET](F) to save.
The entered password is masked by "
Network User1/2/3 Administrator
Sets the user as the administrator.
Only the authorized user can disconnect the communi-
cation between the IC-7851
• NO: Not authorized.
• YES: Authorized.
Network Radio Name
When you remotely control the
tional RS-BA1 software, enter a name of up to 15 char-
acters.
Usable characters:
Characters (a–z, A–Z, 0–9) and symbols (! # $ %& ? "
' ` ^ + – ✱ / . , : ; = < > ( ) [ ] { } | _ ~@)
• Push [EDIT](F) to enter the edit mode.
• Push [ABC] or [abc] to toggle the character type be-
tween upper case and lower case letters.
• Push [123] or [Symbol] to toggle the character type
between numbers and symbols.
• Rotate [MAIN DIAL] to select a character.
• Push [t](F) to move the cursor to the left, push [u]
(F) to move the cursor right.
• Push [DEL](F) to delete the selected character.
• Push [EXIT/SET] to cancel and exit the edit mode.
• Push [SET](F) to save.
15
SET MODE
."
*
(Default: NO)
and the remote station.
(Default: IC-7851)
IC-7851 using the op-
