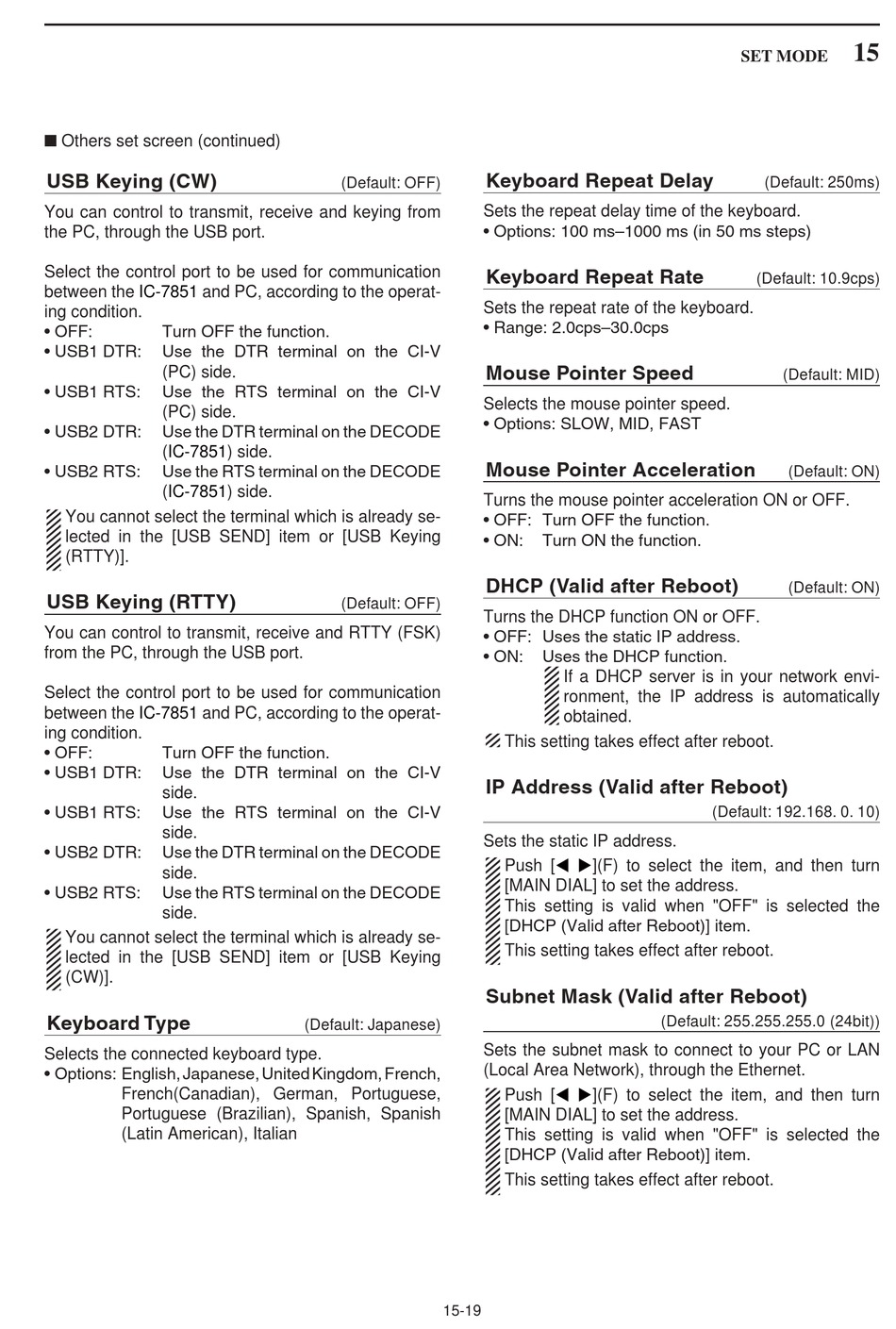

Icom IC-7851 Instruction Manual page 230

■ Others set screen (continued)
USB Keying (CW)
You can control to transmit, receive and keying from
the PC, through the USB port.
Select the control port to be used for communication
between the IC-7851 and PC, according to the operat-
ing condition.
• OFF: Turn OFF the function.
• USB1 DTR: Use the DTR terminal on the CI-V
(PC) side.
• USB1 RTS: Use the RTS terminal on the CI-V
(PC) side.
• USB2 DTR: Use the DTR terminal on the DECODE
(IC-7851) side.
• USB2 RTS: Use the RTS terminal on the DECODE
(IC-7851) side.
You cannot select the terminal which is already se-
lected in the [USB SEND] item or [USB Keying
(RTTY)].
USB Keying (RTTY)
You can control to transmit, receive and RTTY (FSK)
from the PC, through the USB port.
Select the control port to be used for communication
between the IC-7851 and PC, according to the operat-
ing condition.
• OFF: Turn OFF the function.
• USB1 DTR: Use the DTR terminal on the CI-V
side.
• USB1 RTS: Use the RTS terminal on the CI-V
side.
• USB2 DTR: Use the DTR terminal on the DECODE
side.
• USB2 RTS: Use the RTS terminal on the DECODE
side.
You cannot select the terminal which is already se-
lected in the [USB SEND] item or [USB Keying
(CW)].
Keyboard Type
Selects the connected keyboard type.
• Options: English, Japanese, United Kingdom, French,
French(Canadian), German, Portuguese,
Portuguese (Brazilian), Spanish, Spanish
(Latin American), Italian
(Default: OFF)
(Default: OFF)
(Default: Japanese)
15-19
Keyboard Repeat Delay
Sets the repeat delay time of the keyboard.
• Options: 100 ms–1000 ms (in 50 ms steps)
Keyboard Repeat Rate
Sets the repeat rate of the keyboard.
• Range: 2.0cps–30.0cps
Mouse Pointer Speed
Selects the mouse pointer speed.
• Options: SLOW, MID, FAST
Mouse Pointer Acceleration
Turns the mouse pointer acceleration ON or OFF.
• OFF: Turn OFF the function.
• ON: Turn ON the function.
DHCP (Valid after Reboot)
Turns the DHCP function ON or OFF.
• OFF: Uses the static IP address.
• ON: Uses the DHCP function.
If a DHCP server is in your network envi-
ronment, the IP address is automatically
obtained.
This setting takes effect after reboot.
IP Address (Valid after Reboot)
Sets the static IP address.
u](F) to select the item, and then turn
Push [t
[MAIN DIAL] to set the address.
This setting is valid when "OFF" is selected the
[DHCP (Valid after Reboot)] item.
This setting takes effect after reboot.
Subnet Mask (Valid after Reboot)
Sets the subnet mask to connect to your PC or LAN
(Local Area Network), through the Ethernet.
u](F) to select the item, and then turn
Push [t
[MAIN DIAL] to set the address.
This setting is valid when "OFF" is selected the
[DHCP (Valid after Reboot)] item.
This setting takes effect after reboot.
SET MODE
(Default: 250ms)
(Default: 10.9cps)
(Default: MID)
(Default: ON)
(Default: ON)
(Default: 192.168. 0. 10)
(Default: 255.255.255.0 (24bit))
15
