RECEIVE AND TRANSMIT
■
Operating CW (Continued)
D About 137 kHz band operation (Europe version only)
The 137 kHz band, between the 135.7 kHz to 137.8
kHz, operation in the CW mode is optionally available.
The RF signal from [X-VERTER] is used for the 137
kHz band operation, and an external amplifier unit is
necessary.
See the connection diagram below for reference.

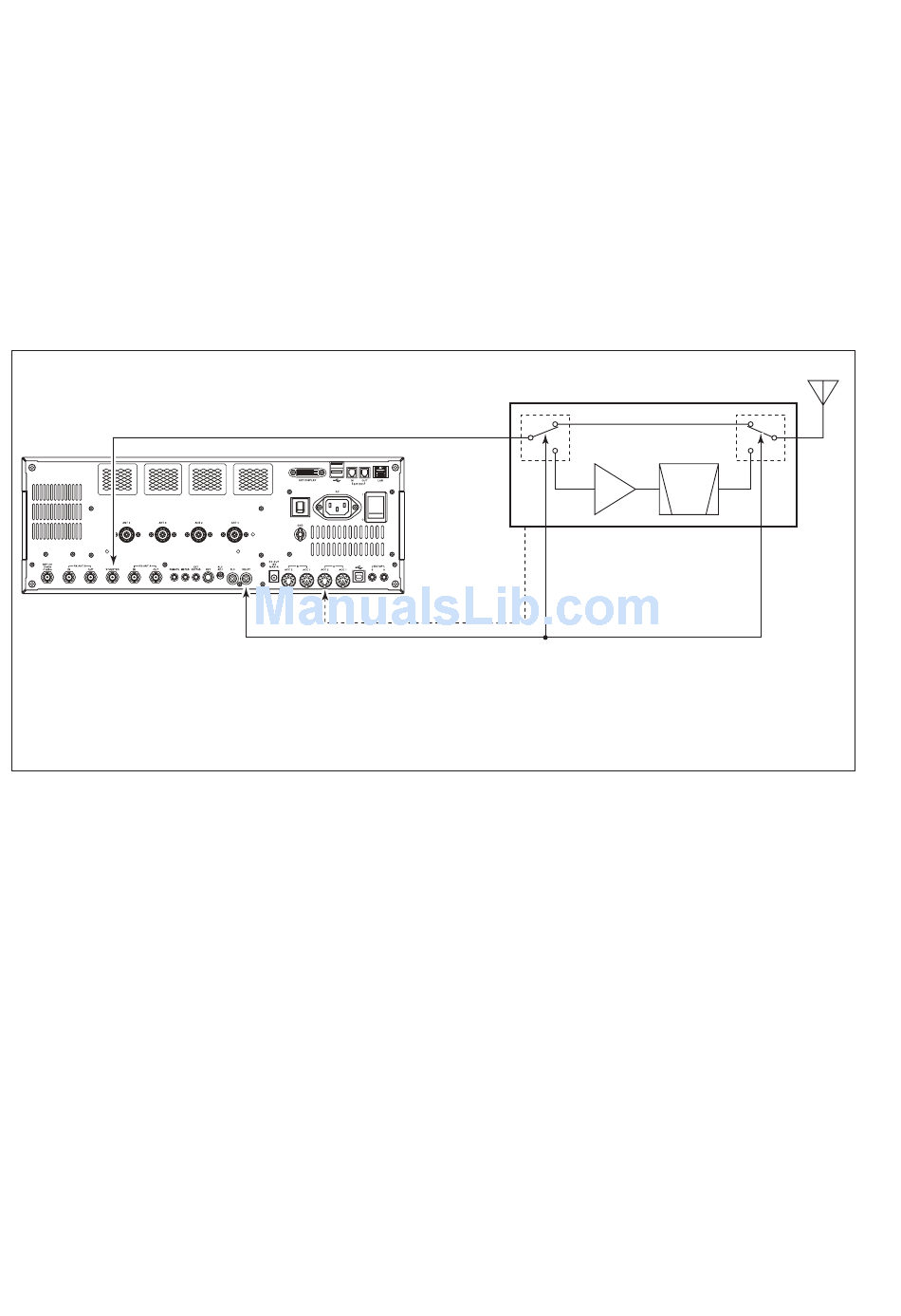

• Connection diagram for 137 kHz band operation
to [X-VERTER]
NOTE: Set the transverter offset in the Others
set mode to "0.000 MHz."
See page 15-14
B
L
to [ACC 2] pin 6*
to [RELAY] (for transmit/receive control)
for details.
Power amplifier with T/R switching unit
for 137 kHz
* Transverter ON/OFF control signal related to the power
amplifier unit main power, if desired.
• ON: 2 ~ 13.8 V DC input (more than 10 kΩ impedance)
• OFF: Less than 2 V DC
5-8
BPF
PA or
LPF
