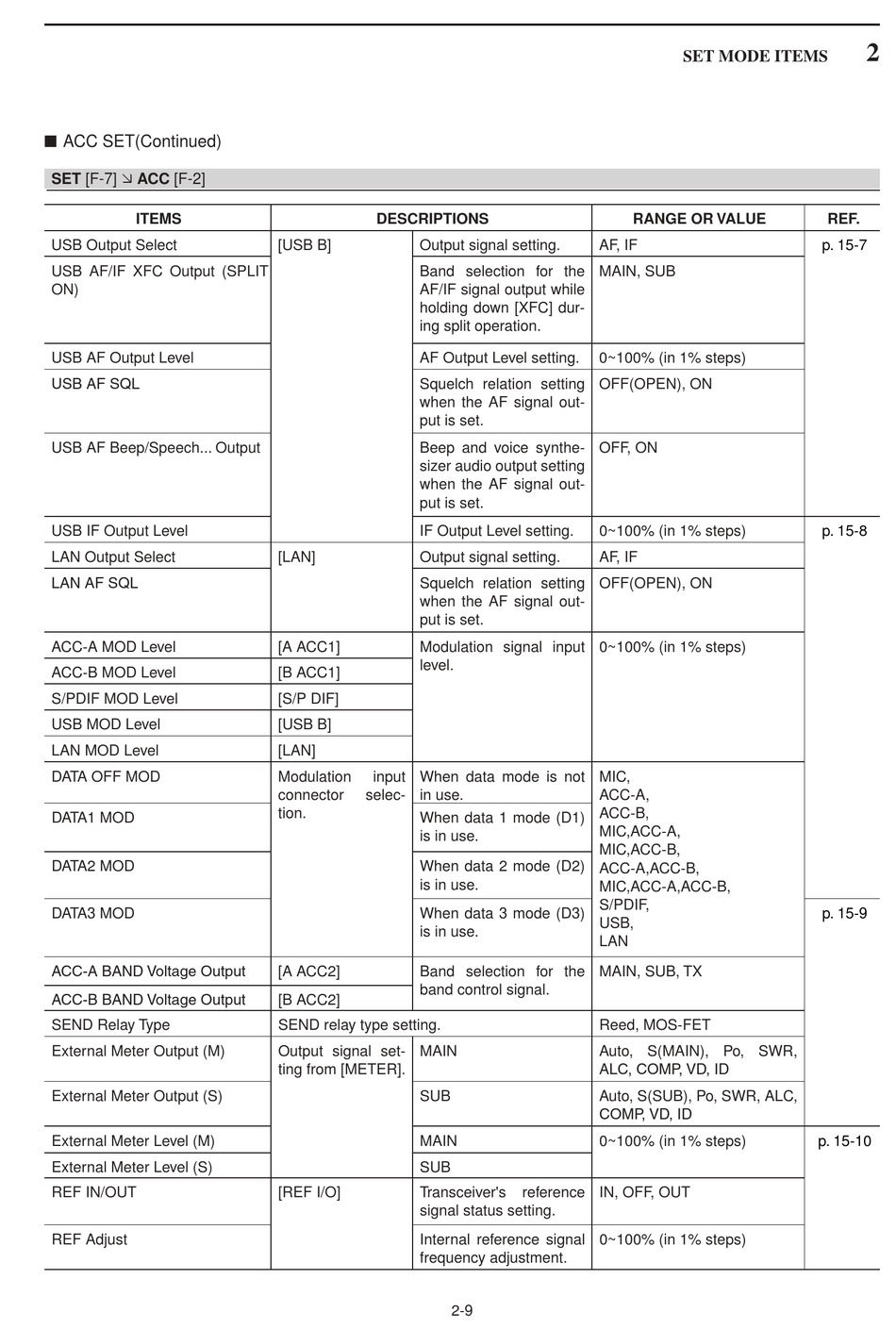

Cc Set - Icom IC-7851 Instruction Manual

■
ACC SET(Continued)
SET [F-7]  ACC [F-2]
ITEMS
USB Output Select
USB AF/IF XFC Output (SPLIT
ON)
USB AF Output Level
USB AF SQL
USB AF Beep/Speech... Output
USB IF Output Level
LAN Output Select
LAN AF SQL
ACC-A MOD Level
ACC-B MOD Level
S/PDIF MOD Level
USB MOD Level
LAN MOD Level
DATA OFF MOD
DATA1 MOD
DATA2 MOD
DATA3 MOD
ACC-A BAND Voltage Output
ACC-B BAND Voltage Output
SEND Relay Type
External Meter Output (M)
External Meter Output (S)
External Meter Level (M)
External Meter Level (S)
REF IN/OUT
REF Adjust
DESCRIPTIONS
[USB B] Output signal setting.
Band selection for the
AF/IF signal output while
holding down [XFC] dur-
ing split operation.
AF Output Level setting.
Squelch relation setting
when the AF signal out-
put is set.
Beep and voice synthe-
sizer audio output setting
when the AF signal out-
put is set.
IF Output Level setting.
[LAN] Output signal setting.
Squelch relation setting
when the AF signal out-
put is set.
[A ACC1] Modulation signal input
level.
[B ACC1]
[S/P DIF]
[USB B]
[LAN]
Modulation input When data mode is not
connector selec- in use.
tion.
When data 1 mode (D1)
is in use.
When data 2 mode (D2)
is in use.
When data 3 mode (D3)
is in use.
[A ACC2] Band selection for the
band control signal.
[B ACC2]
SEND relay type setting.
Output signal set- MAIN
ting from [METER].
SUB
MAIN
SUB
[REF I/O] Transceiver's
signal status setting.
Internal reference signal
frequency adjustment.
AF, IF
MAIN, SUB
0~100% (in 1% steps)
OFF(OPEN), ON
OFF, ON
0~100% (in 1% steps)
AF, IF
OFF(OPEN), ON
0~100% (in 1% steps)
MIC,
ACC-A,
ACC-B,
MIC,ACC-A,
MIC,ACC-B,
ACC-A,ACC-B,
MIC,ACC-A,ACC-B,
S/PDIF,
USB,
LAN
MAIN, SUB, TX
Reed, MOS-FET
Auto, S(MAIN), Po, SWR,
ALC, COMP, VD, ID
Auto, S(SUB), Po, SWR, ALC,
COMP, VD, ID
0~100% (in 1% steps)
reference IN, OFF, OUT
0~100% (in 1% steps)
2-9
SET MODE ITEMS
RANGE OR VALUE
2
REF.
p. 15-7
p. 15-8
p. 15-9
p. 15-10
