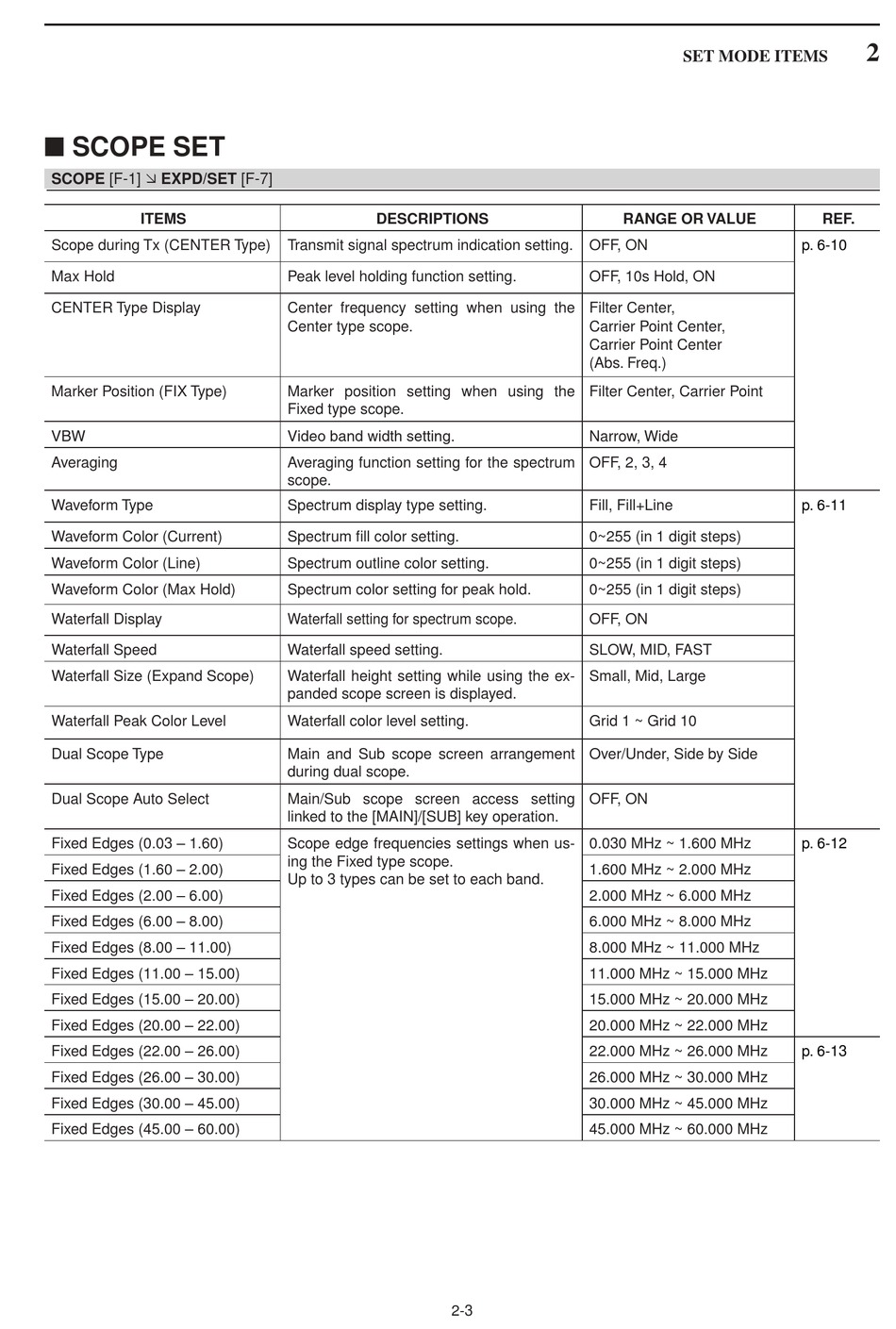

■ SCOPE SET
SCOPE [F-1]  EXPD/SET [F-7]
ITEMS
Scope during Tx (CENTER Type)
Max Hold
CENTER Type Display
Marker Position (FIX Type)
VBW
Averaging
Waveform Type
Waveform Color (Current)
Waveform Color (Line)
Waveform Color (Max Hold)
Waterfall Display
Waterfall Speed
Waterfall Size (Expand Scope)
Waterfall Peak Color Level
Dual Scope Type
Dual Scope Auto Select
Fixed Edges (0.03 – 1.60)
Fixed Edges (1.60 – 2.00)
Fixed Edges (2.00 – 6.00)
Fixed Edges (6.00 – 8.00)
Fixed Edges (8.00 – 11.00)
Fixed Edges (11.00 – 15.00)
Fixed Edges (15.00 – 20.00)
Fixed Edges (20.00 – 22.00)
Fixed Edges (22.00 – 26.00)
Fixed Edges (26.00 – 30.00)
Fixed Edges (30.00 – 45.00)
Fixed Edges (45.00 – 60.00)
DESCRIPTIONS
Transmit signal spectrum indication setting.
Peak level holding function setting.
Center frequency setting when using the
Center type scope.
Marker position setting when using the
Fixed type scope.
Video band width setting.
Averaging function setting for the spectrum
scope.
Spectrum display type setting.
Spectrum fill color setting.
Spectrum outline color setting.
Spectrum color setting for peak hold.
Waterfall setting for spectrum scope.
Waterfall speed setting.
Waterfall height setting while using the ex-
panded scope screen is displayed.
Waterfall color level setting.
Main and Sub scope screen arrangement
during dual scope.
Main/Sub scope screen access setting
linked to the [MAIN]/[SUB] key operation.
Scope edge frequencies settings when us-
ing the Fixed type scope.
Up to 3 types can be set to each band.
2-3
SET MODE ITEMS
RANGE OR VALUE
OFF, ON
OFF, 10s Hold, ON
Filter Center,
Carrier Point Center,
Carrier Point Center
(Abs. Freq.)
Filter Center, Carrier Point
Narrow, Wide
OFF, 2, 3, 4
Fill, Fill+Line
0~255 (in 1 digit steps)
0~255 (in 1 digit steps)
0~255 (in 1 digit steps)
OFF, ON
SLOW, MID, FAST
Small, Mid, Large
Grid 1 ~ Grid 10
Over/Under, Side by Side
OFF, ON
0.030 MHz ~ 1.600 MHz
1.600 MHz ~ 2.000 MHz
2.000 MHz ~ 6.000 MHz
6.000 MHz ~ 8.000 MHz
8.000 MHz ~ 11.000 MHz
11.000 MHz ~ 15.000 MHz
15.000 MHz ~ 20.000 MHz
20.000 MHz ~ 22.000 MHz
22.000 MHz ~ 26.000 MHz
26.000 MHz ~ 30.000 MHz
30.000 MHz ~ 45.000 MHz
45.000 MHz ~ 60.000 MHz
2
REF.
p. 6-10
p. 6-11
p. 6-12
p. 6-13
