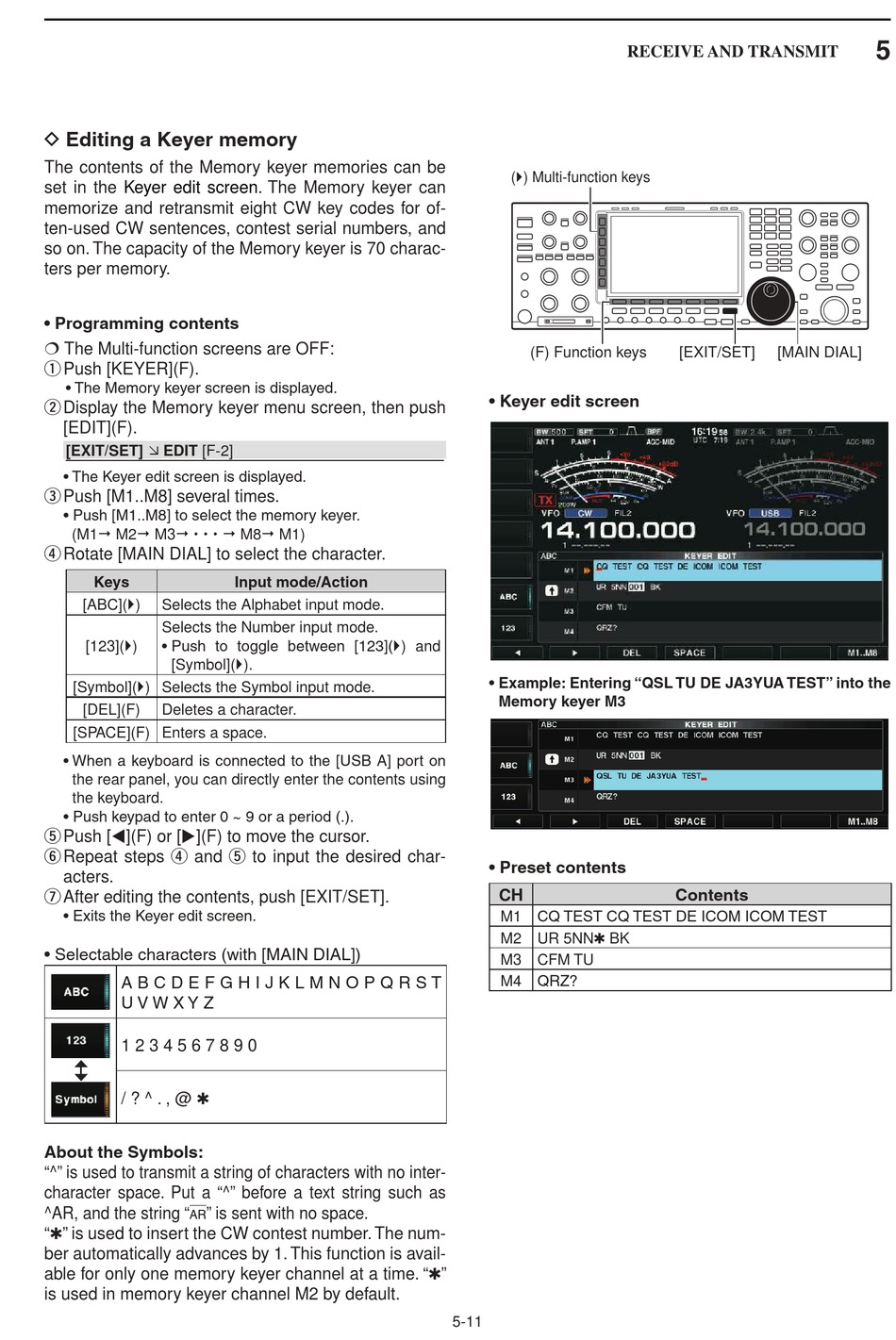

D Editing a Keyer memory
The contents of the Memory keyer memories can be
set in the Keyer edit screen. The Memory keyer can
memorize and retransmit eight CW key codes for of-
ten-used CW sentences, contest serial numbers, and
so on. The capacity of the Memory keyer is 70 charac-
ters per memory.
• Programming contents
 The Multi-function screens are OFF:
q
Push [KEYER](F).
• The Memory keyer screen is displayed.
w
Display the Memory keyer menu screen, then push
[EDIT](F).
[EXIT/SET]  EDIT [F-2]
• The Keyer edit screen is displayed.
e
Push [M1..M8] several times.
• Push [M1..M8] to select the memory keyer.
(M1 M2 M3     M8 M1)
r
Rotate [MAIN DIAL] to select the character.
Keys
[ABC]() Selects the Alphabet input mode.
Selects the Number input mode.
• Push to toggle between [123]() and
[123]()
[Symbol]().
[Symbol]() Selects the Symbol input mode.
[DEL](F) Deletes a character.
[SPACE](F) Enters a space.
• When a keyboard is connected to the [USB A] port on
the rear panel, you can directly enter the contents using
the keyboard.
• Push keypad to enter 0 ~ 9 or a period (.).
t](F) or [u](F) to move the cursor.
t
Push [
y r and t to input the desired char-
Repeat steps
acters.
u
After editing the contents, push [EXIT/SET].
• Exits the Keyer edit screen.
• Selectable characters (with [MAIN DIAL])
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z
1 2 3 4 5 6 7 8 9 0
/ ? ^ . , @ ✱
About the Symbols:
"^" is used to transmit a string of characters with no inter-
character space. Put a "^" before a text string such as
^AR, and the string " ar " is sent with no space.
"✱" is used to insert the CW contest number. The num-
ber automatically advances by 1. This function is avail-
able for only one memory keyer channel at a time. "✱"
is used in memory keyer channel M2 by default.
Input mode/Action
() Multi-function keys
(F) Function keys
• Keyer edit screen
• Example: Entering "QSL TU DE JA3YUA TEST" into the
Memory keyer M3
• Preset contents
CH
M1 CQ TEST CQ TEST DE ICOM ICOM TEST
M2 UR 5NN✱ BK
M3 CFM TU
M4 QRZ?
5-11
RECEIVE AND TRANSMIT
[EXIT/SET] [MAIN DIAL]
