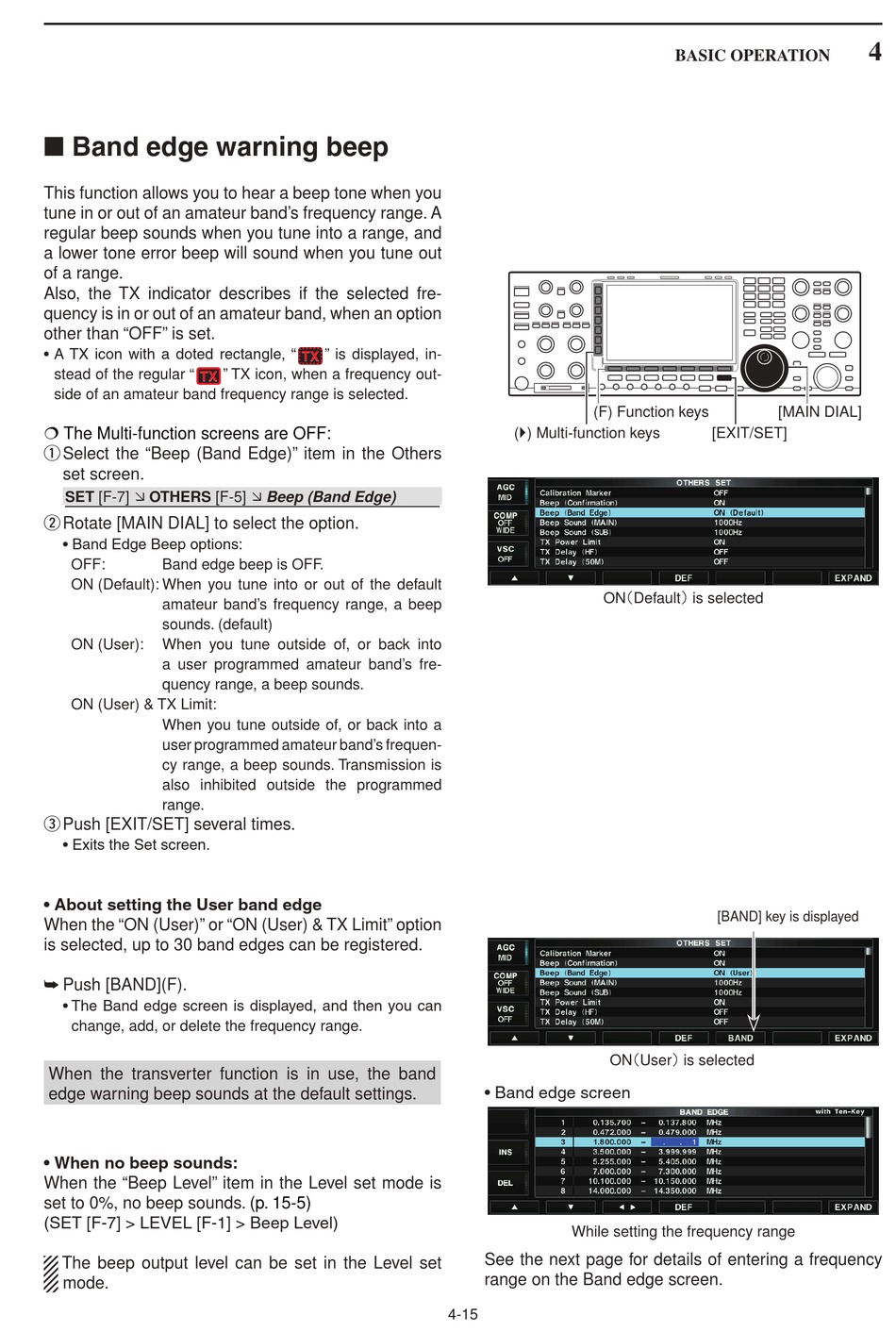

■ Band edge warning beep
This function allows you to hear a beep tone when you
tune in or out of an amateur band's frequency range. A
regular beep sounds when you tune into a range, and
a lower tone error beep will sound when you tune out
of a range.
Also, the TX indicator describes if the selected fre-
quency is in or out of an amateur band, when an option
other than "OFF" is set.
• A TX icon with a doted rectangle, "
stead of the regular "
TX
side of an amateur band frequency range is selected.
 The Multi-function screens are OFF:
q
Select the "Beep (Band Edge)" item in the Others
set screen.
SET [F-7]  OTHERS [F-5]  Beep (Band Edge)
w
Rotate [MAIN DIAL] to select the option.
• Band Edge Beep options:
OFF: Band edge beep is OFF.
ON (Default): When you tune into or out of the default
amateur band's frequency range, a beep
sounds. (default)
ON (User): When you tune outside of, or back into
a user programmed amateur band's fre-
quency range, a beep sounds.
ON (User) & TX Limit:
When you tune outside of, or back into a
user programmed amateur band's frequen-
cy range, a beep sounds. Transmission is
also inhibited outside the programmed
range.
e
Push [EXIT/SET] several times.
• Exits the Set screen.
• About setting the User band edge
When the "ON (User)" or "ON (User) & TX Limit" option
is selected, up to 30 band edges can be registered.
➥
Push [BAND](F).
• The Band edge screen is displayed, and then you can
change, add, or delete the frequency range.
When the transverter function is in use, the band
edge warning beep sounds at the default settings.
• When no beep sounds:
When the "Beep Level" item in the Level set mode is
set to 0%, no beep sounds.
(SET [F-7] > LEVEL [F-1] > Beep Level)
The beep output level can be set in the Level set
mode.
" is displayed, in-
TX
" TX icon, when a frequency out-
(p. 15-5)
(F) Function keys
() Multi-function keys
ON（Default） is selected
ON（User） is selected
• Band edge screen
While setting the frequency range
See the next page for details of entering a frequency
range on the Band edge screen.
4-15
BASIC OPERATION
[MAIN DIAL]
[EXIT/SET]
[BAND] key is displayed
4
