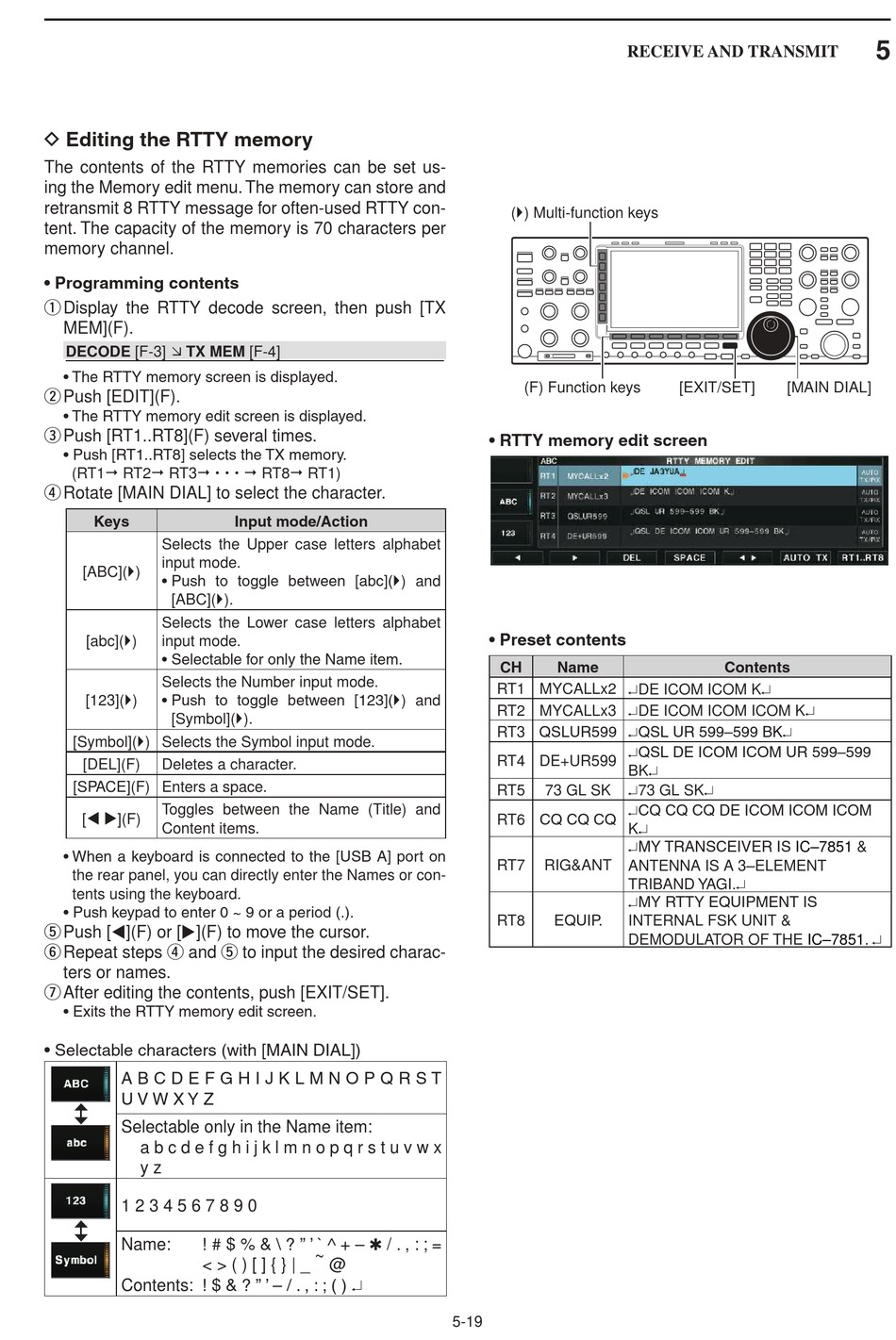

D Editing the RTTY memory
The contents of the RTTY memories can be set us-
ing the Memory edit menu. The memory can store and
retransmit 8 RTTY message for often-used RTTY con-
tent. The capacity of the memory is 70 characters per
memory channel.
• Programming contents
q
Display the RTTY decode screen, then push [TX
MEM](F).
DECODE [F-3]  TX MEM [F-4]
• The RTTY memory screen is displayed.
w
Push [EDIT](F).
• The RTTY memory edit screen is displayed.
e
Push [RT1..RT8](F) several times.
• Push [RT1..RT8] selects the TX memory.
(RT1 RT2 RT3     RT8 RT1)
r
Rotate [MAIN DIAL] to select the character.
Keys
Selects the Upper case letters alphabet
input mode.
[ABC]()
• Push to toggle between [abc]() and
[ABC]().
Selects the Lower case letters alphabet
[abc]() input mode.
• Selectable for only the Name item.
Selects the Number input mode.
• Push to toggle between [123]() and
[123]()
[Symbol]().
[Symbol]() Selects the Symbol input mode.
[DEL](F) Deletes a character.
[SPACE](F) Enters a space.
Toggles between the Name (Title) and
[t u](F)
Content items.
• When a keyboard is connected to the [USB A] port on
the rear panel, you can directly enter the Names or con-
tents using the keyboard.
• Push keypad to enter 0 ~ 9 or a period (.).
t](F) or [u](F) to move the cursor.
t
Push [
y r and t to input the desired charac-
Repeat steps
ters or names.
u
After editing the contents, push [EXIT/SET].
• Exits the RTTY memory edit screen.
• Selectable characters (with [MAIN DIAL])
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z
Selectable only in the Name item:
a b c d e f g h i j k l m n o p q r s t u v w x
y z
1 2 3 4 5 6 7 8 9 0
! # $ % & \ ? " ' ` ^ + – ✱ / . , : ; =
Name:
< > ( ) [ ] { } | _
Contents: ! $ & ? " ' – / . , : ; ( ) ↵
Input mode/Action
~
@
() Multi-function keys
(F) Function keys
• RTTY memory edit screen
• Preset contents
Name
CH
RT1 MYCALLx2 ↵DE ICOM ICOM K↵
RT2 MYCALLx3 ↵DE ICOM ICOM ICOM K↵
RT3 QSLUR599 ↵QSL UR 599–599 BK↵
RT4 DE+UR599
RT5 73 GL SK
RT6 CQ CQ CQ
RT7 RIG&ANT
EQUIP.
RT8
5-19
RECEIVE AND TRANSMIT
[EXIT/SET] [MAIN DIAL]
Contents
↵QSL DE ICOM ICOM UR 599–599
BK↵
↵73 GL SK↵
↵CQ CQ CQ DE ICOM ICOM ICOM
K↵
↵MY TRANSCEIVER IS
IC–7851
ANTENNA IS A 3–ELEMENT
TRIBAND YAGI.↵
↵MY RTTY EQUIPMENT IS
INTERNAL FSK UNIT &
DEMODULATOR OF THE IC–7851. ↵
5
&
