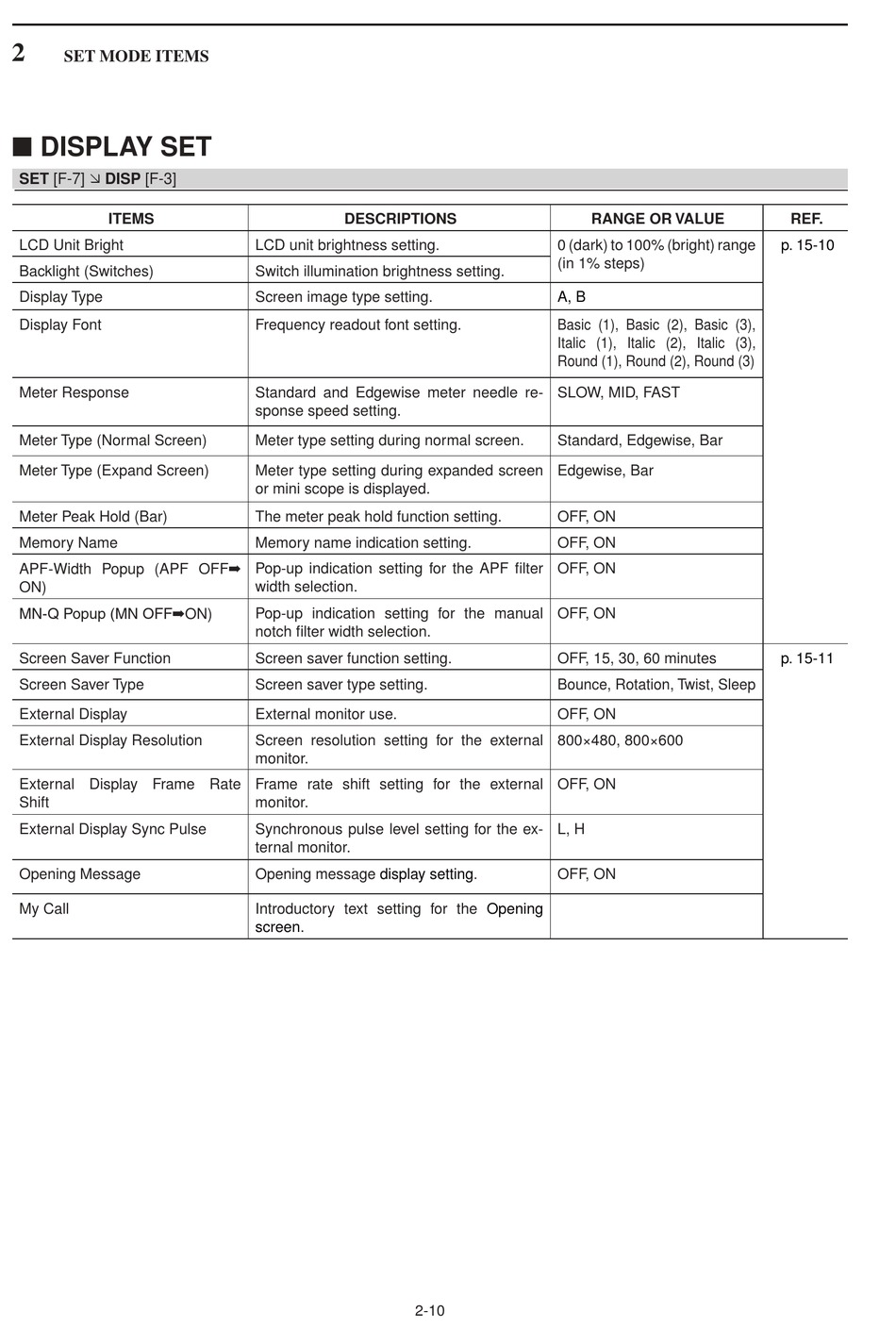

SET MODE ITEMS

■ DISPLAY SET

SET [F-7]  DISP [F-3]
ITEMS
LCD Unit Bright
Backlight (Switches)
Display Type
Display Font
Meter Response
Meter Type (Normal Screen)
Meter Type (Expand Screen)
Meter Peak Hold (Bar)
Memory Name
APF-Width Popup (APF OFF➡
ON)
MN-Q Popup (MN OFF➡ON)
Screen Saver Function
Screen Saver Type
External Display
External Display Resolution
External Display Frame Rate
Shift
External Display Sync Pulse
Opening Message
My Call
DESCRIPTIONS
LCD unit brightness setting.
Switch illumination brightness setting.
Screen image type setting.
Frequency readout font setting.
Standard and Edgewise meter needle re-
sponse speed setting.
Meter type setting during normal screen.
Meter type setting during expanded screen
or mini scope is displayed.
The meter peak hold function setting.
Memory name indication setting.
Pop-up indication setting for the APF filter
width selection.
Pop-up indication setting for the manual
notch filter width selection.
Screen saver function setting.
Screen saver type setting.
External monitor use.
Screen resolution setting for the external
monitor.
Frame rate shift setting for the external
monitor.
Synchronous pulse level setting for the ex-
ternal monitor.
Opening message display
Introductory text setting for the
screen.
2-10
RANGE OR VALUE
0 (dark) to 100% (bright) range
(in 1% steps)
A, B
Basic (1), Basic (2), Basic (3),
Italic (1), Italic (2), Italic (3),
Round (1), Round (2), Round (3)
SLOW, MID, FAST
Standard, Edgewise, Bar
Edgewise, Bar
OFF, ON
OFF, ON
OFF, ON
OFF, ON
OFF, 15, 30, 60 minutes
Bounce, Rotation, Twist, Sleep
OFF, ON
800×480, 800×600
OFF, ON
L, H
setting. OFF, ON
Opening
REF.
p. 15-10
p. 15-11
