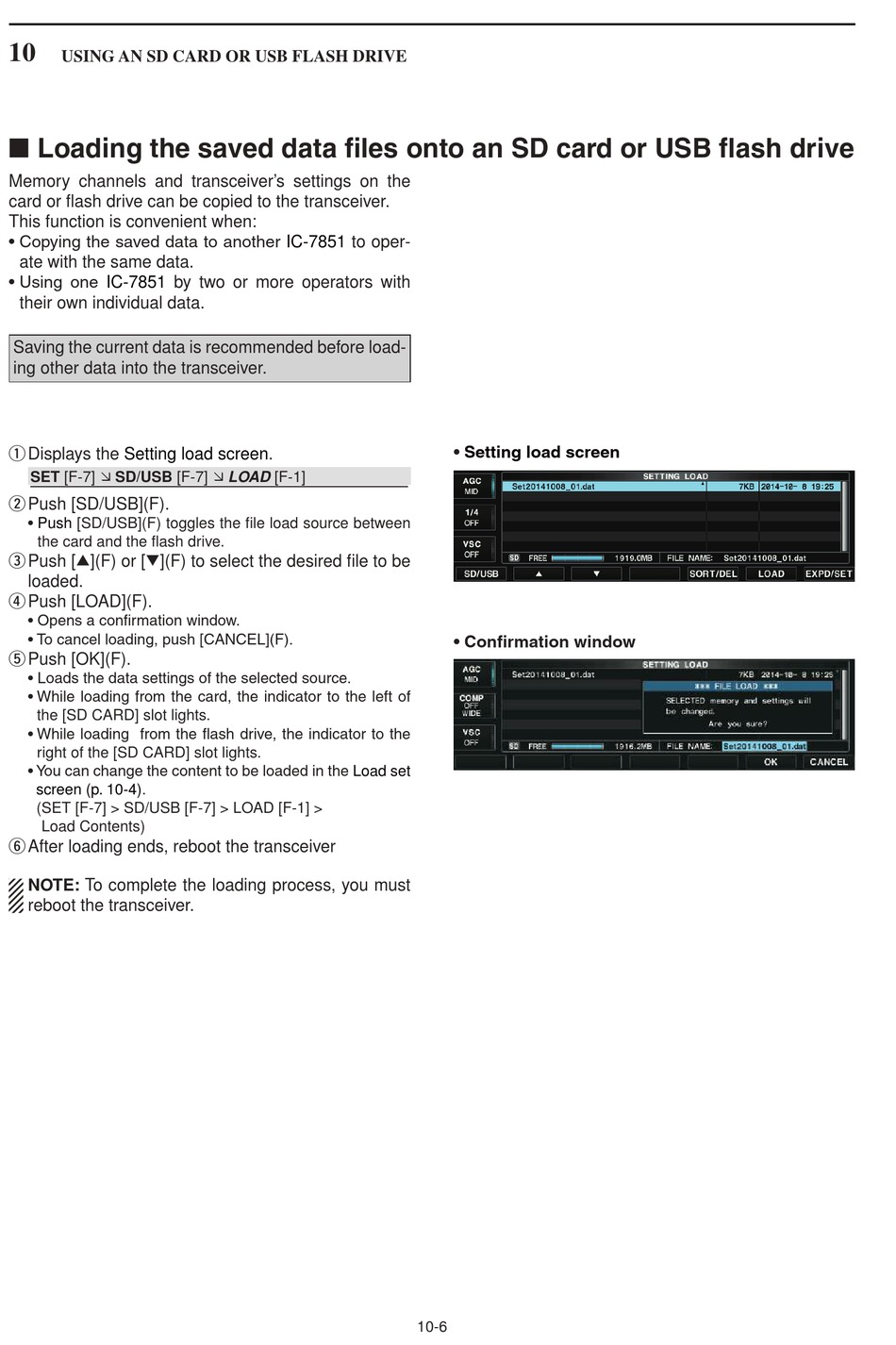

Icom IC-7851 Instruction Manual page 175

10
USING AN SD CARD OR USB FLASH DRIVE
Loading the saved data files onto an
■
Memory channels and transceiver's settings on the
card or flash drive can be copied to the transceiver.
This function is convenient when:
• Copying the saved data to another
ate with the same data.
• Using one
IC-7851 by two or more operators with
their own individual data.
Saving the current data is recommended before load-
ing other data into the transceiver.
q
Displays the Setting load
SET [F-7]  SD/USB [F-7]  LOAD [F-1]
w
Push [SD/USB](F).
•
Push [SD/USB](F) toggles the file load source between
the card and the flash drive.
∫](F) or [√](F) to select the desired file to be
e
Push [
loaded.
r
Push [LOAD](F).
• Opens a confirmation window.
• To cancel loading, push [CANCEL](F).
t
Push [OK](F).
• Loads the data settings of the selected source.
• While loading from the card, the indicator to the left of
the [SD CARD] slot lights.
• While loading from the flash drive, the indicator to the
right of the [SD CARD] slot lights.
• You can change the content to be loaded in the
screen (p. 10-4).
( SET [F-7] > SD/USB [F-7] > LOAD [F-1] >
Load Contents)
y
After loading ends, reboot the transceiver
NOTE: To complete the loading process, you must
reboot the transceiver.
IC-7851 to oper-
screen.
Load set
SD card or USB flash drive
• Setting load screen
• Confirmation window
10-6
