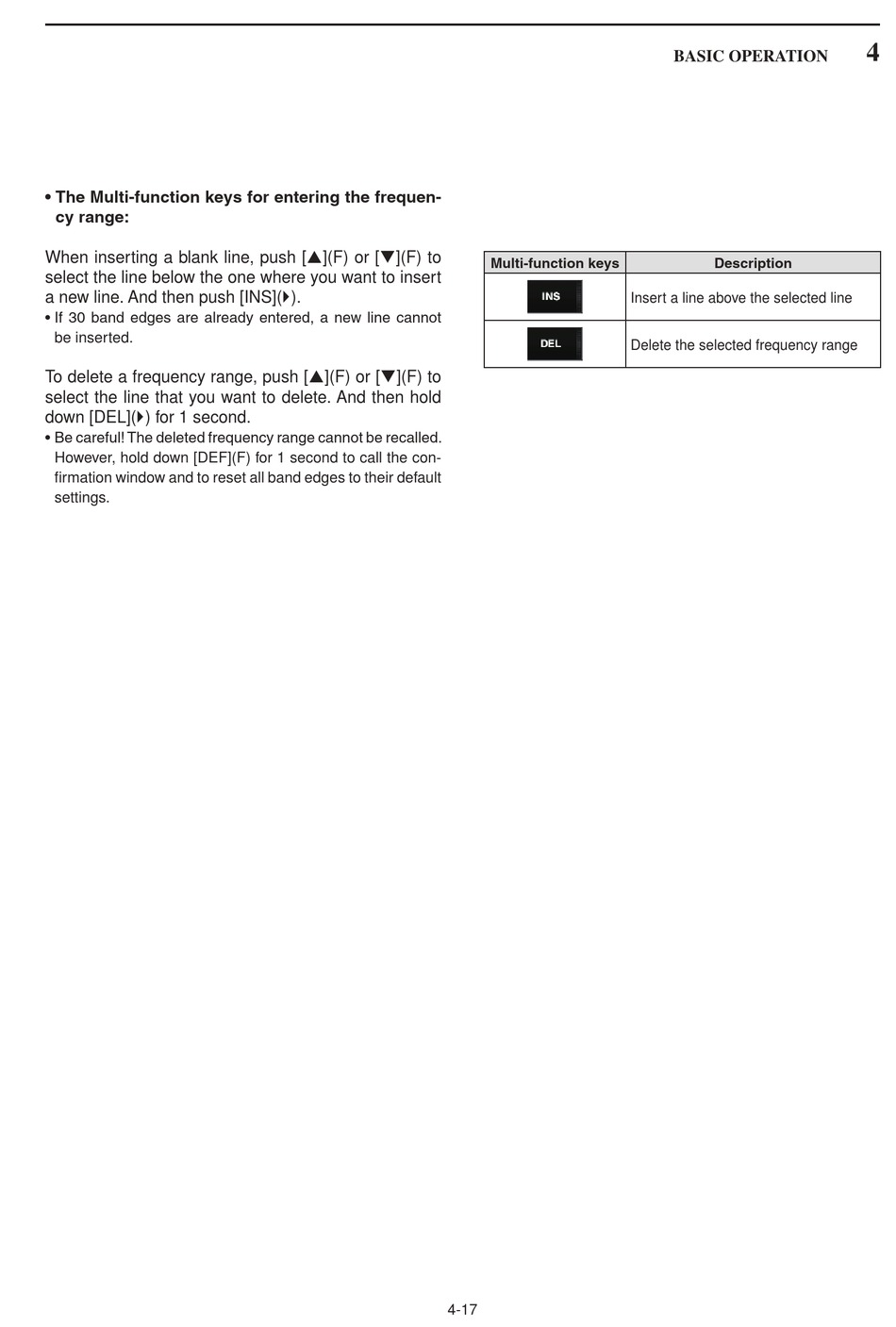

Icom IC-7851 Instruction Manual page 76

• The Multi-function keys for entering the frequen-
cy range:
When inserting a blank line, push [p](F) or [q](F) to
select the line below the one where you want to insert
a new line. And then push [INS]().
• If 30 band edges are already entered, a new line cannot
be inserted.
To delete a frequency range, push [p](F) or [q](F) to
select the line that you want to delete. And then hold
down [DEL]() for 1 second.
• Be careful! The deleted frequency range cannot be recalled.
However, hold down [DEF](F) for 1 second to call the con-
firmation window and to reset all band edges to their default
settings.
Multi-function keys
4-17
BASIC OPERATION
Description
Insert a line above the selected line
Delete the selected frequency range
4
