Front Panel

1

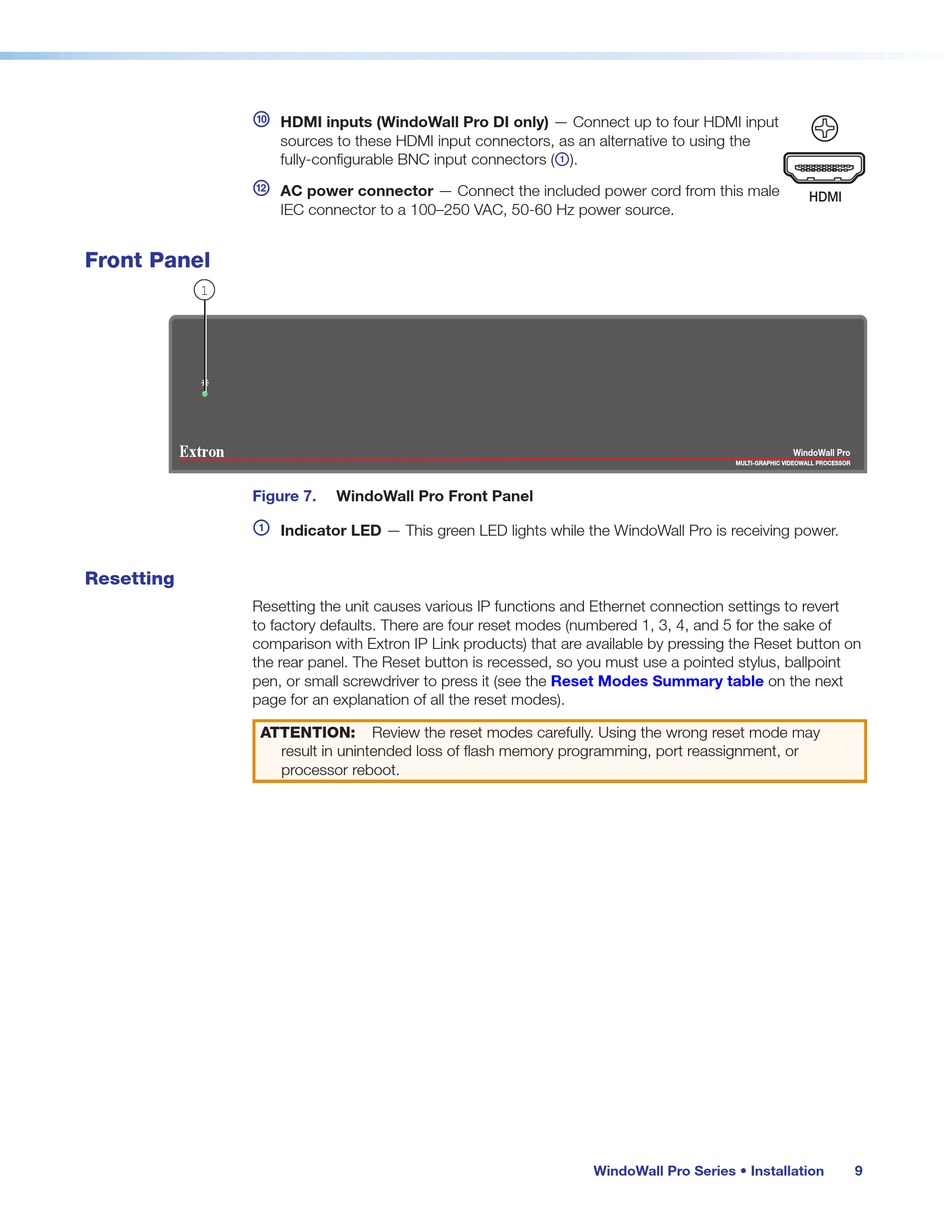

Figure 7.
a

Resetting

Resetting the unit causes various IP functions and Ethernet connection settings to revert
to factory defaults. There are four reset modes (numbered 1, 3, 4, and 5 for the sake of
comparison with Extron IP Link products) that are available by pressing the Reset button on
the rear panel. The Reset button is recessed, so you must use a pointed stylus, ballpoint
pen, or small screwdriver to press it (see the
page for an explanation of all the reset modes).
ATTENTION:
HDMI inputs (WindoWall Pro DI only) — Connect up to four HDMI input
sources to these HDMI input connectors, as an alternative to using the
fully-configurable BNC input connectors (
AC power connector — Connect the included power cord from this male
IEC connector to a 100–250 VAC, 50-60 Hz power source.
WindoWall Pro Front Panel
Indicator LED — This green LED lights while the WindoWall Pro is receiving power.
Review the reset modes carefully. Using the wrong reset mode may
result in unintended loss of flash memory programming, port reassignment, or
processor reboot.
a ).
Reset Modes Summary table
WindoWall Pro Series • Installation
HDMI
WindoWall Pro
MULTI-GRAPHIC VIDEOWALL PROCESSOR
on the next
9
