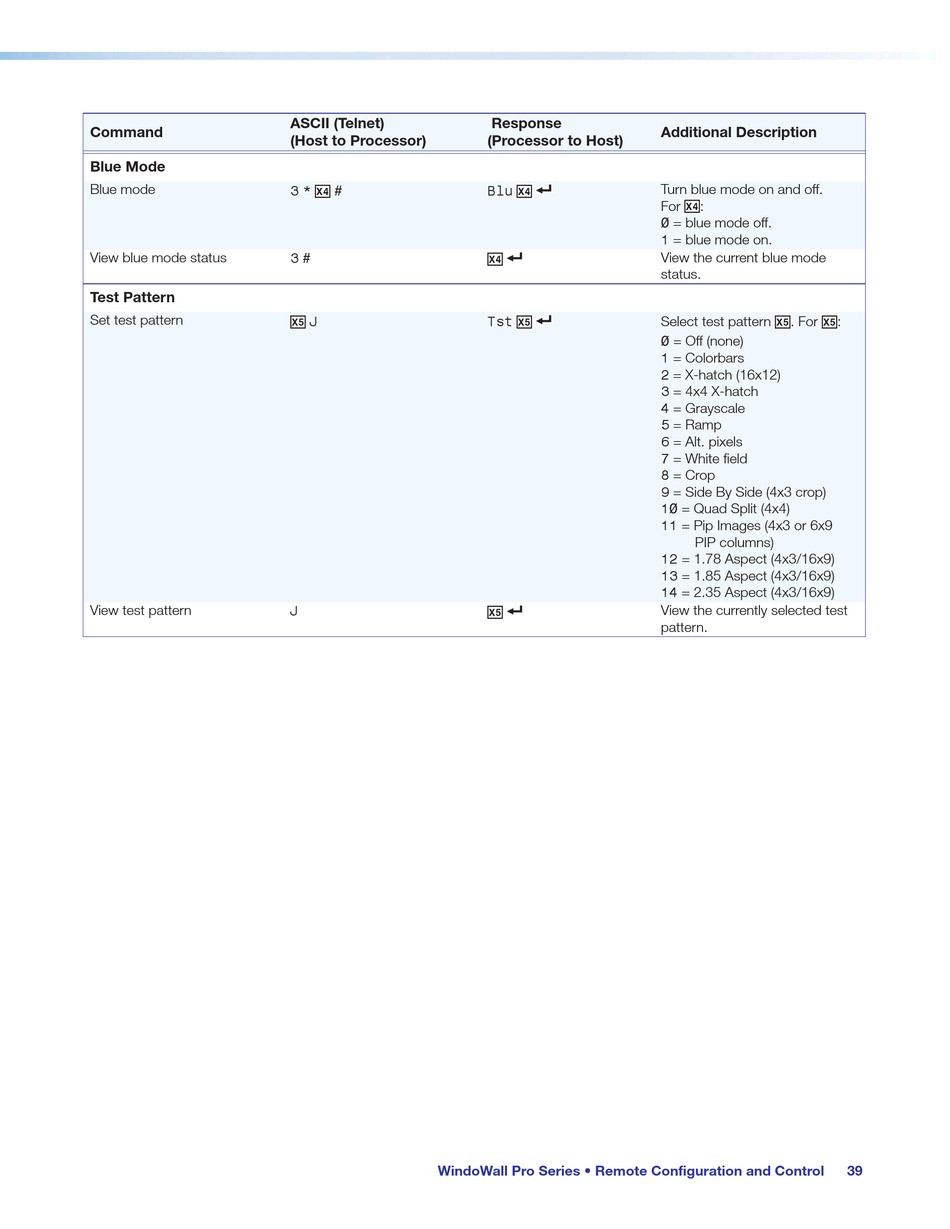

Command
Blue Mode
Blue mode
View blue mode status
Test Pattern
Set test pattern
View test pattern
ASCII (Telnet)
(Host to Processor)
X$
3 * #
3 #
X%
J
J
WindoWall Pro Series • Remote Configuration and Control
Response
Additional Description
(Processor to Host)
X$ ] Turn blue mode on and off.
Blu
For
0 = blue mode off.
1 = blue mode on.
X$ ]
View the current blue mode
status.
X% ]
Tst Select test pattern
0 = Off (none)
1 = Colorbars
2 = X-hatch (16x12)
3 = 4x4 X-hatch
4 = Grayscale
5 = Ramp
6 = Alt. pixels
7 = White field
8 = Crop
9 = Side By Side (4x3 crop)
10 = Quad Split (4x4)
11 = Pip Images (4x3 or 6x9
12 = 1.78 Aspect (4x3/16x9)
13 = 1.85 Aspect (4x3/16x9)
14 = 2.35 Aspect (4x3/16x9)
X% ] View the currently selected test
pattern.
X$
:
X% X%
. For :
PIP columns)
