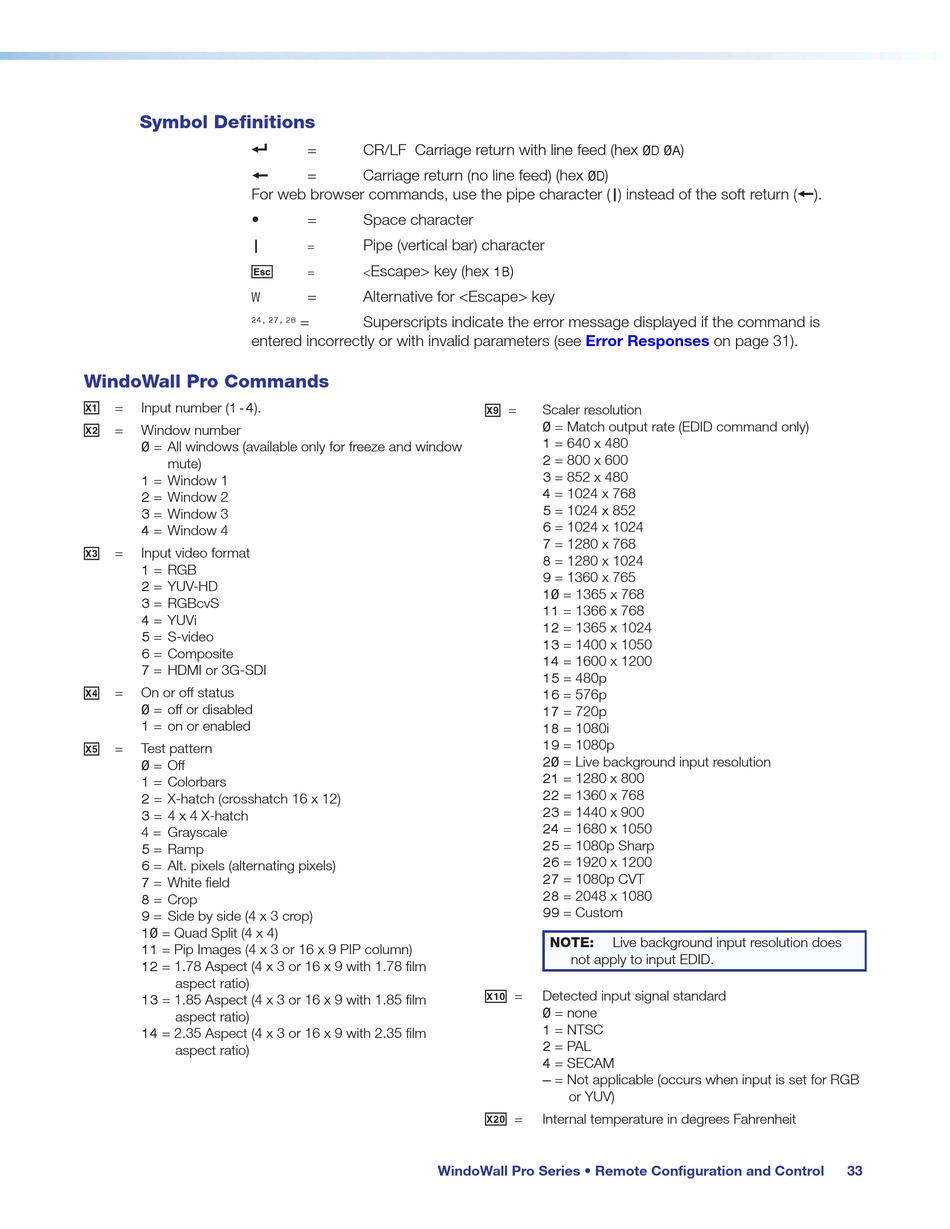

Symbol Definitions
]
}
For web browser commands, use the pipe character ( | ) instead of the soft return ( } ).
•
|
E
W
24, 27, 28
entered incorrectly or with invalid parameters (see

WindoWall Pro Commands

X!
= Input number (1-4).
X@
= Window number
0 = All windows (available only for freeze and window
mute)
1 = Window 1
2 = Window 2
3 = Window 3
4 = Window 4
X#
= Input video format
1 = RGB
2 = YUV-HD
3 = RGBcvS
4 = YUVi
5 = S-video
6 = Composite
7 = HDMI or 3G-SDI
X$
= On or off status
0 = off or disabled
1 = on or enabled
X%
= Test pattern
0 = Off
1 = Colorbars
2 = X-hatch (crosshatch 16 x 12)
3 = 4 x 4 X-hatch
4 = Grayscale
5 = Ramp
6 = Alt. pixels (alternating pixels)
7 = White field
8 = Crop
9 = Side by side (4 x 3 crop)
10 = Quad Split (4 x 4)
11 = Pip Images (4 x 3 or 16 x 9 PIP column)
12 = 1.78 Aspect (4 x 3 or 16 x 9 with 1.78 film
aspect ratio)
13 = 1.85 Aspect (4 x 3 or 16 x 9 with 1.85 film
aspect ratio)
14 = 2.35 Aspect (4 x 3 or 16 x 9 with 2.35 film
aspect ratio)
= CR/LF Carriage return with line feed (hex
= Carriage return (no line feed) (hex
= Space character
Pipe (vertical bar) character
=
Escape> key (hex
= <
= Alternative for <Escape> key
= Superscripts indicate the error message displayed if the command is
WindoWall Pro Series • Remote Configuration and Control
0D 0A
)
0D
)
1B
Error Responses
X(
= Scaler resolution
0 = Match output rate (EDID command only)
1 = 640 x 480
2 = 800 x 600
3 = 852 x 480
4 = 1024 x 768
5 = 1024 x 852
6 = 1024 x 1024
7 = 1280 x 768
8 = 1280 x 1024
9 = 1360 x 765
10 = 1365 x 768
11 = 1366 x 768
12 = 1365 x 1024
13 = 1400 x 1050
14 = 1600 x 1200
15 = 480p
16 = 576p
17 = 720p
18 = 1080i
19 = 1080p
20 = Live background input resolution
21 = 1280 x 800
22 = 1360 x 768
23 = 1440 x 900
24 = 1680 x 1050
25 = 1080p Sharp
26 = 1920 x 1200
27 = 1080p CVT
28 = 2048 x 1080
99 = Custom
NOTE: Live background input resolution does
not apply to input EDID.
X1)
= Detected input signal standard
0 = none
1 = NTSC
2 = PAL
4 = SECAM
– = Not applicable (occurs when input is set for RGB
or YUV)
X2)
= Internal temperature in degrees Fahrenheit
)
on page 31).
33
