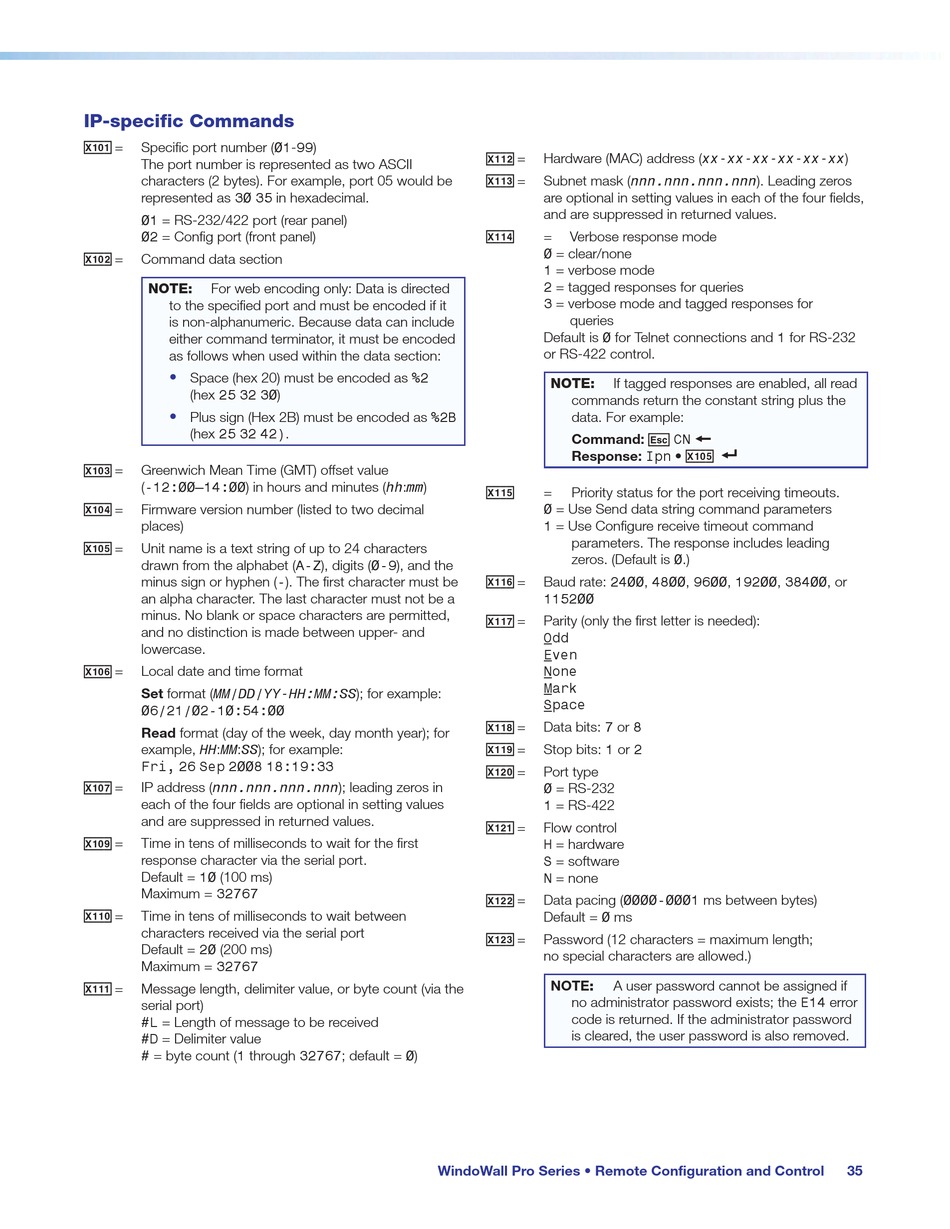

IP-specific Commands

X10!
= Specific port number (01-99)
The port number is represented as two ASCII
characters (2 bytes). For example, port 05 would be
represented as 30 35 in hexadecimal.
01 = RS-232/422 port (rear panel)
02 = Config port (front panel)
X10@
= Command data section
NOTE: For web encoding only: Data is directed
to the specified port and must be encoded if it
is non-alphanumeric. Because data can include
either command terminator, it must be encoded
as follows when used within the data section:
•
Space (hex 20) must be encoded as %2
(hex 25 32 30)
•
Plus sign (Hex 2B) must be encoded as %2B
(hex 25 32 42).
X10#
= Greenwich Mean Time (GMT) offset value
(-12:00–14:00) in hours and minutes (hh:mm)
X10$
= Firmware version number (listed to two decimal
places)
X10%
= Unit name is a text string of up to 24 characters
drawn from the alphabet (A-Z), digits (0-9), and the
minus sign or hyphen (-). The first character must be
an alpha character. The last character must not be a
minus. No blank or space characters are permitted,
and no distinction is made between upper- and
lowercase.
X10^
= Local date and time format
Set format (MM/DD/YY-HH:MM:SS); for example:
06/21/02-10:54:00
Read format (day of the week, day month year); for
example, HH:MM:SS); for example:
Fri, 26 Sep 2008 18:19:33
X10&
= IP address (nnn.nnn.nnn.nnn); leading zeros in
each of the four fields are optional in setting values
and are suppressed in returned values.
X10(
= Time in tens of milliseconds to wait for the first
response character via the serial port .
Default = 10 (100 ms)
Maximum = 32767
X11)
= Time in tens of milliseconds to wait between
characters received via the serial port
Default = 20 (200 ms)
Maximum = 32767
X11!
= Message length, delimiter value, or byte count (via the
serial port)
#L = Length of message to be received
#D = Delimiter value
# = byte count (1 through 32767; default = 0)
X11@
= Hardware (MAC) address (xx-xx-xx-xx-xx-xx)
X11#
= Subnet mask (nnn.nnn.nnn.nnn). Leading zeros
are optional in setting values in each of the four fields,
and are suppressed in returned values.
X11$
= Verbose response mode
0 = clear/none
1 = verbose mode
2 = tagged responses for queries
3 = verbose mode and tagged responses for
queries
Default is 0 for Telnet connections and 1 for RS-232
or RS-422 control.
NOTE: If tagged responses are enabled, all read
commands return the constant string plus the
data. For example:
Command:
Response: Ipn •
X11%
= Priority status for the port receiving timeouts.
0 = Use Send data string command parameters
1 = Use Configure receive timeout command
parameters. The response includes leading
zeros. (Default is 0.)
X11^
= Baud rate: 2400, 4800, 9600, 19200, 38400, or
115200
X11&
= Parity (only the first letter is needed):
Odd
Even
None
Mark
Space
X11*
= Data bits: 7 or 8
X11(
= Stop bits: 1 or 2
X12)
= Port type
0 = RS-232
1 = RS-422
X12!
= Flow control
H = hardware
S = software
N = none
X12@
= Data pacing (0000-0001 ms between bytes)
Default = 0 ms
X12#
= Password (12 characters = maximum length;
no special characters are allowed.)
NOTE: A user password cannot be assigned if
no administrator password exists; the E14 error
code is returned. If the administrator password
is cleared, the user password is also removed.
WindoWall Pro Series • Remote Configuration and Control
E }
CN
X10% ]
35
