Extron electronics WindoWall Pro Series User Manual page 82

4. Press the <Enter> key. If the WindoWall Pro HTML pages are not password protected,
the browser displays the System Status page.
If the WindoWall Pro HTML pages are password protected, the browser displays the
Enter Network Password dialog box (figure 52).

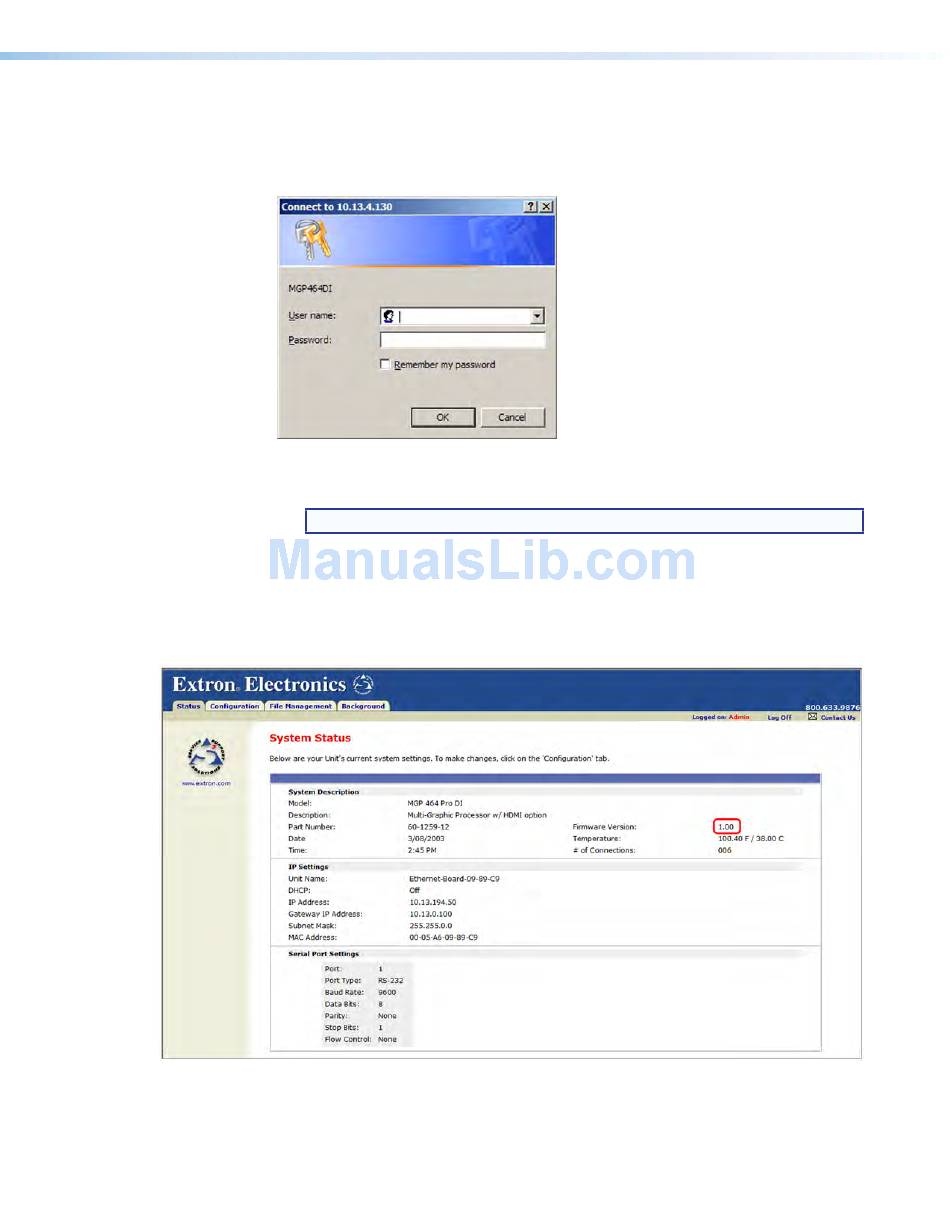

Figure 52. Example of an Enter Network Password Dialog Box
a.
Enter the appropriate administrator password in the Password field.
NOTE: A User name entry is not required.
b. If desired, select the check box to have the system input your password the next
time you enter your WindoWall Pro IP address.
c. Click . The System Status page or your custom start page opens.
OK
5. Access the System Status page if it is not already displayed. The firmware version is
listed in the System Description area (figure 53).
Figure 53. Current Firmware Version on System Status Page
WindoWall Pro Series • Reference Information 76
