13.
From the
menu, select
Tools
and the processors. (Be sure that you have access to these devices and that they have
power.) The following screen is displayed:

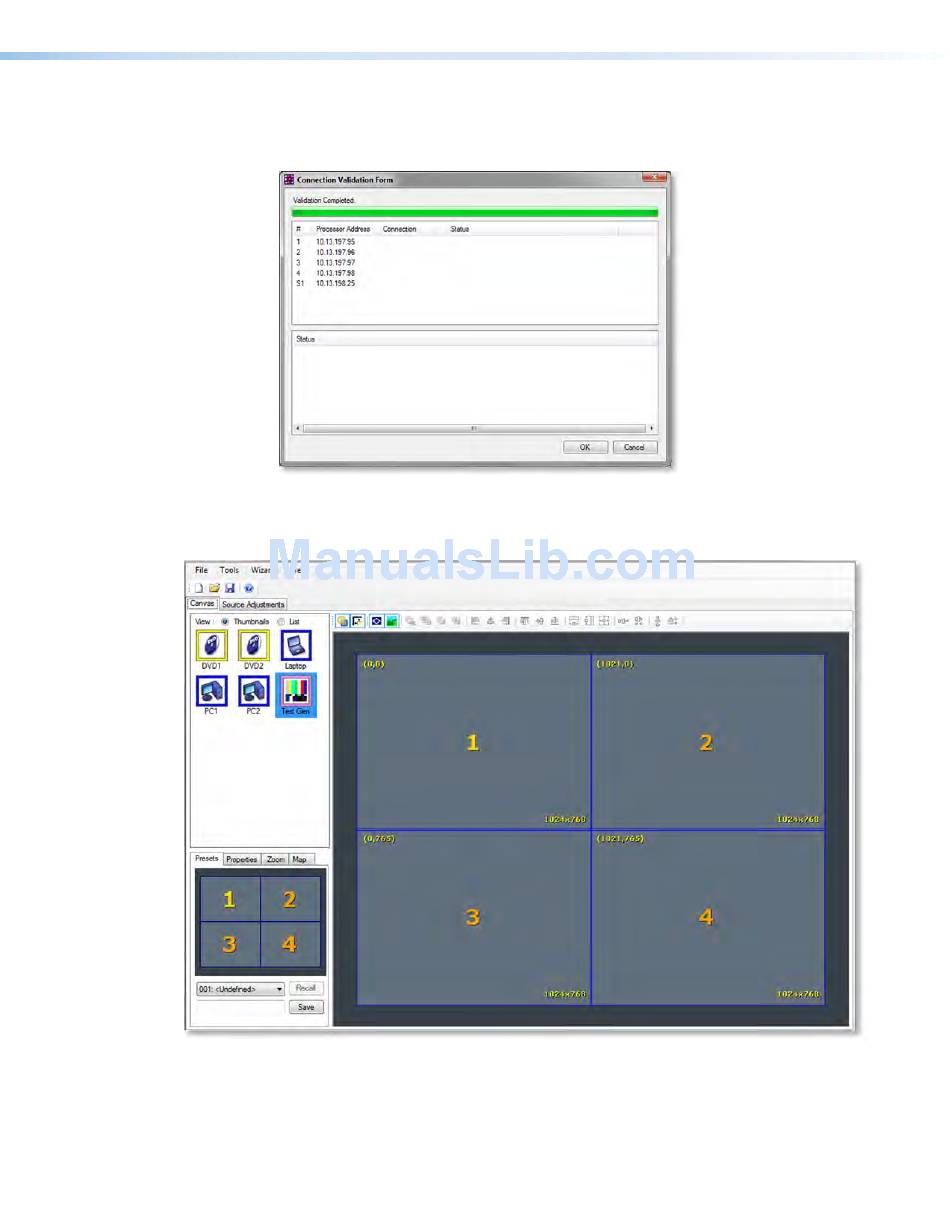

Figure 25.
Connection Validation Form
14.
Click
. If the connections are successful, the software goes into operating mode, and
OK
the Canvas screen is displayed.
Figure 26.
Canvas Tab on the WindoWall Console Window in Operating Mode
15.
Run the Auto Image Wizard to configure the image sampling settings for the input
sources that you have defined in this project (see
the next page).
to connect online to the matrix switcher
Operate System
Using the Auto Image Wizard
WindoWall Pro Series • Remote Configuration and Control
on
26
