4. (Optional) Define the size of the display borders using the Edge Compensation screen.
Select the check box to enable the fields on this screen.
Enable

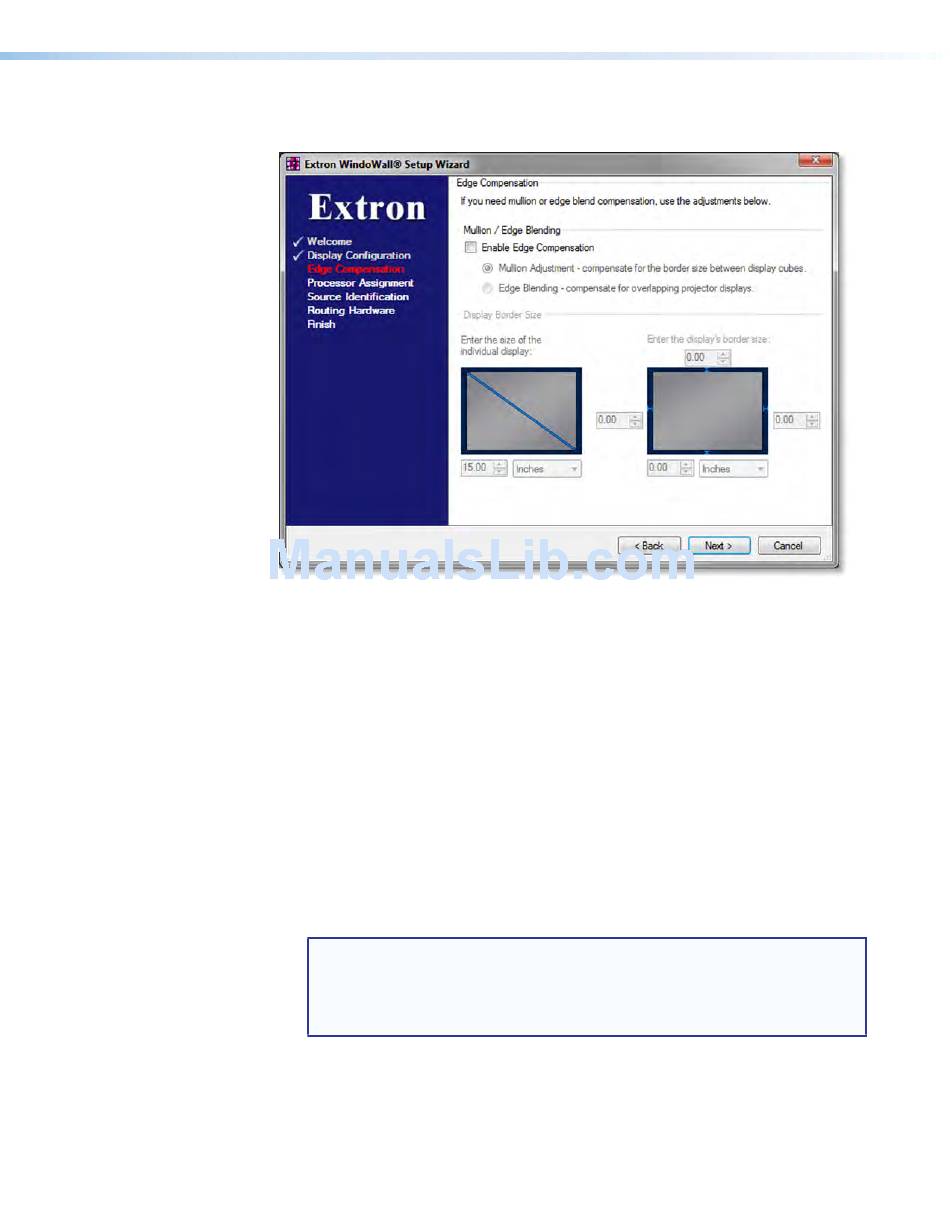

Figure 15. Edge Compensation Window, Mullion Adjustment
Selected — Setup Wizard
The Edge Compensation screen contains the following:
• Mullion Adjustment
compensate for the border spaces around the displays. When you select
, the following fields are displayed:
Adjustment
Enter the size of the individual display — Type or use the incremental spin
•
boxes and drop-down menus to select the diagonal size and unit of measure of
the individual displays.
Enter the display border size — Type or use the incremental spin boxes and
•
drop-down menus to select the sizes and unit of measure for the borders of
each of the displays.
radio button — Select this button if you are using projectors
• Edge Blending
to display multiple images on one screen, and you need to compensate for
overlapping edges. The Edge Compensation screen changes as shown in
figure 16 on the next page.
NOTE: The WindoWall Pro does not manage the brightness compensation
associated with edge blended images. The WindoWall Console software
supports projectors that have edge blending functionality built in (see the
Special Application: Edge Blending
more information.)
radio button — Select this button if you need to
section, beginning on page 64, for
