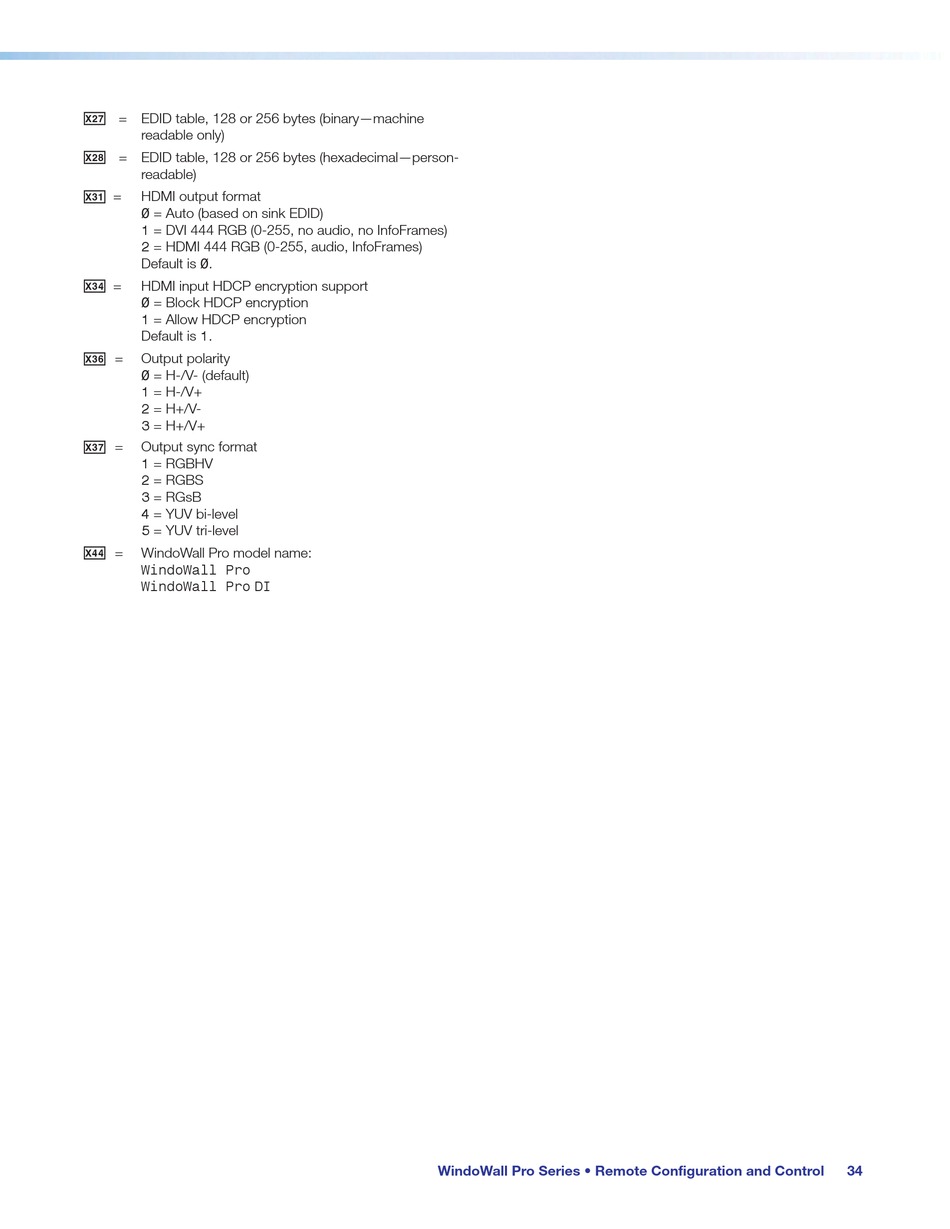

X2&
= EDID table, 128 or 256 bytes (binary—machine
readable only)
X2*
= EDID table, 128 or 256 bytes (hexadecimal—person-
readable)
X3!
= HDMI output format
0 = Auto (based on sink EDID)
1 = DVI 444 RGB (0-255, no audio, no InfoFrames)
2 = HDMI 444 RGB (0-255, audio, InfoFrames)
Default is 0.
X3$
= HDMI input HDCP encryption support
0 = Block HDCP encryption
1 = Allow HDCP encryption
Default is 1.
X3^
= Output polarity
0 = H-/V- (default)
1 = H-/V+
2 = H+/V-
3 = H+/V+
X3&
= Output sync format
1 = RGBHV
2 = RGBS
3 = RGsB
4 = YUV bi-level
5 = YUV tri-level
X4$
= WindoWall Pro model name:
WindoWall Pro
WindoWall Pro DI
