If you select the
Clear existing I/O ties
may have specified previously are removed before the new set of connections is
made. If you do not select the check box, previous connections are retained and
the new connections are added following them (see the example in figure 23).

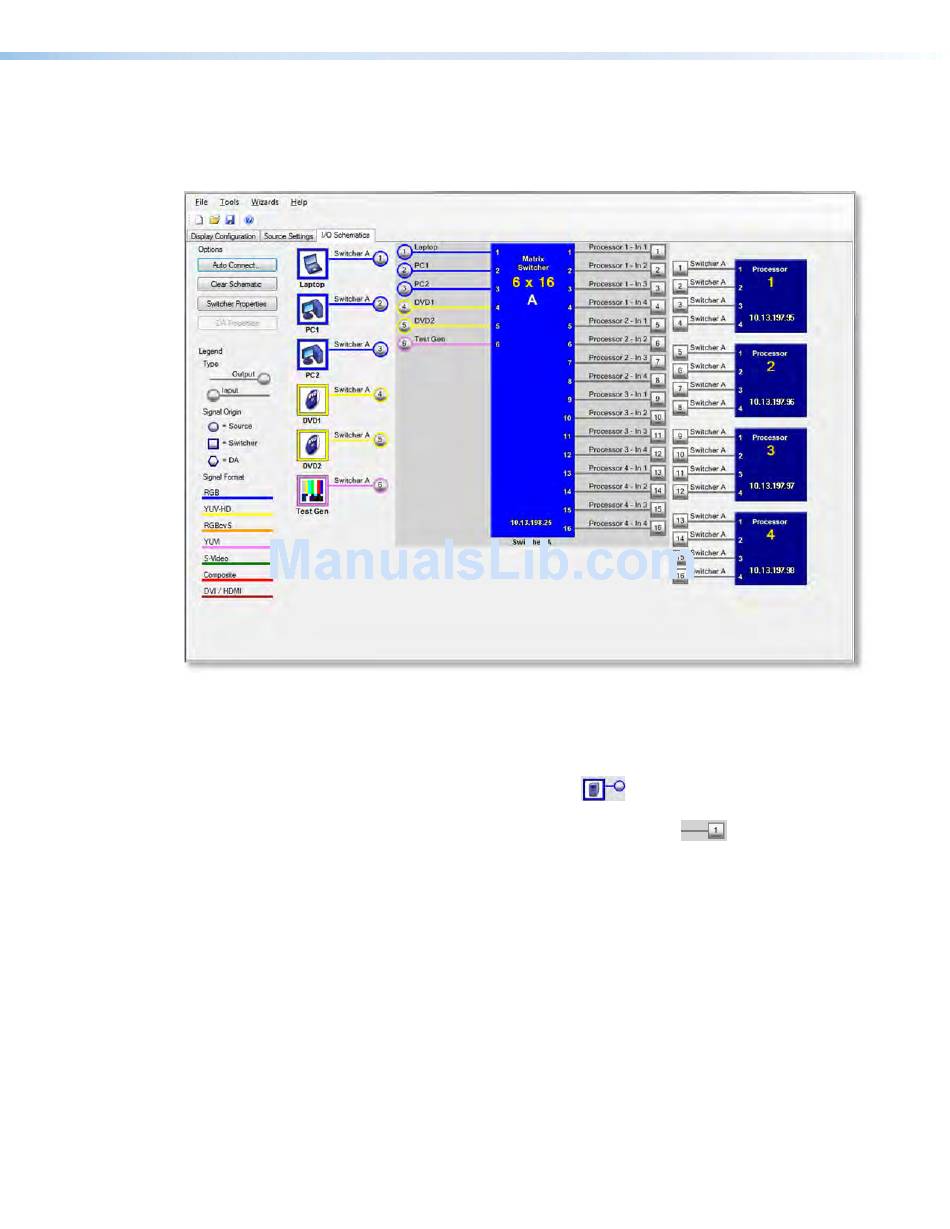

Figure 23. I/O Schematics Screen with Auto Connected Sources and
Processors
Manually connect — You can connect the inputs and the processors individually
•
by dragging icons to the desired locations on the diagrams as follows:
Drag each source icon (for example,
•
input on the diagram in the center.
Drag each WindoWall Pro output icon (for example,
•
desired location on one of the Processor diagrams at the right edge of the
I/O Schematics screen.
To delete a tie, do either of the following:
•
Right-click on the tie to either the matrix switcher diagram or the appropriate
MGP diagram, then click the
Place the mouse over the tie, then press the <Delete> key on your
keyboard.
Figure 24
on the next page shows a schematic diagram being assembled
manually.
WindoWall Pro Series • Remote Configuration and Control
