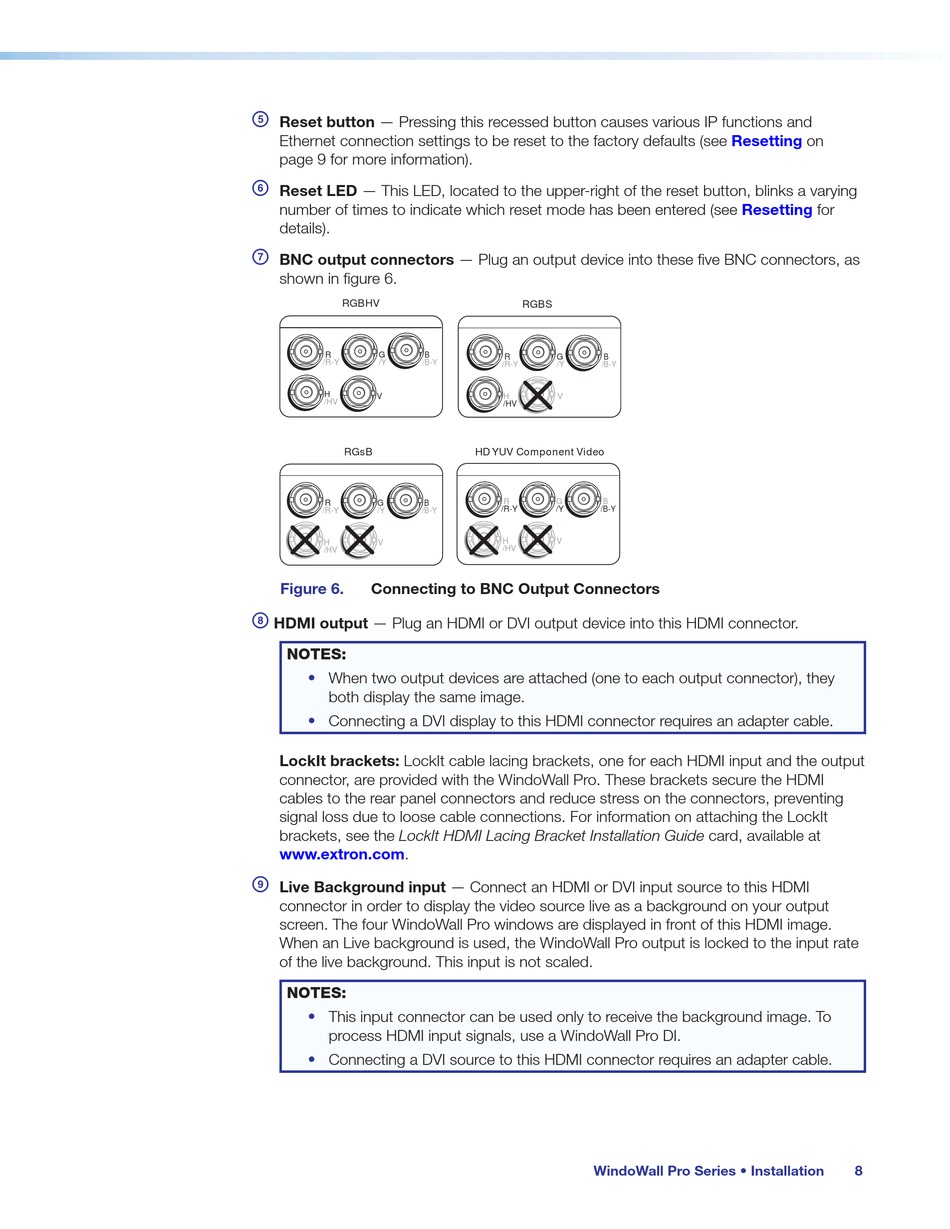

Reset button — Pressing this recessed button causes various IP functions and
Ethernet connection settings to be reset to the factory defaults (see
page 9 for more information).
f
Reset LED — This LED, located to the upper-right of the reset button, blinks a varying
number of times to indicate which reset mode has been entered (see
details).
g
BNC output connectors — Plug an output device into these five BNC connectors, as
shown in figure 6.
RGBHV
R G B
/R-Y /Y /B-Y
H
V
/HV
RGsB
R G B
/R-Y /Y /B-Y
H V
/HV
Figure 6. Connecting to BNC Output Connectors
h
HDMI output — Plug an HDMI or DVI output device into this HDMI connector.
NOTES:
•
When two output devices are attached (one to each output connector), they
both display the same image.
• Connecting a DVI display to this HDMI connector requires an adapter cable.
LockIt brackets: LockIt cable lacing brackets, one for each HDMI input and the output
connector, are provided with the WindoWall Pro. These brackets secure the HDMI
cables to the rear panel connectors and reduce stress on the connectors, preventing
signal loss due to loose cable connections. For information on attaching the LockIt
brackets, see the LockIt HDMI Lacing Bracket Installation Guide card, available at
www.extron.com.
i
Live Background input — Connect an HDMI or DVI input source to this HDMI
connector in order to display the video source live as a background on your output
screen. The four WindoWall Pro windows are displayed in front of this HDMI image.
When an Live background is used, the WindoWall Pro output is locked to the input rate
of the live background. This input is not scaled.
NOTES:
• This input connector can be used only to receive the background image. To
process HDMI input signals, use a WindoWall Pro DI.
• Connecting a DVI source to this HDMI connector requires an adapter cable.
RGBS
R G B
/R-Y /Y /B-Y
H V
/HV
HD YUV Component Video
R G B
/R-Y /Y /B-Y
H V
/HV
