Extron electronics WindoWall Pro Series User Manual page 31

FIG_I/O Config_Manual

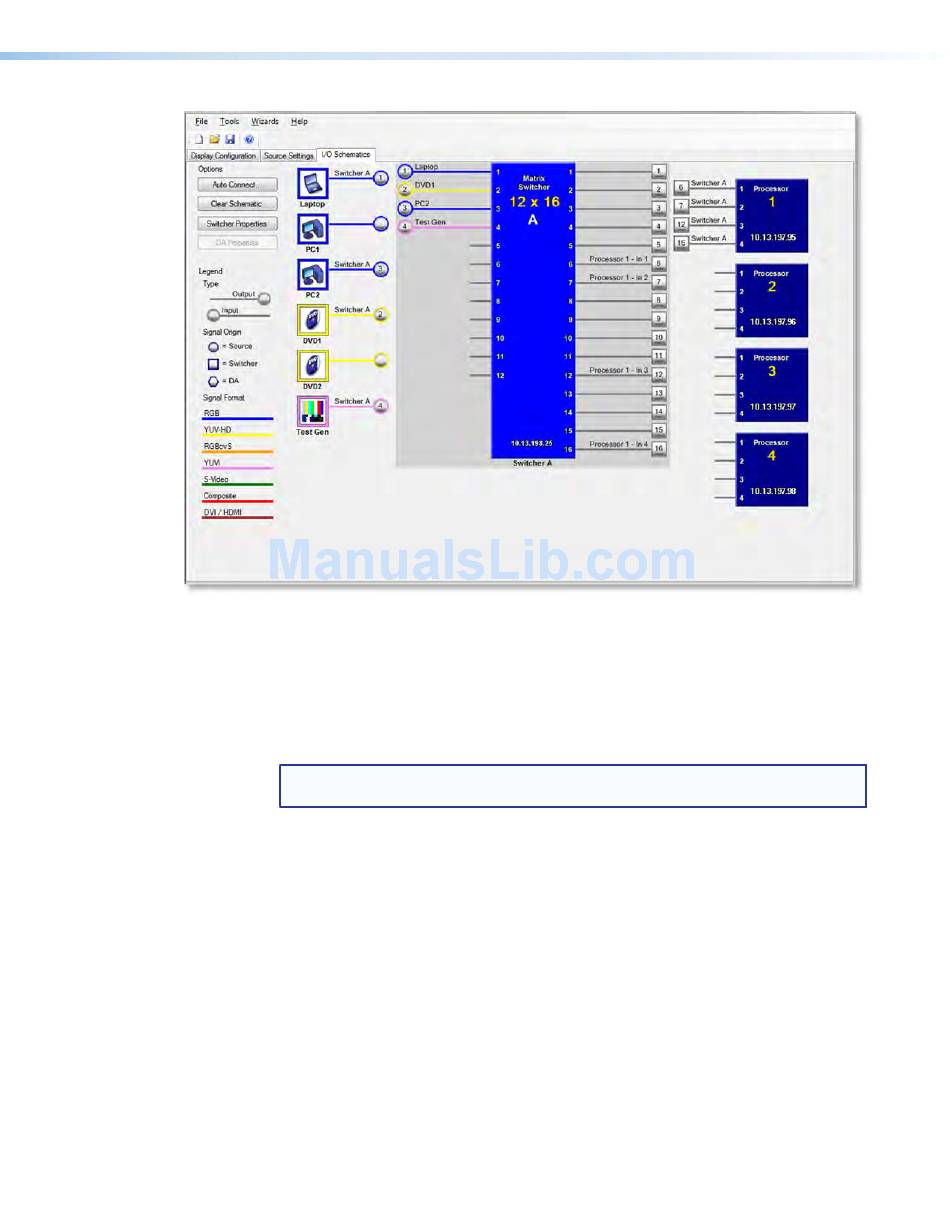

Figure 24. Manually Connecting Sources and Processors on the I/O
Schematics Screen
For details on using the I/O Schematic screen, select
view the WindoWall Console help file.
11. If you want to make changes to your input sources at this point, select the
tab and make your changes or additions there, then select the
Settings
tab again.
Schematics
NOTE: The diagram you create on the
physical cabling in the WindoWall Pro system.
12. Save your completed configuration:
a. Select
Save Project As
b. On the Save As dialog box, enter a name for the configuration.
c. Browse to the location on your computer where you want to save the configuration,
and click . The new configuration file name is displayed in the title bar of the
Save
WindoWall Console window.
I/O Schematics
from the menu.
File
WindoWall Pro Series • Remote Configuration and Control
from the menu to
