DMP 44 xi
4x4 Digital Audio Matrix Processor
User Guide
Mixers and Processors
68-3736-01, Rev. A
07 24

Advertisement

loading
Need help?

Need help?

Do you have a question about the DMP 44 xi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics DMP 44 xi

Summary of Contents for Extron electronics DMP 44 xi

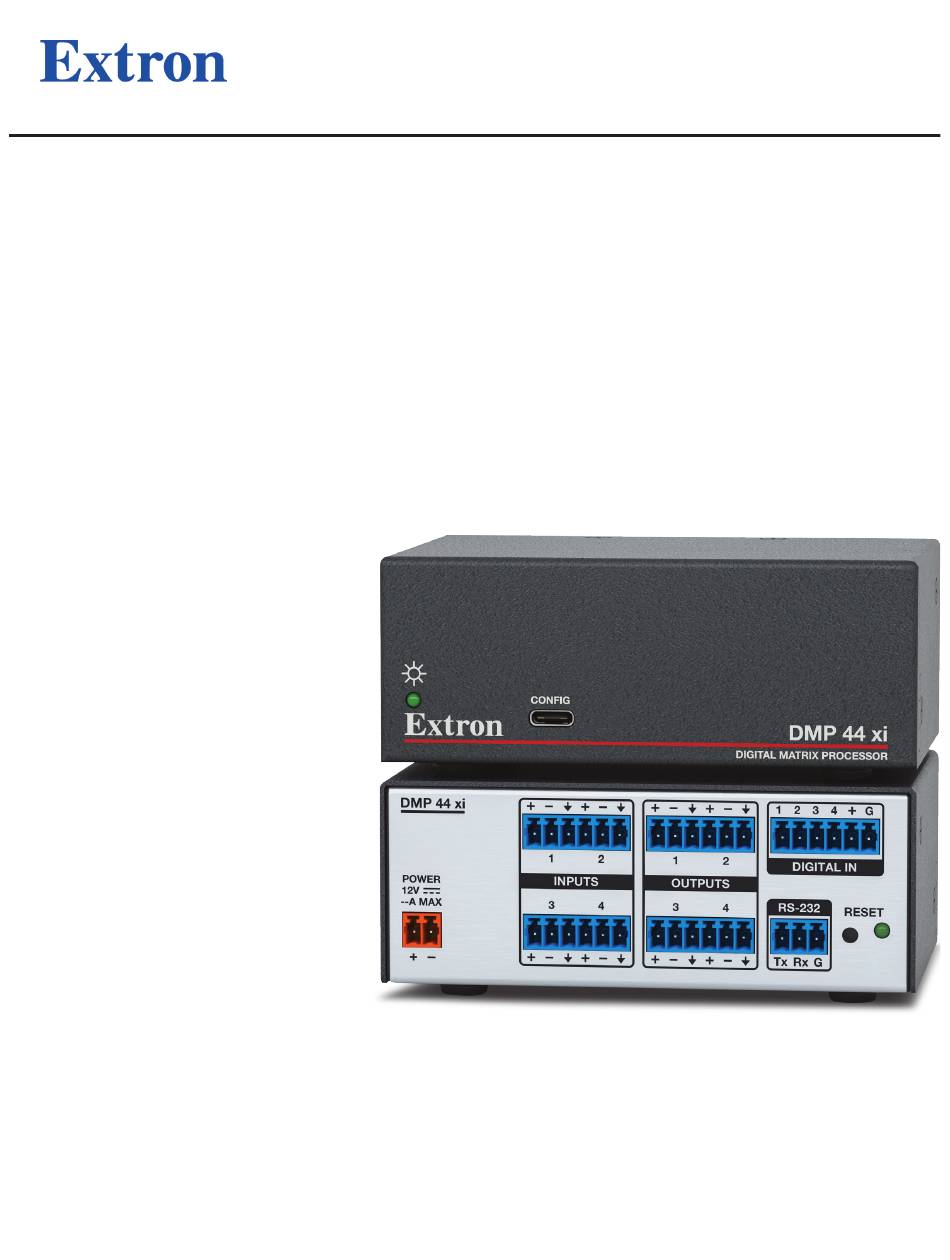

  • Page 1 DMP 44 xi 4x4 Digital Audio Matrix Processor User Guide Mixers and Processors 68-3736-01, Rev. A 07 24...
  • Page 2 Safety Instructions Safety Instructions • English Instructions de sécurité • Français AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le produit, WARNING: This symbol, , when used on the product, is intended to signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une alert the user of the presence of uninsulated dangerous voltage within the tension électrique dangereuse susceptible de provoquer un choc électrique.
  • Page 3 • 安全说明 简体中文 警告： 产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险电 压， 有触电危险。 注意： 产品上的这个标志意在提示用户, 设备随附的用户手册中有重 要的操作和维护(维修)说明。 关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使 www.extron.com 用的特性等相关内容，敬请访问 Extron 网站 , ，参见 Extron 安 全规范指南，产品编号 68-290-01 。 安全記事 • 繁體中文 안전 지침 • 한국어 警告: 若產品上使用此符號， 是為了提醒使用者， 產品機殼內存在未隔離的危險 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 접지되지 電壓，...
  • Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,0p1 scene 1,1 ^B 51 ^W^C.0...
  • Page 7 Contents Introduction ..........................1 About this Guide ........................... 1 About the DMP 44 xi ..........................1 Features ............................... 1 Application Diagrams ........................... 3 Installation and Operation ......................4 Rear Panel Features ..........................4 Front Panel Features ........................... 7 Operation .............................. 7 Powering the Processor ........................7 Resetting ............................
  • Page 8 Output Path OIDS ........................... 22 Mix-point OIDS ..........................22 Command and Response Table for SIS Commands ................23 Equipment Mounting .........................26 Mounting the DMP 44 xi ........................26 Tabletop Use ........................... 26 Mounting Kits ..........................26 DMP 44 xi • Contents...
  • Page 9 Features • 4x4 line level digital audio matrix mixer — The DMP 44 xi is a compact matrix mixer with DSP. It features four line level inputs that can be processed, mixed, and routed to four line level outputs. •...
  • Page 10 • RS-232 control port — Using serial commands, the DMP 44 xi can be integrated into a control system. Extron products use the SIS command protocol, a set of basic ASCII code commands that allow for quick and easy programming.
  • Page 11 CONFIG Matrix Processor DMP 44 xi DIGITAL MATRIX PROCESSOR Audio Audio Audio Player PC Audio Figure 1. Typical Application Diagram of DMP 44 xi (Meeting Room) Zone 3 Zone 1 Extron SF 26PT Pendant Speakers Zone 2 Extron SF 26CT...
  • Page 12 Installation and Operation This section describes the installation of the DMP 44 xi, including: • Rear Panel Features • Front Panel Features • Operation Rear Panel Features Power port Line inputs 1-4 Line outputs 1-4 DMP 44 xi 1 2 3 4...
  • Page 13 5. Use the supplied tie wrap to strap the power cord to the extended tail of the connector. POWER 0.5A MAX Smooth Ridges SECTION A–A 3/16" (5 mm) Max. Figure 4. Power Input Wiring DMP 44 xi • Installation and Operation...
  • Page 14 (see on page 8 for details on the different reset modes). When not displaying reset functions, the LED operates as a power indicator and matches the front panel power LED. DMP 44 xi • Installation and Operation...
  • Page 15 Étudier de près les différents modes de réinitialisation. Appliquer le mauvais mode de réinitialisation peut causer une perte inattendue de la programmation de la mémoire flash, une reconfiguration des ports ou une réinitialisation du processeur. DMP 44 xi • Installation and Operation...
  • Page 16 Digital input ports are inactive and not configured. The device continues to run the soft loaded firmware. The reset LED blinks 4 times (0.1 second each blink) in a quick successtion following a successful reset. DMP 44 xi • Installation and Operation...
  • Page 17 (.exe) file is downloaded to the PC. Make a note of the folder where the software was saved. NOTE: (Optional) Click Release Notes for more information about the software update. Figure 11. DSP Configurator Pro Download DMP 44 xi • DSP Configurator Pro Software...
  • Page 18 2. Enter your Extron Insider credentials in the Email and Password fields, and click LOG IN. 3. Click Close to close the login dialog and access the Discover page. Figure 13. DSP Configurator Pro Main Discover Page DMP 44 xi • DSP Configurator Pro Software...
  • Page 19 The Connect panel allows the user to manually connect to any device that is supported by DSP Configurator Pro. 1. Click the Connect tab in the menu bar (see figure 15). The panel opens with the Connection Type menu on the left side. Figure 15. Connection Type DMP 44 xi • DSP Configurator Pro Software...
  • Page 20 Click Start Project at the bottom of the Added Devices column. The Device Manager panel opens with the selected device listed. Double-click the device in the Device Manager panel to open it in the workspace. DMP 44 xi • DSP Configurator Pro Software...
  • Page 21 Alternatively, click Help > Contents in the menu bar at the top of the main workspace, or press <F1> on the keyboard. This help file contains detailed procedures and further instruction on all DSP Configurator Pro features. DMP 44 xi • DSP Configurator Pro Software...
  • Page 22 Groups — Opens the Configure Groups dialog box to create, edit, and delete Gain and Mute groups. • Update Firmware — Opens the Firmware Loader application, if it is installed. NOTE: Go to www.extron.com to download the Firmware Loader software. DMP 44 xi • DSP Configurator Pro Software...
  • Page 23 This panel displays the current status of DSP Configurator Pro and shows when data is being pushed to or pulled from the device. When the software is ready to perform actions, the panel displays Ready. DMP 44 xi • DSP Configurator Pro Software...
  • Page 24 Amplifier Settings — Opens a dialog box to configure the amplifier output mode. Add — Adds a new item. Add Folder — Adds a new folder. Delete — Deletes an existing item. DMP 44 xi • DSP Configurator Pro Software...
  • Page 25 SIS Configuration and Control Use Simple Instruction Set (SIS) commands to configure the DMP 44 xi. This section provides information about using those commands. Topics include: • Host Control Ports • Simple Instruction Set Control • Command and Response Table for SIS Commands...
  • Page 26 “O” is the capital letter “o”. Error Responses When the DMP 44 xi is unable to execute the command, it returns an error response to the host. The error response codes and their descriptions are as follows: –...
  • Page 27 For mute values, use 0 or 1. Default = 0 = Increment or decrement value For gain with a resolution to 0.1, multiply by 10. For mute values, use 0 or 1. DMP 44 xi • SIS Configuration and Control...
  • Page 28 Ds<ParameterID><OID>*<value> ] NOTE: For a complete list of the analog output OID numbers and acceptable attenuation value ranges for each input and output, see Object ID (OID) Number Tables on page 22. DMP 44 xi • SIS Configuration and Control...
  • Page 29 Out 3 Out 4 Line Input 1 20000 20001 20002 20003 Line Input 2 20100 20101 20102 20103 Line Input 3 20200 20201 20202 20203 Line Input 4 20300 20301 20302 20303 DMP 44 xi • SIS Configuration and Control...
  • Page 30 Bi-directional Serial Data Port Configure parameters View parameters Verbose mode 2/3 9600 19200 38400 115200 KEY: = Baud rate: (default) DMP 44 xi • SIS Configuration and Control...
  • Page 31 (For gain value with a resolution to 0.1, multiply by 10. For mute values, use = Increment or decrement value (For gain value with a resolution to 0.1, multiply by 10. For mute values, use Presets X1!] Recall preset KEY: = Preset number ( max) DMP 44 xi • SIS Configuration and Control...
  • Page 32 = Edge trigger - low to high recalls preset 1-16 = Input, preset or group number: Input range = Preset range = 1-16 Group Range = = Off = State: = Low (voltage) = High (voltage) DMP 44 xi • SIS Configuration and Control...
  • Page 33 The unit can be set on a table, mounted in a rack, or mounted under a desk or table. Tabletop Use Four adhesive rubber feet are included with the DMP 44 xi. For tabletop use, attach one foot at each corner on the bottom of the unit, and place it where desired.
  • Page 34 électriques autres que les connexions directes au circuit de dérivation (ex. : les multiprises). Rack Mounting For optional rack mounting, do not install the rubber feet. Mount the DMP 44 xi on a 19-inch Universal 1U or Basic rack shelf. To rack mount the DMP 44 xi: 1.
  • Page 35 Furniture Mounting Furniture mount the DMP 44 xi using the optional mounting kit. To furniture mount the DMP 44 xi: 1. Attach the selected mounting brackets with the machine screws provided. 2. If feet were previously installed on the bottom of the cabinet, remove them.
  • Page 36 Extron Warranty Extron warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
