The wizard fills in IP addresses for the rest of the processors in your configuration,
incrementing each successive address by 1. (If the actual addresses of the WindoWall
Pros do not match the ones that the wizard automatically entered, you can correct
the addresses on the WindoWall Console main window after you complete the setup
wizard.)
Click to display the next screen.
Next
6. On the Source Identification screen, enter information about your input sources:

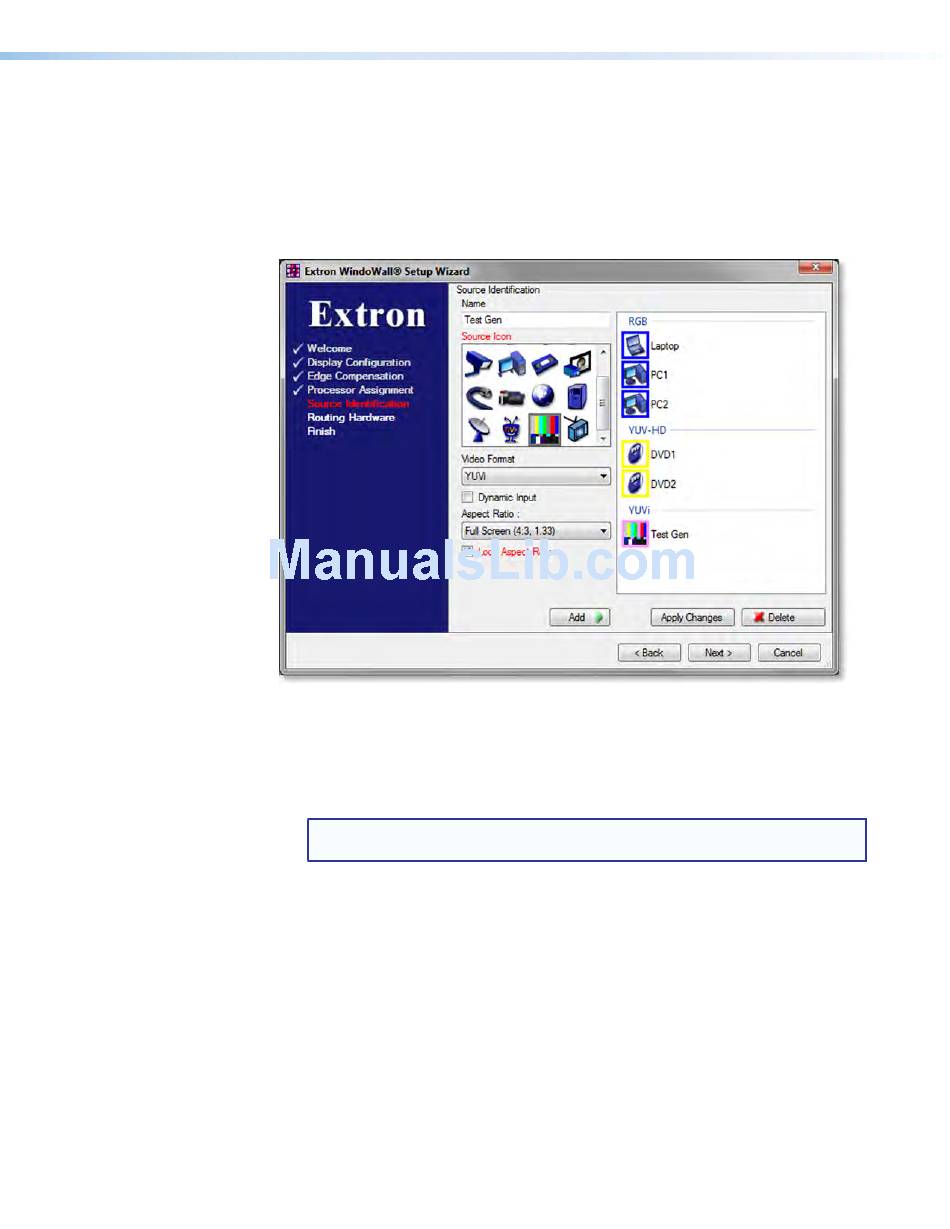

Figure 18. Source Identification — Setup Wizard
a.
In the field, enter a name for your first input, or leave the default name
Name
( ).
Source 1
b. In the Source Icon panel, click on an icon that represents your first source. The
available icons are listed in the
NOTE: Custom icons can be added through the WindoWall Console main
window.
Input Source Icons table
WindoWall Pro Series • Remote Configuration and Control
on the next page.
