IPCP Pro Series

IP Link Pro

Control Processors

User Guide

IP Link Pro Products

68-2438-01, Rev. M

10 24

Need help?

Do you have a question about the IPCP Pro Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Extron electronics IPCP Pro Series

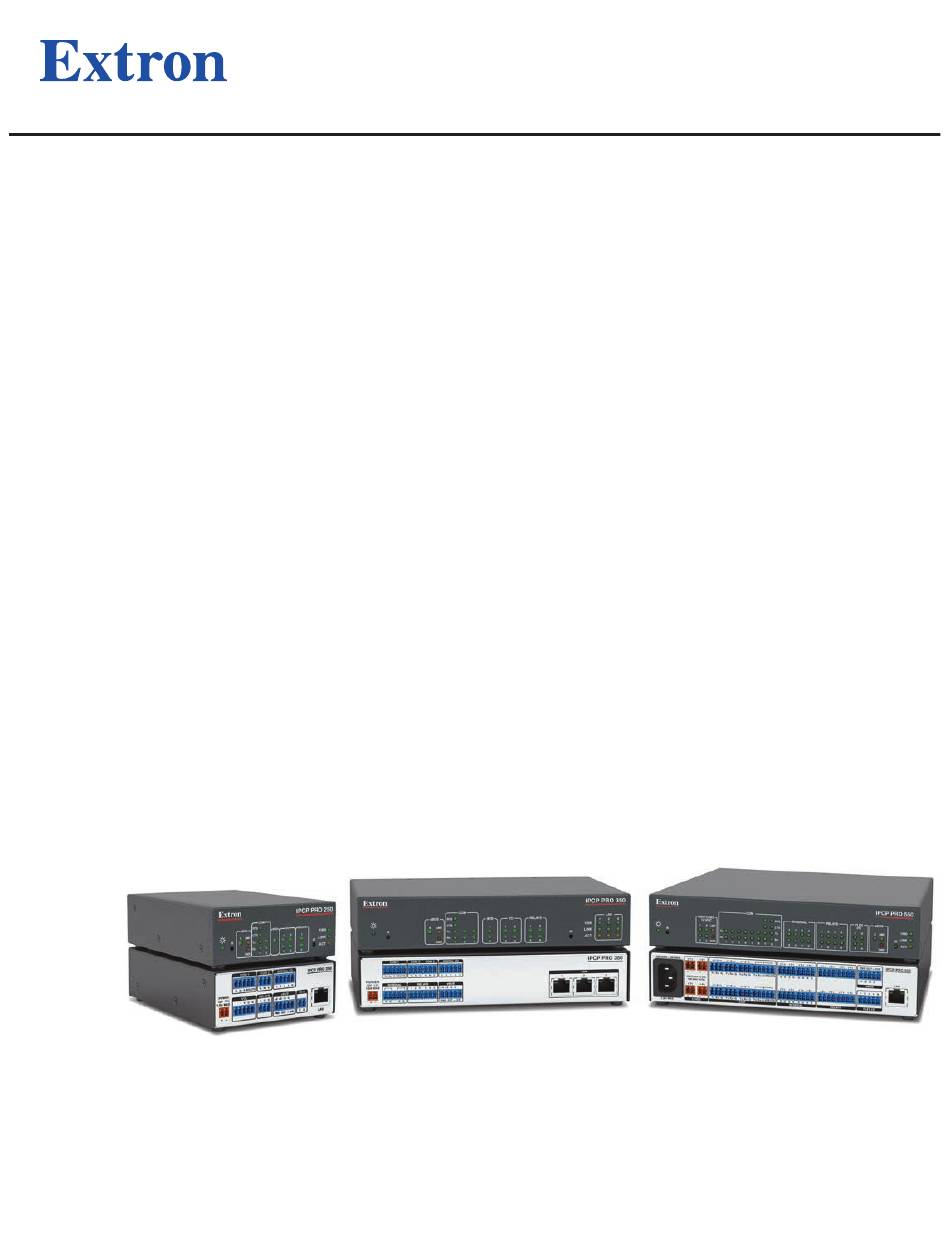

Page 1 IPCP Pro Series ® IP Link Pro Control Processors User Guide IP Link Pro Products 68-2438-01, Rev. M 10 24...
Page 2 Safety Instructions Safety Instructions • English Instructions de sécurité • Français AVERTISSEMENT : Ce pictogramme, , lorsqu’il est utilisé sur le WARNING: This symbol, , when used on the product, is intended to produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit alert the user of the presence of uninsulated dangerous voltage within the d’une tension électrique dangereuse susceptible de provoquer un choc product’s enclosure that may present a risk of electric shock.
Page 3 安全说明简体中文 • 警告：产品上的这个标志意在警告用户, 该产品机壳内有暴露的危险电压，有触电危险。注意：产品上的这个标志意在提示用户, 设备随附的用户手册中有重要的操作和维护(维修)说明。关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使用的特性等相关内容，敬请访问 Extron 网站 , www.extron.com，参见 Extron 安全规范指南，产品编。号 68-290-01 安全記事 • 繁體中文 안전 지침 • 한국어 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 警告: 若產品上使用此符號，...
Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier.
Page 7 Before You Begin ...............................1 What This Guide Covers ..........................1 Conventions Used in This Guide ........................1 Important Information You Need Before Installation ..................1 About the IPCP Pro Series ..........................2 Features .................................3 Feature Summary Table ..........................4 Application Diagrams ............................5 Device Control ..............................7 About Global Configurator Plus and Global Configurator Professional .............
Page 8 Unmounting a DIN Rail Unit ..........................61 Firmware Updates ..........................62 Determining the Firmware Version ........................62 Using Toolbelt Software ..........................62 Using a Browser ............................62 Updating the Firmware ............................62 Locating and Downloading the Firmware .....................63 Installing Firmware ............................63 IPCP Pro Series • Contents viii...
Page 9 Before You Begin What This Guide Covers This user guide provides instructions for an experienced installer to install an Extron IPCP Pro Series IP Link Pro Control Processor. This guide provides detailed information and recommends best practices for cabling the control processor.
Page 10 NOTE: The IPCP Pro PCS1 is intended to be used with Extron Electronics products only. An IPCP Pro Series control processor is the centerpiece of a control system that features Extron TouchLink Pro Touchpanels, or Extron eBUS button panels connected to the eBUS port on the control processor. The IPCP supports multiple TouchLink Pro touchpanels over a standard Ethernet network.
Page 11 That file is built and uploaded into the IPCP and to any optional TouchLink Pro touchpanels. The IPCP Pro Series integrates seamlessly with Extron GlobalViewer Enterprise software and Extron Control for Web, iOS, and Android for remote control applications.
Page 12 IPCP Pro 550 Rack Internal — — 1 — — —  IPCP Pro 555 Rack Internal — — 1 — — *This model is embedded within another product, which provides power to the IPCP. IPCP Pro Series • Introduction...
Page 13 Application Diagrams The following figures show examples of types of devices that can be connected to some of the ports on the IPCP Pro Series control processors. Extron Microphones Flat Panel Display Flat Panel Display TLP Pro 1520MG Laptop 15" Wall Mount...
Page 14 Extron IPCP Pro 555 PUSH PUSH DIRECTV POWER GUIDE MENU 480p 720p 1080i 1080p SELECT D I R E C T V IP Link Pro Control Processor Figure 5. An IPCP Pro 555, AV LAN Application IPCP Pro Series • Introduction...
Page 15 Extron. See the Global Configurator Help File (which comes with the software) for details on setting up the IPCP and for downloading, programming, or learning device control commands. IPCP Pro Series • Introduction...
Page 16 Each of these applications can perform additional functions that vary by software type, such as performing firmware updates or configuration restoration for connected products on the av LAN. PC System Requirements To find the minimum hardware and software requirements for the PC you use to configure the IPCP Pro Series: Download •...
Page 17 • Write down the MAC address of each network interface on each IP Link Pro device to be used. • Obtain model names and setup information for devices the IPCP will control. IPCP Pro Series • Hardware Features and Installation...
Page 18 To ensure that the control processor LAN and AV LAN connections (ports) are connected to separate networks, the LAN and AV LAN IP address schemes must be on different subnetworks. IPCP Pro Series • Hardware Features and Installation...
Page 19 GUI Designer file you wish to be associated with each panel • Program functions, monitors, or schedules to the touchpanels and their buttons. IPCP Pro Series • Hardware Features and Installation...
Page 20 NOTE: If using 802.1X security, see the Extron 802.1X subnet address, then conÿgure other Technology Reference Guide and the Toolbelt Help network settings as needed. file for additional details on system setup. Figure 7. Network Setup IPCP Pro Series • Hardware Features and Installation...
Page 21 NOTE: Numbers adjacent to LEDs correspond to the like-numbered rear panel ports. IR Learning 15˚ 15˚ Angle and Distance 2–12" (4–30 cm) Figure 8. Front Panels: IPCP Pro Series Rack Mountable Models Without AV LAN IPCP Pro Series • Hardware Features and Installation...
Page 22 IPCP PRO PCS1 POWER eBUS I/O IR/S LAN/ 1000 LIMIT Power Network LINK BREAKER LEDs OVER Reset Button AC Power Button Circuit and LED Breaker (recessed) Figure 12. IPCP Pro PCS1 Front Panel IPCP Pro Series • Hardware Features and Installation...
Page 23 13 and the figure 9 on page 14) indicate the best distances and angles (15 degrees off axis from the receiver) at right side of which to hold the remote control. IPCP Pro Series • Hardware Features and Installation...
Page 24 Rear Panel Features of DIN Rail Models on page 18 provides a way to identify mounting features. Mounting instructions are available in Mounting an IPCP DIN Rail Unit to a DIN Rail on page 18. IPCP Pro Series • Hardware Features and Installation...
Page 25 UL Rack Mounting Guidelines The following Underwriters Laboratories (UL) guidelines pertain to the safe installation of IPCP Pro Series control processors in a rack. CAUTION: • Elevated operating ambient temperature — If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature.
Page 26 3. Tilt the base of the IPCP Pro toward the rail and press until the unit snaps into place on the rail (see Figure 15 shows how the IPCP Pro looks after it is mounted, before cables are connected. IPCP Pro Series • Hardware Features and Installation...
Page 27 The quantity of ports and corresponding front panel LEDs differs among IPCP models, but the functions of each type of port and their LEDs are identical for any model that includes that type of port. IPCP Pro Series • Hardware Features and Installation...
Page 28 3-pole COM ports (RS-232 only) Volume control port 5-pole COM ports (RS-232/RS-422/RS-485) LAN connectors and LEDs (Ethernet) IR/serial output ports MAC address Relay ports Switched AC power output (attached cable) IPCP Pro Series • Hardware Features and Installation...
Page 29 The following ports are not shown in figure 17 but are available in some AV LAN models such as the IPCP Pro 555. Switched 12 VDC power output ports Flex I/O ports (digital input/output or analog input) IPCP Pro Series • Hardware Features and Installation...
Page 30 (digital input/output) 3-pole COM ports (RS-232 only) eBUS ports 5-pole COM ports (RS-232/RS-422/RS-485) LAN connectors and LEDs (Ethernet) IR/serial output ports MAC address (or addresses) Relay ports AV LAN connector and LEDs (Ethernet) IPCP Pro Series • Hardware Features and Installation...
Page 31 (National Electrical Code) ANSI/NFPA 70, article 725, et du Code canadien de l’électricité, partie 1, section 16. La source d’alimentation ne devra pas être fixée de façon permanente à la structure de bâtiment ou à d’autres structures similaires. IPCP Pro Series • Hardware Features and Installation...
Page 32 6 inch (152 mm) IEC Input Cable IEC Power Cord To a 100 - 240 VAC power source (main power) Figure 21. Connecting an AC Power Source to the IPCP Pro PCS1 IPCP Pro Series • Hardware Features and Installation...
Page 33 It turns these ports off, and the red front panel Over LED lights. If the ports are disabled, the user must disconnect or fix the attached devices to correct the problem. If the power draw is still excessive, the ports remain off. IPCP Pro Series • Hardware Features and Installation...
Page 34 • Veillez à toujours utiliser le câble d’alimentation fourni avec l’unité. • Should you need to use a different power cord, consult Extron Electronics prior to using the cord. • Si vous devez utiliser un autre câble d’alimentation, contactez Extron Electronics avant d’utiliser ce câble.
Page 35 For bidirectional serial communication, the transmit, ground, and receive pins must be wired at both the IPCP Pro Series and the other device. Each projector or other device may require different wiring. For details, see the manual for that equipment or read the Extron device driver communication sheet, which is included with the drivers.
Page 36 • L’alimentation via Ethernet (PoE) est destinée à une utilisation en intérieur uniquement. Elle doit être connectée seulement à des réseaux ou des circuits qui ne sont pas routés au réseau ou au bâtiment extérieur. IPCP Pro Series • Hardware Features and Installation...
Page 37 47) sets the password to Cabling: • For 10Base-T (10 Mbps) networks, use a CAT 3 or better cable. • For 100Base-T (max. 155 Mbps) or 1000Base-T networks, use a CAT 5 or better cable. IPCP Pro Series • Hardware Features and Installation...
Page 38 AV LAN Port PoE+ OUT PoE+ OUT to the same network. Figure 26. Models with AV LAN: LAN Connector, LEDs, and Default Protocol IPCP Pro Series • Hardware Features and Installation...
Page 39 A label that indicates the MAC address is located on the S/N: ####### E###### rear or side panel of each rack-mounted model and on the side or bottom panel of each DIN rail model. IPCP Pro Series • Hardware Features and Installation...
Page 40 20 through page 22) — An IPCP Pro Series control processor can use infrared signals or unidirectional RS-232 serial signals to control various devices (up to four per port for IR) via these ports. Set output signal type (IR or serial) during configuration.
Page 41 NOTE: The pulse function is absolute: it always sets the relay state to closed, times out (briefly), then opens the contact. It overrides the previously selected setting (on state, off state, or toggle). IPCP Pro Series • Hardware Features and Installation...
Page 42 16 figure 17 on page 20 and page 21) —To allow the IPCP Pro Series control processor to monitor devices to trigger events, connect switches, sensors, LEDs, relays, or similar items to these ports. Flex I/O ports can be configured as analog inputs, or as digital inputs or outputs with or without +5 VDC pull-up.
Page 43 0 VDC to 4.15 VDC. +5.0 V 1k ohms SW 2 Flex Converter Voltage SW 1 Protection Potentiometer Figure 32. Flex I/O Analog Input Application: Audio Level Adjustment Using a 10k Potentiometer IPCP Pro Series • Hardware Features and Installation...
Page 44 Room unoccupied: logic low, front panel LED is lit. NOTE: Occupancy sensors typically supply +24 VDC (logic high) when occupancy is detected. After a set time with no occupancy, the sensor supplies 0 VDC (logic low). IPCP Pro Series • Hardware Features and Installation...
Page 45 Figure 34. Flex I/O Digital Input Application: Two-position Switch With Pull-up Two-position switch is open: logic high, front panel LED is off. Two-position switch is closed: logic low, front panel LED is lit. IPCP Pro Series • Hardware Features and Installation...
Page 46 +5.0 V Resistor 1k ohms SW 2 External +5 VDC Flex Power Source Converter Voltage SW 1 Protection Figure 35. Flex I/O Digital Output Application: LED and External +5 VDC Power Source Without Pull-up IPCP Pro Series • Hardware Features and Installation...
Page 47 1k ohms DTP T UWP 232 D SW 2 Flex Converter Voltage SW 1 Protection Figure 36. Flex I/O Digital Output Application With Pull-up: Contact Closure Input Selection on a Connected Device IPCP Pro Series • Hardware Features and Installation...
Page 48 2.8 VDC — port off, logic high There is also an internal, selectable, pull-up resistor connected to +5 VDC, which you can use if the connected device does not provide its own power. IPCP Pro Series • Hardware Features and Installation...
Page 49 Figure 39. Digital I/O Digital Input Application: Two-position Switch With Pull-up Two-position switch is open: logic high, front panel LED is off. Two-position switch is closed: logic low, front panel LED is lit. IPCP Pro Series • Hardware Features and Installation...
Page 50 +5.0 V Resistor 1k ohms SW 2 External +5 VDC Digital Power Source Voltage SW 1 Protection Figure 40. Digital I/O Digital Output Application: LED and External +5 VDC Power Source Without Pull-up IPCP Pro Series • Hardware Features and Installation...
Page 51 +5.0 V 1k ohms DTP T UWP 232 D SW 2 Digital Voltage SW 1 Protection Figure 41. Digital I/O Digital Output Application With Pull-up: Contact Closure Input Selection on a Connected Device IPCP Pro Series • Hardware Features and Installation...
Page 52 IPCP shuts off the eBUS port and lights the eBUS Overload (Over) LED. If that occurs, you must resolve the hardware cause of the power overload before the IPCP can successfully restore function to this port. Once IPCP Pro Series • Hardware Features and Installation...
Page 53 IPCP Pro ou par une autre PWR OUT = 6W source d'alimentation. Powered eBUS device(s) Tie drain wires to ground. Figure 43. Connecting eBUS Devices in a System With Both an IPCP and Another Powered eBUS Device IPCP Pro Series • Hardware Features and Installation...
Page 54 MPA 152 Plus MPA 152 2 V to 8 V. REMOTE VOL/MUTE 50mA 50mA C or VOL/MUTE V or 10V G or Ground Control voltage Reference voltage Figure 44. Volume Control Port Wiring Examples IPCP Pro Series • Hardware Features and Installation...
Page 55 Full Factory Reset mode the LED blinks three times, the third blink indicating the last mode. The modes are separate functions, not a continuation from one mode to the next. IPCP Pro Series Control Processor Reset Mode Summary Use This...
Page 56 IPCP Pro Series Control Processor Reset Mode Summary Use This Activation Result Mode to... Recover For devices with firmware version 1.04 and lower project To start the Project Recovery reset mode and recover a project: Project Recovery mode stops regular...
Page 57 IPCP Pro Series Control Processor Reset Mode Summary Use This Activation Result Mode to... Toggle stop/ To stop or start a project: The LED blinks 2 times if the project is start project Reset starting. 1. Press and hold the button for about 3 seconds, until the Power LED blinks once.
Page 58 Toolbelt) for use on your network. • The factory configured password for this device has been set to the device serial number. Passwords are extron case sensitive. Performing a Full Factory Reset sets the password to IPCP Pro Series • Hardware Features and Installation...
Page 59 The default web pages embedded within the control processor provide a means to view general hardware information, network settings, and, if configured, project information. You cannot configure the control processor via the embedded web pages. IPCP Pro Series • Software-based Configuration and Control...
Page 60 Import GUI layouts and conÿgure the touchpanels or other interfaces. Save the project. Build and upload the conÿguration to the control processor. Test the system, make adjustments, ÿnalize conÿguration. Figure 45. Overall Configuration Steps IPCP Pro Series • Software-based Configuration and Control...
Page 61 Search Software name or product series name in the field. b. Select the correct result from the drop-down list, if needed. A link opens to allow you to download the software or firmware. IPCP Pro Series • Software-based Configuration and Control...
Page 62 Prior to configuration, download driver files for products to be used in the installation. NOTE: For serial or Ethernet devices, IPCP Pro Series control processors require IP Link Pro drivers. They do not support serial or Ethernet drivers that were created for IP Link (non-Pro) products. However, existing Extron IR driver files are supported.
Page 63 Resources and notes • The IPCP Pro Series Setup Guide, IPCP Pro 355DR Setup Guide, or IPCP Pro PCS1 Setup Guide is shipped with the unit. It includes a quick reference to the front and rear panel features, and covers basic hardware installation.
Page 64 3. If contact is established with the unit, but the IPCP web pages cannot be accessed by your browser program, verify (via an Internet network options or preferences menu) that your browser is configured for direct network connection and is not set up to use a proxy server. IPCP Pro Series • Software-based Configuration and Control...
Page 65 LED should be unlit, and eBUS devices resume functioning and are again recognized by the IPCP. If you are still experiencing problems, call the Extron S3 Sales & Technical Support Hotline or the Extron S3 Control Systems Support Hotline (1.800.633.9877). IPCP Pro Series • Software-based Configuration and Control...
Page 66 • Unmounting a DIN Rail Unit To read product specifications, visit the IPCP Pro Series product pages at www.extron.com. Network Port Requirements and Licensed Third-Party Software Network administrators may find it useful to know which ports, protocols, and services are used by the IP Link Pro control processors, TouchLink Pro Touchpanels, Global Configurator Plus and Professional software, Toolbelt, and Extron Control (for IP Link Pro control systems).
Page 67 The 802.1X Primer white paper, also available from www.extron.com, provides a general overview of the protocol and its use within a control system. NOTES: • You must run Toolbelt as an administrator. • Machine certificates require a private key file, which can be encrypted. IPCP Pro Series • Reference Information...
Page 68 Extron control products support the following security levels: • Management Information Base 2 (MIB-II) • SNMPv2c. IPCP Pro Series • Reference Information...
Page 69 2. While the clip is pulled down, tilt the IPCP Pro away from the DIN rail and lift it off the rail ( Rear View Side View Locked Tilt unit to dismount. Pull the clip to release the unit from the rail. Unlocked Figure 46. Unmounting the Unit IPCP Pro Series • Reference Information...
Page 70 Software-Based Configuration see the Hardware Features and Installation section starting on page 9, the section starting on page 51, and the IPCP Pro Series Setup Guide or the IPCP Pro 355DR Setup and Control Guide. Using Toolbelt Software 1. Open the Toolbelt software.
Page 71 Allow at least a couple minutes for the firmware to finish uploading. At the end of the upload process, the unit partially reboots and loses its connection to the PC. Therefore, to continue using Toolbelt you need to reconnect to the unit after the firmware update. IPCP Pro Series • Firmware Updates...
Page 72 Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
