Using the File Management Page

The File Management page lets you upload files to the WindoWall Pro from your computer
or network, and delete files from the unit. You can also upload personalized web pages via
this page. To access the File Management page, select the
WindoWall Pro web page. You can use this function to load background images from your
computer or the internet to display on the output screen. All background image files must
be 24-bit bitmaps. The image files must be loaded to a folder named "nortxe-graphics."

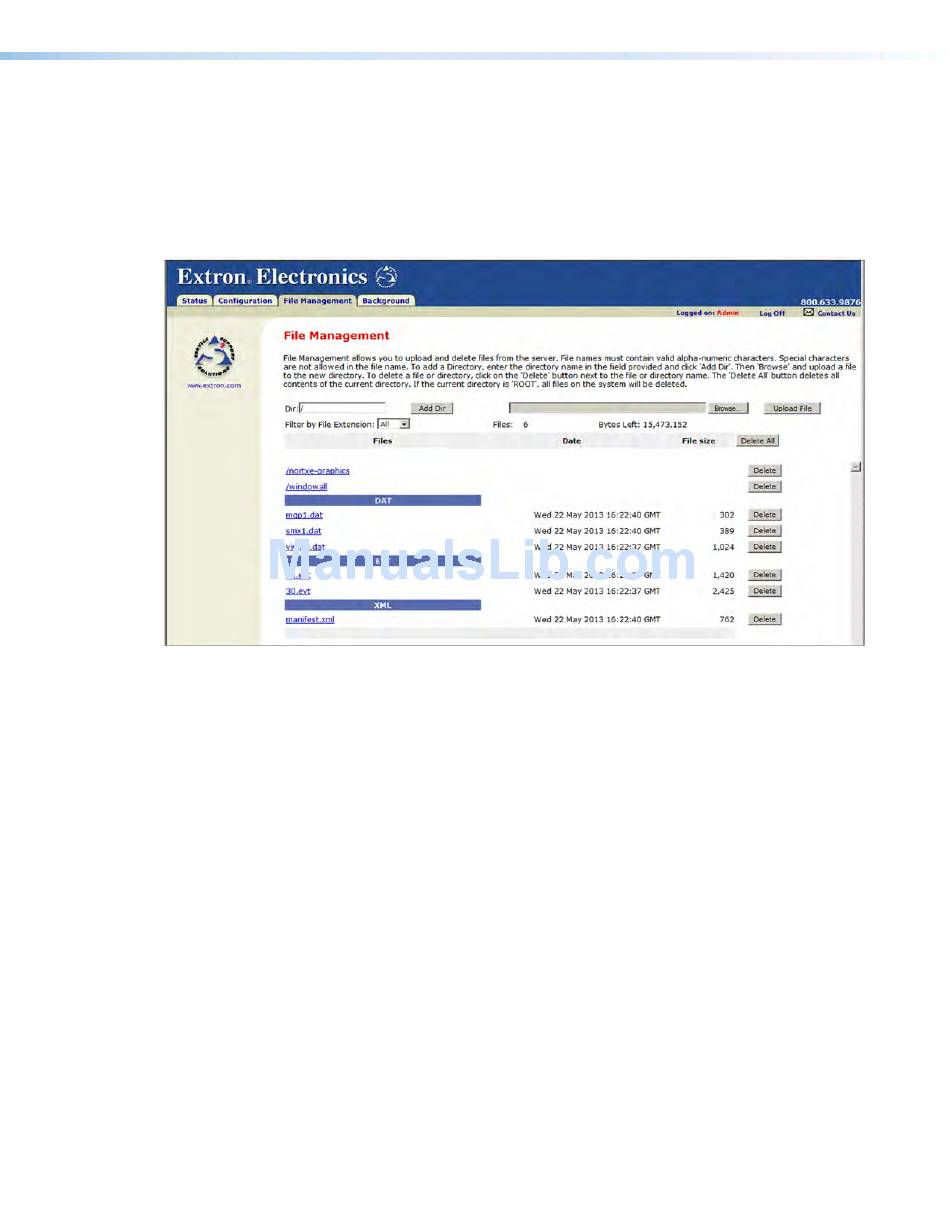

Figure 39.

Uploading Files

Names of files to be uploaded to the WindoWall Pro must contain only valid alphanumeric
characters and underscores. No spaces or special characters (symbols) are allowed. To
upload files from the server,
1.
2.
3.

Adding a Directory

To add a directory or folder to the WindoWall Pro file system,
1.
2.
3.
To add more files to the directory, click the directory name to open it, then use the
Uploading files procedure. To exit the directory, click
File Management Page
Click the button to the right of the file name field.
Browse
Browse to locate the file that you want to upload, and open it. The file name and
directory path are displayed in the file name field on the File Management page.
Click the button. The selected file name appears in the Files column on
Upload File
the page. (Files are listed separately under headings of their extensions.)
Enter the directory name in the
Click the button.
Add Dir
With the directory name displayed, perform the Uploading files procedure described in
the previous section to add a file to the directory. The directory name appears at the top
of the Files column, preceded by a slash.
WindoWall Pro Series • HTML Configuration and Control
File Management
field, following the slash (
Dir:
or
(root)
tab on the
).
/
.
(back)
60
