Initiating A Dun Connection - Digi TransPort User Manual

Installing the driver file

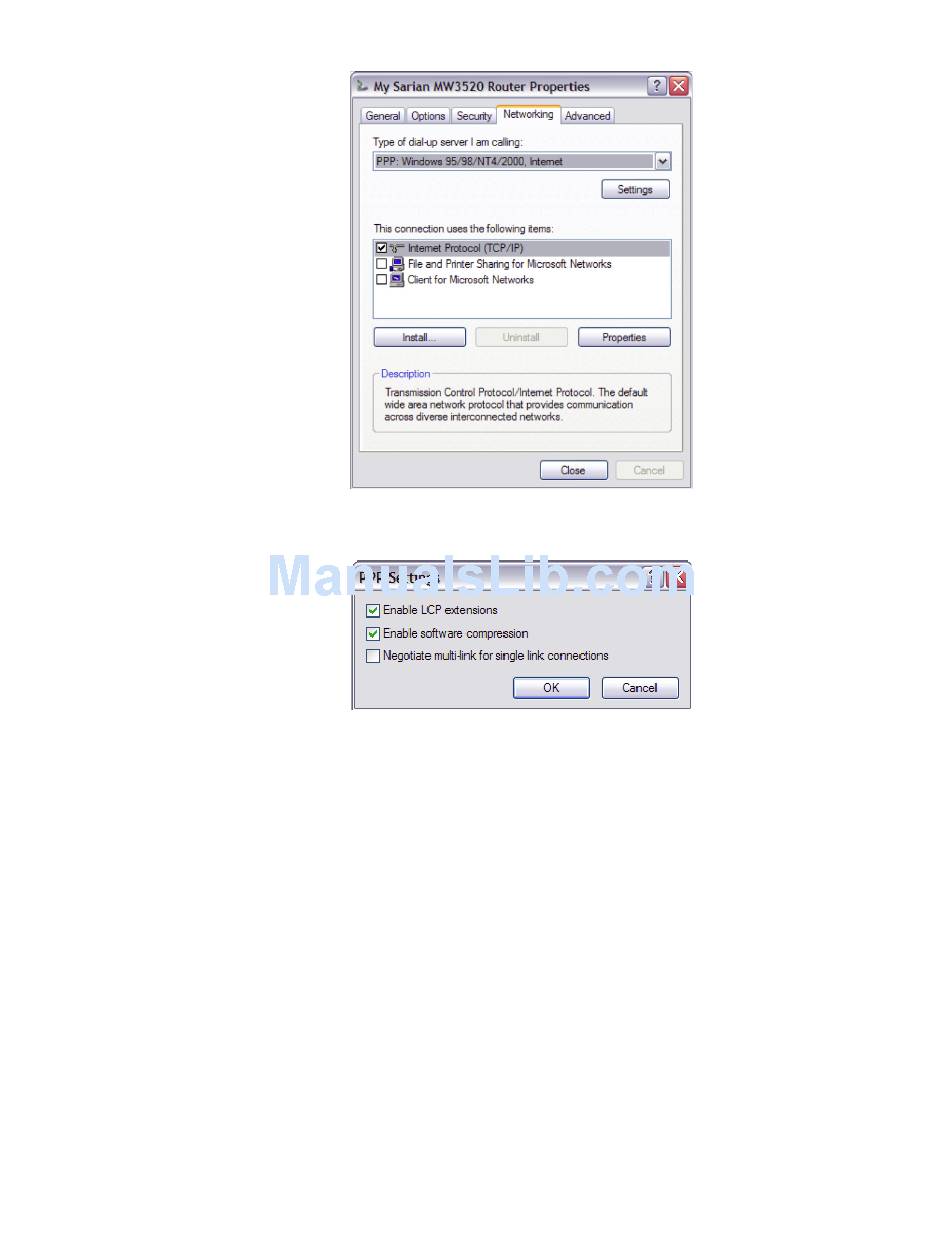

Make sure that the Type of dial-up server I am calling is set to PPP: Windows 95/98/NT/2000,
Internet and click on Settings:
Make sure that all three options are unchecked before clicking OK to return to the Networking
tab. In the This connection uses the following items list, Internet Protocol (TCP/IP) should be
the only item that is checked. Make sure that this is the case and then click OK to return to the
main dialog. You are now ready to initiate a connection.

Initiating a DUN connection

In the main dialog, you are asked to enter a username and password. The default settings for
your unit are "username" and "password" respectively but you should change as soon as
possible in order to prevent unauthorised access to your unit (refer to the section entitled
Configuration - Security > Users for instructions on how to do this). The username is not case
sensitive, but the password is.
Digi TransPort User Guide 547
