Digi TransPort User Manual page 390

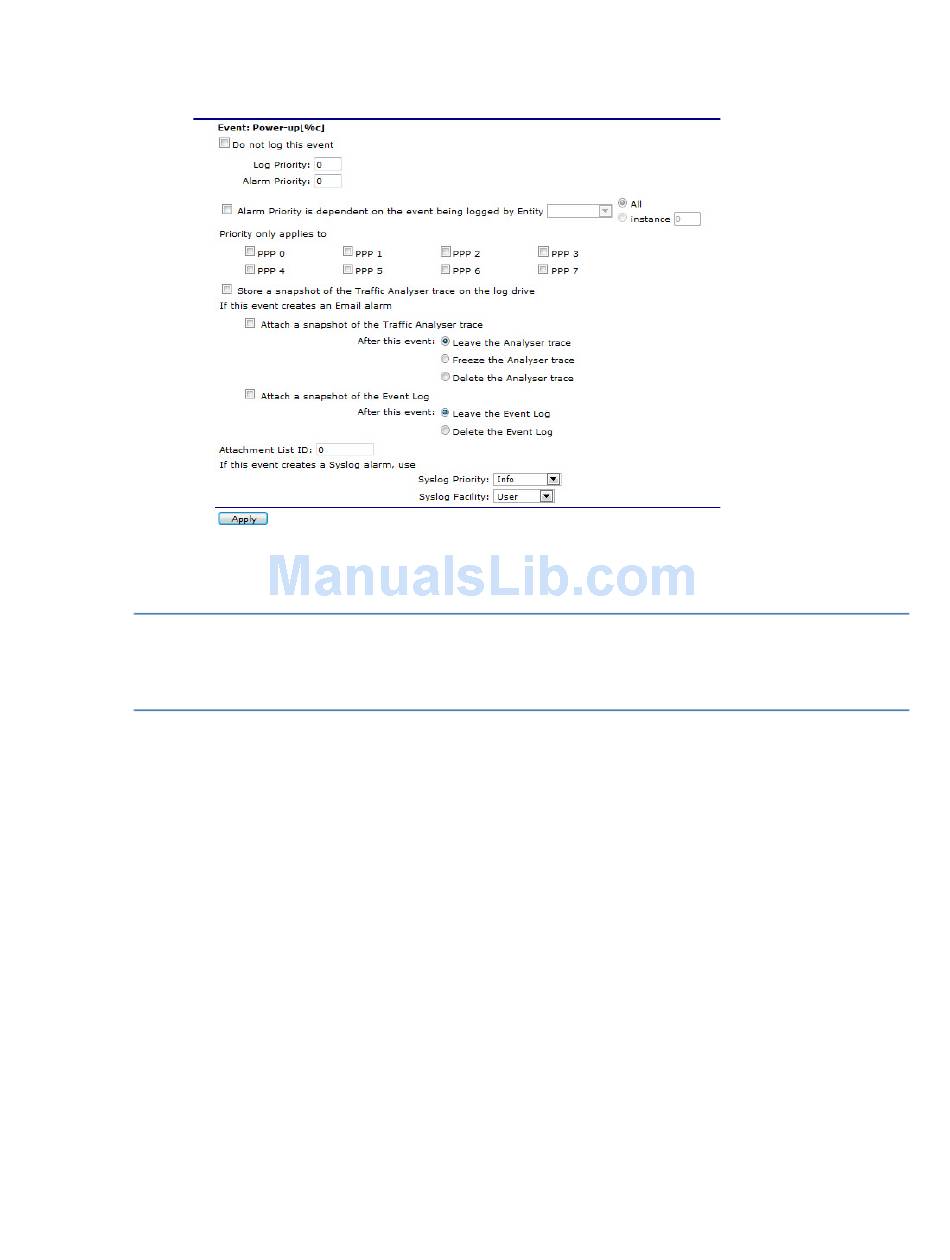

This page controls the configuration of the event that is displayed in bold font at the top of the
page, just below the blue title bar.
Do not log this event
When checked, this checkbox disables logging of the event.
Note This parameter is not saved in the logcodes.txt file but in the
that after changing this parameter, you must save the changes by clicking the save
changes link when prompted (this appears after clicking the "Apply" button). If you click
the Save All Event Code Changes, your changes will not be reflected.
Log Priority
This parameter sets the priority of the event to determine whether the event will trigger
emails, SMS messages or SNMP traps. 0 = disabled, 1 = highest priority, 9 = lowest priority.
Alarm Priority
If the above "Inherit alarm priority from event" checkbox is not checked, this parameter
selects the priority of the reason. Valid values are 0 to 9.
Alarm Priority is dependent on the event being logged by Entity
Selecting this checkbox makes the priority conditional on which system entity triggered the
event (such as ethernet) and enables the following two configuration options:
Entity
This drop-down selection box contains a list of the system entities.
All
Selecting this radio button causes all of the system entities.
Instance
Selecting this radio button enable a text entry box that allows the user to enter the instance of
the selected entity.
Digi TransPort User Guide
Event Logcodes parameters
config.dan file. This means
390
