Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Digi TransPort
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TransPort and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digi TransPort

Summary of Contents for Digi TransPort

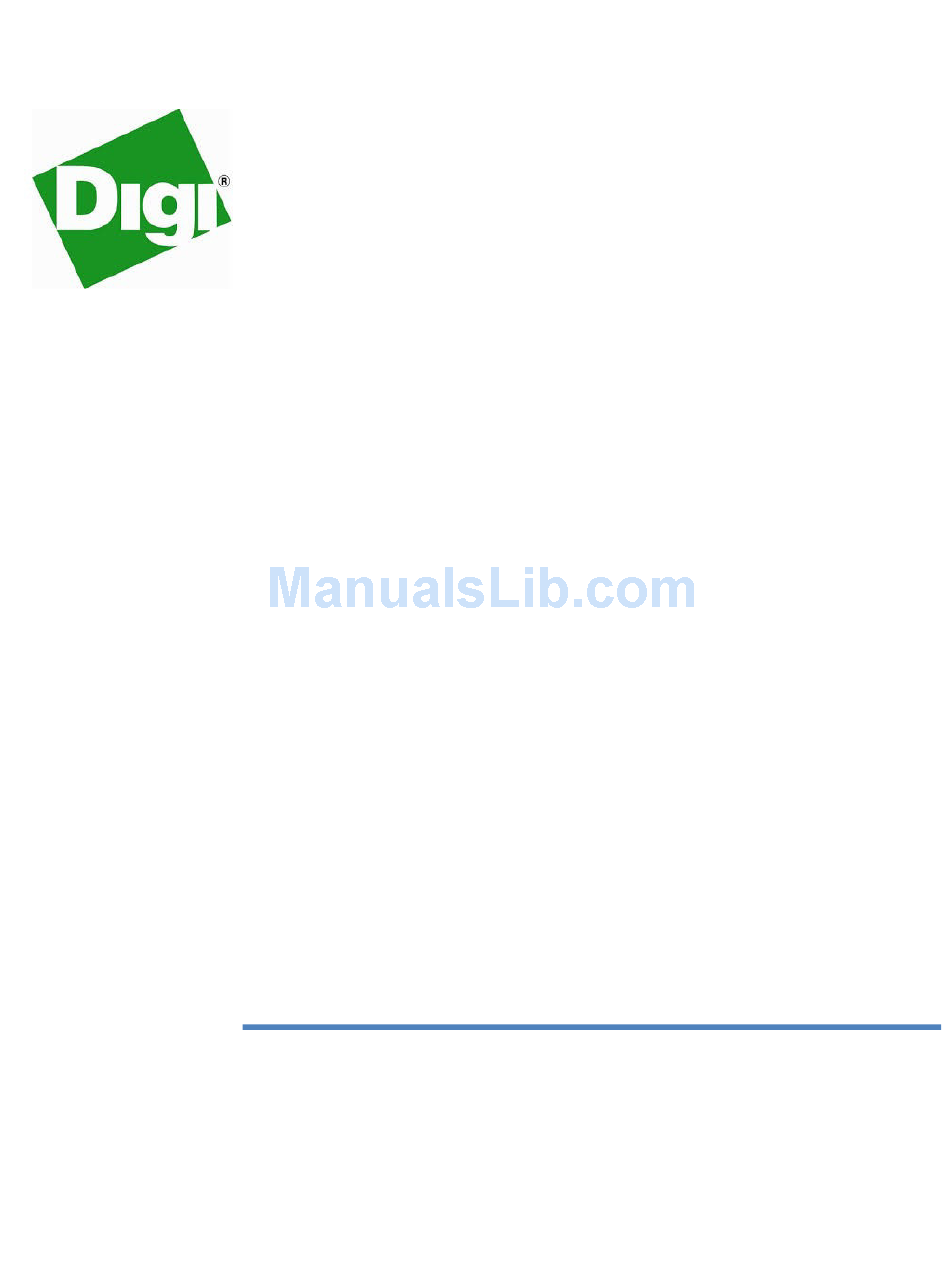

  • Page 1 Digi TransPort User Guide...

  • Page 2: Customer Support

    Information in this document is subject to change without notice and does not represent a commitment on the part of Digi International. Digi provides this document “as is,” without warranty of any kind, expressed or implied, including, but not limited to, the implied warranties of fitness or merchantability for a particular purpose.

  • Page 3: Table Of Contents

    Digi application commands Reboot command Remote connection Digi TransPort web interface Accessing the web interface Via a LAN port Web interface wizards Configuring Digi TransPort router with Web interface Logging-in Configuring and testing W-WAN models Signal strength indicators Wizards Quick start wizard...
  • Page 4 RealPort parameters Multitx parameters Advanced Interfaces parameters External Modems parameters PPP Mappings parameters PPP parameters PPP Sub-Configs parameters DHCP Server DHCP Server parameters for Ethernet n Advanced DHCP parameters Advanced DHCP options Logical Ethernet interfaces DHCP options Digi TransPort User Guide...
  • Page 5 IPsec Tunnels > IPsec n parameters Tunnel Negotiation parameter IPsec Default Action IPsec Groups Dead Peer Detection parameters IKE parameters IKEv2 parameters L2TP parameters PPTP parameters PPTP n parameters OpenVPN parameters OpenVPN n parameters SSL Clients parameters Digi TransPort User Guide...
  • Page 6 Timeband parameters Advanced Network Settings Socket settings XOT settings Backup IP addresses Chaining IP addresses Legacy Protocols Digi TransPort Systems Network Architecture (SNA) over IP SNAIP parameters SNA parameters SSP (WAN) parameters TPAD parameters X.25 parameters General X.25 parameters X.25 LAPB parameters...
  • Page 7 IP to X.25 Calls parameters PADS parameter X.25 PVCs parameters MODBUS Gateway parameters MODBUS Slaves parameters Protocol Switch Digi TransPort Protocol Switch parameters CUD Mappings parameters IP Sockets to Protocol Switch NUA to Interface Mappings NUA Mappings parameters Alarms Event Settings parameters...
  • Page 8 Firewall Trace DHCP Status DNS Status Connections management IP connections Virtual Private Networking (VPN) management IPsec > IPsec Tunnels IPsec peers IKE SAs Position management Event Log management Analyser management Settings Trace PCAP (such as Wireshark) traces Digi TransPort User Guide...
  • Page 9 Filing System commands COPY Copy file DEL Delete file DIR List file directory FLOCK Lock files FUNLOCK Unlock files MOVE Move file REN Rename file SCAN/SCANR Scan file system TYPE Display Text file XMODEM file transfer USB support Digi TransPort User Guide...
  • Page 10 Installing the driver file Initiating a DUN connection SQL commands Local Database commands Learning mode - Saving entries Configure a TransPort to use a backup database Transact SQL commands Answering V.120 calls Initial Set up Initiating a V.120 call Answering V.120 calls...
  • Page 11 S1 Ring count S2 Escape Character S12 Escape Delay S15 Data Forwarding Timer S16 RS422/485 serial port settings S23 Parity S31 ASY Interface Speed S33 DTR Dialling S45 DTR Loss De-Bounce General system commands CONFIG Show/Save Configuration Digi TransPort User Guide...
  • Page 12 X.21 25-Pin to 15-Pin crossover cable - external clock IR2140 RS-232 Port Pin-Outs X.21 (RS-422) X.21 25-Pin to 15-Pin straight through cable - internal clock X.21 25-Pin to 15-Pin straight through cable - external clock X.21 25-Pin to 15-Pin crossover cable - internal clock Digi TransPort User Guide...
  • Page 13 RJ45 to 25-Pin straight through cable RJ45 to 9-Pin straight through cable 25-Pin to 25-Pin crossover cable 25-Pin to 9-Pin crossover cable RJ45 to 25-Pin crossover cable RJ45 to 9-Pin crossover cable Configuring X.21 on older models Digi TransPort User Guide...
  • Page 14 Email templates Template structure Certifications FCC part 68 declarations (for Transport DR models only) Glossary 0 - 9 Digi TransPort User Guide...

  • Page 15: Introduction To Digi Transport Routers

    (with multi SSID) / client, USB, serial, VDSL, 1-, 2- or 4-port Ethernet switch with VLAN. Additional configuration options include multiple serial ports (async or sync), GPS or telemetry I/O. The Digi TransPort family offers an advanced routing, security and firewall feature set including stateful inspection firewall and integrated VPN. Enterprise class protocols incorporate BGP, OSPF and VRRP+, a patented technology built upon the popular VRRP failover standard providing true auto-sensing, auto-failure and auto-recovery of any line drop.

  • Page 16: Signal Strength Indicators

    LEDs lit Signal Strength None Under -113 dBm (effectively no signal) -112 dBm to -87 dBm (weak signal) -86 dBm to -71 dBm (medium strength signal) -70 dBm to -51 dBm (strong signal) Digi TransPort User Guide...

  • Page 17: Warnings

    2. The transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter. As long as the two conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional Digi TransPort User Guide...

  • Page 18: End Product Labeling

    Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. Digi TransPort User Guide...

  • Page 19: Antenna Specification: Rp-Sma

    Property Frequency Range 2.4 to 2.5 GHz Impedance 50 Ohm VSWR 1.92 max Return Loss -10dB max Gain 1.8 dBi Polarization Linear Radiation Pattern Near omni-directional in the horizontal plane Admitted Power Electrical 1/2 ? Dipole Digi TransPort User Guide...

  • Page 20: Digi Transport Command Line Interface

    Telnet, X.25 or V.120. There are several types of text command: AT commands and S registers Digi TransPort supports AT commands and Special registers (S registers) to maintain compatibility with modems when the unit is used as a modem replacement. Application commands Application commands are specific to Digi International products and control most features of the unit when not using the Web interface.

  • Page 21: Tpad Commands

    = The value to set, such as, off, on, 192.168.1.1, username, free_text, etc. <value> An example CLI parameter table would look like the following for Ethernet parameters. Entity Instance Parameter Values Equivalent Web Parameters descr Free text field Description ipaddr Valid IP address IP Address Digi TransPort User Guide...
  • Page 22 To return to command mode manually, you must enter a special sequence of characters called the escape sequence. This consists of three occurrences of the escape character, a pause (user configurable) and then AT. The default escape character is + so the default escape sequence is: +++ {pause} AT Digi TransPort User Guide...

  • Page 23: Digi Application Commands

    Digi application commands The unit also supports numerous text-based application commands that are specific to Digi International products and do not require the AT prefix. Some of these are generic such as they are related to the general operation of the unit; others are application or protocol specific.
  • Page 24 Speed locking is not necessary when you use the text commands via a Telnet session. Digi application commands (referred to just as text commands or CLI commands throughout the remainder of this guide), can be entered in upper or lower case but unlike AT commands, only one command may be entered on a line.

  • Page 25: Reboot Command

    An outgoing V.120 call may be made using the ATD command • You can initiate a DUN session to establish a dial-up PPP connection. • An outgoing X.25 call may be made using the ATD command followed by the X.28 CALL command. Digi TransPort User Guide...
  • Page 26 NUA (this is normally only carried out under software control). Similarly, incoming calls will be handled according to which protocols have been bound to the ASY ports and whether or not answering is enabled for each protocol. Digi TransPort User Guide...

  • Page 27: Digi Transport Web Interface

    (such as, Internet Explorer), simply connect an Ethernet cable between the LAN port on the Digi Transport and your PC. Make sure your PC is setup to automatically receive an IP address by selecting Start > Control Panel > Network >...
  • Page 28 You can get IP settings assigned automatically if your network supports this capability. Otherwise you can assign the IP settings appropriate for your network. Serial Interface wizard This wizard allows you to select a serial port and profile for your application. Digi TransPort User Guide...

  • Page 29: Surelink Wizard

    SureLink wizard This wizard will help you to configure your Digi TransPort router to stay connected to the W-WAN (Wireless Wide Area Network) under adverse conditions. This can be achieved by a variety of features designed to recover from network and other problems. The wizard will help you choose the most appropriate set of features for you.
  • Page 30 LAN will be subject to delays when it first tries to send data. This is because it will take the Digi TransPort router a certain amount of time to detect and recover from the network problem.

  • Page 31: Gobi Module Carrier Wizard

    Note that it is important that this wizard is run from a factory default configuration or close to a factory default configuration. If changes have been made to the W-WAN configuration other than username, password and APN, running this wizard could cause unanticipated behaviour. Digi TransPort User Guide...
  • Page 32 SIM has been used for the configured length of time will result in an outage. Also note that if the primary SIM still cannot be used there will be a further delay whilst the router reverts back to the secondary SIM. Digi TransPort User Guide...

  • Page 33: Configuring Digi Transport Router With Web Interface

    Configuring Digi TransPort router with Web interface This section describes how to set or change the configuration parameters using the built-in web pages or the text commands. You can configure the parameters by entering the required values into text boxes or tables on the page, or by turning features on or off using checkboxes in the Web pages.
  • Page 34 The model number of your unit will be shown at the top of the screen. The unit’s serial number and ID are shown below the front panel representation. In the left side of the page, you will see the main menu with subsections which further expand when clicking on them. Digi TransPort User Guide...

  • Page 35: Configuring And Testing W-Wan Models

    As a guide -51dB would be a very strong signal, only normally obtained very close to a cell site. -115dB represents no signal. If your unit reports -115dB try reorienting the antenna or consider adding an external antenna. Digi TransPort User Guide...

  • Page 36: Signal Strength Indicators

    The Quick Start wizard displays the options required for basic configuration of the Eth 0, WLAN and WWAN interfaces. Serial interface wizard This wizard allows you to select a serial port and profile for your application. Digi TransPort User Guide...

  • Page 37: Create An Aggressive Mode Lan To Lan Ipsec Tunnel

    Create an aggressive mode LAN to LAN IPsec tunnel This wizard helps you to configure an aggressive mode LAN to LAN VPN tunnel. The tunnel is configured as an initiator, this means it is responsible for starting the VPN connection. Digi TransPort User Guide...

  • Page 38: Surelink Wizard

    LAN will be subject to delays when it first tries to send data. This is because it will take the Digi TransPort router a certain amount of time to detect and recover from the network problem.

  • Page 39: Gobi Module Carrier Wizard

    SIM. This wizard only helps to configure the most commonly used methods of link error detection. There are more options detailed in Application Note 7 which can be found on the TransPort Support pages of the Digi website. Note It is important that this wizard is run from a factory default configuration or close to a factory default configuration.
  • Page 40 SIM. Note The wizards are designed to assist users. For very specific or uncommon requirements then further manual configuration may be required after completing any of the above wizards. Digi TransPort User Guide...

  • Page 41: Network Interfaces

    Ethernet loop can occur. The default behavior is HUB rather than Port Isolate. VLAN tagging is not available when the router is configured for Port Isolate mode. Digi TransPort User Guide...

  • Page 42: Eth N

    DHCP server is later selected, any existing manually specified parameters will override the DHCP supplied parameters. To change from manual configuration to DHCP, be sure to remove all manually specified parameters first. Digi TransPort User Guide...
  • Page 43 Ethernet loop can occur. The default behavior is HUB rather than Port Isolate. Port Isolate mode If the router is running in Port Isolate mode, the following will be displayed, with an option to switch to Hub mode. Digi TransPort User Guide...
  • Page 44 This parameter selects either of the 10Base-T, 100Base-T, or Auto modes. The currently selected mode is shown in brackets after the parameter name. Note, enabling Auto-negotiation and manually setting the speed will only allow the selected speed to be negotiated. Digi TransPort User Guide...
  • Page 45 This has two main advantages, it saves on IP address space (the ISP only need assign you one IP address), and it isolates the private IP hosts from the Internet (effectively providing a simple firewall because unsolicited traffic from the Internet cannot be routed directly to the private IP hosts. Digi TransPort User Guide...
  • Page 46 This effect can be prevented by using the appropriate commands and options within the firewall script. However, on Digi 1000 series units, or where you are not using a firewall, the same result can be achieved by selecting this option, such as when this option is...
  • Page 47 Use interface x,y for the source IP address By default, heartbeat packets is sent with the source IP address of the interface on which they were generated. If the heartbeat is required to be sent via an IPSec tunnel, this parameter can Digi TransPort User Guide...
  • Page 48 If this parameter is enabled, ICMP echo requests will only be sent from this interface when it is in service. The default setting is disabled, ICMP echo requests are sent when the interface is in service and out of service. Digi TransPort User Guide...
  • Page 49 0 = Disabled 1 = IP address 2 = IP address and Port ipsec Enable IPsec on this interface ipsecent blank,ETH,PPP Use interface x,y for the source IP address of IPsec packets x = Interface type Digi TransPort User Guide...
  • Page 50 Ethernet QoS Parameters The parameters on this page control the Quality of Service management facility. Each Ethernet interface has an associated QoS instance, where ETH 0 maps to QoS 5, ETH 1 maps to QoS 6 and Digi TransPort User Guide...
  • Page 51 The priorities available are Very High, High, Medium, Low, and Very Low. Related CLI commands Entity Instance Parameter Values Equivalent Web Parameter linkkbps Integer Link speed n kbps q0prof 0 - 11 Queue 0 Profile Digi TransPort User Guide...
  • Page 52 VRRP group to monitor the Master and if, they detect that it is no longer operating, negotiate with each other to take over the role as owner. The protocol also facilitates the automatic re-prioritization of the original owner when it returns to operation. Digi TransPort User Guide...
  • Page 53 TCP socket to the specified Probe IP address. Hence VRRP operation is enhanced to ensure that a secondary router can take over under a wider range of circumstances. Send p probe to IP address a.b.c.d TCP port n Digi TransPort User Guide...
  • Page 54 VRRP priority according to the status of that interface. For example, the user may wish to configure probing in such a way that the Digi router WAN interface is tested, and adjust the VRRP priority down if the WAN is not operational. Another example would be to probe the WAN interface of another VRRP router, and adjust the local VRRP priority up if that WAN interface is not operational.

  • Page 55: Logical Ethernet Interfaces

    Ethernet connection. Logical Ethernet interfaces is also used as bridging features (such as used in a Wi-Fi configuration) where it is desirable to not use a physical interface for the bridging. Digi TransPort User Guide...

  • Page 56: Mac Filtering

    Partial MAC address are allowed. MAC Bridging The Ethernet MAC bridge function creates an Ethernet bridge between two physically separate Ethernet networks. It is possible to allow bridging over DSL, W-Wan, ISDN and PSTN connections Digi TransPort User Guide...
  • Page 57 The Ethernet destination MAC address of packets to be bridged. It is possible to allow a range of MAC addresses by configuring only the significant part of the MAC address. such as 00042d will allow all Ethernet packets with a source MAC address starting with 00:04:2d. Digi TransPort User Guide...
  • Page 58 LAN whilst allowing redundant physical links between switches. When enabled, the TransPort device uses RSTP but this is backwards compatible with STP. RSTP will not be enabled if the router is in Port Isolate mode. If an Ethernet interface is configured with a hub group, RSTP will be disabled on that interface.
  • Page 59 BPDU data is still received in blocking state. Digi TransPort User Guide...
  • Page 60 This is the source IP address. This parameter is optional. If configured, only packets from this IP address will have VLAN tagging applied. Source Mask This is the source IP subnet mask. This parameter is optional. If configured, only packets from this IP subnet mask will have VLAN tagging applied. Digi TransPort User Guide...

  • Page 61: Wi-Fi Parameters

    Selecting a country from the drop down list restricts the channels that the router will use. See table for more info on licensed channels. Network Mode Select your chosen mode of operation from the drop down list. The options are: Digi TransPort User Guide...
  • Page 62 Global Wi-Fi Settings CLI Commands Entity Instance Parameter Values Equivalent Web Parameter wifi country Country Country name wifi chanmode a / bg Network Mode wifi channel auto, 1 – 14 Channel Digi TransPort User Guide...
  • Page 63 Luxembourg Turkey U.A.E. Egypt Macau El Salvador Macedonia Ukraine Estonia Malaysia United Kingdom Faroe Islands Mexico United States Finland Monaco Uruguay France Morocco Uzbekistan Georgia Netherlands Venezuela Germany New Zealand Vietnam Greece Nicaragua Yemen Norway Zimbabwe Digi TransPort User Guide...
  • Page 64 Wi-Fi parameters The following table lists the licensed channels that is used by the Digi when Auto is selected for the channel number. Region Channels EMEA (excluding France) 1 - 13 France 10 - 13 Americas (excluding Mexico) 1 - 11...

  • Page 65: Wi-Fi N Parameters

    A valid MAC address has the format: 11:22:33:44:55:66. When entering this parameter, omit the ‘:’ separators. For example 112233445566. Note Carefully review settings before applying changes. Incorrect settings can make the TransPort device inaccessible from the Wi-Fi network. Wi-Fi Filtering CLI Commands Entity Instance...
  • Page 66 When enabled, connected Wi-Fi clients is unable to communicate with other Wi-Fi clients or Ethernet hosts connected to this AP. Wi-Fi CLI Commands Entity Instance Parameter Values Equivalent Web Parameter wifinode enabled on, off Enable this Wi-Fi interface wifinode descr String Description Digi TransPort User Guide...
  • Page 67 This is the key size to use. WEP Key index This is the WEP key index number. This needs to match the index selected on the connecting Wi-Fi clients or Access Points that this router wishes to connect to. Digi TransPort User Guide...
  • Page 68 This is the password of the RADIUS server. Wi-Fi Security CLI Commands Entity Instance Parameter Values Equivalent Web Parameter wifinode security none Use the following security on this Wi-Fi interface wpapsk wpa2psk wparadius wpa2radius wifinode weptype open, Not available on the WEB. sharedkey Digi TransPort User Guide...
  • Page 69 0 security wep wifinode 0 weptype sharedkey wifinode 0 wepkeylen <64 | 128> wifinode 0 wepkeyindex <1..4> wifinode 0 sharedkey <5 or 13 char key> TKIP wifinode 0 security wparadius wifinode 0 wpatype tkip wifinode 0 radiuscfg 1 Digi TransPort User Guide...
  • Page 70 Access Points it detects. This feature can be used to detect unauthorised Access Points that might be trying to get unsuspecting Wi-Fi clients to connect them. When an authorised Access Point is detected, an event log entry is created and an alarm (such as email, SMS, SNMP Trap) can be triggered. Digi TransPort User Guide...

  • Page 71: Mobile Parameters

    Before attempting to connect to a wireless service, you need to set several parameters specific to your mobile network operator. It will be useful to have the following information to hand: • The assigned APN (Access Point Name) • PIN Number for your SIM card (if any) • Username and password Digi TransPort User Guide...

  • Page 72: Mobile Settings Parameters

    Service Plan / APN Enter the APN (Access Point Name) given by the service provider. Use backup APN Check this box to enable the backup APN option then enter the backup APN in the free text field. Digi TransPort User Guide...
  • Page 73 Service Plan / APN: modemcc usebuapn on/off Checkbox (Use Backup APN) modemcc buapn Free text field Use backup APN modemcc SIM PIN SIM PIN:/Confirm SIM PIN number username Free text field Username: password Free text field Password:/Confirm Password Digi TransPort User Guide...
  • Page 74 This checkbox opens to show the following parameters:- Inactivity Timeout: h hrs m mins s seconds This parameter specifies the amount of time the unit will wait without receiving any PPP packets before disconnecting. An inactivity timeout reset with each received PPP packet. Digi TransPort User Guide...

  • Page 75: Mobile Network Settings

    IPSec was enabled. By setting this parameter to either a PPP or Ethernet interface, the source IP address used by IPSec will match that of the Ethernet or PPP interface specified. Enable the firewall on this interface Digi TransPort User Guide...

  • Page 76: Cdma Provisioning

    The CDMA module provisioning process creates a CDMA data connection to the mobile carrier network. This authenticates the modem and retrieves account information which is written to flash memory on the CDMA module itself, not the Digi’s configuration file. Mobile account Digi TransPort User Guide...
  • Page 77 If for some reason the TransPort router is an older version using a module that does not support OMA DM, three fields of information must be entered into the Automatic configuration page. This information is provided by Sprint.

  • Page 78: Manual Provisioning

    This parameter specifies mobile station identifier. You can obtain this from the mobile operator. Manual provisioning CLI commands Entity Instance Parameter Values Equivalent Web Parameter provision String4 Free text field provision String5 Free text field provision String6 Free text field MIN/MSID Digi TransPort User Guide...
  • Page 79 Free text field Secondary Home Agent: provision String12 Hex string HA shared secret:0xn (Hex strings must start 0x) provision String13 Hex string AAA shared secret: 0xn (Hex strings must start 0x) provision String14 Free text field HA SPI: Digi TransPort User Guide...

  • Page 80: Prl Update

    Sprint networks is carried out over the air (OTA). Manual PRL update using a PRL file is not available. To initiate automatic over the air PRL update, click the Start button. Please note that PRL update is normally carried out as part of automatic provisioning on both Sprint and Verizon. Digi TransPort User Guide...

  • Page 81: Advanced Mobile Parameters

    For example, Initialisation string 3 will not be sent unless Initialisation string 1 and Initialisation string 2 are both specified. Initialisation strings are not normally required for most applications as the unit will normally be pre-configured for correct operation with most networks. Hang-up string: Digi TransPort User Guide...
  • Page 82 5 minutes loss of GSM registration, and setting to reset the module if GSM registration is lost will power cycle the module after 5 minutes loss of GPRS, 3G or HSPA registration. Preferred System: Digi TransPort User Guide...
  • Page 83 1 = reset the module if the GSM registration is lost 2 = reset the module if the GPRS registration is lost modemcc psys 0,1,2 Preferred System 0 = Auto 1 = GSM 2 = WCDMA Digi TransPort User Guide...
  • Page 84 This parameter specifies the connected metric of the mobile interface. The default metric of a connected interface is 1. By allowing the interface to have a higher value (lower priority), static routes can take preference to interfaces. For normal operation, leave this value unchanged. Digi TransPort User Guide...
  • Page 85 This section relates to monitoring pings which can be sent from the mobile interface. For more details, refer to Application Note 7 Wireless WAN problem Detection and Recovery. This checkbox opens to show the following parameters: Digi TransPort User Guide...
  • Page 86 Use the ETH 0 IP address as the source IP address If you enable this parameter, the unit to use the IP address of ETH0 (instead of the current IP address of the mobile interface), as the source address for the auto PING packets. Digi TransPort User Guide...
  • Page 87 IP addressd Send n byte pings to IP host a.b.c.d every h hrs m mins s secs pingint 0 – 2147483647 Send n byte pings to IP host a.b.c.d every h hrs m mins s (seconds) secs Digi TransPort User Guide...
  • Page 88 0 - 2147483647 Reset the link if no response is received within s seconds pingfreth0 on/off Use the ETH 0 IP address as the source IP address pingresetint on/off Defer sending pings if IP traffic is being received Digi TransPort User Guide...

  • Page 89: Sms Settings

    Service Centre Address), used to relay SMS messages or alarms. This number must include the international dialling code, such as 44 for the UK, but not the + prefix or leading 0’s, such as 44802000332. SMS alarms are generated when the SMS trigger priority is greater than 0 Digi TransPort User Guide...
  • Page 90 SMS access level: (default) 1 = High 2 = Medium 3 = Low 4 = None 5 = HighLow HighMedium 7 = CheckPar modemcc sms_cmd_sep Free text field Use as a command separator (default is CR) Digi TransPort User Guide...
  • Page 91 Mobile Allow CLI commands from the telephone following SMS numbers. number (First SMS number) modemcc sms_callerid_1 to Mobile Allow CLI commands from the telephone following SMS numbers. number (additional SMS numbers 1 to 9) Digi TransPort User Guide...

  • Page 92: Dsl Parameters

    APVC instance as its Layer 1 interface on the associated Configuration – Interfaces > PPP > PPP n > Advanced page. This parameter sets the Virtual Path Identifier for this APVC in the range 0 - 255. Digi TransPort User Guide...

  • Page 93: Dsl Network Settings Parameters

    Before it forwards the packet back to the private host, it changes the destination IP address of the packet from its public IP address to the IP address of the private host. IP address and Port Digi TransPort User Guide...
  • Page 94 Stop data from being transmitted after This parameter sets the maximum amount of data that may be transferred before the unit locks the interface and prevent further transfer. As with the Issue a warning event Digi TransPort User Guide...
  • Page 95 Enable the firewall on this interface dlwarnkb Kbytes/ Issue a warning event after Mbytes/ GBytes dlstopkb Kbytes/ Stop data from being transmitted Mbytes/ after x Bytes data GBytes dlrstday 1-28 Reset the data limit on the nth day of the month Digi TransPort User Guide...

  • Page 96: Pvc Traffic Shaping Parameters

    This parameter specifies the maximum allowable burst size of cells that can be transmitted contiguously on a particular connection. Related CLI commands Entity Instance Parameter Values Equivalent Web Parameter apvc servcat UBR,VBR-ntr,VBR- Service category rt,CBR apvc Peak cell rate (cells/sec) Digi TransPort User Guide...

  • Page 97: Advanced Dsl Parameters

    Using Alarm indication signal (AIS) cells downstream and Remote defect indication (RDI) cells upstream, the router can detect faults between the connecting points of the VP/VC and suspend transfer of ATM cells until the VC fault condition is cleared. Digi TransPort User Guide...

  • Page 98: Gre Parameters

    Below the GRE Interfaces sub menu, you will find the individual tunnel configuration. When configured, a GRE tunnel is created between two devices. Tunnel parameters Description This parameter allows you to enter a name for this GRE instance, to make it easier to identify Digi TransPort User Guide...
  • Page 99 This specifies whether or not the GRE keepalive packets will activate the tunnel. If set to YES and the tunnel drops the GRE keepalive packet will try to raise the tunnel again. If set to NO Digi TransPort User Guide...
  • Page 100 GRE parameters and the tunnel has been marked as down due to the GRE keepalives not being received, the router will only raise the tunnel if a packet (other than a GRE keepalive) needs to be routed. Digi TransPort User Guide...
  • Page 101 Destination IP address to use for GRE packets Kadelay Seconds Send a keepalive every s seconds karetries Number Bring this GRE tunnel down after no replies to n keepalives kaactrq On,off Bring this GRE interface up to send keepalives Advanced GRE parameters Digi TransPort User Guide...
  • Page 102 When you set this parameter to ON, the un-encapsulated IP traffic is captured into the analyser trace. Enable Tunnel analysis: When you set this parameter to ON, the GRE encapsulated packets and keepalives is captured to the analyser trace. Digi TransPort User Guide...

  • Page 103: Isdn Parameters

    Click this to button resets the default answering PPP interface (PPP 0) to the factory answering defaults. Description This parameter allows you to enter a name for this PPP instance, to make it easier to identify Only accept calls from calling numbers ending with Digi TransPort User Guide...
  • Page 104 This parameter can supply a secondary DNS server IP address to the peer for DNS requests if required. Enable NAT on this interface This parameter enables or disables IP Network Address Translation (NAT) on the answering ISDN interface. This checkbox opens to show the following options: Digi TransPort User Guide...
  • Page 105 ISDN sub-address ending with ipaddr IP address Local IP Address: mask Network mask Mask: ipmin IP address Assign remote IP addresses from a.b.c.d to a.b.c.d iprange 1 - 255 Assign remote IP addresses from a.b.c.d to a.b.c.d Digi TransPort User Guide...

  • Page 106: Advanced Isdn Parameters

    Attempt to re-connect after n seconds This parameter specifies the length of time in seconds that the unit will wait after an always- on ISDN connection has been terminated before trying to re-establish the link. Digi TransPort User Guide...
  • Page 107 The value in this text box specifies the amount of time that the router waits without receiving any PPP packets before disconnecting. The timer is reset with each received PPP packet. If the negotiation is not complete in s seconds Digi TransPort User Guide...
  • Page 108 1 = enabled service immediately 2 = On and return to service immediately immoos ON, OFF Put this interface “Out of Service” when an always-on connection attempt fails aodi_dly 0 – 2147483647 Attempt to reconnect after s seconds Digi TransPort User Guide...

  • Page 109: Isdn Dialing Parameters

    PPP instance has been selected. This ISDN interface is using PPP n This message simply states which PPP instance has been assigned to the interface. Description Digi TransPort User Guide...
  • Page 110 PPP instance assigns an IP address to a connecting remote peer. The primary and secondary DNS server addresses will also be sent to the remote peer Assign remote IP addresses from a.b.c.d to a.b.c.d Digi TransPort User Guide...
  • Page 111 Enable the firewall on this interface When checked, this checkbox applies the firewall rules to traffic using this interface. Digi TransPort User Guide...
  • Page 112 Secondary DNS server a.b.c.d IPmin Valid IP address Assign remote IP addresses from a.b.c.d a.b.c.d to a.b.c.d IPrange 0 - 255 Assign remote IP addresses from a.b.c.d to a.b.c.d transDNS Valid IP address Primary DNS server a.b.c.d a.b.c.d Digi TransPort User Guide...

  • Page 113: Advanced Isdn Parameters

    The parameter in this text box specifies the length of time in seconds that the router should wait after an always-on PPP connection has been terminated before trying to re-establish the link. If an inhibited PPP interface is connected, attempt to re-connect after s seconds Digi TransPort User Guide...
  • Page 114 The value in this text box specifies the maximum time (in seconds) allowed for the PPP negotiation to complete. If negotiations have not completed within this period, the interface is deactivated. Generate an event after this interface has been up for m minutes Digi TransPort User Guide...
  • Page 115 If an inhibited PPP interface is connected, attempt to re-connect after s seconds pwr_dly 0 – 2147483647 Wait s seconds after power-up before activating this interface tband 0 - 4 Control when this interface can connect using Time Band n Digi TransPort User Guide...

  • Page 116: Isdn Lapd Parameters

    ISDN network. If your application involves using two units back-to-back, one of the units should have the DTE mode value set to DCE. N400 Counter Digi TransPort User Guide...
  • Page 117 Reactivate D-channel connection When you enable this parameter, the unit tries to reactivate a D-channel connection after disconnection by the network by transmitting SABME frames. If it is unable to reactivate the Digi TransPort User Guide...
  • Page 118 RR Timer n msecs LAPD t1time 1 - 60000 T1 Timer n msecs LAPD t200 1 – 60000 T200 Timer n msecs LAPD 0 - 255 LAPD window 1 - 7 D-channel X.25 Tx Window Size Digi TransPort User Guide...

  • Page 119: Pstn Parameters

    The text string text box is the username that should be used when using the PPP instance to connect to the remote peer. This is normally provided by an ISP for use with a dial-in Internet access service. Digi TransPort User Guide...
  • Page 120 Only allow calling numbers ending with n When set to answer calls, the value in this text box provides a filter for ISDN sub-addresses. This value is blank by default but when the PPP instance is set to answer calls, only numbers Digi TransPort User Guide...
  • Page 121 25 digits Dial out using numbers “ “ “ “ “ “ prefix 0 – 9999999999 Prefix n to the dial out number username Up to 60 Username characters password Up to 40 Password characters Digi TransPort User Guide...
  • Page 122 0,1,2 Enable NAT on this interface 0 = Disabled IP address/IP address and Port 1 = IP address 2 = IP address and port nat_ip Valid IP address NAT Source IP address a.b.c.d a.b.c.d Digi TransPort User Guide...

  • Page 123: Advanced Pstn Parameters

    Keep this interface up for at least s seconds The value in this textbox specifies the minimum period that the PPP interface should remain available. This means that even if the link becomes inactive before this period expires, the connection remains open. Digi TransPort User Guide...
  • Page 124 The value in this text box specifies the total amount of data that may be transmitted by this PPP instance before the link is blocked for further traffic, and the value in the drop-down list specifies the units which are kilobytes, megabytes, and gigabytes. Digi TransPort User Guide...
  • Page 125 0 – 2147483648 if the negotiation is not complete in s seconds uplogmins 0 – 2147483647 Generate an event after this interface has been up for m mins Digi TransPort User Guide...

  • Page 126: Dialserv Parameters

    PPP instance to use as part of the configuration. If no PPP instance has been assigned and the module has been configured to use PPP, a link to the PPP mappings page and message appear. If a PPP instance has been assigned, the following configuration options appear: Digi TransPort User Guide...
  • Page 127 The value in this text box specifies the IP address of the secondary DNS server to use if one is not automatically assigned by the remote peer. Attempt to assign the following IP configuration to remote devices Digi TransPort User Guide...
  • Page 128 Enable the firewall on this interface When checked, this checkbox applies the firewall rules to traffic using this interface. Digi TransPort User Guide...
  • Page 129 Assign remote IP addresses from a.b.c.d a.b.c.d to a.b.c.d IPrange 0 - 255 Assign remote IP addresses from a.b.c.d to a.b.c.d transDNS Valid IP address Primary DNS server a.b.c.d a.b.c.d sectransDNS Valid IP address Secondary DNS server a.b.c.d a.b.c.d Digi TransPort User Guide...

  • Page 130: Advanced Dialserv Parameters

    The value in this textbox is the initial delay that the router will apply before activating the PPP instance after power-up. After the initial power-up delay the normal always-on activation timers apply. If set to zero, no delay will be applied. Digi TransPort User Guide...
  • Page 131 Issue a warning event after n units The value in this text box is the amount of traffic which will cause a warning event to be generated in the event log stating that the specified amount of data has been transferred. The Digi TransPort User Guide...
  • Page 132 0 – 2147483648 Close this interface after s seconds maxuptime 0 – 2147483647 if it has been up for m minutes in a timeout 0 – 2147483648 if the link has been idle for s seconds Digi TransPort User Guide...

  • Page 133: Serial Parameters

    Serial parameters Digi routers support a variety of serial interfaces, either inbuilt or as optional add-on modules. Each asynchronous serial (ASY) port may be configured to operate at different speed, data format etc. These parameters may be changed using the web interface or from the command line using AT commands and S registers.
  • Page 134 Values Equivalent Web Parameter descr Free text – Description description of interface S31=n Where n = Baud rate 3 = 115200 4 = 57600 5 = 38400 6 = 19200 7 = 9600 8 = 4800 Digi TransPort User Guide...
  • Page 135 Selecting Off configures the router such that the DCD line is normally asserted but is de- asserted for the time period specified by the S10 register after a call is disconnected (this is equivalent to AT&C2). DTR Control Digi TransPort User Guide...
  • Page 136 When the Async port detects the following sequence: <guard time 1 sec>---<guard time 1 sec> instead of outputting the three minus characters (they are removed from the output stream) a BREAK condition is placed on the Async transmitter for 1 second. Digi TransPort User Guide...
  • Page 137 0 - 255 S3=n Where n = Break Transmit Escape Character ASCII value Profiles Each serial port can have two profiles which can be configured differently. Which profile is in force when the router powers-up is selected here. Digi TransPort User Guide...

  • Page 138: Sync Parameters

    The most common form of serial communications these days is asynchronous. Synchronous serial communications links are still in use and the Digi routers can support these. HDLC is a synchronous protocol that is still in use and can be used with Digi routers. This section describes how to configure the synchronous communications interfaces.

  • Page 139: Rate Adaption Parameters

    If an ISDN connection is established, but rate adaption is not negotiated, the value in this text box specifies how many times the router should drop the connection and redial it. Drop the connection if it is idle for h hrs m mins s secs Digi TransPort User Guide...

  • Page 140: Command Mappings Parameters

    To achieve this aliasing, enter ls into the From column in the table, dir into the To column and then click the Add button. Digi TransPort User Guide...

  • Page 141: Protocol Bindings Parameters

    Protocol Bindings parameters Digi routers are soft configurable to allow different protocols to be used on different interfaces. The process of selecting which protocol will be used on a particular interface is referred to as binding. So, for example Serial (ASY) port 0 may be used for an ISDN B channel X.25 connection in which case PAD 0 would be bound to Serial 0 (assuming that PAD 0 is the required PAD).
  • Page 142 0 asy 3 binds V.120 instance 0 to asynchronous serial port 3. To access the Internet using PPP via a terminal connected to serial interface 2, enter the command: bind ppp 1 asy 2 Digi TransPort User Guide...

  • Page 143: Transip Serial Ports Parameters

    TransIP TCP socket will be cleared at the end of the TPAD transaction. Disable command echo When this checkbox is checked command echo for the TransIP port is disabled. When unchecked all commands issued will be echoed back to the TransIP TCP socket. Escape char c Digi TransPort User Guide...

  • Page 144: Realport Parameters

    Actually, the devices are connected to a Digi device somewhere on the network. RealPort is unique among COM port re-directors because it is the only implementation that allows multiple connections to multiple ports over a single TCP/IP connection.
  • Page 145 TCP/IP packets in a Secure Sockets Layer (SSL) connection and encrypting the data using Advanced Encryption Standard (AES), one of the latest, most efficient security algorithms. Access to Encrypted RealPort services can be enabled or disabled. Digi’s RealPort with encryption driver has earned Microsoft’s Windows Hardware Quality Lab (WHQL) certification. Drivers are available for a wide range of operating systems, including Microsoft Windows Server 2003, Windows XP, Windows 2000, Windows NT, Windows 98, Windows ME;...
  • Page 146 0 - 255 Maximum number of encryption sockets rport initiate OFF,ON Enable Device Initiated RealPort rport IPaddr Valid IP Connect to host a.b.c.d Port n address a.b.c.d rport initiateport 0 - 65535 Connect to host a.b.c.d Port n Digi TransPort User Guide...

  • Page 147: Multitx Parameters

    This field specifies the serial interface to use. Data received on this serial will be forwarded to all configured remote hosts. Protocol This field specifies whether TCP or UDP will be used as the transport method. Socket Inactivity Timeout Digi TransPort User Guide...
  • Page 148 Enter the hostname or IP address of the remote host in this field. Port Enter the TCP or UDP port number that the remote host is listening on. Click this button to add the remote host. Digi TransPort User Guide...

  • Page 149: Advanced Interfaces Parameters

    (Windows dial-up networking supports PPP). In addition to ASYNC to SYNC operation (where the router only converts the PPP from one form to another) the router can initiate its own PPP sessions. This is used for example when: Digi TransPort User Guide...

  • Page 150: External Modems Parameters

    PPP over multiple external modems. ASY Port This is the physical ASY port for the external modem. W-WAN mode Checking the check box enables W-WAN mode Initialization string n Digi TransPort User Guide...
  • Page 151 Parameter Values Equivalent Web Parameter modemcc asyport 0 - 255 (Default: 255) modemcc init_str Free text field Initialisation string 1 modemcc init_str1 Free text field Initialisation string 2 modemcc init_str2 Free text field Initialisation string 3 Digi TransPort User Guide...

  • Page 152: Ppp Mappings Parameters

    When checked, this checkbox causes the router to authenticate itself with the remote system using CHAP. If this parameter is set, the connection will fail if authentication fails. Generally, this checkbox should be left unchecked. Enable short sequence numbers Digi TransPort User Guide...
  • Page 153 B-channel is deactivated. Related CLI commands Entity Instance Parameter Values Equivalent Web Parameter mlppp l_accm 0x00000000 – Desired local ACCM 0xFFFFFFFF mlppp r_accm 0x00000000 – Desired remote ACCM 0xFFFFFFFF mlppp username Valid username username Digi TransPort User Guide...

  • Page 154: Ppp Parameters

    This PPP interface will use If the PPP mappings have been set up previously using the PPP mappings page, this box will contain the name of the protocol that has been assigned to this PPP instance. If the mapping Digi TransPort User Guide...
  • Page 155 Allow the remote device to assign a local IP address to this router When this radio button is selected, the remote peer will assign this PPP interface an IP address. Try to negotiate a.b.c.d as the local IP address for this router Digi TransPort User Guide...
  • Page 156 IP protocol configuration phase of the PPP negotiation process. Primary DNS server The value in this text box is the IP address of the primary DNS server that the remote peer should use when making DNS requests over the link. Secondary DNS server Digi TransPort User Guide...
  • Page 157 The value in this text box specifies the amount of time that the router waits without receiving any PPP packets before disconnecting. The timer is reset with each received PPP packet. if the negotiation is not complete in s seconds Digi TransPort User Guide...
  • Page 158 If it is required to use another interface (such as not the interface currently being configured) as the source address for IPsec packets, this may be achieved by selecting the desired interface from the drop-down list and typing the desired interface instance number into the adjacent text box. Digi TransPort User Guide...
  • Page 159 If the connection works when the firewall is turned off but fails when turned on, a good place to start checking parameters would be in the firewall settings page, Configuration – Security > Firewall. Remote management access Digi TransPort User Guide...
  • Page 160 IP address to this router automatically IPaddr Valid IP address Try to negotiate a.b.c.d as the local a.b.c.d IP address for this router l_addr Valid IP address Use a.b.c.d as the local IP address Default 1.2.3.4 for this router Digi TransPort User Guide...
  • Page 161 0 – 2147483648 if the negotiation is not complete in s seconds do_nat Enable NAT on this interface 0 = Off 1 = On Digi TransPort User Guide...
  • Page 162 OFF, ON Mobile PPP parameters Mobile telephone modules fitted into the router use PPP to connect to the network and send and receive traffic. This section describes parameters relevant to setting up a mobile telephone module. Digi TransPort User Guide...
  • Page 163 This parameter specifies the connected metric of the interface. The default metric of a connected interface is 1. By allowing the interface to have a higher value (lower priority), static routes can take precedence over interfaces. For normal operation, leave the value in this textbox unchanged. Digi TransPort User Guide...
  • Page 164 The value in this textbox is the initial delay that the router will apply before activating the PPP instance after power-up. After the initial power-up delay the normal always-on activation timers apply. If set to zero, no delay will be applied. Digi TransPort User Guide...
  • Page 165 When set to zero, this functionality is disabled, such as the router will not terminate the link if the LCP echo requests do not elicit a response from the remote. Digi TransPort User Guide...
  • Page 166 Send n byte pings to IP host a.b.c.d every h hrs, m mins, s secs These parameters control how the ICMP echo requests are generated. The value in the left- hand text box specifies the number of data bytes in the echo request. Typical values are 32 or Digi TransPort User Guide...
  • Page 167 One of the uses for sending ICMP echo requests is as a keepalive mechanism. When this checkbox is checked, it causes the router to defer sending the ping packets out if IP traffic is being received, since in this case, separate keepalives are not needed. Digi TransPort User Guide...
  • Page 168 The values in these text boxes control the circumstances under which the link may be reset. If the number of packets text box has a value greater than zero, the router will reset the link if Digi TransPort User Guide...
  • Page 169 PPP instance is in its inhibited state but there is data waiting to be sent over the interface. The options are: Do not bring up interface This option leaves the situation as it is with the interface remaining inhibited. Bring up interface and use normal idle period Digi TransPort User Guide...
  • Page 170 When negotiated, the PPP instance will encrypt the PPP frames as per the MPPE specification. MPPE key size The values in this drop-down list select the length (in bits) of the encryption key. The options are: • Auto • 40 bits • 56 bits Digi TransPort User Guide...
  • Page 171 0 – 2 Enable “Always On” mode of this 0 = disabled interface, On, On and return to 1 = enabled service immediately 2 = On and return to service immediately Digi TransPort User Guide...
  • Page 172 Send LCP echo request packet to the remote peer echo 0 - 2147483648 Send LCP echo requests every s seconds echodropcnt 0 - 2147483648 Disconnect the link after n failed echo requests Generate Heartbeats on this interface Digi TransPort User Guide...
  • Page 173 0 - 2147483648 Ping responses are expected within s seconds pingis OFF, ON Only send Pings when this interface is “In Service” ping2cont OFF, ON New connections to resume with previous Ping interval Digi TransPort User Guide...
  • Page 174 PPP interfaces inhibited by this interface to connect pdacttries 0 - 255 If this PPP interface gets disconnected, allow it to attempt to reconnect n times before allowing other PPP interfaces inhibited by this interface to connect Digi TransPort User Guide...
  • Page 175 OFF, ON Use PPP for processing CHAP P_mode other_local_PP Use PPP n for processing CHAP P_inst tcptxbuf 0 - 2147483648 TCP transmit buffer size n bytes pppdebug OFF, On norxrst OFF, ON noremaddr OFF, ON Digi TransPort User Guide...

  • Page 176: Ppp Negotiation Parameters

    1500 octets will be fine in most cases. Request local ACFC When checked, this checkbox causes the router to request Address Control Field Compression (ACFC). When negotiated, the address/control fields are removed from the start of the PPP header. Request remote ACFC Digi TransPort User Guide...
  • Page 177 Allow remote end to request callback This drop-down list controls whether or not the router will respond to incoming callback requests. The options are: • • Desired Digi TransPort User Guide...
  • Page 178 OFF, ON Disconnect if the remote request an IP address l_accm 0x00000000 – Desired local ACCM 0xFFFFFFFF Default 0x00000000 r_accm 0x00000000 – Desired remote ACCM 0xFFFFFFFF Default 0xFFFFFFFF l_mru 0 – n Desired local MRU Default 1500 Digi TransPort User Guide...
  • Page 179 2 = Preferred r_ms1 Allow remote unit to authenticate 0 = On using MS-CHAP 1 = Off l_ms2 0 - 2 Allow this unit to authenticate using 0 = Disabled MS-CHAPv2 1 = Enabled 2 = Preferred Digi TransPort User Guide...
  • Page 180 QoS instance, where PPP 0 maps to QoS 0, PPP 1 maps to QoS 1 and so on. These QoS instances include ten QoS queues into which packets may be placed when using QoS. Each of these queues must be assigned a queue profile from the twelve available. Digi TransPort User Guide...
  • Page 181 0 - 11 Queue 0 Profile q0prio 0 – 4 Queue 0 Priority 0 = Very high 1 = High 2 = Medium 3 = Low 4 = Very Low q1prof 0 – 11 Queue 1 Profile Digi TransPort User Guide...

  • Page 182: Ppp Sub-Configs Parameters

    PPP instance. Using PPP Sub-Configs, you can define up to 50 sub-configs and saves them on system memory. To configure the PPP Sub-Configs parameters, set the following values: This is the instance number for a sub-config. Digi TransPort User Guide...
  • Page 183 1 - 50 username Valid username Username up to 60 characters pppcfg 1 - 50 password Valid password Password up to 40 cahracters pppcfg 1 - 50 phonenum Up to 25 digits Dialout Number Digi TransPort User Guide...

  • Page 184: Dhcp Server

    DHCP Server Digi routers incorporate one or more Dynamic Host Configuration Protocol (DHCP) servers, one for each Ethernet port. DHCP is a standard Internet protocol that allows a DHCP server to dynamically distribute IP addressing and configuration information to network clients.
  • Page 185 Forward DHCP requests to a.b.c.d The values in these two text boxes specify the IP addresses of the two supported DHCP relay agents. If the DHCP server is on a different subnet, specifying the IP address of the server in Digi TransPort User Guide...
  • Page 186 Wait for s milliseconds before sending DHCP offer reply dhcp wifionly OFF,ON Only send offers to Wi-Fi clients dhcp fwdip Valid IP address Forward DHCP requests to a.b.c.d a.b.c.d dhcp fwdip2 Valid IP address Forward DHCP requests to a.b.c.d a.b.c.d Digi TransPort User Guide...

  • Page 187: Advanced Dhcp Parameters

    Values Equivalent Web Parameter dhcp nxtsvr Valid IP address Next Bootstrap Server a.b.c.d dhcp sname Up to 64 Server Hostname characters dhcp file Up to 64 Boot file characters Advanced DHCP options NetBIOS Name Server a.b.c.d Digi TransPort User Guide...

  • Page 188: Logical Ethernet Interfaces

    Up to 64 FTP Root Dir characters Logical Ethernet interfaces The web pages in this section are simply a duplicate of the above pages but applying to logical, rather than physical Ethernet interfaces. Digi TransPort User Guide...

  • Page 189: Dhcp Options

    The value in this text box specifies the data type for the option and can be any one of the following; 1,2 or 4 byte value, IPv4 address, text string or hexadecimal data. Value The value in this text box specifies the actual data that will be sent in the DHCP option message. Digi TransPort User Guide...

  • Page 190: Static Lease Reservations

    The value in this box specifies the MAC address which is to be given the above IP address. As is usual with the configuration tables, clicking the Add button adds the entry to the table and clicking the Delete button removes an existing entry from the table. Digi TransPort User Guide...
  • Page 191 Valid MAC address MAC Address aa.bb.cc.dd.ee.ff aa.bb.cc.dd.ee.ff Two separate commands are required to set up a mapping, these are: mac2ip <instance> mac <MAC address> mac2ip <instance> IPaddr <IP address> where <instance> can be 0 – 9. Digi TransPort User Guide...

  • Page 192: Network Services

    Simply clicking on this checkbox may not be sufficient to allow this service to start working. Depending upon the version selected below, additional configuration may be required. Detailed configuration, including setting up command filters, users and SNMP traps are to be found at Configuration > Remote Management > SNMP Digi TransPort User Guide...
  • Page 193 If security is not such an issue, selecting this option allows the simpler and slightly more convenient web server to be used. Enable Secure Web Server (HTTPS) Select this radio button to disable the insecure HTTP protocol and enable the HTTPS service. Digi TransPort User Guide...
  • Page 194 0 = RTC Source 1 = GPS 2 = NTP Client sockopt ssh_server_ena ON, OFF Enable Secure Shell Server sockopt telnets ON, OFF Enable Telnet over SSL sockopt https ON, OFF Enable Secure Web Server Digi TransPort User Guide...

  • Page 195: Dns Server

    This text box contains the hostname pattern to match for the specified DNS server. This parameter needs a wildcard to prefix the domain name. For example, to match DNS queries for all digi.com servers, enter *.digi.com. When using this feature, it is recommended that the last DNS server selection hostname pattern is set to * to match all other DNS lookups.

  • Page 196: Dns Server Update Parameters

    DNS servers with their IP addresses when they first connect to the Internet and at regular intervals thereafter. The parameters in this section control how the router updates a specified DNS server with its IP address when it first connects to the Internet and at regular intervals thereafter. Digi TransPort User Guide...

  • Page 197: Dynamic Dns

    The drop-down list offers the options of PPP or Ethernet and the text box is used to enter the instance number for the specified interface. Also send an update every h hrs, m mins, s secs Digi TransPort User Guide...
  • Page 198 The value in this text box specifies how long a router that resolved the address is allowed to cache that address for. Related CLI commands Entity Instance Parameter Values Equivalent Web Parameter dnsupd server Valid IP address Send an update to DNS Server a.b.c.d a.b.c.d dnsupd name up to 20 Name characters Digi TransPort User Guide...
  • Page 199 –2147483648 - Local time offset from GMT n 2147483647 (hours) dnsupd fudge 0 – 2157483648 Required Time Accuracy s (seconds) seconds dnsupd 0 – 2157483648 Allow DNS clients to cache this (seconds) entry for s seconds Digi TransPort User Guide...

  • Page 200: Dynamic Dns

    IP address of that interface and if it differs from that obtained from the previous connection, www.dyndns.com contacted and the hostnames specified in the Hostname parameters are updated with the new address. Digi TransPort User Guide...
  • Page 201 The value in this text box specifies the password to use when updating the hostnames. This will have been supplied by the service provider. Confirm DynDNS Password Enter the password into this text box to confirm it. Digi TransPort User Guide...

  • Page 202: Dynamic Dns

    Host and Domain Name(s) dyndns port 0 - 65535 Destination port # dyndns username Up to 20 characters DynDNS User Name dyndns password Up to 25 characters DynDNS Password dyndns system Blank, statdns, DynDNS DDNS System custom Digi TransPort User Guide...

  • Page 203: Advanced Dynamic Dns Parameters

    When checked, this checkbox causes the router NOT to send DDNS updates unless at least one Ethernet interface is a VRRP master. Enable debug When checked, this checkbox enables debug tracing of the dynamic DNS transactions. Digi TransPort User Guide...
  • Page 204 0 -255 Update interval d days dyndns noip OFF,ON Supply the IP address in the update dyndns ifvrrpmaster OFF,ON Only send update when this router is the VRRP master dyndns debug OFF,ON Enable debug Digi TransPort User Guide...

  • Page 205: Ip Routing / Forwarding

    The configuration pages and command line commands described in this section control the routing behavior of the router. You can view Digi TransPort’s routing table by navigating to Management - Network Status > IP Routing Table. The routing table can also be displayed using the CLI command:...

  • Page 206: Default Routes

    TransPort routing mode When you enable the TransPort routing mode, CIDR routing is disabled. When the TransPort receives an IP packet to route, the routing table is used to decide through which interface to send the packet. Usually the destination IP address of the IP packet is compared with the IP Address and Mask of each entry in the routing table in index order regardless of the order in the routing table or length of mask.

  • Page 207: Cidr Routing Mode

    Whenever an interface is out of service (oos) any route pointing at the interface will also be out of service. Whenever a route is out of service, the metric value will be set to 16 in TransPort routing mode and 17 in CIDR mode.
  • Page 208 The value in this text box specifies the latency to apply before passing traffic on an alternative route in the current route becomes unavailable. If an interface is configured for “dial on demand” and fails to connect, Digi TransPort User Guide...

  • Page 209: Static Routes

    These allow the setting up of static IP routes for particular IP subnets, networks or addresses. Route n parameters Each of the static route instances has its own configuration page. These are described below. Digi TransPort User Guide...
  • Page 210 Each route may be assigned a connected metric and a disconnected metric. The connected metric parameter is used to specify the metric for a route whose interface is active. The disconnected metric is used to specify the metric for a route whose interface is inactive. Digi TransPort User Guide...
  • Page 211 IP Address a.b.c.d If necessary, these IP Address and Mask parameters may be used to further qualify the way in which the router routes packets. If the values in this text box and the following Mask Digi TransPort User Guide...
  • Page 212 Do not allow this interface to be activated by this route for s seconds after the last activation attempt The value in this text box is the delay to wait before re-initiating a connection after it has dropped whilst still required. Only queue one packet whilst waiting for the interface to connect Digi TransPort User Guide...
  • Page 213 If one route in a group comes back into service, all routes with a lower priority (metric) also have their out of service status cleared. Digi TransPort User Guide...
  • Page 214 Only queue one packet whilst waiting for the interface to connect route deact_ent Blank,PPP When this route becomes available, deactivate the following interfaces x,y route deact_add 0 – 2147483647 When this route becomes available, deactivate the following interfaces x,y Digi TransPort User Guide...

  • Page 215: Default Route N Parameters

    The disconnected metric is used to specify the metric for a route whose interface is inactive. Normally both values should be the same but in some advanced routing scenarios necessary to use different values. Digi TransPort User Guide...

  • Page 216: Advanced Default Route

    Use this route only if the source IP address of the packet matches When this checkbox is checked, the following two parameters are enabled. IP address a.b.c.d If necessary, these IP Address and Mask parameters may be used to further qualify the way in Digi TransPort User Guide...
  • Page 217 Only queue one packet whilst waiting for the interface to connect When checked, this checkbox will cause the router to enqueue only one packet while waiting for the interface to connect. When unchecked, the router will enqueue two packets. Digi TransPort User Guide...
  • Page 218 If one route in a group comes back into service, all routes with a lower priority (metric) also have their out of service status cleared. Digi TransPort User Guide...
  • Page 219 Only queue one packet whilst waiting for the interface to connect def_route deact_ent Blank,PPP When this route becomes available, deactivate the following interfaces x,y def_route deact_add 0 – 2147483647 When this route becomes available, deactivate the following interfaces x,y Digi TransPort User Guide...

  • Page 220: Rip Parameters

    RIP update timeout occurs and the route metric is 16. This behaviour is designed to help propagate the dead route to other routers. The router will no longer use a metric advertised by a RIP update if the route has been set out of service locally. Digi TransPort User Guide...
  • Page 221 The value in this text box is the IP address to be added to the list of IP addresses that RIP packets must come from if they are to modify route metrics. Up to ten IP addresses may be added. The Add and Delete buttons work in the usual way for configuration tables. Digi TransPort User Guide...
  • Page 222 Disable means that the key should not be used. The end month is selected from the second drop-down list, selecting None means that the key should not be used. The year is entered into the text box and can be in two or four digit format. Digi TransPort User Guide...

  • Page 223: Interfaces > Ethernet / Ppp / Gre Parameters

    Do not change this parameter unless you intend to alter this behaviour. • Multicasts (Only visible when ‘v2’ is selected in the ‘Use RIP’ option above): This is automatically selected for sending to the default RIP v2 multicast address 224.0.0.9. Digi TransPort User Guide...
  • Page 224 Use Triggered RIP on this interface Enable triggered RIP (RFC2091). When triggered RIP is enabled, RIP timers are disabled. Include this interface in Rip advertisements Select to cause the subnet configured on this interface to not be advertised by RIP. Digi TransPort User Guide...

  • Page 225: Ospf Parameters

    Count-to-Infinity (where routers continuously increment the hop count to a particular network). This makes for a stable network. In order to use OSPF on the router, a valid configuration file must exist in the router’s filing system. Digi TransPort User Guide...
  • Page 226 In common with some of the other functionality of the router, OSPF supports some debug functionality. The amount of information in the debug traces is controlled from this drop- down list. The available levels are “Off”, “Low”, “Med” and “High”. Selecting “Off” disables debug tracing. Ignore MTU indications Digi TransPort User Guide...

  • Page 227: Bgp Parameters

    Use Interface IPsec source IP BGP parameters The Border Gateway Protocol (BGP) routing protocol is supported by TransPort routers. This page contains the configuration parameters used to control the behaviour of BGP. Most of the configuration is controlled by a configuration file (raw text) named bgp.cnf. This file would normally be created in a text editor on a computer and loaded onto the router.
  • Page 228 BGP Tracing As with OSPF, the level of debug tracing information is selected from this drop-down list. The available levels are; “Off”, “Low”, “Med” and High. Digi TransPort User Guide...

  • Page 229: Ip Port Forwarding / Static Nat Mappings Parameters

    Configuring IP port forwarding and static NAT mapping is done by entering the following configuration values into a table and using the Add button to add them into the NAT configuration for the router. Digi TransPort User Guide...

  • Page 230: Multicast Routes Parameters

    0 IPaddr 10.1.2.10 Multicast Routes parameters Digi TransPort routers support multicast routes, allowing them to route packets to multicast group addresses. Up to 20 different static multicast routes may be configured. Static multicast routes must be used in conjunction with the IGMP parameter on the outbound interface.
  • Page 231 Multicast Address a.b.c.d a.b.c.d mcast 0 - 19 mask Valid IP address Mask a.b.c.d a.b.c.d mcast 0 - 19 ll_ent PPP,ETH,TUN Interface x,y mcast 0 - 19 ll_add Valid interface Interface x,y number 0 - 2147483647 Digi TransPort User Guide...

  • Page 232: Virtual Private Networking (Vpn)

    For further information refer to the IPsec and VPNs section in this manual. Also check the Technical Notes section of the Digi International web site at www.digi.com...
  • Page 233 Ethernet interface or that of a specific device on the local subnet (such as a PC running a client or host application). Mask Use this IP mask for the remote LAN subnet. The mask sets the range of IP addresses that will be allowed to use the IPsec tunnel. Digi TransPort User Guide...
  • Page 234 It can be prefixed with other text if required. When certificates are being used, this parameter should be configured with the “Altname” field in a valid certificate held on the router. Our ID type Digi TransPort User Guide...
  • Page 235 SA keys cannot be predicted from any of the previous keys generated. The options are “No PFS”, 1, 2 or 3. The larger values result in “stronger” keys but they take longer to generate. Use IKE n to negotiate this tunnel Digi TransPort User Guide...
  • Page 236 Re-new the IPsec SA after the specified amount of traffic has been passed over the tunnel. The units can be Kbytes, Mbytes or Gbytes. A value of 0 means that this parameter will not be used and SAs will expire and be renewed based time, rather than amount of traffic. Digi TransPort User Guide...
  • Page 237 Use enc encryption on this 3des, aes tunnel eroute enckeybits 128, 192, 256 Use enc encryption on this tunnel eroute espauth off, md5, sha1 Use auth authentication on this tunnel eroute dhgroup 0, 1, 2, 3 Use Diffie Hellman group Digi TransPort User Guide...

  • Page 238: Tunnel Negotiation Parameter

    This is so that a packet can match more than one IPsec tunnel but Digi TransPort User Guide...

  • Page 239: Advanced Parameters

    IPsec mode Selects the IPsec encapsulation type to use on the IPsec tunnel. In Tunnel mode, the entire IP packet (header and payload) is encrypted. In Transport mode, only the IP payload is encrypted. Use algorithm AH authentication on this tunnel The AH authentication algorithm to use with this IPsec tunnel.
  • Page 240 Use the IP address of the interface over which the IKE packets will be transmitted. Secondary IP address Use the IP address configured in the Secondary IP address parameter on the Configuration – Network > Advanced Network Settings page. Interface x,y Use the IP address of the specified interface. Digi TransPort User Guide...
  • Page 241 Related CLI commands Entity Instance Parameter Values Equivalent Web Parameter eroute mode tunnel, IPsec Mode transport eroute ahauth off, md5, sha1 Use a AH authentication on this tunnel eroute ipcompalg off, deflate Use c compression on this tunnel Digi TransPort User Guide...
  • Page 242 Integer NAT-Traversal Keepalive timer s seconds eroute proto off, tcp, udp, gre Allow protocol IP protocol(s) in this tunnel eroute toslist Comma IP packets with ToS values n must use separated list of this tunnel Integers Digi TransPort User Guide...

  • Page 243: Ipsec Default Action

    “*” character can be used as a wildcard to match multiple user IDs. For example, setting the Peer ID parameter to “Digi*” would match all remote units having an Our ID parameter starting with “Digi”, such as Digi01, Digi02, etc. Example To setup multiple users in this way, first set up the Our ID parameter on the host unit to a suitable name, such as “Host1”.

  • Page 244: Ipsec Groups

    The router with the IPsec Group/MySQL configuration will be the VPN Concentrator. The remote sites will normally not require an IPsec group configuration as they will normally only need to Digi TransPort User Guide...
  • Page 245 Security Associations already exist it will look up the required parameters in the database. The TransPort will then create a dynamic IP tunnel containing all the settings from the base IPsec tunnel and all the information retrieved from the database. At this point IKE will create the tunnel (IPsec security associations) as normal.
  • Page 246 • Peer ID: When the host Digi is acting as a responder during IKE negotiations, the router uses the ID supplied by the remote to decide whether or not the MySQL database should be interrogated.
  • Page 247 Remote subnet Mask The name of the field in the table where the ‘remmsk’ data is stored. Peer IP Address The name of the field in the table where the ‘peerip’ data is stored. Backup Peer IP Address Digi TransPort User Guide...

  • Page 248: Dead Peer Detection Parameters

    When Dead Peer Detection (DPD) is enabled on an IPsec tunnel, the router will send an IKE DPD request at regular intervals. If no response is received to the DPD request, the IPsec tunnel is considered as suspect and the requests are sent at a shorter interval until either the maximum Digi TransPort User Guide...
  • Page 249 A suspect link is one where there has been no traffic for a specified period of time. Close the IPsec tunnels after no response for n DPD requests The maximum number of DPD requests that will be sent without receiving a response before the IPsec tunnels are closed. Digi TransPort User Guide...

  • Page 250: Ike Parameters

    The format of this parameter is a comma-separated list of IP addresses. For example, you may wish to exclude the capture of IKE traffic from IP hosts 10.1.2.3 and 10.2.2.2. This can be done by entering “10.1.2.3,10.2.2.2” for this parameter. Digi TransPort User Guide...
  • Page 251 This parameter defines the encryption algorithm used. The options are: • None • • 3DES • AES (128 bit keys) • AES (192 bit keys) • AES (256 bit keys) Authentication Defines the authentication algorithm used. The options are: Digi TransPort User Guide...
  • Page 252 2 to use new data that has no relationship to the phase 1 data and initiates a second Diffie- Hellman exchange. This provides an even greater level of security but of course can take longer to complete. Renegotiate after h hrs m mins s secs Digi TransPort User Guide...
  • Page 253 Stop IKE negotiation if no packet received for n seconds The period of time in seconds after which the unit will stop the IKE negotiation when no response to a negotiation packet has been received. Enable Dead Peer Detection Digi TransPort User Guide...
  • Page 254 0 - 9 Stop IKE negotiation after n retransmissions inactto 0 - 255 Stop IKE negotiation if no packet received for n seconds on, off Enable Dead Peer Detection natt on, off Enable NAT-Traversal Digi TransPort User Guide...
  • Page 255 Encryption This is the acceptable encryption algorithms. Authentication This is the acceptable authentication algorithms. MODP Group between x and y This is the acceptable range for MODP group. Renegotiate after h hrs m mins s secs Digi TransPort User Guide...
  • Page 256 Stop IKE negotiation if no packet received for n seconds The period of time in seconds after which the unit will stop the IKE negotiation when no response to a negotiation packet has been received. Enable NAT-Traversal Digi TransPort User Guide...
  • Page 257 Parameter Values Equivalent Web Parameter inactto 0 – 255 Stop IKE negotiation if no packet received for n seconds natt on, off Enable NAT-Traversal initialcontact on, off Send INITIAL-CONTACT notifications respltime on, off Send RESPONDER-LIFETIME notifications Digi TransPort User Guide...
  • Page 258 NAT entry that will be used for the duration of the connection. If no dynamic or stateful entry is found, the packet is directed to the local protocol handlers. External Port The lowest destination port number to be matched if the packet is to be redirected. Forward to Internal IP Address Digi TransPort User Guide...

  • Page 259: Ikev2 Parameters

    This parameter defines the settings used during the IKEv2 negotiation Encryption This parameter defines the encryption algorithm used. The options are: • None • • 3DES • AES (128 bit keys) • AES (192 bit keys) • AES (256 bit keys) Digi TransPort User Guide...
  • Page 260 Equivalent Web Parameter ike2 iencalg des, 3des, Encryption ike2 ienkeybits 128, 192, 256 Encryption (AES Key length) ike2 iauthalg md5, sha1 Authentication ike2 iprfalg md5, sha1 PRF Algorithm ike2 idhgroup 1, 2, 5 MODP Group for Phase 1 Digi TransPort User Guide...
  • Page 261 RSA private key file The name of a X.509 certificate file holding the router’s private part of the public/private key pair used in certificate exchanges. See ‘X.509 Certificates’ in the ‘IPsec and VPNs’ section for further explanation. Digi TransPort User Guide...
  • Page 262 This is the acceptable authentication algorithms. PRF Algorithm This is the acceptable PRF (Pseudo Random Function) algorithms. MODP Group between x and y This is the acceptable range for MODP group. Renegotiate after h hrs m mins s secs Digi TransPort User Guide...
  • Page 263 NAT box, and implements a standard NAT traversal protocol if NAT is not being performed. The version of NAT traversal supported is that described in the IETF draft ‘draft-ietf-ipsec-nat-t- ike-03.txt’. Digi TransPort User Guide...

  • Page 264: L2Tp Parameters

    The Layer 2 Tunneling Protocol (L2TP) provides a means for terminating a logical PPP connection on a device other than the one which terminates the physical connection. Typically, both the physical layer and logical layer PPP connections would be terminated on the same device, a Digi Router for example.
  • Page 265 L2TP connection. Use a.b.c.d as a backup It is possible to specify a backup remote L2TP host server using this parameter. The text box contains the IP address of the remote server to use. Digi TransPort User Guide...
  • Page 266 Use a.b.c.d as a backup a.b.c.d l2tp OFF,ON Bring this tunnel up All the time/On demand l2tp nocallto 0 - 4294967296 Bring this tunnel down if it is idle for h hrs, m mins, s secs Digi TransPort User Guide...
  • Page 267 ISDN calls where the trailing digits match this MSN value. For example, setting the MSN value to 123 will prevent the router from answering calls from any calling number that does not end in 123. This parameter is not used when answering is off. Sub-address Digi TransPort User Guide...

  • Page 268: Pptp Parameters

    This because the server tries to build a tunnel back to the router on port 1723 but fails when the traffic is blocked by the mobile operators’ firewall. PPTP n parameters Description The text string in this text box is a name to aid the identification of the router. Remote Host a.b.c.d Digi TransPort User Guide...
  • Page 269 When checked, this checkbox causes the router to encrypt the control data using SSL. This is a Digi proprietary function and is not part of standard PPTP. The drop-down list allows the SSL version to be selected. The available options are: •...

  • Page 270: Openvpn Parameters

    OpenVPN parameters OpenVPN can be used for connecting to the router for secure management as well as access to services on the LAN side of the TransPort router, such as corporate messaging services, file servers and print servers for example.

  • Page 271: Openvpn N Parameters

    This parameter is used to set the Maximum Transmit Unit for the OpenVPN instance, in bytes. The default setting is 1400. Metric This parameter specifies the connected metric, changing this value will alter the metric of dynamic routes created automatically for this interface. Digi TransPort User Guide...
  • Page 272 Link socket protocol OpenVPN can use TCP or UDP as the transport protocol. Select the required protocol here. TLS auth password / Confirm TLS auth password This allows the OpenVPN instance to use an extra level of security by having a TLS password configured.
  • Page 273 Maximum time in seconds to allow for a data channel key negotiation. Key renegotiation interval (seconds) Interval between key re-negotiations. Key renegotiation bytes If non-zero, a key renegotiation will take place after this many bytes have traveled through the data channel (in either direction). Key renegotiation packets Digi TransPort User Guide...
  • Page 274 0 - 2147483647 ovpn metric 0 - 2147483647 Metric ovpn do_nat 0,1,2 NAT mode 0 = Off 1 = Address only 2= Address and port ovpn ipanon OFF,ON IP analysis ovpn firewall OFF,ON Firewall Digi TransPort User Guide...
  • Page 275 Packet replay ID window ovpn treplay 0 - 2147483647 Packet replay time window (seconds) ovpn pingint 0 - 2147483647 OpenVPN TX ping interval (seconds) ovpn pingto 0 - 2147483647 OpenVPN RX ping timeout (seconds) ovpn inciv OFF,ON Include IV Digi TransPort User Guide...
  • Page 276 OFF,ON Debug Supported Cipher and Digest values for OpenVPN Cipher values Digest values DES-EDE-CBC md2WithRSAEncryption AES128 ssl2-md5 DES-CBC sha1WithRSAEncryption AES-128-CBC ssl3-sha1 AES192 ssl3-md5 AES-192-CBC SHA1 DES-EDE3-CBC AES-256-CBC RSA-MD2 AES-256 md5WithRSAEncryption DES3 RSA-SHA1 RSA-SHA1-2 RSA-MD5 Digi TransPort User Guide...

  • Page 277: Ssl

    The secure socket layer (SSL) that provides a secure transport mechanism is supported by Digi’s TransPort routers. The configuration of the client-side and server are described in the following pages. SSL Clients parameters Some sites require client side authentication when connecting to them. The router’s SSL client handles the authentication for SSL connections using certificates signed by a Certificate Authority (CA).

  • Page 278: Ssl Server Parameters

    0 - 4 IPaddr Apply to Destination IP Address SSL Server parameters This page describes the parameters needed to configure the SSL server. Server Certificate Filename The file containing the server certificate is selected from this drop-down list. Digi TransPort User Guide...
  • Page 279 Up to 12 characters Server Certificate Filename (DOS 8.3 format) sslsvr keyfile Up to 12 characters Server Private Key Filename (DOS 8.3 format) sslsvr Blank, TLS1, SSL3, SSL Version SSL2 sslsvr cipherlist Colon-separated list Cipher List sslsvr debug OFF,ON Digi TransPort User Guide...

  • Page 280: Ssh Server

    SSH Server The secure shell (SSH) server allows remote peers to access the router over a secure TCP connection using a suitable SSH client. The SSH server provides a Telnet-like interface and secure file transfer capability. SSH uses a number of keys during a session. The host keys are used for authentication purposes. Keys unique to each SSH session are also generated and are used for encryption/authentication purposes.

  • Page 281: Ssh Server N

    SSH Server n Enable SSH Servers When checked, this checkbox enables the SSH servers on the router. SSH Server n The router supports eight individual SSH servers that are configured independently using the options described below. Enable SSH Server When checked, this checkbox enables the SSH server. Use TCP port p The value in this text box is the TCP port number (default 22) that the SSH server will use to listen for incoming connections.

  • Page 282: Ssh Client

    SSH Server n The values in these two text boxes are used to specify the host IP address and port number that the router will use to handle incoming requests for a command session from SSH clients. This is instead of the router’s normal command interpreter. For example, if the values are IP address 127.0.0.1, port 4000, the SSH client will make a direct connection to ASY 0 and the device attached to ASY 0 will receive and process the commands from the SSH client.
  • Page 283 SSH Server n SHA1-96 was the preferred method for authentication, this option would be given the value 1 and the other options given a value of 2 or greater. If all these parameters are set to the same value, the router automatically uses them in the following order: SHA1, SHA1-96, MD5, MD5- MAC MD5 The value in this text box is the preference level for MAC MD5.
  • Page 284 SSH Server n Entity Instance Parameter Values Equivalent Web Parameter 0 - 7 rekeybytes 0 - 2147483647 Rekey After n units of data have 0 = Do not rekey been transferred 0 - 7 enc3descbc 0 - 2147483647 3DES 0 = Disabled 0 - 7 encaes128c 0 - 2147483647...

  • Page 285: Ssh Client

    DEFLATE compression is also supported. If this is enabled and negotiated, SSH packets are first compressed before being encrypted and delivered to the remote unit via the TCP socket. Note The SSH server supports the SCP file copy protocol but does NOT support filename wildcards. Digi TransPort User Guide...

  • Page 286: Ssh Server N Parameters

    SSHv1 private key into one field, and a SSHv2 private key into the other. ‘_id rsa’ Filename #2 The value in this text field is the name of an SSH V1 or V2 host key. Use Deflate compression No/Yes, level n Digi TransPort User Guide...
  • Page 287 The value in this text box is the preference level for MAC SHA1-96. Enable Server Keepalives When checked, this checkbox enables server keepalives to use the same tcp connection for HTTP conversation instead of opening new one with each new request. Digi TransPort User Guide...
  • Page 288 0 - 2147483647 AES (256 bits) sshcli 0 - 7 macmd5 0 - 2147483647 MAC MD5 sshcli 0 - 7 macmd596 0 - 2147483647 MAC MD5-96 sshcli 0 - 7 macsha1 0 - 2147483647 MAC SHA1 Digi TransPort User Guide...

  • Page 289: Ssh Parameters

    Apply the configuration changes using the Apply button at the bottom of the page and when the “Configuration successfully applied” message appears, click on the highlighted link to save the configuration. Configuration using the command line interface Generate the SSH V1 private key using the genkey command as follows: Digi TransPort User Guide...

  • Page 290: Ssh Authentication With A Public/Private Keypair

    This process will involve the use of PuTTYgen to create public and private keys. Please see the Technical Notes section on the Digi website for full details on how to perform this procedure. Digi TransPort User Guide...

  • Page 291: Ftp Relay

    The value in this text box specifies the password to be used to log in to the host. Confirm Server Password The password should be retyped into this text box in order to confirm that it has been entered correctly, given that it is not echoed in clear text. Remote directory Digi TransPort User Guide...
  • Page 292 (refer to Email templates elsewhere in this manual). The value in this text box is used to specify the email address of the recipient of email messages generated by the FTP Relay Agent. Digi TransPort User Guide...

  • Page 293: Advanced Ftp Relay Parameters

    Up to 40 characters From frelay smtp_subjec Up to 40 characters Subject Advanced FTP Relay parameters Tx Buffer Size n bytes The value in this text box specifies the size of the Tx socket buffer. Digi TransPort User Guide...
  • Page 294 Advanced FTP Relay parameters Related CLI commands Entity Instance Parameter Values Equivalent Web Parameter ftpcli txbuf 0 - 2147483647 Tx Buffer Size Digi TransPort User Guide...

  • Page 295: Ip Passthrough

    IP passthrough feature. An excluded protocol will terminate at the router instead of being forwarded to the local PC. HTTP When checked, this checkbox excludes HTTP from passthrough. HTTPS When checked, this checkbox excludes HTTPS from passthrough. Digi TransPort User Guide...
  • Page 296 0 - 2147483647 Ethernet interface passthru pppadd 0 - 2147483647 PPP interface passthru mode Mode 0 = Normal 1 = 32-bit mask passthru http OFF,ON HTTP passthru https OFF,ON HTTPS passthru telnet OFF,ON Telnet Digi TransPort User Guide...
  • Page 297 Telnet over SSL passthru OFF,ON SSH/SFTP passthru snmp OFF,ON SNMP passthru idigi OFF,ON iDigi passthru OFF,ON passthru ping OFF,ON Ping passthru ports Comma- Other Ports separated list of ports passthru protos Comma- Other Protocols separated list of protocols Digi TransPort User Guide...

  • Page 298: Udp Echo

    The options available are PPP and Ethernet. The interface instance is specified in the adjacent text box. Only send packet when the interface is “In Service” Digi TransPort User Guide...
  • Page 299 PPP,ETH Interface x,y udpecho ifadd Interface Valid interface instance 4294967296 udpecho onlyis OFF,ON Only send packet when the interface is “In Service” udpecho nodata OFF,ON Do not send any data with the UDP packet Digi TransPort User Guide...
  • Page 300 QoS, refer to RFC2472 (Definition of the Differentiated Services Field). In Digi TransPort routers, the classification of incoming IP packets for the purposes of QoS takes place within the firewall. The firewall allows the system administrator to assign a DSCP code to a packet with any combination of source/destination IP address/port and protocol.

  • Page 301: Dscp Mappings Parameters

    To change the value of a parameter, use the following command: dscp <code> q <value> Where is a valid DSCP code and is from 0 to 9. <code> <value> To set the default mapping value, enter the command: dscp 64 q <value> Digi TransPort User Guide...

  • Page 302: Queue Profiles Parameters

    When the queue length is between the WRED minimum and maximum values, the % probability of a packet being dropped increases linearly up to the WRED maximum drop probability. Digi TransPort User Guide...
  • Page 303 <instance> To change the value of a parameter, use the following command: qprof <instance> <parameter> <value> To set the maximum throughput for queue profile 5 to 10kbps, enter the following command: qprof 5 maxkbps 10 Digi TransPort User Guide...

  • Page 304: Timebands

    Timebands Digi TransPort routers support “Time Bands” which are used to determine periods of time during which PPP interfaces allowed or prevented from activating. For example, a router in an office could be configured so that the ADSL PPP interface is only raised on weekdays. Time Bands may only be applied to PPP instances.

  • Page 305: Timeband Parameters

    To specify multiple days, separate the days with a comma, such as Mon,Wed,Fri. The abbreviation MF is used to specify Monday to Friday. Example commands. To allow PPP routing only on weekdays between 9:00 a.m. and 5:30 p.m. enter the following commands: Digi TransPort User Guide...
  • Page 306 Timeband parameters tband 0 days 0 mf tband 0 time0 9 tband 0 state0 on tband 0 days1 mf tband 0 time1 5:30 tband 0 state1 off Digi TransPort User Guide...

  • Page 307: Advanced Network Settings

    Auto, which allows the server to select the version. • TLSv1 only • SSLv2 only • SSLv3 only Some servers are configured to work with a particular version, and unless this version is specifically requested, the connection attempt will fail. Digi TransPort User Guide...

  • Page 308: Socket Settings

    The value in this text box specifies the maximum period of inactivity (in seconds) that may occur before and open TCP/IP socket is closed. The default value is 300 seconds (five minutes) and should not normally require altering. TCP socket keep-alive s seconds Digi TransPort User Guide...

  • Page 309: Xot Settings

    Some stacks delay sending TCP ACKs in order that they can be incorporated with data sent by the application. Do not deactivate outgoing XOT sockets when interface disconnects Digi TransPort User Guide...

  • Page 310: Backup Ip Addresses

    IP address. When unchecked, the socket will report the failure to connect back to the calling application immediately after the connection to the primary IP address has failed. The router will not try Digi TransPort User Guide...

  • Page 311: Chaining Ip Addresses

    Valid IP address Backup IP Address a.b.c.d a.b.c.d ipbu retrysec 0 - 2147483648 Retry Time s (seconds) ipbu donext OFF,ON Try Next sarsys dest Valid IP address Send “Backup IP” system messages a.b.c.d to IP address a.b.c.d Digi TransPort User Guide...

  • Page 312: Legacy Protocols

    Digi TransPort router instead. Thus old equipment can be connected to modern networks such as HSUPA.

  • Page 313: Snaip Parameters

    This parameter sets the appropriate protocol for the interface. Choose LAPB, SNA for SDLC or RAW for raw mode in which all L2 frames are transmitted and received. You can also choose RAW_NOHDR for raw mode with no DLSw headers. Allow this unit to answer calls Digi TransPort User Guide...

  • Page 314: Sna Parameters

    This parameter lists the station addresses on the data link as a comma-separated list of hex values (such as “c1,d1” for station addresses 0xc1 & 0xd1). This parameter is only applicable in SNA mode. SAPs This parameter contains a list of SAP values which correspond to the station addresses. Digi TransPort User Guide...

  • Page 315: Ssp (Wan) Parameters

    This parameter specifies the time in milliseconds between receiving a frame from an outstation and transmission back to the same station. If this parameter is set to “0” this is disabled and the Digi can respond immediately. The minimum non-zero value is 10ms. Mode This parameter is used to define the mode in balanced links.
  • Page 316 This controls the UDP transmission of DLSw SSP packets. Reception is always enabled for version 2 support. If set to “OFF”, the state transitions occur just like DLSw version 1 but the Digi will indicate it is version 2 capable. Use 1 socket When this parameter is set to “On”...
  • Page 317 1 = enabled, 0 = Assume station exists (Do not disabled send TEST frames) snaip dcd_toggle 1 = enabled, 0 = Toggle DCD output each time disabled the DLSw protocol enters the DISCONNECTED state Digi TransPort User Guide...
  • Page 318 0 - 65535 Use Port if this unit starts the DLSw protocol snaip srcipent auto, eth, ppp Use interface for source IP address snaip srcipadd 0 - 255 Use interface for source IP address Digi TransPort User Guide...

  • Page 319: Tpad Parameters

    SNAIP instance gets to use the SYNC port. TPAD parameters TPAD is a simplified version of the X.25 PAD specification that is commonly used for carrying out credit-card clearance transactions. Digi units support the use of TPAD over: • ISDN B and D-channels •...
  • Page 320 Automatic back-up between any two of these “layer 2 interfaces” or “transport protocols” is supported. For further information on using TPAD please refer to Digi technical support and ask for a copy of “TG2 - Introduction to TPAD and X.25”.
  • Page 321 LAPD connections are not repeatedly deactivated. On the backup interface Deactivate LAPB session x seconds after TPAD X.25 call has been cleared. This is equivalent to the deactivation timer above but applies only to backup calls. Digi TransPort User Guide...
  • Page 322 The LCN parameter is used to set the first LCN that will be used for the backup interface. Use NUI This specifies the X.25 Network User Identifier to be used for outgoing X.25 calls if no NUI is specified in the call string for the backup interface. Digi TransPort User Guide...
  • Page 323 X.25 host contains the string specified in this parameter. It is possible to configure the unit to generate an email alert message when this event occurs. See “LOGCODES.TXT” for a complete list of events. XoT/TCP settings Connect to remote IP address Digi TransPort User Guide...
  • Page 324 TCP. Port When making a TCP socket connection (such as the transport protocol has been set to TCP not XoT), this parameter must be used to specify the TCP port number to use. IP length header When making a TCP socket connection (such as the transport protocol has been set to TCP), setting this parameter to “On”...
  • Page 325 This specifies the time in seconds before the Terminal ID is considered inactive. Local authorisations may be configured to occur on active TIDs (terminal Ids), so this parameter defines how long a time (without transactions) must pass for a TID to change from active to inactive. Digi TransPort User Guide...
  • Page 326 “Yes”, then the next time the unit is rebooted it will operate in direct mode. For Direct Mode to work you must set up the appropriate addressing information (such as Transport protocol, NUA, NUI, IP address etc). If this parameter is not enabled the unit will still try to use direct mode if it detects that it is required (due to the absence of call control information).
  • Page 327 When this parameter is enabled the unit will always use even parity when relaying data from a remote host to a locally connected TPAD terminal. To allow data to pass through without the parity being changed disable this setting. Strip parity when sending data to the host Digi TransPort User Guide...
  • Page 328 (X25 or TCP socket) is cleared. The number “1” is a special value. If set to the number “1” the call will be cleared immediately (not after 1 second). If the terminal dial command specifies V.120 use PANS context x Digi TransPort User Guide...
  • Page 329 Use NUI tpad 1 - 4095 tpad lcnup 1 = up, 0 = down LCN direction tpad baknua text (Backup) Use NUA tpad baknui numeric text (Backup) Use NUI tpad baklcn 1 - 4095 (Backup) LCN Digi TransPort User Guide...
  • Page 330 The polling character set is tpad domsgnb 1 = enabled, 0 = disabled Enable Message Numbering tpad disdir 1 = enabled, 0 = disabled Disable Direct Mode tpad bdir 1 = enabled, 0 = disabled Boot to Direct Mode Digi TransPort User Guide...
  • Page 331 1 = enabled, 0 = disabled Acknowledge TPAD data packets tpad stx_2_soh 1 = enabled, 0 = disabled Convert leading STX character to SOH tpad eot_only 1 = enabled, 0 = disabled Terminate TPAD call is EOT only Digi TransPort User Guide...

  • Page 332: Parameters

    CALL packet are used in the X25 CALL CNF (call confirm packet) that the unit sends to answer the call. This setting can be enabled on a per “interface type” basis, (LAPD, LAPB or XoT) Reset XOT PVC if the router is the Initiator Digi TransPort User Guide...

  • Page 333: Lapb Parameters

    (HDLC) protocol. It is a bit-oriented, synchronous, link-layer protocol that provides data framing, flow control and error detection and correction. LAPB is the link layer used by X.25 applications. On Digi TransPort routers LAPB can be used over ISDN or over a synchronous serial port. Digi TransPort User Guide...
  • Page 334 T1 Timer x milliseconds This is a standard LAPB timer. The default value is 1000 milliseconds (1 second) and under normal circumstances, it should not be necessary to change it. Digi TransPort User Guide...
  • Page 335 This parameter sets the length of time (in milliseconds), that the LAPB instance will wait from an ISDN B-channel becoming active before attempting to establish a LAPB connection, such as the length of time for which the LAPB instance stays passive. The default is 0 as most ISDN Digi TransPort User Guide...
  • Page 336 The data link channel number to use for this virtual ASY port. ASY port This is the physical ASY port over which to multiplex. Virtual ASY port This is the virtual ASY port number that this LAPB instance will multiplex over the physical port. Digi TransPort User Guide...
  • Page 337 Only accept calls with sub-address ending with lapb ptime 0 - 60000 Wait milliseconds before attempting to establish the LAPB link after B- channel becoming active lapb text Only answer calls from numbers whose trailing digits match Digi TransPort User Guide...

  • Page 338: Nui Mappings Parameters

    Equivalent Web Parameter nuimap text Maps to NUA nuimap text NUA / NUI Interface Mappings parameters For PAD and TPAD instances, this table can be used to override the following: • Interface • Backup interface • IP address Digi TransPort User Guide...
  • Page 339 This table is duplicated in the Configuration - Network > Protocol Switch > NUA to Interface Mappings section as it can also be used by the Protocol Switch. Not all of the fields are visible in the Protocol Switch section as they do not all apply to the Protocol Switch. Digi TransPort User Guide...

  • Page 340: Calls Macros Parameters

    This page allows you to define up to 64 X.25 CALL “macros” that can be used to initiate ISDN and/ or X.25 layer 3 calls. These simple English-like names are mapped to full command strings. For example, the call string: Digi TransPort User Guide...

  • Page 341: Ip To X.25 Calls Parameters

    It is included at this point in the web user interface as a convenience in case the table is being used in conjunction with PAD and not the protocol switch. Digi TransPort User Guide...
  • Page 342 Then when the X.25 call parameters have been identified the X.25 call is made and if successful then data is then switched between the X.25 call and the IP socket. The protocol will select whether incoming or outgoing support is required. Digi TransPort User Guide...

  • Page 343: Pads Parameter

    Collectively this set of values is known as a PAD profile. Your unit contains four pre-defined standard PAD profiles numbered 50, 51, 90 and 91. You may also create up to four custom PAD profiles numbered 1 to 4 for each PAD instance. Digi TransPort User Guide...
  • Page 344 Use PAD over interface This section is used to select whether the PAD instance will use ISDN B-channel X.25, ISDN D- channel X.25, TCP, UDP, VXN, SSL TCP or SSL XoT as the transport protocol. For ISDN D- Digi TransPort User Guide...
  • Page 345 X.25 call request. This can be extremely useful in backup scenarios. Consider the following example; the unit is configured to do online authorisations via the ISDN D channel and to fall back to B-channel (if the D-channel host did not respond for Digi TransPort User Guide...

  • Page 346: Pad Settings

    “8583 Ascii 4 byte”, the IP length header will conform to the ISO 8583 format. PAD Settings PAD prompt This parameter allows you to redefine the standard “PAD>” prompt. To change the prompt enter a new string of up to 15 characters into the text box. PAD mode Digi TransPort User Guide...
  • Page 347 Create an event when there has been no activity on the PAD for seconds This specifies the time in seconds in which if there is no activity on the PAD an event in the event log will be posted. This can be used to trigger email exceptions. Digi TransPort User Guide...
  • Page 348 IP length header Ascii 4 byte prompt text PAD prompt padmode 0 = Normal, 1 = Prompt PAD mode Always On profile 1-4, 50, 51,90,91 Use PAD Profile strip_tspaces 1 = enabled, 0 = Strip Trailing Spaces disabled Digi TransPort User Guide...
  • Page 349 The stoppads and gopads commands can have the PAD number specified in the syntax to stop and start individual PAD instances. For example: To stop PAD 1 from processing PAD commands: stoppads 1 and to re-enable PAD 1: gopads 1 Digi TransPort User Guide...
  • Page 350 PAD commands as required. To resume the interrupted call, use the CALL command without a parameter. The default PAD recall character is [Ctrl-P]. This may be changed to any ASCII value in the range 32-125 or disabled by setting it to 0. Digi TransPort User Guide...
  • Page 351 This parameter defines a time-out period after which data received from the DTE is assembled into a packet and forwarded to the network. If the forwarding time-out is disabled, one or more characters should be selected as “data forwarding characters” using parameter 3. Digi TransPort User Guide...
  • Page 352 For example, when parameter 7 is set to 21 (16 + 4 + 1), an X.25 interrupt packet is sent followed by an X.29 indication of break and then parameter 8 is set to 1. Digi TransPort User Guide...
  • Page 353 11 Port Speed This is a “read only” parameter, set automatically by the PAD and accessed by the remote system. Option Description 19,200 bps 9,600 bps 2,400 bps 2,400 bps 12 Flow Control of PAD (by DTE) Digi TransPort User Guide...
  • Page 354 This parameter defines the edit mode line buffer delete character (ASCII 0-127). The default is CTRL-X (ASCII 24). 18 Line Redisplay Character Specifies the character that re-displays the current input field when in editing mode (ASCII 0- 127). The default is CTRL-R (ASCII 18). Digi TransPort User Guide...
  • Page 355 In other words, it defines the page length for paged mode output. A page wait condition is cleared when the PAD receives a character from the terminal. Page wait feature disabled Number of line feeds sent before halting output Digi TransPort User Guide...

  • Page 356: Pvcs Parameters

    Serial 1. The initiator and responder strings are used to identify the circuit when PVCs are being set up. They must match the names in the remote unit that terminates the XOT PVC connection. If the unit terminating the PVC XOT connection is not another Digi unit then you Digi TransPort User Guide...

  • Page 357: Modbus Gateway Parameters

    Use the source IP address from interface srcipadd 0 - 255 Use the source IP address from interface iniface text Initiator interface respiface text Responder interface MODBUS Gateway parameters Digi TransPort routers support conversion from MODBUS serial to MODBUS TCP. Digi TransPort User Guide...
  • Page 358 Digi TransPort supports being a MODBUS server only. Clients (such as remote PCs) can send overlapping requests and the Digi TransPort will create a queue of info requests and deal with them appropriately sending them out over the serial port and relaying the responses back.
  • Page 359 IP Mode (row 1) 1 = UDP modbus rawmode0 1 = enabled, 0 = disabled Raw Mode (row 1) modbus Ipport1 0 - 65535 IP Port (row 2) modbus nbsocks1 0 - “currently available” Number of sockets (row 2) Digi TransPort User Guide...

  • Page 360: Modbus Slaves Parameters

    This is the IP port number. The default port is 502. IP Mode Select the IP mode using this drop down list. The default mode is TCP. Click on the add button to add the slave. Digi TransPort User Guide...

  • Page 361: Protocol Switch

    Protocol Switch The Protocol Switch software is available on some of the Digi TransPort models. The Protocol Switch provides X.25 call switching between the various protocols and interfaces that may be available including: Interface / Protocol Description Off/None Data will not be switched from / backed-up to this protocol LAPD Data will be switched from / backed-up to LAPD using the X.25...
  • Page 362 LAPB 0 NUA parameter and if it does, selects LAPB 0 as the outgoing interface. If the Called NUA field does not match LAPB 0 NUA, it checks for a match with LAPB 1 NUA and if there is a match, sets the outgoing interface to LAPB 1. Digi TransPort User Guide...

  • Page 363: Protocol Switch

    TE NUA (LAPB 1) value. The Configuration – Network > Protocol Switch menu has the following sub-menu options: • CUD Mappings • IP Sockets to Protocol Switch • NUA to Interface Mappings • NUA Mappings Digi TransPort User Guide...

  • Page 364: Digi Transport Protocol Switch Parameters

    Digi TransPort Protocol Switch parameters Digi TransPort Protocol Switch parameters TCP or XoT Digi TransPort User Guide...
  • Page 365 Digi TransPort Protocol Switch parameters This parameter controls the switching of incoming X.25 calls received via TCP or XOT. Select the interface to which data should be switched from the drop down list, or select “Off” and the protocol switch will not respond to any incoming XOT or TCP connections.
  • Page 366 Digi TransPort Protocol Switch parameters 56565 and the call prefix is 0242 then the call placed on the LAPD interface is to NUA 024256565. Also, for calls in the reverse direction, if the prefix in the calling NUA matches this parameter then it is removed from the calling NUA field.
  • Page 367 Digi TransPort Protocol Switch parameters LAPB 1 Default Packet Size: 128 256 512 1024 This is the default packet size for calls being switched onto LAPB 1. The default packet size is 128, other possible values are 256, 512 or 1024 bytes.
  • Page 368 Digi TransPort Protocol Switch parameters X.25 Parameters Don't switch facilities If this parameter is set to “Off”, the packet size and window size are only switched if they need to, such as they specify a value different from what is currently being negotiated. If this parameter is set to “On”, the facilities shall not be switched.
  • Page 369 Digi TransPort Protocol Switch parameters Entity Instance Parameter Values Equivalent Web Parameter X25sw swfrlapb2 0-10,13-15 Switch from LAPB 2 to (see below) X25sw swfrlapb2pvc 0-10,12, 14, 15 Switch from LAPB 2 PVC to (see below) X25sw swfrlapd 0, 2-10,12-15 Switch from LAPD to...
  • Page 370 Digi TransPort Protocol Switch parameters Entity Instance Parameter Values Equivalent Web Parameter X25sw lapb1ppar 7,8,9,10 LAPB 1 Default Packet Size 7=128 8=256 9=512 10=1024 X25sw lapb1wpar LAPB 1 Default Window Size X25sw lapb2ppar 7,8,9,10 LAPB 2 Default Packet Size 7=128...

  • Page 371: Cud Mappings Parameters

    The “interface” field defines which output interfaces this mapping applies to. Wildcard characters are allowed, and In each case the interface type to which the mapping applies can be selected from “ANY”, “LAPD”, “LAPB0”, “LAPB1” “LAPB2” or “XOT”. Digi TransPort User Guide...

  • Page 372: Ip Sockets To Protocol Switch

    PAD without using the protocol switch. It is included at this point in the web user interface as a convenience in case the table is being used in conjunction with PAD and not the protocol switch. Digi TransPort User Guide...
  • Page 373 Then when the X.25 call parameters have been identified the X.25 call is made and if successful then data is then switched between the X.25 call and the IP socket. The protocol will select whether incoming or outgoing support is required. IP length header Digi TransPort User Guide...
  • Page 374 1 = enabled, 0 = disabled Confirm Mode ipx25 rfc1086_mode 1 = enabled, 0 = disabled RFC 1086 Mode ipx25 iphdr 0=Off IP length header 1=On 2=8583 Ascii 4 byte Digi TransPort User Guide...

  • Page 375: Nua To Interface Mappings

    Equivalent Web Parameter nuaip 0-255 0-65536 nuaip 0-255 ipaddr IP address IP Address nuaip 0-255 ip_port 0-65536 IP Port nuaip 0-255 swto 0-10, 12-15 Interface (see table below) nuaip 0-255 buswto 0-10, 12-15 Backup Interface (see table below) Digi TransPort User Guide...

  • Page 376: Nua Mappings Parameters

    Called/Calling set to either “Both” or “Called”, then this will match, and the entire called NUA will be replaced with the corresponding NUA Out entry. In each case the interface type to which the mapping applies can be selected from “ANY”, “LAPD”, “LAPB0”, “LAPB1” “LAPB2” or “XOT”. Digi TransPort User Guide...
  • Page 377 X25map 0-19 nuafrom 0-65536 NUA In X25map 0-19 nuato 0-65536 NUA Out X25map 0-19 interface 0,1,2,3,4,12 Interface 0=Any 1=LAPD 2=LAPB 0 3=LAPB 1 4=XOT 12=LAPB 2 X25map 0-19 ca_or_ci 0,1,2 Called / Calling 0=Both 1=Called 2=Calling Digi TransPort User Guide...
  • Page 378 NUA Mappings parameters Digi TransPort User Guide...

  • Page 379: Event Settings Parameters

    Alarms You can configure the Alarm parameters of your router with Digi TransPort Web Interface. The Configuration -Alarms page has the following menu options: • SMTP AccountEvent Logcodes parametersSMTP Account parameters • Event Logcodes • SMTP AccountEvent Logcodes parametersSMTP Account parameters Event Settings parameters The router maintains a log of events in the “LOGCODES.TXT”...
  • Page 380 Comma separated list of Do not log the following event numbers events event action_dly Number of seconds (such After power up, wait as 60) seconds before sending Email, SNMP traps, SMS or Syslog messages event incevnums Include event number Digi TransPort User Guide...

  • Page 381: Email Notification Parameters

    A new template having the name “EVENT.EML” will take precedence over the predefined “EVENT.EML” template but it is recommended that a new name is used, such as “event1.eml”. Email To This text field is the standard email address format for the intended recipient of the alert. Digi TransPort User Guide...

  • Page 382: Snmp Traps Parameters

    / low value (1, 2 or 3 for example), such as a value that results in a large number of SNMP trap messages being generated. n SNMP traps have been sent today This is a status message, indicating how many SNMP trap messages have been sent during the last 24 hour period. Digi TransPort User Guide...

  • Page 383: Sms Messages Parameters

    This parameter limits the number of SMS alert messages sent by the router in any one day. SMS messages have been sent today This is a status message, indicating how many SMS alert messages have been sent during the last 24-hour period. Digi TransPort User Guide...

  • Page 384: Local Logging Parameters

    This parameter determines the drive letter where the USB flash drive is located. This is designated “u” for a USB drive. Log filename This specifies the name of the file for the secondary event log. Log size Digi TransPort User Guide...

  • Page 385: Syslog Messages Parameters

    6, only events with a priority of 6 or lower (7,8 or 9) will trigger an automated syslog message. To disable syslog messages, set this value to 0. Send a maximum of n Syslog messages per day Digi TransPort User Guide...

  • Page 386: Syslog Server N Parameters

    This parameter sets the port to use. Note The following three items (Mode, TCP timeout and Route) only appear on routers that have the TCP logging software option enabled. This is not a commonly used option. Mode Digi TransPort User Guide...
  • Page 387 The route is then determined by that interface. Priority The checkboxes listed in this section select the event priorities that should cause the event to be logged. Facility The checkboxes listed in this section select which of the router facilities should be logged. Digi TransPort User Guide...

  • Page 388: Event Logcodes Parameters

    Clicking on an item shown in bright blue (an HTML link) causes a configuration page associated with that item to be opened. The newly-opened page allows that item to be configured. The configuration options shown on that page are described below. Digi TransPort User Guide...
  • Page 389 This is just a fixed list of values that may be used to conveniently refer to the associated list of files to attach to an email. Files This text entry box allows the user to type in a comma-separated list of names for the files that should be attached to an email. Configuring Events Digi TransPort User Guide...
  • Page 390 This drop-down selection box contains a list of the system entities. Selecting this radio button causes all of the system entities. Instance Selecting this radio button enable a text entry box that allows the user to enter the instance of the selected entity. Digi TransPort User Guide...
  • Page 391 This text entry box allows the user to specify which files to attach to the email. The ID refers to the table of files. Syslog Priority This drop-down selection box contains the following options: • Emergency • Alert • Critical • Error • Warning • Info • Debug Digi TransPort User Guide...

  • Page 392: Smtp Account Parameters

    In order for the router to successfully send emails, an email account (SMTP) must be available. This section describes the configuration of the router in order to use the email account that has been set up for it. Digi TransPort User Guide...
  • Page 393 IP address. These are selected from the drop-down selection box and are None, PPP and Ethernet. Resend the email after seconds if the first attempt fails Digi TransPort User Guide...
  • Page 394 Blank,PPP,ETH Route using Interface x,y x = Interface type smtp ll_add 0 - 255 Route using Interface y = interface number smtp retry_dly 0 - 255 Resend the email after seconds if the first attempt fails Digi TransPort User Guide...

  • Page 395: Device Identity Parameters

    • Power ControlDate and Time parameters Device Identity parameters You can configure the identity of your router with the Digi TransPort web interface. To configure your router’s device identity, set the following values Description This free-form text input field is for entering a description of the router that can be used to uniquely identify it.
  • Page 396 This parameter assigns a hostname to the local IP address of the router. Secondary Hostname This parameter allows a second hostname to be assigned to a router. This is associated with the secondary IP address. Note Character limitations of the Description and Hostname fields should be 64 characters. Digi TransPort User Guide...

  • Page 397: Date And Time Parameters

    The router uses the 24-hour clock. Current system time The current system time appears at the top of this web page. Manually set the time h hours, m minutes s seconds, M month D day Y year Digi TransPort User Guide...

  • Page 398: Autoset Date And Time Parameters

    This is the system default and this radio button will appear filled in when the unit is new unless a different default configuration has been supplied. Click this radio button to close the SNTP or NTP configuration pages. Auto-set the system time Digi TransPort User Guide...

  • Page 399: Start

    (UTC). Use this drop-down selection box to select the desired day on which to switch back to GMT. Hour Use this drop-down selection box to select the desired hour at which to switch back to GMT. Digi TransPort User Guide...

  • Page 400: Use Ntp For Greater Accuracy

    The drift compensation value will be stored in NVRAM and written to the config.da0 file, if the router looses power or is rebooted it will not need to re-calculate the accuracy of the NTP servers again. The compensation value is constantly monitored to ensure it remains correct. Digi TransPort User Guide...
  • Page 401 These two parameters define the minimum and maximum intervals between poll broadcasts. The values are time in seconds represented as a power of 2. This means that a value of 4 means that the minimum poll interval is 2^4 = 16 seconds. Startup burst Interval s seconds Digi TransPort User Guide...
  • Page 402 13 = 8192 14 = 16384 maxpoll 3 – 14 Poll Interval s1, See ‘minpoll’ for values burstint 0 – 255 Startup burst Interval seconds server2 Valid IP address or NTP Server hostname, such as ntp2@timeserver.org Digi TransPort User Guide...
  • Page 403 To check the status of the NTP client, the following commands can be used: To view NTP system status information ntpstat sys To view NTP peer information ntpstat peers To reset system information and allow NTP to recalculate the drift compensation Digi TransPort User Guide...

  • Page 404: General Parameters

    Equivalent Web Parameter autocmd Valid CLI command Autorun Commands Web / Command Line Interface The router may be configured using several different methods. This section describes how to configure the web GUI and CLI (Command Line Interface) options. Digi TransPort User Guide...
  • Page 405 As above, the file may contain site-specific instructions to be carried out once the user has logged in. Allow CLI access from X.25 address Digi TransPort User Guide...
  • Page 406 4 = None 8 = Read only Miscellaneous This section is for those configuration items that do not fit neatly into any other section. Note Depending on the router model, some of these options may not be available. Digi TransPort User Guide...
  • Page 407 On modules fitted with W-WAN, this LED has additional functionality, it can also be used to display the W-WAN signal strength. Related CLI commands Entity Instance Parameter Values Equivalent Web Parameter config powerup Use Config when the router powers up Digi TransPort User Guide...
  • Page 408 W-WAN LED to display W-WAN, ISDN/PSTN 0 = W-WAN 1 = ISDN/PSTN asyled_mode Serial LED to display Connection, 0 = Connection 1 = DTR status 2 = W-WAN signal strength Digi TransPort User Guide...

  • Page 409: Remote Management

    The service is hosted on the device cloud servers and these provide a web-based interface that shows the configuration of selected routers allows the configuration to be changed and also facilitates remote firmware upgrade. The device cloud servers also provide a data storage facility. Digi TransPort User Guide...
  • Page 410 • Send an SMS message to the router in order to have the router dynamically establish its EDP connection with Device Cloud • Send user defined data to and from Device Cloud and Device Cloud-registered router Digi TransPort User Guide...
  • Page 411 For more information on SMS feature, see the Device Cloud User Guide. You can configure the Device Cloud SMS Settings parameters using the Digi TransPort web Interface. To Configure the Device Cloud SMS Settings, set the following value: Enable Device Cloud SMS...
  • Page 412 The WAN settings and Ethernet settings described below are identical, but it should be noted in the command line descriptions that the default keepalive intervals are different. This is due to the different characteristics of PPP and Ethernet links. Digi TransPort User Guide...
  • Page 413 This is the interval between transmission of keep-alive packets. Assume connection is lost after n timeouts Occasional packet loss is to be expected, this parameter will allow for a specified number of lost keep-alive packets before the connection is deemed to have failed. Digi TransPort User Guide...
  • Page 414 There is an additional cloud CLI command . You can this command with no extra syntax to return the status of the socket connections, such as whether there is a live connection to the device cloud server or not. Digi TransPort User Guide...

  • Page 415: Snmp Parameters

    The Simple Network Management Protocol (SNMP) is a well established way of managing clusters of remote routers – the TransPort routers support versions 1, 2c and 3 of this protocol. The standard Management Information Bases (MIBs) that are supported by the router are detailed below.
  • Page 416 24 characters can be omitted. A remote engine ID is required when a SNMP v3 Inform is configured. The remote engine ID is used to compute the security digest for authenticating and encrypting packets sent to a user on the remote host. Digi TransPort User Guide...

  • Page 417: Snmp User Parameters

    SNMP User parameters This page controls the configuration of the SNMP users. SNMPv1 / SNMPv2c Community The text in this text entry box specifies the community string for Version 1 and Version 2c SNMP packets. Confirm Community Digi TransPort User Guide...
  • Page 418 Encryption Password SNMP Filter parameters SNMP filters allow the system administrator to control access to the router MIBs via SNMP. This functionality is controlled by a table on the web configuration page. This table has three columns, Digi TransPort User Guide...
  • Page 419 SNMP traps are events that are generated when the specified condition is met. The web page and CLI configuration parameters are described here. The TansPort routers support two trap servers. Generate Enterprise traps When this check box is ticked, the router will generate product-specific traps. Generate Generic traps Digi TransPort User Guide...

  • Page 420: Generate Vrrp Traps

    0 = Off 1 = On SNMP Trap Server parameters Digi TransPort routers support two SNMP trap servers. The following options and description explain how to configure a trap server. Trap Server IP Address a.b.c.d This is the IP address of the server running the SNMP software and determines the destination for the trap notifications.

  • Page 421: Security

    SNMP users (Configuration – Remote Management > SNMP > Users). User Security Level Select the desired security level from this drop-down selection box. The choices are these: • No Authentication, No Privacy • Authentication, No Privacy • Authentication, Privacy Digi TransPort User Guide...

  • Page 422: Security

    String Trap Server Engine ID snmptrap securityname String SNMP User snmptrap securitylevel noauthnopriv User Security Level authnopriv noauthnopriv = No authpriv Authentication, No Privicy authnopriv = Auth, No Priv authpriv = Auth & Priv Digi TransPort User Guide...

  • Page 423: System

    Allow autoexec.bat files to run from Mass Storage Devices This parameter allows you to enable/ disable running the autoexec.bat files from the mass storage devices. Enable "Factory Default" reset button Use this parameter to enable/disable execution of a complete hardware reset. Digi TransPort User Guide...

  • Page 424: Users

    Allows user to reconfigure the general configuration of the router High and to change some settings such as the time and date. Not allowed to change user settings. Allows user to access medium level configuration commands Medium which allow some configuration of the router. Digi TransPort User Guide...

  • Page 425: Advanced

    Alternate Key to the usual location (Password) and remove the Alternate Key (newpwd) from the configuration. Should a negotiation take place during the period where the Alternate Key has been entered into the Digi TransPort User Guide...
  • Page 426 Alternate IKE Key (up to 14 chars) user fieldip IP Address Remote Peer IP address user ipaddr IP Address Remote Peer IP subnet user mask IP Mask Remote Peer IP subnet mask user keyfile Filename Public Key file Digi TransPort User Guide...

  • Page 427: Firewall Parameters

    PC and then loading the resulting file onto the router using FTP or XMODEM. Digi Routers are shipped with a default fw.txt file that can be used as the starting point for a custom firewall configuration.

  • Page 428: Stateful Inspection Settings Parameters

    TCP connection must be established. If a TCP connection is not established within this period, the associated stateful rule will be removed. TCP Open s seconds Digi TransPort User Guide...
  • Page 429 Count missed UDP echo packets as dropped When checked, this checkbox will cause the firewall to increment the dropped packet count for each failed echo request in the situation where UDP echo is active on an interface that becomes disconnected. Digi TransPort User Guide...

  • Page 430: Radius Parameters

    “post-banner” message. The router will then display a “Continue Y/N?” prompt to the user. If “N” is selected, the remote session will be terminated. This applies to remote command sessions and SSH sessions only. Digi TransPort User Guide...

  • Page 431: Radius Client N Parameters

    The value in this text box is an identifier which is passed to the secondary authorisation NAS and is used to identify the RADIUS client. The appropriate value will be supplied by the secondary authorisation NAS administrator. Digi TransPort User Guide...
  • Page 432 NAS ID to authenticate RADIUS packets. Confirm Password Type the above password into this text box to enable the router to check that they are identical. Digi TransPort User Guide...
  • Page 433 If required an alternative source interface and instance may be selected here. Select the required interface from the drop-down list and enter the instance of that interface into the adjacent text box. The available interface options are • Auto Digi TransPort User Guide...

  • Page 434: Tacacs+ Parameters

    TACACS+ parameters The Digi TransPort range of routers supports Terminal Access Controller Access-Control System Plus (TACACS+) for controlling access to the router. TACACS+ provides authentication, authorization and accounting (AAA) services. TACACS+ can be used to control the following access methods: Secured asynchronous serial (ASY) ports, Telnet, SSH, FTP, HTTP/HTTPS and SNMP.
  • Page 435 Hostname or IP address of Server The value in this text box is the IP address or hostname of the secondary (backup) TACACS+ server. This will be used if a socket to the primary server cannot be opened. Digi TransPort User Guide...
  • Page 436 Up to 20 characters Server Key tacplus localauth OFF,ON Enable local authentication if there is no response from the server(s) tacplus authent OFF,ON Enable TACACS+ Authentication tacplus author OFF,ON Enable TACACS+ Authorisation tacplus acct OFF,ON Enable TACACS+ Accounting Digi TransPort User Guide...

  • Page 437: Advanced

    “OK” or “ERROR” response (depending on settings below) unless the command is found in the Command Filters table. The command filter uses wild-character matching so that command filters such as “cmd*” are permitted which would allow all “cmd 0 ...” commands to be executed. Digi TransPort User Guide...

  • Page 438: Calling Numbers

    For more information on command filtering there is an application note “Command Line Response Manipulation” which is available on the Digi web site (www.digi.com). The table is generated by typing the desired command into the text box and clicking the “Add”...
  • Page 439 To set up an entry to reject a number, use the following commands: rejlst 0 num 1234567 rejlst 0 ans OFF rejlst 0 code 42 To set up an entry to answer a number, use the following commands: rejlst 1 num 1234567 rejlst 1 ans ON Digi TransPort User Guide...

  • Page 440: Gps Parameters

    Fix data (GGA) When the associated checkbox is checked the fix data (2D, 3D or no fix) will be output. Position (GLL) This checkbox, when checked, causes the Geographic position (Latitude/Longitude) sentence to be output. Active Satellites (GSA) Digi TransPort User Guide...
  • Page 441 Enter any text string that the user wishes to follow the NMEA data into this text entry box. IP Connection 2 Send GPS messages to IP address a.b.c.d This text entry box holds the IP address that the GPS data should be sent to. Port n Digi TransPort User Guide...
  • Page 442 1 = On gsv_on Satellites in view (GSV) 0 = Off 1 = On rmc_on Position and time (RMC) 0 = Off 1 = On vtg_on Course over Ground (VTG) 0 = Off 1 = On Digi TransPort User Guide...
  • Page 443 Instance Parameter Values Equivalent Web Parameter gga_int s seconds 0 – 255 gll_int s seconds 0 - 255 gsa_int s seconds 0 – 255 gsv_int s seconds 0 – 255 rmc_int s seconds 0 – 255 Digi TransPort User Guide...
  • Page 444 GPS support for the GOBI3000 module GOBI3000 module supports the usage the GPS functionality. The GPS string should be init configured with $GPS_START gps 0 init_str $GPS_START Also set the GPS parameter to 3. asy_add Digi TransPort User Guide...

  • Page 445: Basic Applications

    Basic applications ScriptBasic In order to allow end users to extend and enhance the functionality of the TransPort routers, scripting support is provided. ScriptBasic is a scripting language supported by Digi TransPort routers. This section describes how to run simple ScriptBasic scripts. The main configuration entity is a table containing a list of reference numbers and associated user parameters.
  • Page 446 To set User parameter 1 to IPv4 address 10.1.1.1, enter the command: basic 0 string1 10.1.1.1 To execute a script from the CLI, enter the command: bas <myscript.sb> To kill a running script from the CLI, enter the command: Basic 0 kill Digi TransPort User Guide...

  • Page 447: Python Applications

    Python applications Python Files Some of the Digi TransPort routers support the Python scripting language which gives users the facility to extend and enhance the basic functionality of the router. The routers contain a Python interpreter which may be invoked from the command line. This can be useful for developing scripts.
  • Page 448 Python scripts. • which displays the status of any Python files. pycfg files • which shows the memory useage for the router. pycfg mem • which shows the status of any scripts and change count. pycfg scripts Digi TransPort User Guide...

  • Page 449: Interfaces Management

    Interfaces management The Management-Network Status> Interfaces menu has the following sub-menu options: Ethernet (ETH n) parameters This page displays the current status and statistics of the selected Ethernet interface. IP Address Digi TransPort User Guide...
  • Page 450 The number of broadcast packets that have been sent on the Ethernet interface. Multicast Packets Received The number of multicast packets that have been received on the Ethernet interface. Multicast Packets Sent The number of multicast packets that have been sent on the Ethernet interface. Digi TransPort User Guide...
  • Page 451 The number of internal errors that have occurred when receiving an Ethernet packet. Tx MAC Errors The number of internal errors that have occurred when attempting to transmit an Ethernet packet. Other Errors The number of errors that have occurred which are not counted by the other statistics. Digi TransPort User Guide...

  • Page 452: Wi-Fi Parameters

    The number of receives errors have occurred on the Wi-Fi interface. Transmit Errors The number of transmit errors have occurred on the Wi-Fi interface. Received Packets Dropped The number of received packets have been dropped on the Wi-Fi interface. Digi TransPort User Guide...

  • Page 453: Wi-Fi Client Connections Table

    Access Point Connections Table This table gives information on the Wi-Fi Access Points that the router is connected to. Access Point The name and MAC address of the Wi-Fi Access Point that the router is connected to. Digi TransPort User Guide...

  • Page 454: Mobile

    Options Parameter Equivalent Web Parameter wificonn Displays the Wi-Fi connection table. wificonn cscan Performs wifi network scan wifistat Displays the Wi-Fi statistics. Mobile The Mobile status page displays the current mobile connection, network and module information. Digi TransPort User Guide...
  • Page 455 Registration Status The GSM registration status of the mobile module with respect to the GSM network. It may be one of the following • Not Registered, not searching • Not registered, searching • Registered, home network Digi TransPort User Guide...
  • Page 456 SIM PUK- SIM blocked (unblocking code required) • ERROR- SIM is not installed or is faulty Radio Technology The current network technology in use. It may be one of the following • • GPRS • EDGE • UMTS Digi TransPort User Guide...
  • Page 457 Network The name of the GSM network to which the mobile module is currently connected to or ERROR if no network is available. Preferred system The preferred technology. It can be one of following: • Auto Digi TransPort User Guide...
  • Page 458 The bootcode firmware running on the mobile module. Hardware version The hardware version of the mobile module. Registration State See Registration Status. Roaming status The current roaming status of the mobile module. Radio interfaces in use It can be one of the following Digi TransPort User Guide...

  • Page 459: Dsl

    Mobile Statistics (where n is the PPP interface being used by the mobile interface) at\mibs=ppp.n.st Displays the current interface statistics at\mibclr=ppp.n.s Clears the current interface statistics tats This page displays the current status and statistics of the DSL interface. Digi TransPort User Guide...
  • Page 460 The operational mode that the DSL modem is in when in the Up state. It is in the format of: <Mode> Annex <A | B | M> where the <Mode> can be one the following: • ANSI • ETSI • G.dmt • G.lite • ADSL2 • ADSL2+ Digi TransPort User Guide...
  • Page 461 The number of Loss of Signal (LOS) errors that have occurred downstream and upstream. The number of Severely Errored Frame (SEF) errors that have occurred downstream and upstream. Corrected Blocks The number of blocks that have been received and corrected by the forward error correction (FEC) code. Uncorrected Blocks Digi TransPort User Guide...

  • Page 462: Gre Parameters

    The current operational status of the GRE interface. It can be one of the following values: The GRE interface is up. Lower Layer Down The GRE interface has keepalives enabled but is not getting any response from the configured destination. IP Address The configured IP address for the GRE interface. Mask Digi TransPort User Guide...
  • Page 463 The number of packets that have been received with an unknown IP protocol and have been dropped. Tx Discards The number of packets that have been discarded during transmission due to the GRE interface not being up or if a routing loop has been detected. Digi TransPort User Guide...

  • Page 464: Isdn Parameters

    This PSTN interface is using PPP n When configuring the PSTN module, a PPP instance is assigned – the instance number of the assigned PPP interface appears here. IP Address The IP address assigned to the interface is shown here. Digi TransPort User Guide...
  • Page 465 The CLI commands are the same as for other interfaces and are described in the PPP status section. The command to obtain the status is: pppstat <n> where is the interface number for the PPP interface assigned to the PSTN module and is <n> shown at the top of the web page. Digi TransPort User Guide...

  • Page 466: Serial Parameters

    Equivalent Web Parameter Displays the statistics for serial interface n. at\mibs=asy.n Clears the statistics for serial interface n. at\mibclr=asy.n Advanced PPP n parameters This page displays the current status and statistics of the selected PPP interface. Digi TransPort User Guide...
  • Page 467 Wi-Fi parameters Name The name assigned to the PPP interface. Uptime The amount of time the PPP interface has been up. Digi TransPort User Guide...
  • Page 468 PAP Packets Received The number of Password Authentication Protocol (PAP) packets that have been received on the PPP interface. PAP Packets Sent The number of Password Authentication Protocol (PAP) packets that have been sent on the PPP interface. Digi TransPort User Guide...
  • Page 469 The number of transactions sent but no response has been received. Minimum Transaction Time The shortest response time in milliseconds for a PPP transaction. Maximum Transaction Time The longest response time in milliseconds for a PPP transaction. Digi TransPort User Guide...

  • Page 470: Ip Routing Table

    Metric The route metric defines the “cost” of the route. If CIDR routing is enabled and there are two routes to the same destination, the route with the lower metric is used. Digi TransPort User Guide...

  • Page 471: Ip Hash Table

    IP address, IP protocol, etc. It also contains information on the interface and gateway used when routing the IP packet. When the router receives an IP packet to route, it will look in the IP hash table before looking in the IPv4 routing table. Digi TransPort User Guide...
  • Page 472 The interface that was used when the IP packet was routed. The age in seconds of the entry in the IP hash table. The index in the IP hash table of the entry. Usage The number of times the entry has been used. Digi TransPort User Guide...

  • Page 473: Port Forwarding Table

    The original destination TCP/UDP port of the modified IP packet. The time to live in seconds for the Port Forwarding entry. If the entry is not used for the specified amount of time, the entry is deleted from the Port Forwarding table. Digi TransPort User Guide...

  • Page 474: Firewall Parameters

    TCP/UDP or ICMP session and match packets based on the state of the connection on which they are being carried. The table contains a list of dynamic firewall rules that have been created when packets have matched a configured firewall with the inspect-state keyword specified. Digi TransPort User Guide...
  • Page 475 If the firewall is configured to modify (such as NAPT) the destination TCP/UDP port of the IP packets that match the firewall, this defines the new destination TCP/UDP port of the IP packets. Protocol The IP protocol of the IP packets that match the entry. Interface Digi TransPort User Guide...

  • Page 476: Firewall Trace

    Source IP: 222.45.112.59 Dest IP: 217.34.133.21 ID: 256 TTL: 106 PROTO: TCP (6) is the source IP address of the packet that was logged. ‘Source IP:’ is the destination IP address of the packet that was logged. ‘Dest IP:’ Digi TransPort User Guide...

  • Page 477: Dhcp Status

    Mac Adress This describes the MAC address Related CLI commands Entity Instance Parameter Equivalent Web Parameter dhcp status Displays the current status of the DHCP table. dhcp clear Deletes all the entries in the DHCP table. Digi TransPort User Guide...

  • Page 478: Dns Status

    Displays the current status of the DNS table. clear Deletes all the entries in the DNS table. This page displays the current QoS status table for a particular interface. Priority Q The priority queue in the table. Digi TransPort User Guide...
  • Page 479 The current transmit rate in kbps of the queue. Limit The current transmit rate limit in kbps of the queue. Weighted Q length The weighted queue length using the Weighted Random Early Discard (WRED) algorithm. Q length The number of packets on the queue. Digi TransPort User Guide...

  • Page 480: Connections Management

    This page displays the current status of the TCP sockets on the router. The router has two types of sockets. TCP Sockets Reserved for WEB and FTP connections. General Purpose Sockets Can be used by any application for TCP connections. Digi TransPort User Guide...
  • Page 481 The TCP port being used by the connected remote device. SYNs Waiting The number of TCP SYN packets that are currently being processed by the router.s Free SYN entries The number of entries available to process an incoming TCP SYN packet. Digi TransPort User Guide...
  • Page 482 IP connections Related CLI commands Command Options Description socks Displays the current status of the TCP sockets. General Purpose Sockets The ID of the general purpose socket. Owner The software task that created the socket. Protocol Digi TransPort User Guide...

  • Page 483: Virtual Private Networking (Vpn) Management

    Virtual Private Networking (VPN) management The Management-Connections> VPN menu has the following sub-menu options: • IPsec > IPsec Tunnels • OVPN IPsec > IPsec Tunnels This page displays the current status of the IPsec tunnels. Digi TransPort User Guide...
  • Page 484 The total amount of data that has been transferred (in both directions) over this IPsec tunnel. KBytes Left The amount of data left to be transferred over the IPsec tunnel before the data duration limit is reached. The data duration is negotiated between the router and the remote device. Digi TransPort User Guide...

  • Page 485: Ipsec Peers

    Our ID The ID of the router. Peer ID The ID of the remote device. Dead Peer Detection (DPD) The DPD status and the time until the next DPD request. NATT Local Port The local NAT-Traversal port. Digi TransPort User Guide...

  • Page 486: Ike Sas

    The IP address the router used to negotiate the IKE SA. Time Left The time remaining (in seconds) for the IKE SA to remain in force. Session ID The ID of the IKE SA. Internal ID An internal identifier for the IKE SA. Digi TransPort User Guide...

  • Page 487: Position Management

    The current latitude contained in the last GGA, GLL or RMC message from the GPS module. No of Satellites The current number of satellites being used as indicated in the last GGA message from the GPS module. Digi TransPort User Guide...

  • Page 488: Event Log Management

    “Valid” or “Not Valid”. IP Connections The current IP address, port number, connection type and status of the IP connections. Related CLI commands Command Options Description at\mibs=gps.0.stats Displays the current status of the GPS receiver. Event Log Management Digi TransPort User Guide...

  • Page 489: Event Log Management

    Each entry in the log normally consists of a single line containing the date, time and a brief description of the event. In some case it may also identify: the type/number of the protocol instance the generated the message (such as PPP 0) Digi TransPort User Guide...
  • Page 490 This can be done via the Configuration - Alarms > Event Logcodes page. Related CLI commands Command Options Description type eventlog.txt Displays the contents of the event log. clear_ev Clears the contents of the event log. Digi TransPort User Guide...

  • Page 491: Analyser Management

    TCP/IP) tracing if this feature is included on the router. Enable IKE debug This checkbox is used to enable or disable the inclusion of IKE packets in the analyser trace when using IPsec. Enable QMI trace Digi TransPort User Guide...
  • Page 492 Trace loopback packets This checkbox is used to enable or disable the capture of IP loopback packets. IP Packet Filters / Discarded IP Packet Filters TCP/UDP Ports Digi TransPort User Guide...
  • Page 493 Protocol Layers / Layer 3 xoton on, off Protocol Layers / XOT ikeon on, off Enable IKE debug qmion on, off Enable QMI trace snaipon on, off Enable SNAIP trace lapdon 0 – 7 ISDN Sources See below Digi TransPort User Guide...
  • Page 494 Related CLI commands (not available via the Web Interface) Entity Instance Parameter Values Description fcon on, off Enable serial flow control tracing stopbufs 0 - 255 Stop analyser when number of free system buffers matches this value Digi TransPort User Guide...
  • Page 495 “logfile” is reaches its max size as specified by “logsizek”. logsizek Value in Kbytes The maximum size in Kbytes of the file on the alternate drive. When set to 0, the file size is only limited by the flash device. Digi TransPort User Guide...
  • Page 496 LAPD2 LAPD1 LAPD0 Value LAPB Links LAPD1 LAPD0 Value Serial Interfaces Interface Value Serial 0 Serial 1 Serial 2 Serial 3 Serial 4 Serial 5 Serial 6 Serial 7 Serial 8 Serial 9 Serial 10 1024 Digi TransPort User Guide...

  • Page 497: Trace

    To enable the analyser on multiple serial interfaces, add the appropriate values together. For example, to enable the analyser on Physical Ports 0 and 1, the value should 24 (8 + 16). Trace This displays the current analyser trace. Digi TransPort User Guide...

  • Page 498: Pcap (Such As Wireshark) Traces

    Ethernet traffic captured from all enabled Ethernet sources. anappp.pcap PPP traffic captured from all enabled PPP sources. Wi-Fi anawifi.pcap Wi-Fi traffic captured from the enabled Wi-Fi source. Wireshark is free software and can be obtained from http://www.wireshark.org. Digi TransPort User Guide...
  • Page 499 PCAP (such as Wireshark) traces Digi TransPort User Guide...

  • Page 500: Top Talkers Management

    The checkboxes shown under this heading are used to select the PPP interfaces that Top Talkers will monitor. Related CLI commands Entity Instance Parameter Values Equivalent Web Parameter ttalker on | off Ethernet Interfaces ttalker on | off PPP Interfaces Trace This displays the current top talkers trace. Digi TransPort User Guide...
  • Page 501 Trace Digi TransPort User Guide...

  • Page 502: System Information Administration

    System Information administration The Administration – System Information page gives an overview of the status of the router. Model This describes the model of the router. Part Number This describes the Digi part number of the router. Digi TransPort User Guide...
  • Page 503 SW Cnts This describes some configuration parameters that are used by firmware. Switch Mode This describes the current setting of the Ethernet switch on routers with multiple Ethernet interfaces. It can be either “Hub” or “Port Isolate”. Digi TransPort User Guide...
  • Page 504 Equivalent Web Parameter ati5 Model Firmware Version SBIOS Version Build Version Mobile Module SW Opts Part Number Ethernet 0 MAC Address HW Version CPU Utilization uptime Up Time time Date and Time Total Memory Used Memory Free Memory Digi TransPort User Guide...

  • Page 505: File Management Administration

    Below the file list is a summary of the FLASH file system, this includes the number of files, FLASH free and FLASH used. Action Action checkbox is used to select each read/write file for deletion. File This is the name of the file in the flash file system. Size (bytes) Digi TransPort User Guide...
  • Page 506 This is the access settings for the file. Read / Write access Read Only access Last Modified The date and time of when the file was last modified. Delete Selected Files This button is used to delete the selected files. Digi TransPort User Guide...
  • Page 507 FLASH Directory Digi TransPort User Guide...

  • Page 508: Web Directory

    The WEB directory contains a list of the files held within the active web file. The web file is shown on the FLASH file system as a single file, this file is compressed and holds approximately 300 files. Direct access to these files by an engineer is not normally required. Digi TransPort User Guide...

  • Page 509: File Editor

    The name of the file in web file. Size (Bytes) The size of the file in bytes. Compressed Size (Bytes) The compressed size of the file in bytes. File Editor The file editor allows the user to edit text files on the router. Digi TransPort User Guide...
  • Page 510 It is possible to create a new file by typing in the filename and clicking on the “Save File” button. Load File Load the file specified in “Filename” into the editor box. Save File Save the file to the flash file system. Digi TransPort User Guide...

  • Page 511: Certificate Management And Administration

    This table lists the current CA certificates that have been installed onto the router. It is possible to view the contents of each certificate using the “View” button. Upload CA Certificates CA Certificates can be uploaded from a host PC onto the router using the “Browse” and “Upload” buttons. Digi TransPort User Guide...

  • Page 512: Ipsec/Ssh/Https Certificates

    HTTPS connections. For more information on using certificates with the router, please refer to the Application Note “How to configure an IPSEC VPN tunnel between two Digi Routers using Certificates and SCEP”, which are available from the Digi web site.
  • Page 513 You can identify a CA encryption certificate by looking at the X.509 Key Usage section in the certificate. It should say something like the following X509v3 Key Usage: critical Key Encipherment, Data Encipherment Digi TransPort User Guide...
  • Page 514 The town or city of where the router is located. Organisation (O) The company to whom the router belongs to. Organisational Unit (OU) The company department maintaining the router. E-mail An appropriate email address of a contact for the router. Digi TransPort User Guide...
  • Page 515 To generate a certificate request, enter the command: creq new -k<priv key file> -o<cert request file> To generate a private key and a certificate request, enter the command: Digi TransPort User Guide...

  • Page 516: Key Generation

    0 <keysize> <filename> <-ssh1> where is the size of the key in bits. <keysize> <filename> is the name of the private key file. is optional, and will generate the private key file in SSH version 1 format. <-ssh1> Digi TransPort User Guide...

  • Page 517: Private Key Files - Splitting Certificates

    Private key files - Splitting Certificates For increased security there is the option of splitting the private key file between the Digi flash and an USB memory stick. Once a private key has been split and stored in 2 parts, the USB memory stick must be present for any successful IKE negotiations that involve the private key.

  • Page 518: Update Firmware

    The router will download a zip file onto the router, uncompress it, validate each file within the zip file and then update the files in its flash file system. The zip file containing the latest firmware version is available from the Digi website (http:// transport.digi.com/digi/firmware/ftp/).
  • Page 519 Select the zip file on your PC containing the firmware version to you wish to update to. Once the firmware update is complete, the router has to be rebooted before the new firmware version can run. Digi TransPort User Guide...

  • Page 520: Factory Default Settings

    Default Route 0 Interface • PPP 1 Username • PPP 1 Password • PPP 3 Username • PPP 3 Password • Mobile APN • Mobile SIM PIN Restore Clicking this button initiates a factory reset of the router. Digi TransPort User Guide...

  • Page 521: Reboot

    Do not remove the power whilst the router is running this reset procedure. Using this method will not preserve any settings. The CLI command to disable the reset button is cmd 0 pbreset off. To re-enable the reset button functionality cmd 0 pbreset on Digi TransPort User Guide...

  • Page 522: Execute A Command

    The Administration –Execute a Command page allows CLI commands to be entered via the web browser. Almost all of the CLI commands detailed in this reference guide can be entered via this page. The corresponding output will be shown when the ‘Execute’ button is pressed. Digi TransPort User Guide...

  • Page 523: Save Configuration

    Related CLI commands Parameter Options Equivalent Web Parameter config save Save current configuration to Config saveall Save all configuration ** The default power up profile is profile 0. *.da0 = profile 0, *.da1 = profile 1. Digi TransPort User Guide...

  • Page 524: Reboot

    A scheduled reboot can be cancelled by clicking the “Cancel” button. Related CLI commands Command Options Equivalent Web Parameter reboot Immediately reboot 0 – 86400 In h hrs m mins s secs. This CLI value is entered in minutes only. reboot cancel Cancel reboot Digi TransPort User Guide...

  • Page 525: Logout

    Logout Clicking the Logout link in the menu on the left will log out the current user and return to the login page Digi TransPort User Guide...

  • Page 526: Filing System And System Files

    Text file containing Event Log config. info. pwds.da0 File containing obfuscated passwords sbios TransPort BIOS and bootloader sregs.dat Data file containing AT command & S register settings x3prof X.25 PAD profile parameters Once you have configured the unit, your chosen settings must be saved to non-volatile memory to avoid losing them when the power is removed.

  • Page 527: Config Files

    As of firmware version 4981, the encrypted forms of passwords entered into the configuration are stored in a separate file named pwds.da0. This file can only be accessed by users with Super level privileges. The file can be read with the type command, such type pwds.da0. Digi TransPort User Guide...

  • Page 528: Filing System Commands

    File write operations are carried out as a background task and can be relatively slow due to the constraints of FLASH memory. As a result, the file directory may only be updated several seconds after a particular file operation has been carried out. Digi TransPort User Guide...

  • Page 529: Flock Lock Files

    For example, will dir fw*.txt list only the files (if they are present on the TransPort). fw.txt fwstat.txt FLOCK Lock files command prevents any further writing to the FLASH memory. This means that no files flock can be written to, added to or deleted from the filing system.

  • Page 530: Type Display Text File

    USB support Most TransPort routers come equipped with USB ports that you can use to connect Mass Storage Devices (MSDs) such as external hard drives or flash-memory pen drives. All the files on the USB device will be listed under the USB Directory Listing heading on the Administration - File Management >...

  • Page 531: Sd Memory Card Support

    USB support SD Memory Card support Some TransPort routers are available with internal SD memory card, the drive letter assigned to this card is “s:”. To access the SD memory using an FTP client, the subdirectory assigned is “sdmmc”. The SD card can be used in the same way as USB MSDs. The SD card is internal and not removable.

  • Page 532: Using Usb Devices To Upgrade Firmware

    A .all file is a special file that contains all of the firmware and configuration files in a single file that has the file extension .all and is an exact copy of the TransPort router in its current state. This .all file can then be applied to another TransPort router, as long as it is the same model.

  • Page 533: Disable/Enable The Usb Ports

    0 dislist "usb-1-2*,usb-2-2*" usbcon 0 dislist "usb-?-2*" Note that the final -2 is important in both cases as otherwise the command would disable the internal USB devices which could include connections to the wireless module or other components. Digi TransPort User Guide...

  • Page 534: Universal Config.da0 Using Tags

    To open <DR6410>, to close </DR6410>. Note the use of the “/“ in the closing tag. To view a list of defined tags on a router, the CLI command tags can be used: Example output of tags command: Router>tags tags defined:.. Digi TransPort User Guide...

  • Page 535: Example Scenario

    #End of Option specific config </OPTION_3G> <SIERRA_3G> #Start of Sierra specific config modemcc 0 asy_add 7 modemcc 0 info_asy_add 10 #End of Sierra specific config </SIERRA_3G> #End of DR6410-H0A config </DR6410-H0A> <DR6410-E0A> #Start of DR6410-E0A config Digi TransPort User Guide...
  • Page 536 USB support modemcc 0 asy_add 7 modemcc 0 info_asy_add 11 #End of DR6410-E0A config </DR6410-E0A> #Rest of generic config goes below here modemcc 0 apn internet” eth 0 ipaddr 192.168.0.99 Digi TransPort User Guide...

  • Page 537: Access Web Gui Via Serial Connection

    PPP Dial-up Networking connection (DUN) for the unit as described below. It is assumed that you already have a basic knowledge of Windows networking concepts and terminology. Download the driver file from the Digi support Website at http://www.digi.com/support/drivers. The precise procedure for installing the .inf driver file for the unit will vary slightly between different versions of Windows.
  • Page 538 Installing the driver file 2. Click on Add… to install a new modem driver. 3. Check the Don’t detect my modem, I will select it from a list option before clicking Next > to display the following dialog screen: Digi TransPort User Guide...
  • Page 539 Models list. 5. Choose the entry corresponding to the COM port your router is connected to, and click Next >. The wizard will ask you which COM port you wish to install the modem on. Digi TransPort User Guide...
  • Page 540 6. Select the appropriate port and click Next >, and Windows will install the driver. Once installation is complete click Finish to return to the Phone and Modem Options dialog, where your unit will be listed 7. Click on the Finish button if you are satisfied with the installation. Digi TransPort User Guide...
  • Page 541 1. From the Windows Start menu, select All Programs > Accessories > Communications > New Connection Wizard. You will be presented with the New Connection Wizard introduction screen. Click on Next > to proceed to the Network Connection Type dialog: Digi TransPort User Guide...
  • Page 542 Installing the driver file 2. Select the Connect to the network at my workplace radio-button then click on Next >: 3. Select the Dial-up connection radio-button then click on Next >: Digi TransPort User Guide...
  • Page 543 5. You must now enter a name for the connection. It is helpful to choose a name that you will easily remember such as “My Digi Router” or “DR64 - Bristol Office”. Click Next >. The following dialog allows you to fill in the phone number for the connection:...
  • Page 544 The new DUN connection that you have just created may now be used to connect to the unit but before you do this, you will need to check some of the configuration properties. 1. Click on the Start button and select Connect To > My Digi Router (substituting the connection name you chose).
  • Page 545 Installing the driver file 2. Click on the Properties button to display the properties dialog for the connection: 3. On the General tab, click the Configure… button to display the Modem Configuration dialog: Digi TransPort User Guide...
  • Page 546 Make sure that the Maximum speed (bps): value is set to 115200 and that the Enable hardware flow control box is checked. Click OK when you have finished to return to the main properties dialog. 4. Now select the Networking tab: Digi TransPort User Guide...

  • Page 547: Initiating A Dun Connection

    (refer to the section entitled Configuration - Security > Users for instructions on how to do this). The username is not case sensitive, but the password is. Digi TransPort User Guide...
  • Page 548 You should now be ready to access the built-in web pages using your Web browser. The default “web address” for the unit is http://1.2.3.4. By default, this is also mapped to the system IP hostname digi.router. You will need a valid username and password to access the web interface. Once again, the default settings are username and password respectively.

  • Page 549: Sql Commands

    <name> This is the name of the csv file that the Digi will use to store the table definitions (1st line) and data records. This file is stored in flash and is used to populate the database stored in RAM on power up or when a new file matching this name has just been stored.

  • Page 550: Learning Mode - Saving Entries

    When learning mode is used, the dynamic backup database is stored in RAM. This database will be lost if the Digi router is power cycled. The database in RAM can be saved to flash to over-write the dbfile with the one in RAM that includes the learnt entries or it can be saved to a new file.

  • Page 551: Transact Sql Commands

    When finished, to close the SQL server connection correctly: sqlclose If the database being queried is held locally on the Digi, these commands can be preceded with the SQL debug command to give extra feedback on any commands issued. Digi TransPort User Guide...
  • Page 552 0 debug_opts 3 To view the debug data via the ASY 0 port: debug 0 To view the debug data via telnet: debug t To disable the SQL debug: sql 0 debug_opts 0 debug off Digi TransPort User Guide...

  • Page 553: Initial Set Up

    The ATD command may also be used to route a call to an ISDN sub-address by following the telephone number with the letter S and the required sub-address value. For example: Digi TransPort User Guide...

  • Page 554: Answering V.120 Calls

    You should check that if PPP answering is enabled you have NOT selected the same MSN and Sub-address values for PPP. If they are the same, V.120 will answer the call ONLY if S0 is set to 1. Otherwise, PPP will take priority and answer the call. Digi TransPort User Guide...

  • Page 555: Answering Isdn Calls

    Answering ISDN calls Digi routers are capable of answering incoming B-channel ISDN calls with 3 main protocols. Usually several instances of these protocols exist. This section explains how answering priorities work for the different protocols. Protocol entities The following protocol instances are capable of answering an incoming ISDN call: Adapt Adapt instances provide rate adaptation protocols such as V.120 or V.110.
  • Page 556 PPP instance, 0, 1 and 4 could be configured to answer. In this case provided that none of the PPP instances are busy, the PPP instance with the highest number will answer first. MSNs can also be used to ensure that a chosen PPP instance answers the call. Digi TransPort User Guide...
  • Page 557 Multiple protocol entity answering instance rules: ADAPT The lowest free Adapt instance with auto-answering enabled will answer first. The lowest free PPP instance with answering on will answer first. LAPB The lowest free LAPB instance with answering on will answer first. Digi TransPort User Guide...

  • Page 558: Packet Switching

    A further standard, X.31 defines the procedures used to access X.25 networks via the ISDN B and D-channels. Digi ISDN products include support for allowing connected terminals to access X.25 over ISDN B channels, the ISDN D-channel or over TCP. They can also be configured so that if there is a network failure it will automatically switch to using an alternative service.
  • Page 559 Send reset packet RPAR? List remote X.3 parameters RSET Set remote X.3 parameters Set local X.3 parameters STAT Display channel status CALL Make an X.25 Call The full structure of a CALL command is: CALL [<facilities->]<address>[D<user data>] where: Digi TransPort User Guide...
  • Page 560 CALL packet should be returned in a call clear packet. When the PAD receives an incoming call specifying Fast select, the call is indicated to the terminal in the normal way. For example: Digi TransPort User Guide...
  • Page 561 If a call is terminated by the network or by the remote host, the unit returns a diagnostic message before the NO CARRIER result code. Messages may be numeric or verbose depending on the setting of the ATV command. The following table lists the verbose messages and equivalent numeric codes: Digi TransPort User Guide...
  • Page 562 Network out of order Temporary failure Switching equipment congestion Access information discarded Requested circuit/channel not available Resources unavailable, unspecified Quality of service unavailable Requested facility not subscribed Bearer capability not authorized Bearer capability not presently available Digi TransPort User Guide...
  • Page 563 Invalid information element contents Message not compatible with call state Recovery on timer expired Protocol error, unspecified Interworking, unspecified General level 2 call control failure (probable network failure) Note Some verbose messages may be abbreviated by the unit. Digi TransPort User Guide...
  • Page 564 The ICLR command “invites” the remote X.25 service to CLR the current X.25 session. INT Send Interrupt Packet INT causes PAD to transmit an interrupt packet. These packets flow “outside” normal buffering/ flow control constraints and are used to interrupt the current activity. Digi TransPort User Guide...
  • Page 565 Network > Legacy Protocols > X.25 > PADs n-n > PAD n > PAD Settings). The pre-defined profiles (50, 51, 90, 91), cannot be overwritten and are permanently configured as shown in the following table: Profile Parameter Digi TransPort User Guide...
  • Page 566 SET is used to set one or more of the local X.3 parameters for the duration of the current session. The format of the command is: SET par #:value[,par #:value[,par #:value ...]] STAT Display Channel Status STAT displays the current status for each logical channel indicating whether it is free or engaged. For example: stat Digi TransPort User Guide...
  • Page 567 PAD STATE ENGAGED FREE FREE FREE Digi TransPort User Guide...

  • Page 568: Ppp Over Ethernet

    “On” to configure the unit so that it will attempt to renegotiate the PPP link should it go down for any reason. PPP negotiation The advanced PPP options on this page should be initialised as required by your ISP. In addition: Digi TransPort User Guide...

  • Page 569: Using Text Commands

    Desired Local ACCM and Desired Remote ACCM should be set to “0xffffffff”. Using text commands There are no specific PPPoE commands available to the user via the text command interface. The appropriate CLI commands should be used to set the required options. Digi TransPort User Guide...

  • Page 570: Ipsec And Vpns

    • only authorised users can access a service and • that no one else can see what data passes between one point and another. There are two modes of operation for IPSec, transport mode and tunnel mode. Digi TransPort User Guide...
  • Page 571 IPSec In transport mode, only the payload (such as the data content), of the message is encrypted. In tunnel mode, the payload and the header and routing information are all encrypted thereby by providing a higher degree of protection. Data Encryption Methods There are several different algorithms available for use in securing data whilst in transit over IP links.
  • Page 572 ID. Once you’ve established a two way secure link you can use it to establish some rules for further communication. Before this gets any more complicated we’ll assume that Digi International are a competent authority to issue certificates and given that they exist and are valid, see how they are used.
  • Page 573 “Remote ID” parameter in the Configuration - Network > Virtual Private Networking (VPN) > IPsec > IPsec Tunnels > IPsec n - n > IPsec n page must be set to “host@Digi.co.uk”. The remote unit must have copies of CERT01.PEM and PRIVRSA.PEM. In addition, any Eroutes that...

  • Page 574: Firewall Scripts

    • Status of a link and/or data packets on UDP/TCP and ICMP protocols In addition to providing comprehensive filtering facilities, Digi TransPort routers also allow you to specify rules relating to the logging of information for audit/debugging purposes. This information can be logged to a pseudo-file on the unit called FWLOG.TXT, the EVENTLOG.TXT pseudo-file or to a syslog server.

  • Page 575: Firewall Script Syntax

    A firewall must be individually configured to match the needs of authorised users and their applications. On Digi routers the rules governing firewall behaviour are defined in a script file called FW.TXT. Each line in this file consists of a label definition, a comment or a filter rule.
  • Page 576 This would return a TCP reset packet when the firewall receives a TCP packet on the Ethernet interface 0 with destination address 10.1.2.*. pass The pass action allows packets that match the rule to pass through the firewall. Digi TransPort User Guide...
  • Page 577 EVENTLOG.TXT pseudo-file as well as event the FWLOG.TXT file. The event log entry will contain the line number and hit count for the rule that caused the packet to be logged. Digi TransPort User Guide...
  • Page 578 [tos] the TOS to match. For example, to block any inbound packet on PPP 0 with a TOS of 0 you would use a rule such as: Digi TransPort User Guide...

  • Page 579: Specifying Ip Addresses And Ranges

    IP address or range of addresses to which ip-range the rule applies. The syntax for specifying an IP address range is: ip-range = “all” | “from” ip-object “to” ip-object [ flags ] [ icmp ] Digi TransPort User Guide...
  • Page 580 Ethernet interface. This is useful in the situation were IP addresses are obtained automatically and therefore are not known by the author of the filtering rules. For example: block in break end on ppp 0 from addr-eth 0 to any Digi TransPort User Guide...

  • Page 581: Address/Port Translation

    For instance, in the example above we could substitute the number 23 with the string telnet. This would make the rule: pass break end from any to 10.1.2.63 port=telnet Digi TransPort User Guide...

  • Page 582: Filtering On Tcp Flags

    Here, the list of flags causes the unit to check that those flags are set. This list may be optionally followed by an exclamation mark (“!”) and a second list of flags that the unit should check for being clear. Digi TransPort User Guide...

  • Page 583: Filtering On Icmp Codes

    ICMP packets. The syntax for including ICMP filtering is: icmp = “icmp-type” icmp-type [“code” decnum] can be one of the pre-defined strings listed in the following table or the icmp-type equivalent decimal numeric value: Digi TransPort User Guide...
  • Page 584 ICMP packets in from this interface. Now if we ever expect to see echo replies in on we should allow echo requests out on that interface too. To do that we would ppp 0 have the rule: pass out break end on ppp 0 proto icmp icmp-type echo Digi TransPort User Guide...

  • Page 585: Stateful Inspection

    Stateful inspection Stateful inspection The Digi routing code stack contains a sophisticated scripted Stateful Firewall and Route Inspection engine. Stateful inspection is a powerful tool that allows the unit to keep track of a TCP/UDP or ICMP session and match packets based on the state of the connection on which they are being carried.

  • Page 586: Using [Inspect-State] With Flags

    10.1.2.33 port>1023 to any port=telnet pass in break end from any port=telnet to 10.1.2.33 port>1023 flags a! Using the inspect state option this can be replaced with a single filter rule: Digi TransPort User Guide...

  • Page 587: Using [Inspect-State] With Icmp

    PPP 1. This can also be a logical interface name which is simply a name that can be created (such as, waffle). When a logical interface name is specified then this name can become oos (out of service) and can be tested in other firewall rules with the keyword. oosed Digi TransPort User Guide...
  • Page 588 AODI mode parameter is set to “On”. TCP example pass out log break end on ppp 3 proto tcp from any to 192.168.0.1 flags S!A inspect-state oos 30 t=10 c=2 d=2 pass in pass out Digi TransPort User Guide...

  • Page 589: Fwlog.txt File

    The line number of the rule that cause the packet to be logged. Hits The number of matches for the rule that caused this packet to be logged. Iface The Interface the packet was to be transmitted/received on. Digi TransPort User Guide...

  • Page 590: Log File Examples

    From REM TO LOCIFACE: ETH 0 45 IP Ver: 4 Hdr Len: 20 00 TOS: Routine Delay: Normal Throughput: Normal Reliability: Normal 00 3C Length: 60 9C CC ID: 40140 00 00 Frag Offset: 0 Digi TransPort User Guide...
  • Page 591 Source Port: 1441 Dest Port: 23 TCP Flags: S Further [inspect-state] examples Here is a basic rule with no OOS options: inspect-state pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A Digi TransPort User Guide...
  • Page 592 60 t=10 c=5 d=10 r=tcp,120 Now the interface will be set to OOS for 60 seconds after 5 consecutive failures. After the 60 seconds elapses, the recovery procedure will be initiated. In this example the recovery will consist Digi TransPort User Guide...
  • Page 593 The address lists are created using the following syntax: #addrs <list-name> <address1,address2,address3,address4> Address lists can span multiple lines if required, for example: #addrs <list-name> <address1,address2> #addrs <list-name> <address3,address4> Digi TransPort User Guide...
  • Page 594 Because of the extra processor time required to add all of these additional log entries, debug rules should be removed (or commented out) once the rule set is operating as desired. Digi TransPort User Guide...

  • Page 595: Remote Management

    Remote management Digi products equipped with ISDN BRIs can be accessed and controlled remotely via the ISDN network by using: • a V.120 connection to access the text command interface • PPP to access the Web Interface • PPP to access the text command interface using Telnet •...

  • Page 596: Using Ftp

    Three login attempts are permitted before the connection is reset. Using FTP TransPort routers incorporate an FTP server. FTP allows users to log on to remote hosts for the purpose of inspecting file directories, retrieving or uploading files, etc. For PC users, MS-DOS includes FTP support and there are a number of Windows-based specialist FTP client programs such as CuteFTP™...

  • Page 597: Using X.25

    NUA match the specified sub-address, the calling user will receive the standard login prompt. On entry of a valid username and password, they will be given access to the command line as if they were connected locally. Digi TransPort User Guide...

  • Page 598: At Commands

    A further option for the ATD command for X.25 applications is to combine the ISDN call and the subsequent X.25 CALL in the same command. To do this, follow the telephone number with the “=” symbol and the X.25 call string. For example: atd01234 567890=123456789 Digi TransPort User Guide...

  • Page 599: H Hang-Up

    56 in multiples of 10msec • &R2 CTS is always Off &V View profiles The AT&V command displays a list of the current AT command and S register values, and the settings for the two stored profiles. For example: Digi TransPort User Guide...

  • Page 600: W Write Sregs.dat

    0800 123456 as the default number to be associated with ASY 2, use the command: at&z2=0800123456 If the number of the ASY port is not specified, the number will be stored against the port from which the command was entered, such as entering the command: Digi TransPort User Guide...

  • Page 601: At Ignore Invalid At Commands

    2, you would first enter the command: at\port=2 PORT 2 Port 2 is now the active port and any AT commands or changes to S registers settings which affect the serial ports will now be applied to port 2 only. This includes: Digi TransPort User Guide...

  • Page 602: Smib Commands

    The at\smib command allows you to view a single standard MIB variable. To view the variable use the at\smib=<mib_name> command, where <mib_name> is the variable to be displayed. The variables are sorted according to the hierarchy shown below. Digi TransPort User Guide...
  • Page 603 \smib commands Digi TransPort User Guide...

  • Page 604: System

    The above example shows that the unit has been running for 5 hours, 1 minute and 7.18 seconds. at\smib=mib-2.system.syscontact A description of the contact person for the unit. For the Digi, this is always a zero-length string. at\smib=mib-2.system.sysname The name of the unit (the name set in the Router Identity parameter on the Configuration - System >...

  • Page 605: Interfaces

    \smib commands For the Digi, this value is always 7 (Physical layer (21-1) + Data Link layer (22-1) + Network layer (23-1)). Interfaces The Interfaces hierarchy consists of the ifnumber variable and the iftable node: at\smib=mib-2.interfaces.ifnumber The total number of interfaces on the unit. This includes Ethernet, PPP and virtual interfaces (such as IPSec tunnels) and SYNC ports.
  • Page 606 The total number of packets that higher-level protocols requested this interface to transmit to a non-unicast (such as broadcast or multicast) address, including those that were discarded or not sent. at\smib=mib-2.interfaces.iftable.ifentry.ifouterrors The number of outbound packets that this interface could not transmit because of errors. Digi TransPort User Guide...
  • Page 607 This variable indicates whether the unit is acting as an IP gateway in respect to the forwarding of datagrams received by, but not addressed to, the unit. IP gateways forward datagrams, IP hosts do not. For the Digi, this value is always 1. at\smib=mib-2.ip.ipaddrtable The ipaddrtable node contains ipaddrentry nodes for each IP address assigned to each interface of the unit.
  • Page 608 \smib commands Valid Invalid Direct Indirect at\smib=mib-2.ip.iproutetable.iprouteentry.iproutemask The netmask for the route. Digi TransPort User Guide...

  • Page 609: S Registers

    0-255 Pulse time for DCD Low ms x 10 0-255 Escape delay 0-255 Data forwarding timer 0-255 RS422/485 serial port 0, 2, 3 settings Parity 0-2 5 6 ASY interface speed refer to full description 0-11 Digi TransPort User Guide...

  • Page 610: S0 V.120 Answer Enabled

    S12 Escape Delay Units: ms Default: 50 Range: 0-255 The value stored in S12 defines the delay between sending the escape sequence and entering an AT command for the unit to switch from on-line mode to command mode. Digi TransPort User Guide...

  • Page 611: S15 Data Forwarding Timer

    Odd (1), Even (2), 8Data Odd (5) or 8Data Even (6). S31 ASY Interface Speed Units: N/A Default: 0 Range: 0-11 Register S31 is used to set the speed and data format for the ASY port to which you are currently connected. Digi TransPort User Guide...

  • Page 612: S33 Dtr Dialling

    DTR. Increasing or decreasing the value in S45 makes the unit less or more sensitive to “bouncing” of the DTR signal respectively. Digi TransPort User Guide...

  • Page 613: General System Commands

    The output will appear similar to the following example: config c show eth 0 descr "LAN 0" eth 0 IPaddr "192.168.1.1" eth 0 mask "255.255.255.0" eth 0 bridge ON eth 1 descr "LAN 1" eth 2 descr "LAN 2" Digi TransPort User Guide...

  • Page 614: Config Changes Counter

    Normally when the reset button is held in for 5 seconds the router is reset to factory defaults. The factory reset button functionality can be disabled / enabled if required. The command to disable the reset button is cmd 0 pbreset off To re-enable the reset button functionality cmd 0 pbreset on Digi TransPort User Guide...

  • Page 615: Templog Temperature Monitoring

    TEMPLOG temperature monitoring You can also disable the reset button using the Digi TransPort web interface. For more information see the Factory Default Settings section. TEMPLOG temperature monitoring The on-board temperature sensors are sampled every 60 seconds and any 'interesting' changes in the temperature are logged to a special flash file, 'templog.c1'.

  • Page 616: Special Usernames

    The syntax of the command is as follows: gpio [inout ON|OFF|input|output] Usage: With no parameters, the command will display the current status of the ports. For example: gpio Input(s): in : OFF Output(s): inout : OFF Digi TransPort User Guide...
  • Page 617 Only one of the power connectors should be used. Never apply power to both the MAIN and AUX connectors at the same time. Description Pin 1 GROUND Pin 2 INPUT Pin 3 Input/ Output Pin 4 Power The following image shows the pins and the corresponding numbers: Digi TransPort User Guide...

  • Page 618: Gobi Image Load Selection

    GOBI Image Load Selection For more information on wiring and other details, refer to Digi Transport 4-pin DC Power Cord User Guide. GOBI Image Load Selection For the qdl command, it is used to specify which image to load onto a GOBI cellular module.
  • Page 619 GOBI Image Load Selection Telital Digi TransPort User Guide...

  • Page 620: Tcpperm And Tcpdial Commands

    [-ok] [-t<telnet_mode>] [-ho(host only)] [-ssl] [-ao(always open)] [-m<mhome idx>] The parameters are detailed in the following table: Parameter Description The number of the ASY port that the link will be made from/to Dest Host The IP address (or name) of the remote peer Digi TransPort User Guide...

  • Page 621: Considerations For Use With Vpn Or Gre Tunnels

    Eroute. A similar effect can also be achieved by setting the parameter Default source IP address interface: Ethernet n in the Web interface on the Configuration - Network > Advanced Network Settings. Digi TransPort User Guide...

  • Page 622: Tcpdial

    It can also be used from a command session to disconnect an existing TCPDIAL connection on another ASY port. The format of the command is: tcpdab <instance> ATH where is the number of the ASY port. <instance> Digi TransPort User Guide...

  • Page 623: Serial Port Connections

    DB 9 sockets or 8-pin RJ45 sockets. On some models, a combination of the above may be used. The following tables list the pin designations of each type of connector for each Digi model. The RS-232 port pin-outs are suitable for both Async and Sync port connections. When used in Async mode the pins for TxC, RxC &...
  • Page 624 CLKA in or out Clock (B) CLKB in or out Indication (A) INDA Control (A) CTLA 1 With respect to Digi units 2 Direction depends on whether the Digi unit is clock sink or clock source. Digi TransPort User Guide...

  • Page 625: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 626: 25-Pin To 15-Pin Crossover Cable - Internal Clock

    CLKA and CLKB pins and INDA and INDB pins at the DTE. X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock.

  • Page 627: 25-Pin To 15-Pin Crossover Cable - External Clock

    Note that Frame Ground is optional. X.21 25-Pin to 15-Pin crossover cable - external clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock sink or configured as external clock.

  • Page 628: Wr44

    Data Carrier Detect Transmitter Clock Receiver Clock Data Terminal Ready Ring Indicate External Transmitter Clock 1 With respect to Digi units X.21 (RS-422) Description X.21signal Direction DB 25 Pin# Transmit Data(A) TxDA Receive Data(A) RxDA Control (A) CTLA Indication (A)

  • Page 629: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock Use this cable to connect an X.21 terminal (such as, an ATM) to the Digi unit. Use this cable when the Digi unit is the clock source or configured as internal clock.

  • Page 630: 25-Pin To 15-Pin Straight Through Cable - External Clock

    X.21 25-Pin to 15-Pin straight through cable - external clock Use this cable to connect an X.21 terminal (such as, an ATM) to the Digi unit. Use this cable when the Digi with is the clock sink or configured as external clock.

  • Page 631: 25-Pin To 15-Pin Crossover Cable - Internal Clock

    WR44 X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock. DB 25 - Digi Side...
  • Page 632 When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 633: Ta2020

    DB 9 Pin# Transmit Data Receive Data Ready To Send Clear To Send Data Set Ready Ground Data Carrier Detect Transmitter Clock Receiver Clock Data Terminal Ready Ring Indicate External Transmitter Clock 1 With respect to Digi units Digi TransPort User Guide...

  • Page 634: Er2110, Ir2110 & Mr2110

    DB 25 Pin# Transmit Data Receive Data Ready To Send Clear To Send Data Set Ready Ground Data Carrier Detect Transmitter Clock Receiver Clock Data Terminal Ready Ring Indicate External Transmitter Clock 1 With respect to Digi units Digi TransPort User Guide...

  • Page 635: Ir2140 & Gr2140

    DB Pin# Transmit Data Receive Data Ready To Send Clear To Send Data Set Ready Ground Data Carrier Detect Transmitter Clock Receiver Clock Data Terminal Ready Ring Indicate External Transmitter Clock 1 With respect to Digi units Digi TransPort User Guide...

  • Page 636: Gr2130

    Ready Ring Indicate External Transmitter Clock 1 With respect to Digi units X.21 (RS-422) Note For the GR2130 to operate in X.21 mode, an X.21 daughter card must be fitted, with the jumpers set correctly. For more information, see the 25-Pin to 9-Pin straight through cable section.

  • Page 637: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 638: 25-Pin To 15-Pin Straight Through Cable - External Clock

    CLKA and CLKB pins and INDA and INDB pins at the DTE. X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock.

  • Page 639: 25-Pin To 15-Pin Crossover Cable - External Clock

    Note that Frame Ground is optional. X.21 25-Pin to 15-Pin crossover cable - external clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock sink or configured as external clock.

  • Page 640: Ir2140

    When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 641: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 642: 25-Pin To 15-Pin Straight Through Cable - External Clock

    X.21 25-Pin to 15-Pin straight through cable - external clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock sink or configured as external clock.

  • Page 643: 25-Pin To 15-Pin Crossover Cable - Internal Clock

    IR2140 X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock. DB 25 - Digi Side...
  • Page 644 When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 645: Ir2420

    Ready Ring Indicate External Transmitter Clock 1 With respect to Digi units X.21 (RS-422) Note For the DR64x0(W)IR2420 to operate in X.21 mode, a X.21 daughter card must be fitted, with the jumpers set correctly. For more information, see the...

  • Page 646: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 647: 25-Pin To 15-Pin Straight Through Cable - External Clock

    CLKA and CLKB pins and INDA and INDB pins at the DTE. X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock.

  • Page 648: 25-Pin To 15-Pin Crossover Cable - External Clock

    Note that Frame Ground is optional. X.21 25-Pin to 15-Pin crossover cable - external clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock sink or configured as external clock.

  • Page 649: Ta2020B & Ir2110B

    When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 650: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 651: 25-Pin To 15-Pin Straight Through Cable - External Clock

    X.21 25-Pin to 15-Pin straight through cable - external clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock sink or configured as external clock.

  • Page 652: 25-Pin To 15-Pin Crossover Cable - Internal Clock

    TA2020B & IR2110B X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock.

  • Page 653: Dr4410, Dr4410I & Dr4410P

    When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 654: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 655: 25-Pin To 15-Pin Straight Through Cable - External Clock

    X.21 25-Pin to 15-Pin straight through cable - external clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock sink or configured as external clock.

  • Page 656: 25-Pin To 15-Pin Crossover Cable - Internal Clock

    DR4410, DR4410i & DR4410p X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock.
  • Page 657 When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 658: Mw3410, Mw3520 & Vc5100

    Clock Receiver Clock Data Terminal Ready Ring Indicate External Transmitter Clock 1 With respect to Digi units X.21 (RS-422) Note For the MW3410, MW3520 or VC5100 to operate in X.21 mode, a X.21daughter card must be fitted. Description X.21signal Direction...

  • Page 659: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 660: 25-Pin To 15-Pin Straight Through Cable - External Clock

    CLKA and CLKB pins and CTLA and CTLB pins at the DTE. X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock.

  • Page 661: 25-Pin To 15-Pin Crossover Cable - External Clock

    Note that Frame Ground is optional. X.21 25-Pin to 15-Pin crossover cable - external clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock sink or configured as external clock.

  • Page 662: Er4420, Er4420D, Er4420I, Er4420P, Hr4420, Hr4420D, Hr4420I, Hr4420P & Ir4420

    When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 663: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 664: 25-Pin To 15-Pin Straight Through Cable - External Clock

    X.21 25-Pin to 15-Pin straight through cable - external clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock sink or configured as external clock.

  • Page 665: 25-Pin To 15-Pin Crossover Cable - Internal Clock

    ER4420, ER4420d, ER4420i, ER4420p, HR4420, HR4420d, HR4420i, HR4420p & IR4420 X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock.
  • Page 666 When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 667: Mr4110, Er4110, Hr4110, Gr4110 & Tr4110

    DB 25 Pin# Transmit Data Receive Data Ready To Send Clear To Send Data Set Ready Ground Data Carrier Detect Transmitter Clock Receiver Clock Data Terminal Ready Ring Indicate External Transmitter Clock 1 With respect to Digi units Digi TransPort User Guide...

  • Page 668: 25-Pin To 15-Pin Straight Through Cable - Internal Clock

    X.21 25-Pin to 15-Pin straight through cable - internal clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock source or configured as internal clock.

  • Page 669: 25-Pin To 15-Pin Straight Through Cable - External Clock

    X.21 25-Pin to 15-Pin straight through cable - external clock This is normally the cable to use to connect an X.21 terminal (such as, an ATM) to the Digi. Use this cable when the Digi is the clock sink or configured as external clock.

  • Page 670: 25-Pin To 15-Pin Crossover Cable - Internal Clock

    MR4110, ER4110, HR4110, GR4110 & TR4110 X.21 25-Pin to 15-Pin crossover cable - internal clock Use this cable to connect the Digi unit to an X.21 leased line. Use this cable when the Digi unit is the clock source or configured as internal clock.

  • Page 671: V.24) Serial Cable Wiring

    When operating an X.21 (RS-422) link synchronously, it is necessary to fit termination resistors to each signal pair at the receiving end. The Digi unit has in-built terminating resistors, but terminating resistors should be fitted between the TxDA and TxDB pins, CLKA and CLKB pins and CTLA and CTLB pins at the DTE.

  • Page 672: 25-Pin To 9-Pin Straight Through Cable

    Signal Note Frame Ground is optional 25-Pin to 9-Pin straight through cable This is normally the cable to connect a V.24 asynchronous terminal, such as a PC to a Digi router. DB 25 - Digi Side DB 9 Signal Pin # (DCE)

  • Page 673: Rj45 To 9-Pin Straight Through Cable

    Pin # (DCE) Pin # (DTE) Signal RJ45 to 9-Pin straight through cable This is normally the cable to connect a V.24 asynchronous terminal, such as a PC to a Digi router. RJ45 - Digi Side DB 9 Signal Pin # (DCE)

  • Page 674: 25-Pin To 9-Pin Crossover Cable

    RS-232 (V.24) serial cable wiring Note Frame Ground is optional. 25-Pin to 9-Pin crossover cable This is normally the cable to connect the router to an external asynchronous modem. DB 25 - Digi Side DB 9 Signal Pin # (DCE) Pin # (DTE)

  • Page 675: Rj45 To 9-Pin Crossover Cable

    Having done this, carefully remove the case lid and locate the X.21 adapter card (illustrated below): The correct settings for clock source or clock sink operation for the X.21 daughter card compatible with GR2130, IR2140 and IR2420 routers are shown below: Digi TransPort User Guide...
  • Page 676 Configuring X.21 on older models Having set the links correctly, reassemble the case ensuring that the lid is correctly oriented. Digi TransPort User Guide...

  • Page 677: Template Structure

    This may depend on the SMTP server as to what is accepted. For example: FROM: WR44 FROM: wr44@mycompany.com SUBJECT This field should contain a string describing the subject of the email message. For example: Digi TransPort User Guide...
  • Page 678 Inserts the IP address for a specific PPP instance, where instance is the PPP instance number. The following are examples of email templates. TO: 123@abc.co.nz FROM: MyRouter SUBJECT: Remote Configuration  This blank line is required Time: <%timeSmtp();%> Serial Number: <%serial_number();%> Digi TransPort User Guide...
  • Page 679 This ensures that the attachments are not included unnecessarily with non-critical events and using up all the data allowance on a wireless connection. <%run_cmd("chkst","5");%> An example template adding CLI commands with priority values would be: TO: fred@anyco.com, jane@anyco.co.uk FROM: MyRouter SUBJECT: automatic email MIME-Version: 1.0 Digi TransPort User Guide...
  • Page 680 This event had sufficient priority to cause the transmission of this email. Please check the attached logs and review. <%run_cmd("chkst","5");%> In the example above, the command chkst will only be executed when an event with a priority equal to or higher than 5 is detected. Digi TransPort User Guide...

  • Page 681: Fcc Part 68 Declarations (For Transport Dr Models Only)

    Telephone company compliance If the Transport DR, causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
  • Page 682 OEM advisory For OEM use, the mounting of the Transport DR in the final assembly must be made so that the Transport DR is isolated from exposure to any hazardous voltages within the assembly. Adequate separation and restraint of cables and cords must be provided. The circuitry from the Transport DR to the telephone line must be provided in wiring that carries no other circuitry (such as PC or PR leads) unless specifically allowed by the rules.
  • Page 683 Always On Dynamic ISDN APACS Association of Payment Clearing Services, the UK payments association Access Point Name Asynchronous Transfer Mode or Automatic Teller Machine ARFCN Absolute Radio Frequency Channel Number BACP Bandwidth Allocation and Control Protocol Bandwidth Allocation Protocol Digi TransPort User Guide...
  • Page 684 DHCP Dynamic Host Configuration Protocol DLSw Data-Link Switching Domain Name Server Dead Peer Detection DSCP Differentiated Services Code Point Digital Subscriber Line Data Terminal Equipment Dial-Up Networking EDGE Enhanced Data GSM Environment Encapsulating Security Payload protocol Digi TransPort User Guide...
  • Page 685 Internet Group Management Protocol Interior Gateway Protocol Internet Key Exchange IMEI International Mobile Equipment Identification IMSI International Mobile Subscriber Identity Internet Protocol IPCP Internet Protocol Control Protocol IPSec Internet Protocol Security ISAKMPInternet Security Association and Key Management Protocol Digi TransPort User Guide...
  • Page 686 Multipurpose Internet Mail Extensions MLPPP Multi-Link Point-to-Point Protocol Mobile Network Code MPPE Microsoft Point to Point Encryption Maximum Receive Unit Multiple Subscriber Number Maximum Segment Size Maximum Transmit Unit NAPT Network Address and Port Translation Network Access Server Digi TransPort User Guide...
  • Page 687 Personal Identity Number PLMN Public Land Mobile Network Point-to-Point Protocol PPPoA Point-to-Point Protocol over ATM PPPoE Point-to-Point Protocol over Ethernet PSDN Packet Switched Data Network Packet System Information PSTN Public Switched Telephone Network Power Up Key Digi TransPort User Guide...
  • Page 688 Short Message Service SMTP Simple Mail Transfer Protocol Systems Network Architecture SNAIP Systems Network Architecture over Internet Protocol SNMP Simple Network Management Protocol SNTP Simple Network Time Protocol Shortest Path First Security Parameters Index Secure Shell Digi TransPort User Guide...
  • Page 689 Universal Mobile Telecommunications System Universal Serial Bus VLAN Virtual Local Area Network Virtual Private Network VRRP Virtual Router Redundancy Protocol Wide Area Network WCDMAWide-band Code-Division Multiple Access WRED Weighted Random Early Dropping W-WANWireless Wide Area Network X.25 Over TCP Digi TransPort User Guide...

Table of Contents
