Installing Alternator Mount Cover; Installing Magnetic Gate/Belt Pulley - BMW R 1100 RT Repair Manual

11 5 680
u

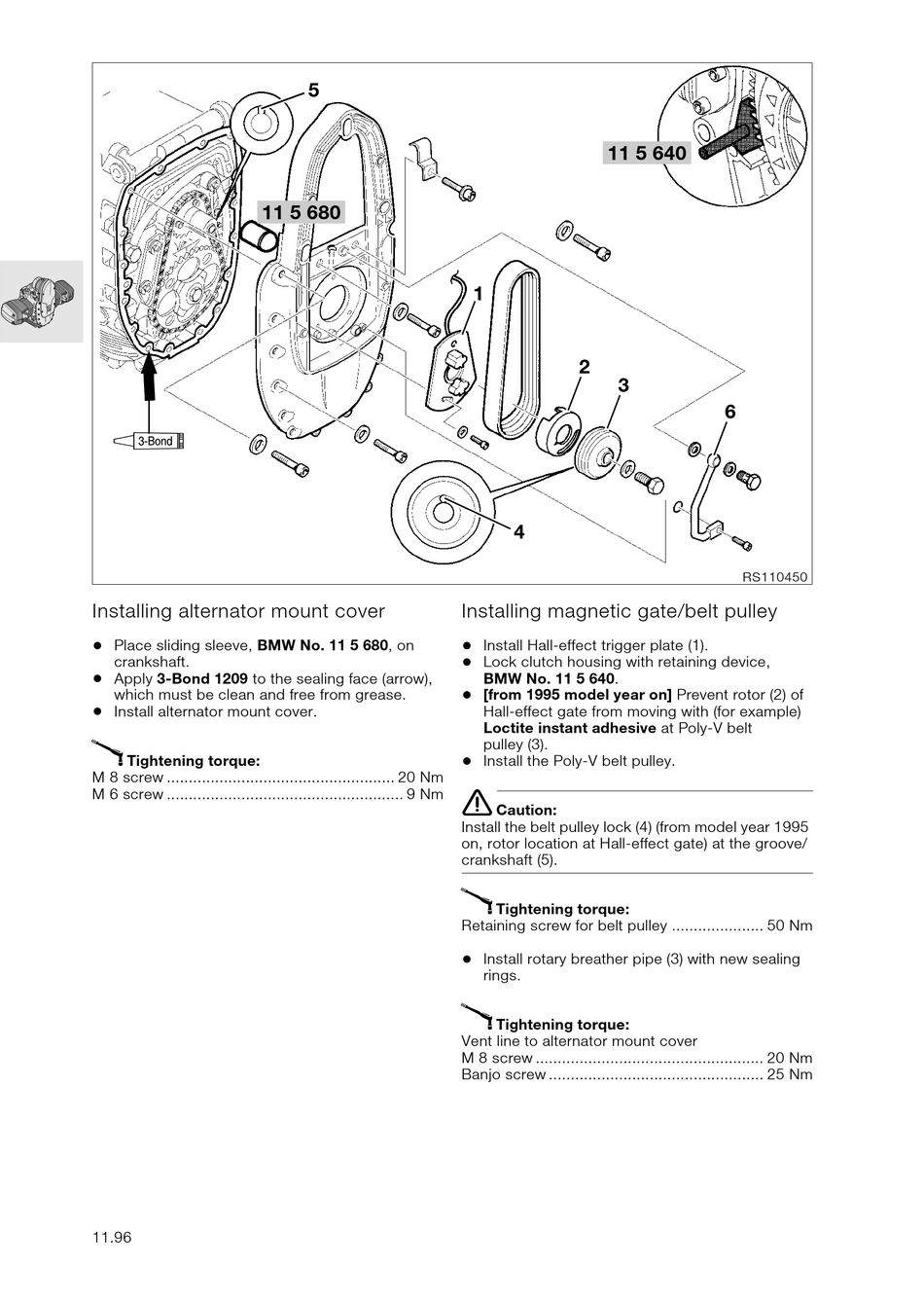

Installing alternator mount cover

•
Place sliding sleeve, BMW No. 11 5 680, on
crankshaft.
•
Apply 3-Bond 1209 to the sealing face (arrow),
which must be clean and free from grease.
•
Install alternator mount cover.
X
Tightening torque:
M 8 screw .................................................... 20 Nm
M 6 screw ...................................................... 9 Nm
11.96
5
1

Installing magnetic gate/belt pulley

•
•
•
•
e
Install the belt pulley lock (4) (from model year 1995
on, rotor location at Hall-effect gate) at the groove/
crankshaft (5).
X
Retaining screw for belt pulley ..................... 50 Nm
•
X
Vent line to alternator mount cover
M 8 screw .................................................... 20 Nm
Banjo screw ................................................. 25 Nm
11 5 640
2
3
4
Install Hall-effect trigger plate (1).
Lock clutch housing with retaining device,
BMW No. 11 5 640.
[from 1995 model year on] Prevent rotor (2) of
Hall-effect gate from moving with (for example)
Loctite instant adhesive at Poly-V belt
pulley (3).
Install the Poly-V belt pulley.
Caution:
Tightening torque:
Install rotary breather pipe (3) with new sealing
rings.
Tightening torque:
6
RS110450
