7.3 Winding the Media onto the Take-up Unit

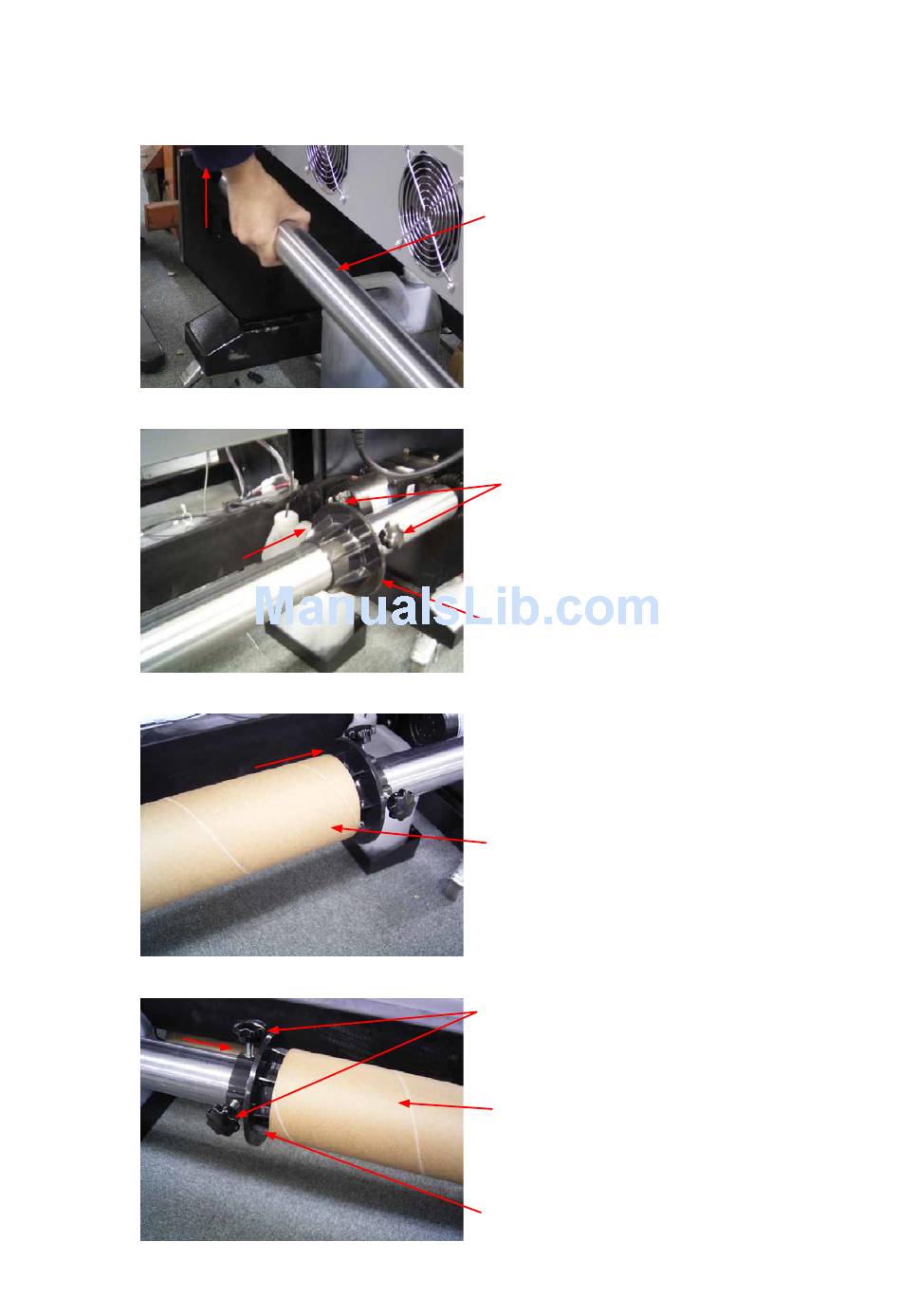

(1) Mount the take-up core flanges and the take-up core.
(a) Raise the take-up roller at the left-hand side and remove it.
(b) Slide one of the flanges onto the roller and then fasten it in place at the right.
(c) Insert the take-up core onto the right flange.
(d) Insert the other flange into the left edge of the take-up core.
(e) Return the take-up roller to its original position.
JS310-UM-251-9370
Take-up roller
Use these two screws to
fasten the flange.
Flange
Take-up core
Use these two screws to
fasten the flange.
Take-up core
Flange
63
7. Media Loading Procedure
