4. Basic Panel Operation

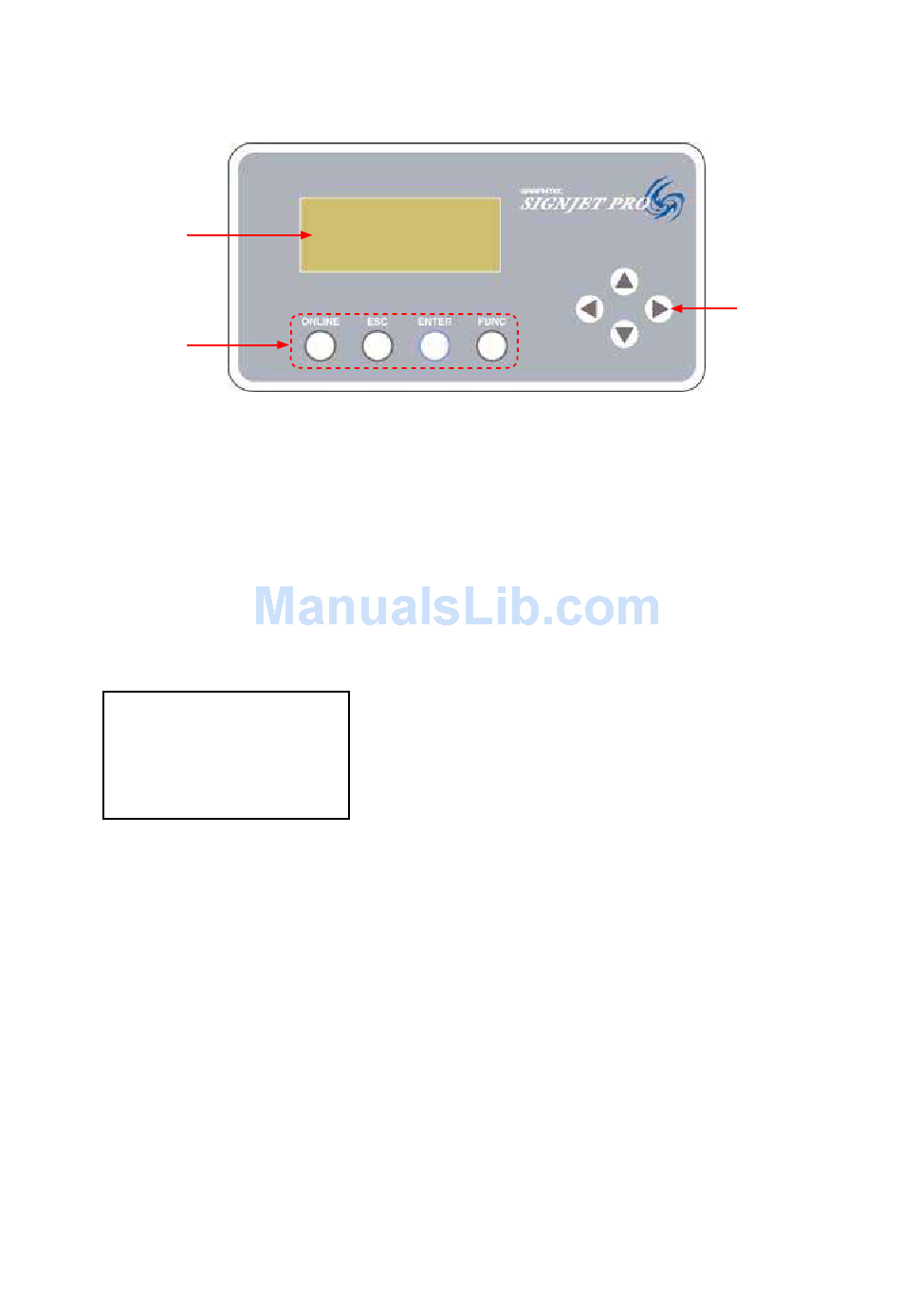

4.1 Menu Structure of Control Panel

LCD
Function Keys

4.1.1 Function description of the keys

Direction keys
(1) Operation via control panel:
UP and DOWN ARROW key:
LEFT and RIGHT ARROW key: Move the cursor position over the number string on LCD.
Function keys
(1) ONLINE:
Switch the printer online and offline / press down and hold it for several seconds to pause printing.
Waiting
Online
(2) ESC:
Cancel operation and return to up-level menu.
(3) ENTER:
Confirm and execute the operation.
(4) FUNC:
Shift to special function. Combine with LEFT ARROW key to test print when the printer is waiting.
Key combination
FUNC + LEFT ARROW key. Test print when printer is waiting.
JS310-UM-251-9370
Scroll the menus for selection; reduce or increase the values on LCD.
13
4. Basic Panel Operation
Direction Keys
