8.8 Media Feed Amount Compensation

The setting for the media feed amount (Feed Compensate on the Try utility) varies according to the thickness of the
media used. Change this setting whenever you change the type of media used.

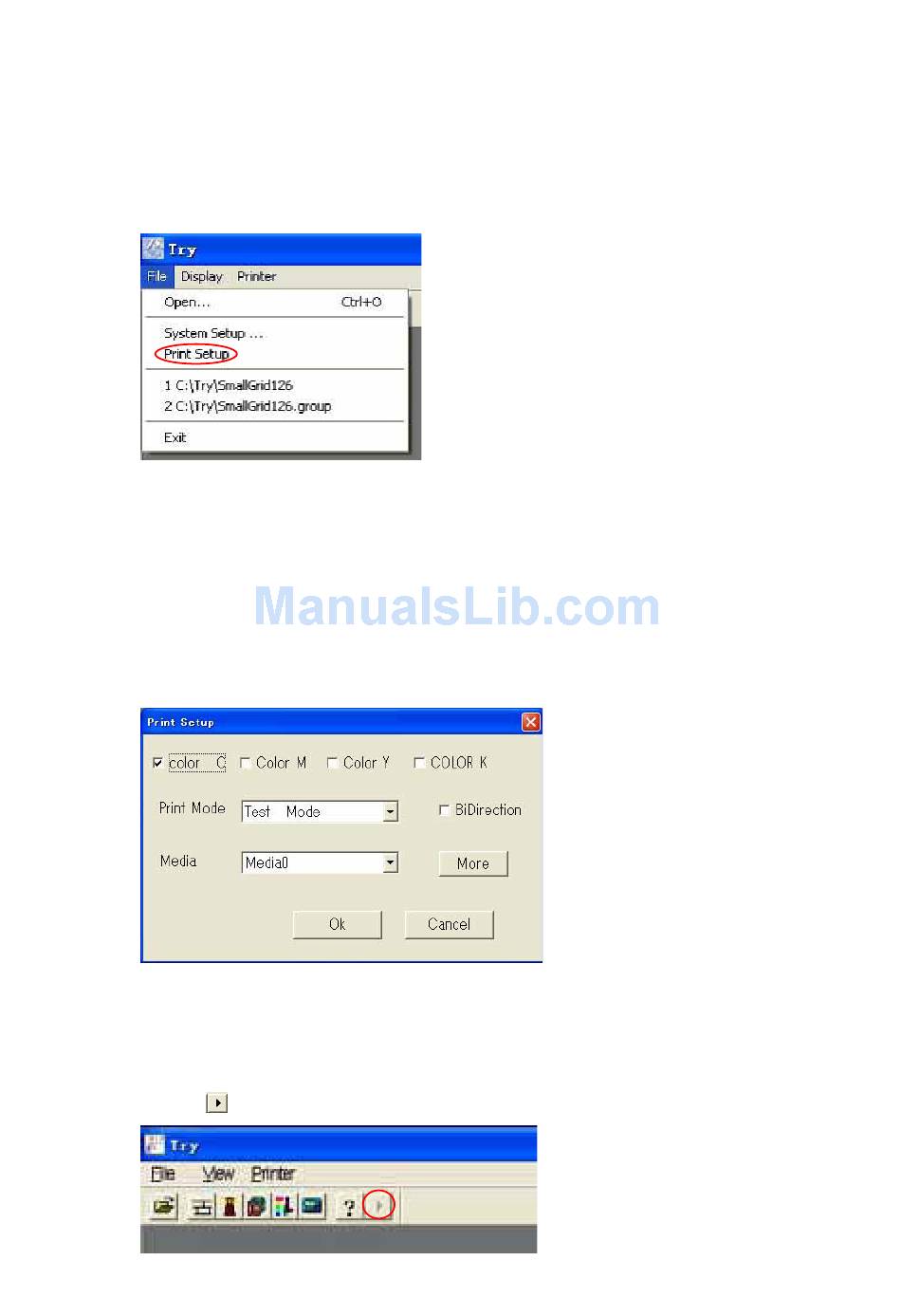

(1) Select the print mode.
(a) Press the ONLINE key on the control panel to put the printer into ONLINE status.
(b) On the menu bar, click File -> Print Setup.
(2) Set the following settings to print adjustment pattern:
(a) Apply a check in the box in front of "Color C" (Cyan).
This depends on which color is adjusted.
(b) Remove the checks from the boxes in front of the other three colors (Color M (Magenta), Color Y (Yellow),
and Color K (Black)).
This depends on which color is adjusted.
(c) Select "Test Mode" for "Print Mode".
(e) Remove the check from the box in front of "BiDirection".
(d) Click "OK".
(3) Select an adjustment pattern and print it.
(a) On the menu bar, click File -> Open.
(b) Open the file "C: /Try/SmallGrid126.group"
(c) Click the
(d) Only cyan will be printed.
JS310-UM-251-9370
button on the tool bar to print the selected pattern.
8. Print Head Adjustment Procedures
81
